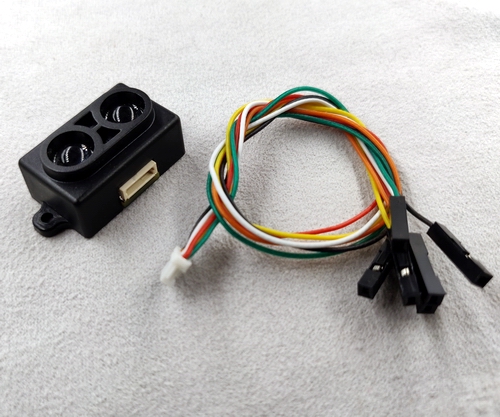

Gy-tof10m infrared laser ranging sensor module

Module size: 26 * 16 * 12.5mm

Output mode: serial port / IIC / switching value

Power supply: 3.7v-5v 80mA

Output update frequency: 1-200hz

Ranging accuracy:

15cm—-3m （±5cm）

3M ——- 10m (± 1.5%)

Field angle: 2 degrees

Module weight: 5g

Operating temperature range: – 10-60 ° C

characteristic:

You can set the serial port automatic output and query output mode.

It can communicate with IIC, and the bus is connected to multiple modules.

You can set the high and low level of distance switch output.

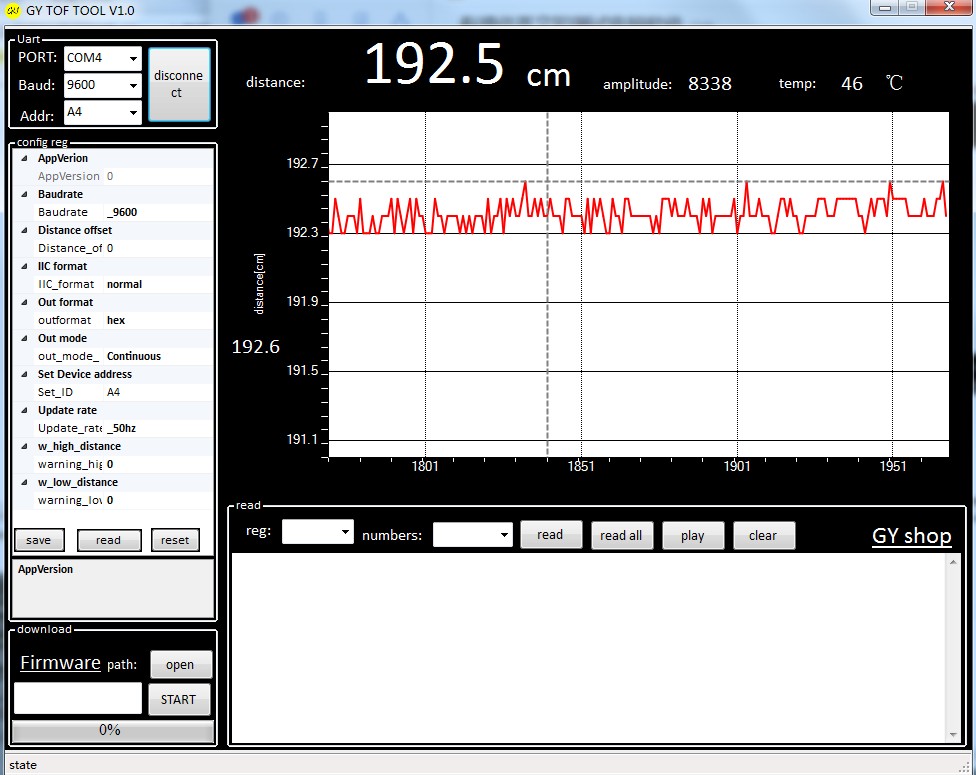

There is upper computer software

Existing data reading programs: 51 single chip microcomputer, STM32, Arduino

Application:

Flight control, fixed height, obstacle avoidance

Robot system

sweeping machine

Billboard

Intelligent parking space

Intelligent trash can

Anti light interference, can be used indoors and outdoors, and the effect is much better than that of vl53l1

Iic can set special mode (gyus42 ultrasonic protocol) and support flight control such as AMP and Px4
