Description
- Item Type: Stage Lighting Effect
- Style: DMX Stage Light
- Occasion: Professional Stage & DJ
- Model Number: laser dance
- Power: 5W
- Voltage: 5V
- Brand Name: DYUE

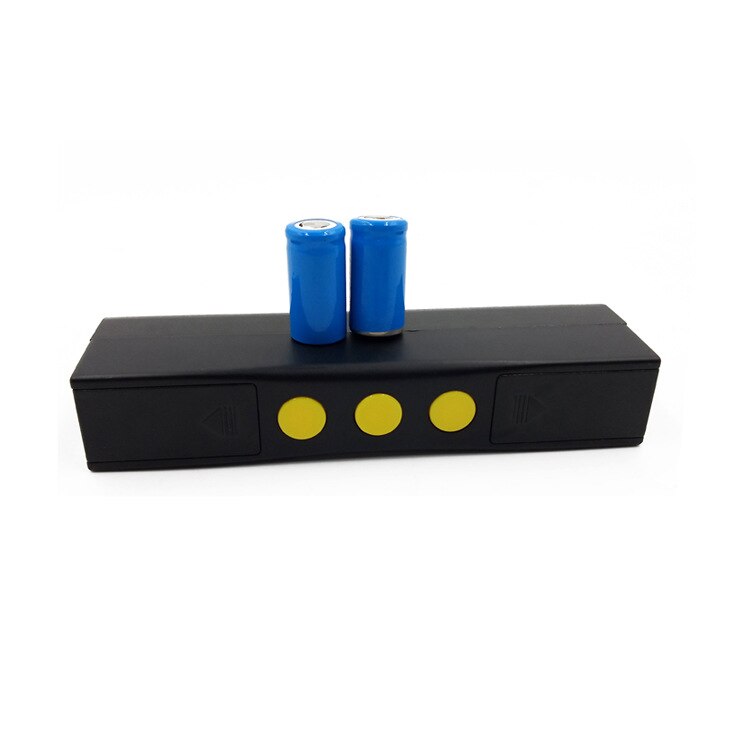

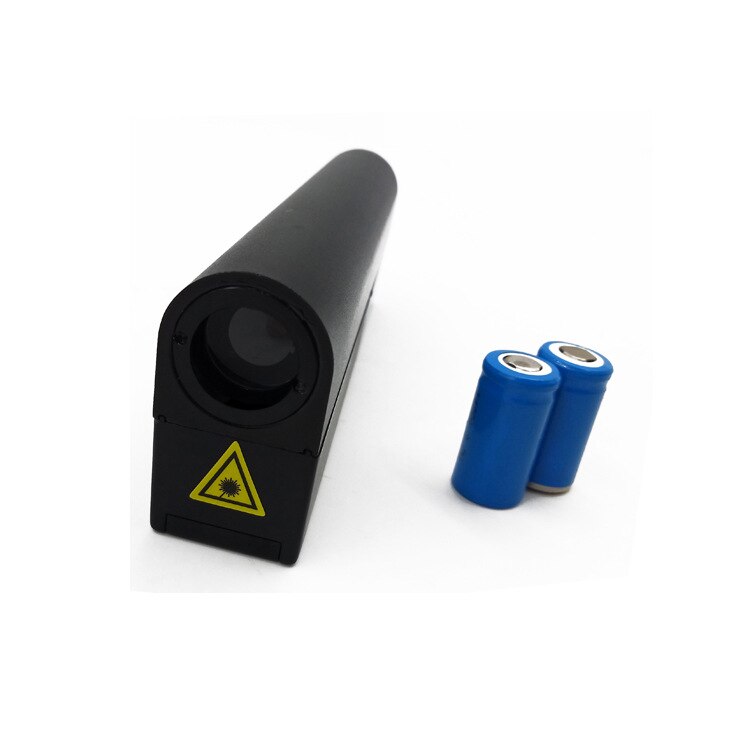

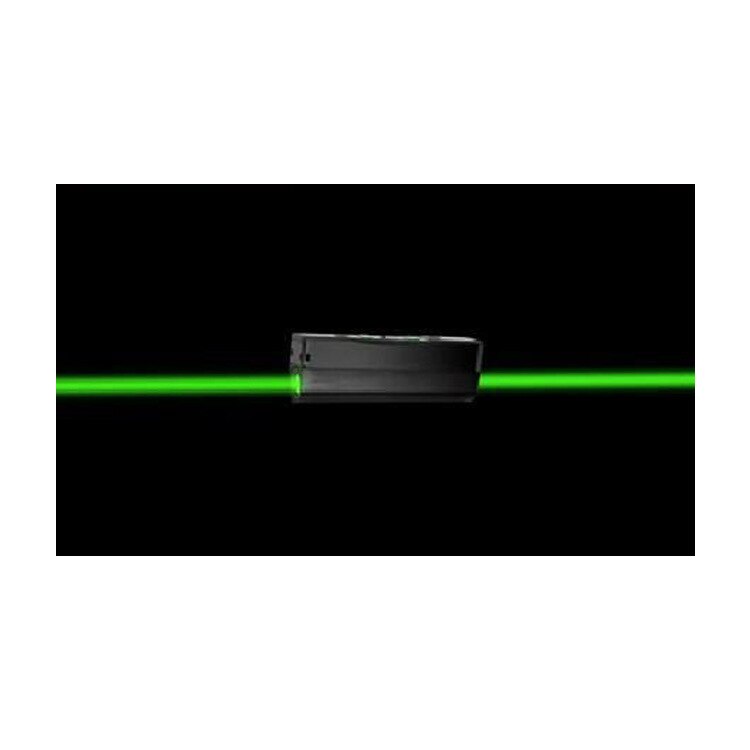

Mini Dual Direction Green Laser Sword For Laser Man Show 532nm 100mW Double-Headed Wide Beam Laser Double laser pen
| Serial Number | Category | Parameters |

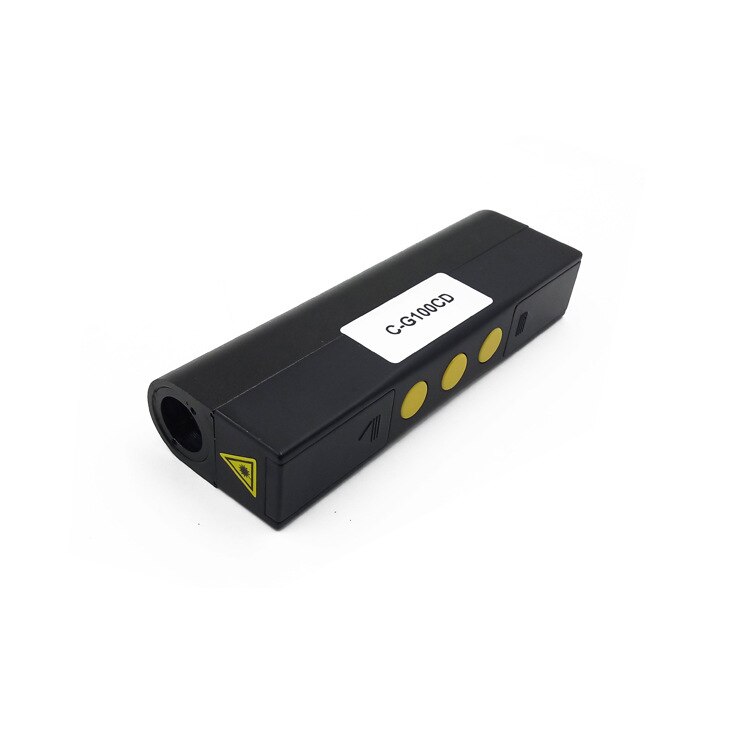

| 1 | Name | C-G100CD |
| 2 | Wavelength | 520nm |
| 3 | Output power | More than 100 mW |
| 4 | Spot mode | Round spot |
| 5 | Spot size (1 m) | & Phi; 15mm |
| 6 | Divergence angle | ≤ 1 mrad |
| 7 | Laser level | Class 3 |
| 8 | Control style | Key start |
| 9 | Input stability | ± 5% |
| 10 | Input voltage | 7.8 V |
| 11 | Current | 320mA |
| 12 | Rated power consumption | 3.8 W |
| 13 | “With environment temperature | -10 ~ 50 ℃ |
| 14 | Life | 8000 h |
| 15 | Size | 137*25*47mm |
| 16 |
Weight |
175g |
Aupu da laser module of characteristics:
1, Spot fine and clear divergence angle small collimation of good volume small
2, Temperature control, drive and laser fully integrated structure small compact external just DC power supply
3, After high and low temperature storage and vibration impact test has reliable of stability temperature in-10 ~ 70Of range when CanContinuous24Hours stability work.
4, Precision science of heat dissipation design, two-way temperature control and perfect of temperature protection function, can as far as possible the extension of laser of life.
