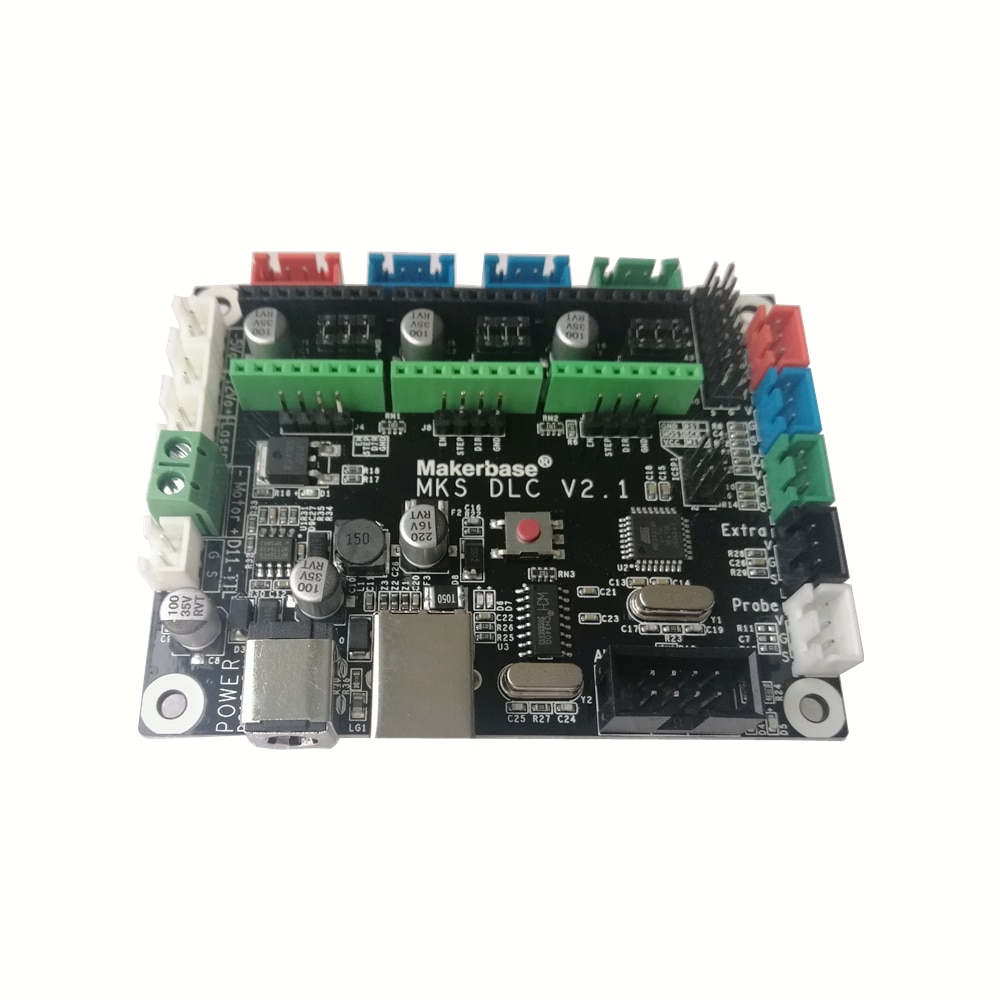

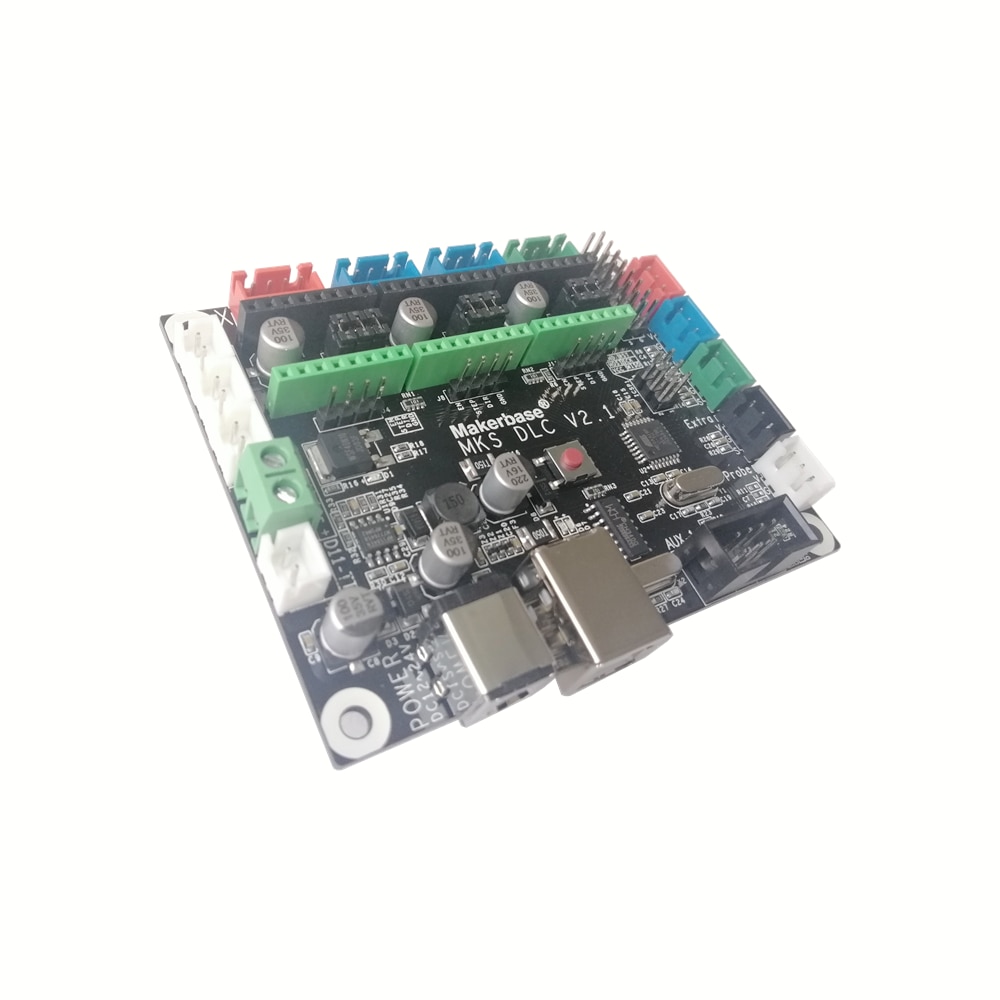

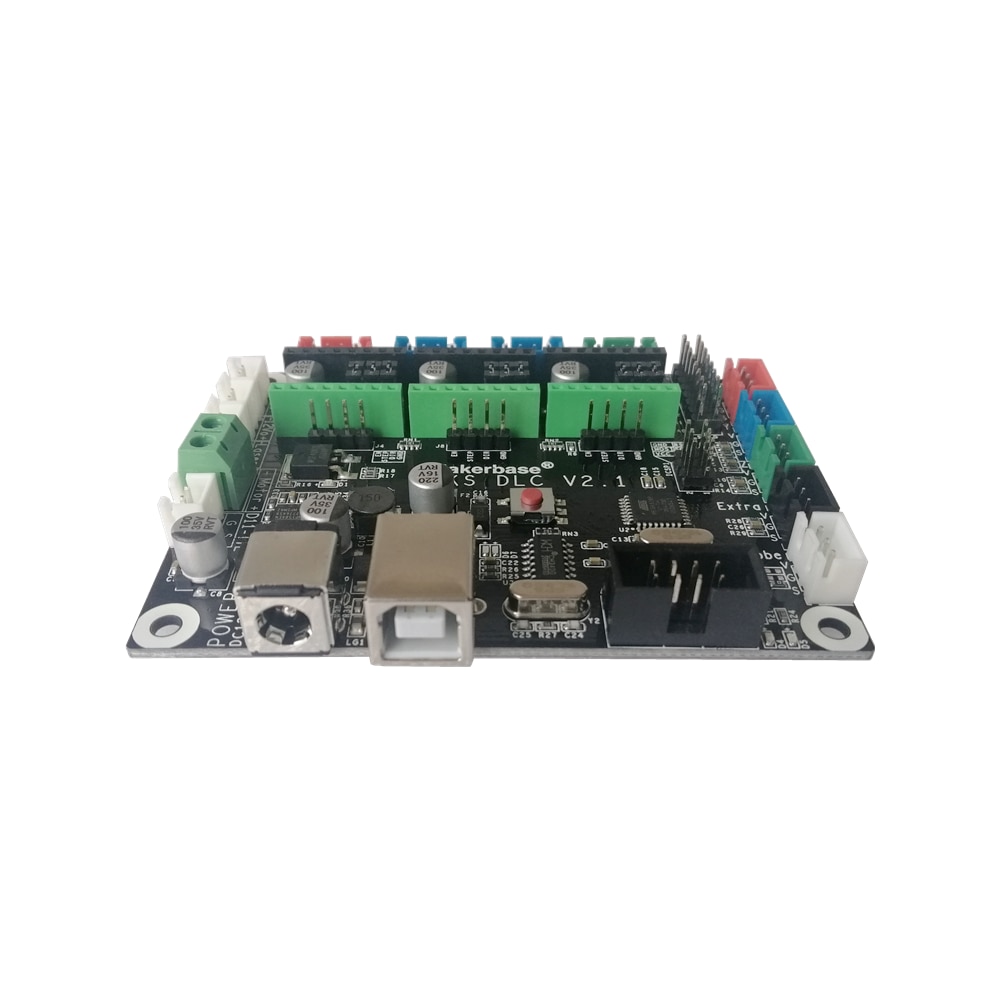

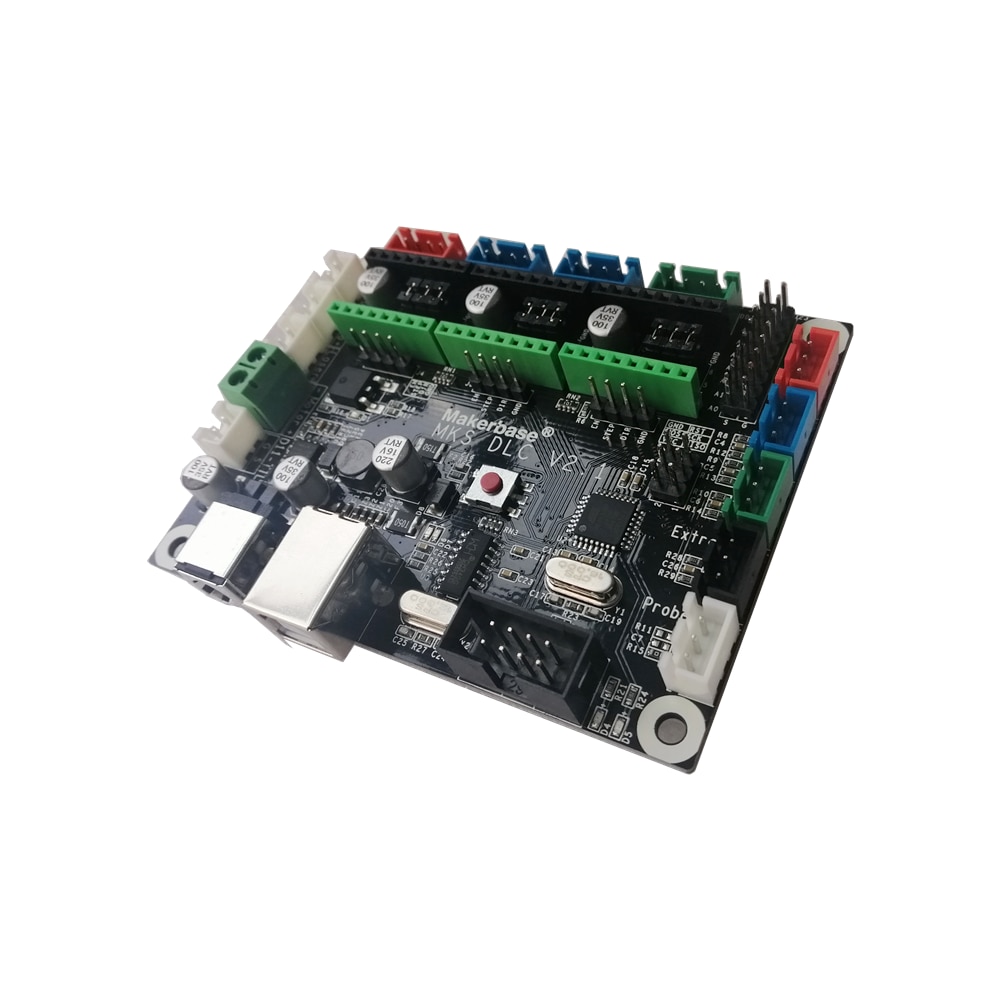

GRBL laser engraving parts MKS DLC v2.1 board DIY CNC driver module control card CNC electronics USB port for home laser machine

$38.40

13027 in stock

SKU: 1000007220421 Category:

Description

  • Brand Name: Makerbase
  • Origin: CN(Origin)
  • Item Type: Motherboard
  • Model Number: MKS DLC V2.1
  • Machine: CNC laser engraving,writing machine,arm robot Servo,etc
  • Compatible: GRBL 1.1
  • Software: grblcontrol,candle, lasergrbl

The control baord already pre-installed GRBL firmware.
Default baudrate 115200.


Packing list

1 * MKS DLC V2.1

1 * USB

Name: MKS DLC



Wiring



PINOUT




Size

Firmware download and update

https://github.com/Macrobase-tech/CNC-Firmware

Install Xloader to PC,upload GRBL firmware to MKS DLC board.


Drivers Parameters

Caution!

Please mind the power polarity and  drivers direction.
Please don’t put the drivers or motors on/off when power on.
Please disconnect all motors when adjust driver current.
