Description
Product Description

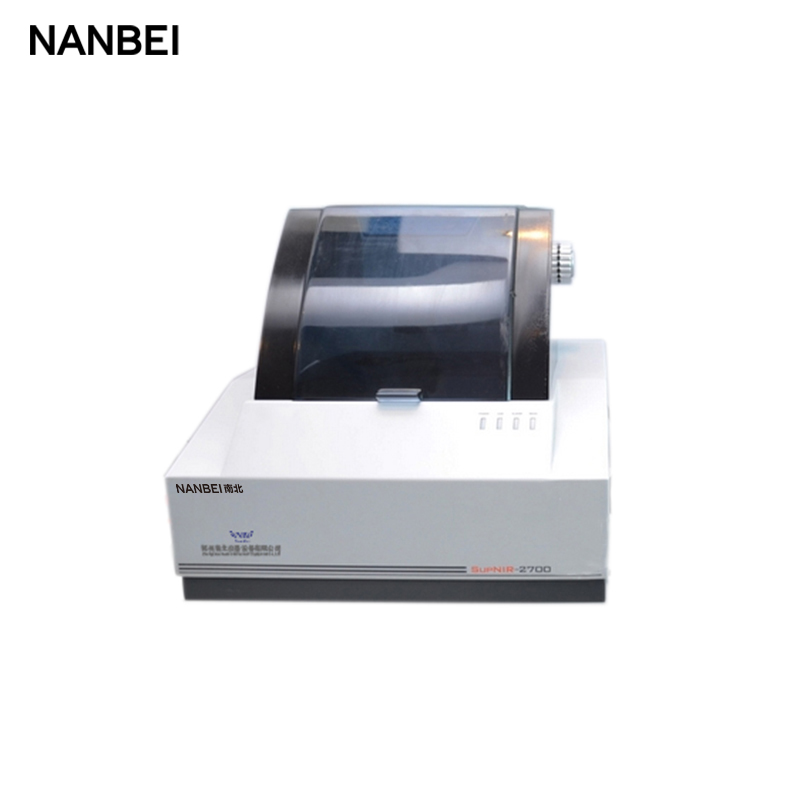

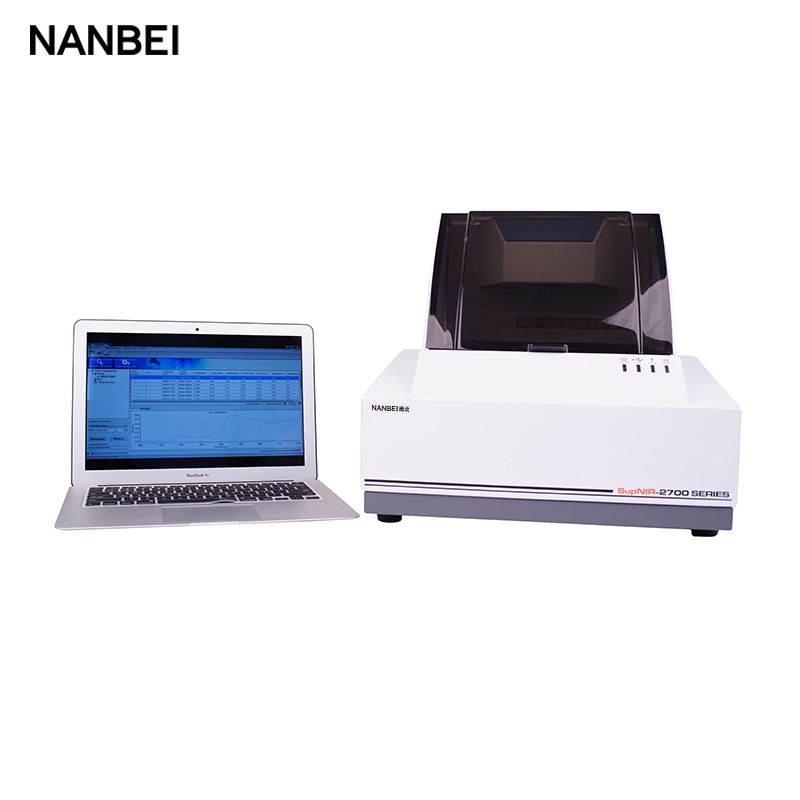

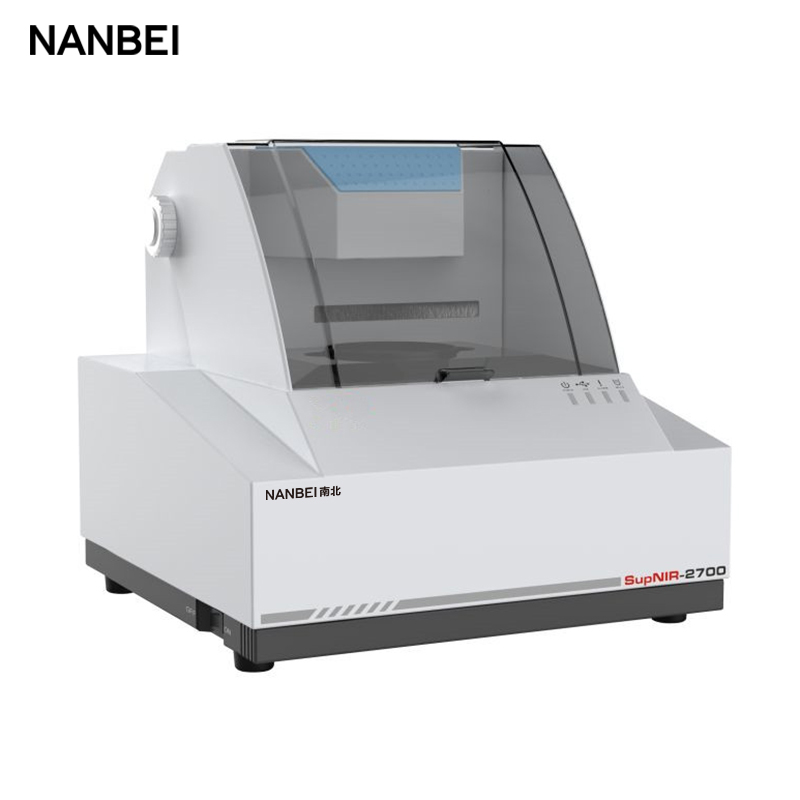

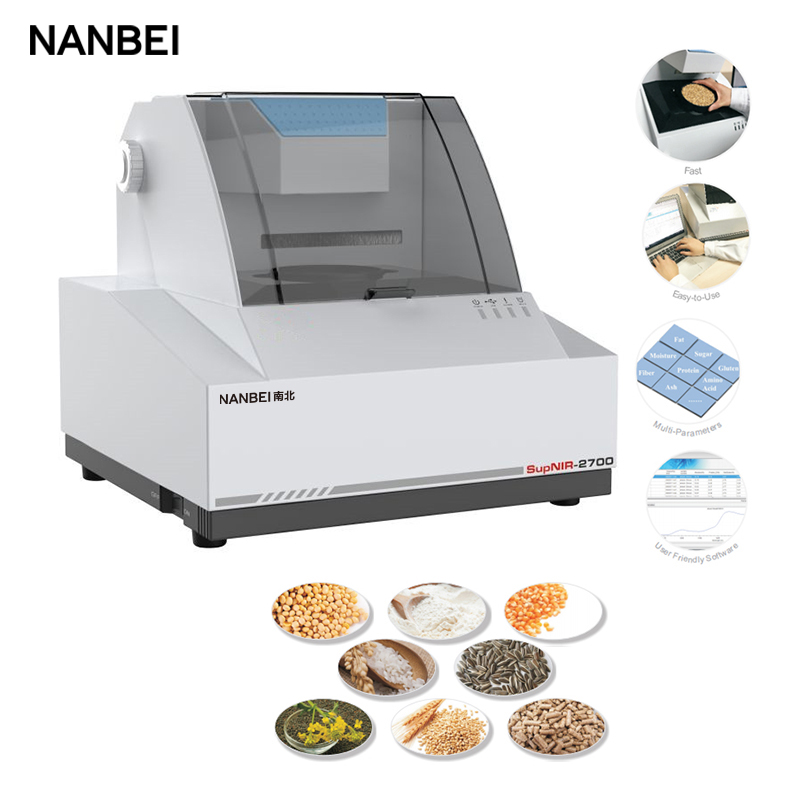

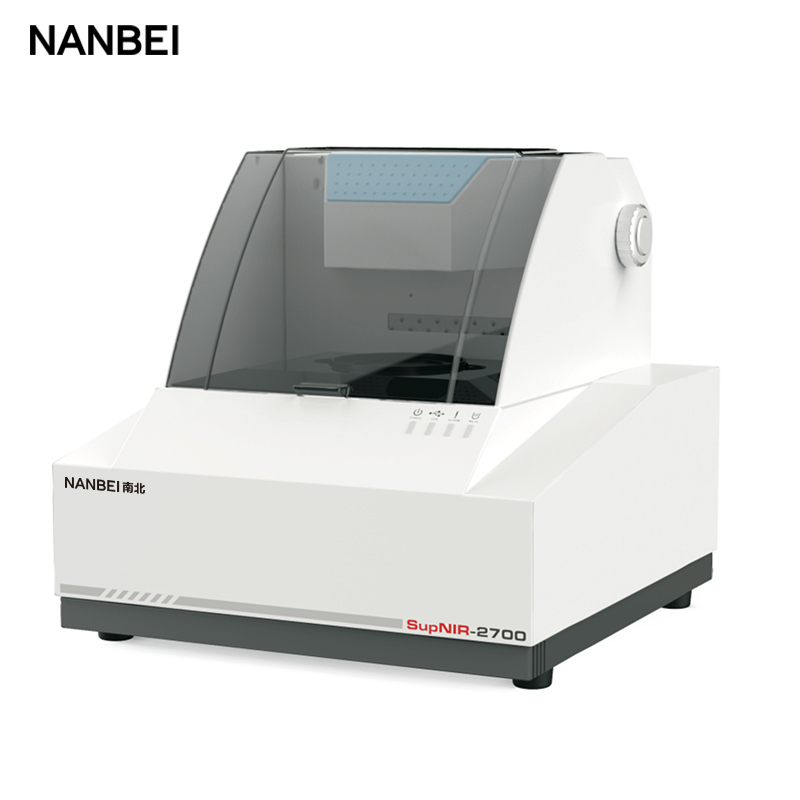

Animal feed protein fat fiber moisture ash analysis nir analyzer
Fast : 10-second analysis of all type of samples; High performance : High accuracy,Repetability,Sability and Reliability Easy to Implement,Operate and Maintain modern Technologoy and a wide range of Acailable calibrations Free of Charge User-Friendly Software with Multiple Statistics Analysis
More Details Photos
Specification
|
Wavelength Range
|
1000nm-1800nm
|
|
Product name
|
Animal feed protein fat fiber moisture ash analysis nir analyzer
|
|
Wavelength
|
1000-1800nm
|
|
wavelength accuracy
|
0.2nm
|
|
wavelength repeatability
|
±0.05nm
|
|
Spectrum resolution
|
10nm
|
|
Stray light
|
<0.1%
|
|
Communication interface
|
USB
|
|
Light source
|
5V,10W,Tungsten halogen lamp with expected lifespan more than 5000 hours, User changeable via specific disassemble tool
|
|
Test time
|
<3seconds
|
|
Software
|
RIMP
|
|
Measurement mode
|
Diffuse reflectance
|
|
Detector
|
High Performance ultra- cooled InGaAs (Indium Gallium Arsenide) detecor to -25℃, dual stage temperature stabilized
|
|
Optical Brandwith
|
10.95 ±0.3 nm @ 1395.5 nm
|
|
Background noise
|
<50uA
|
|
Sample volume
|
Flexible 50-150 ml, 3 types of sample cup
|
|
Analysis time
|
6-10 sec. (30 scans / sample =6s, scan speed= 5 times/ sec.)
|
|
Work temperature
|
5-35℃
|
|
Work humidity
|
<90% RH, < 85% RH recommended
|
|
Power Supply
|
198-242 V, frequency 50 Hz, 0.5 A
|
|
Dimensions (L ×W ×H)
|
403 ×391 ×374 mm
|
|
Weight
|
18kg, 40 lbs.; 40kg, 88 lbs. with veneer package
|
