Description
- Brand Name: EC Buying
- Origin: CN(Origin)
- Condition: New
- Type: Voltage Regulator
- Model Number: GPS Positioning Module
- Operating Temperature: GALILEO QZSS SBAS
- Supply Voltage: IIC I2C Wireless module
- Dissipation Power: BDS GPS GLONASS
- is_customized: Yes
- Application: –
- Package: TQFP

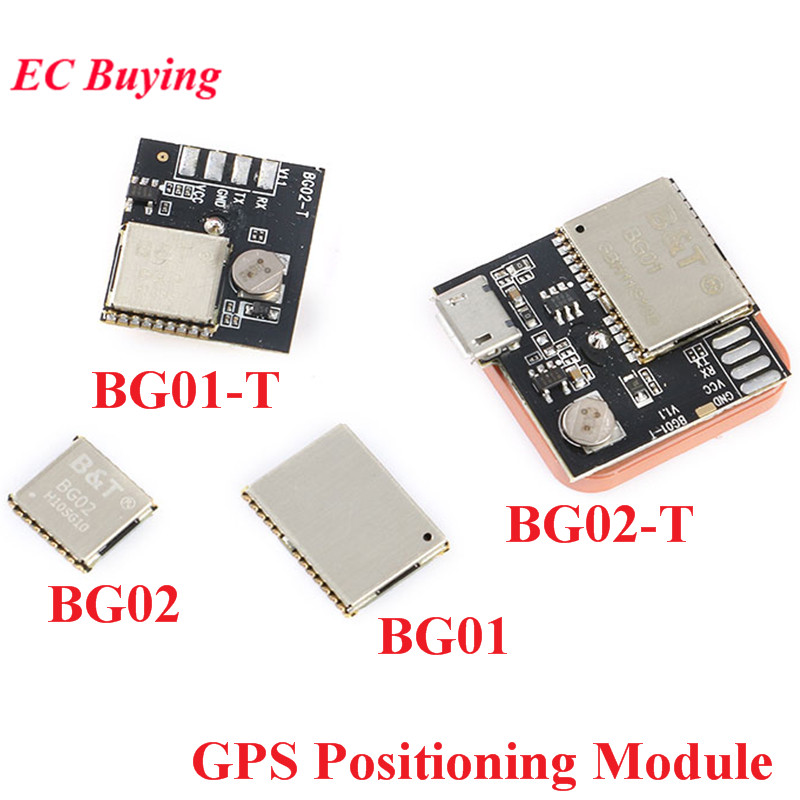

GPS Positioning Module Beidou Navigation Dual-mode BG01-T BG01 BG02 BG02-T IIC I2C Wireless Data Transmission BDS GLONASS GALILEO QZSS SBASBG01 TBG02
Description:

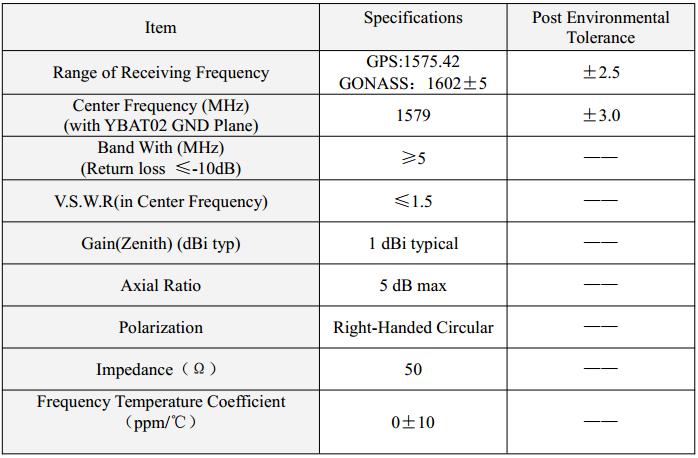

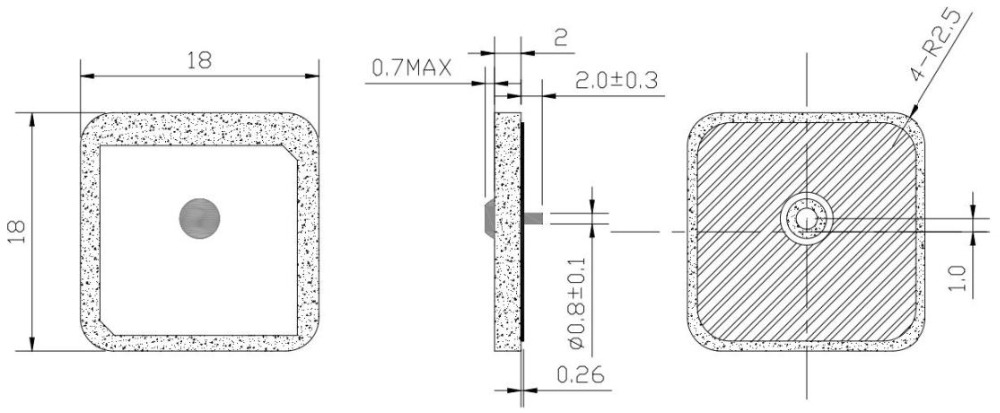

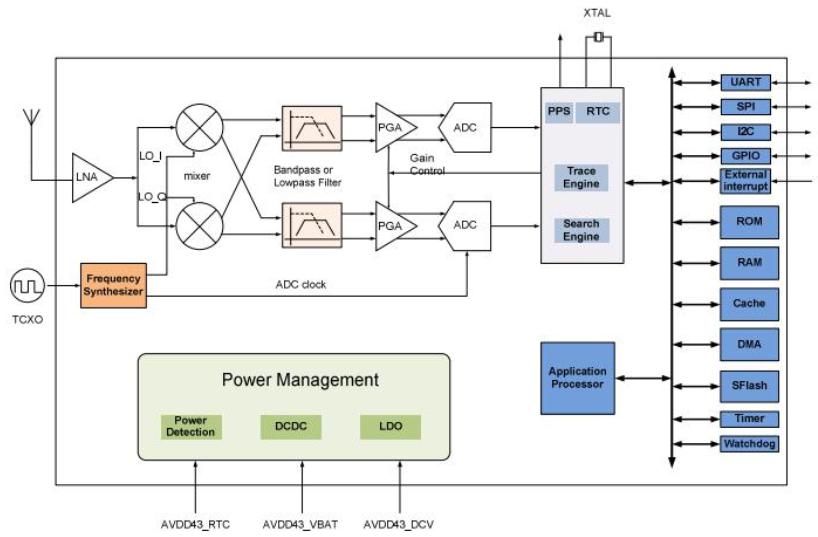

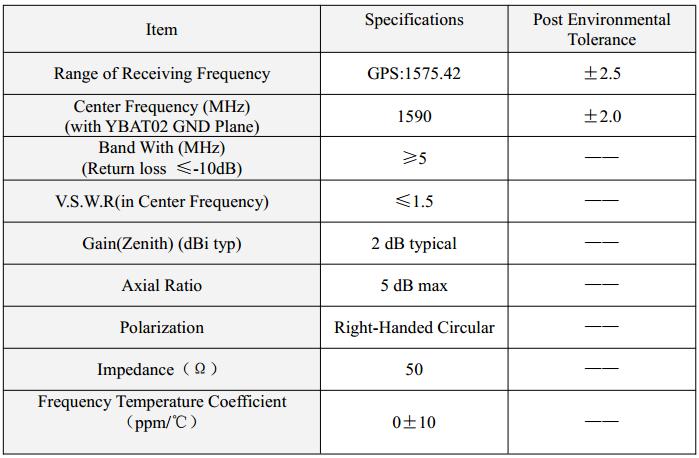

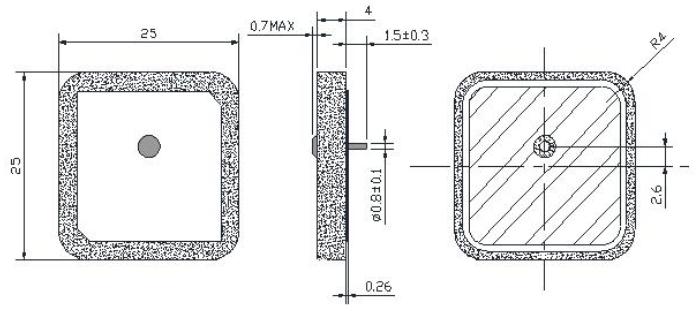

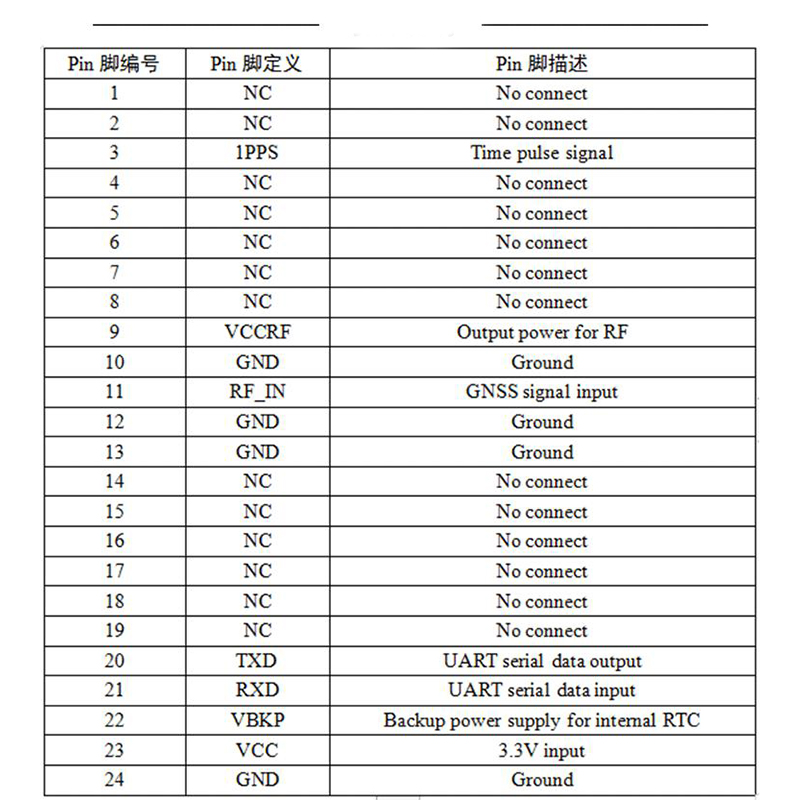

The BG01/02 is a highly integrated GNSS SOC module, Main chip is GK9501.It is a high-integration Multi-GNSS SOC that supports BDS/GPS/GLONASS/GALILEO/QZSS/SBAS with low power consumption. It integrates DC/DC,LDO, LNA, RF receiver,Base Band, 32-bit RISC CPU, RAM, Flash, RTC and PMU,and provides kinds of interfaces like UART, I2C, SPI and GPIO.The BG01/02 supports crystal and TCXO input. It also provides battery backed-up memory and a real-time clock to accelerate acquisition and reduce the TTFF(Time to First Fix). BG01/02-T with ceramic antenna.

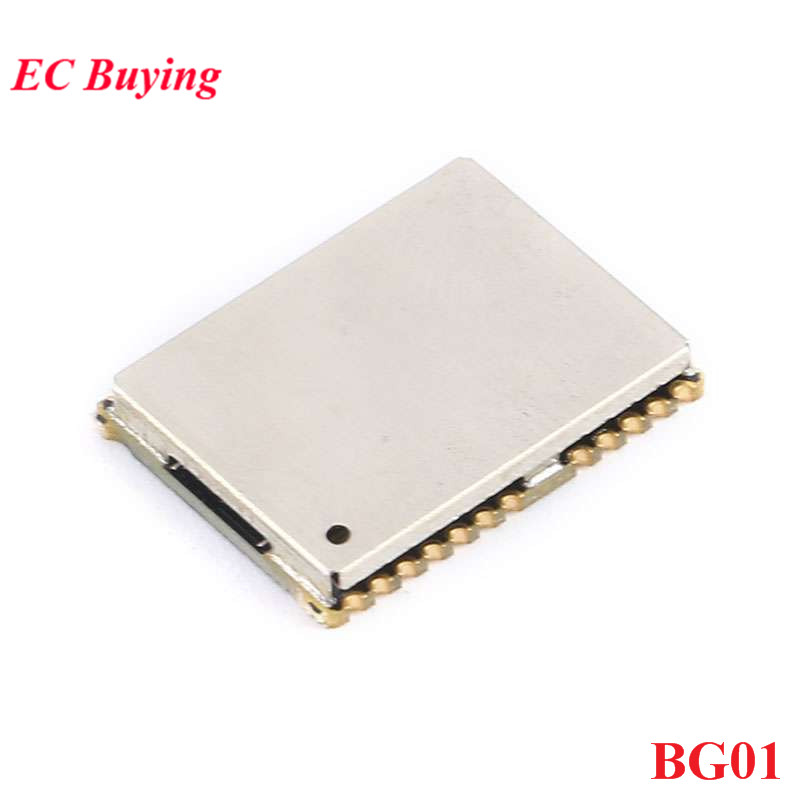

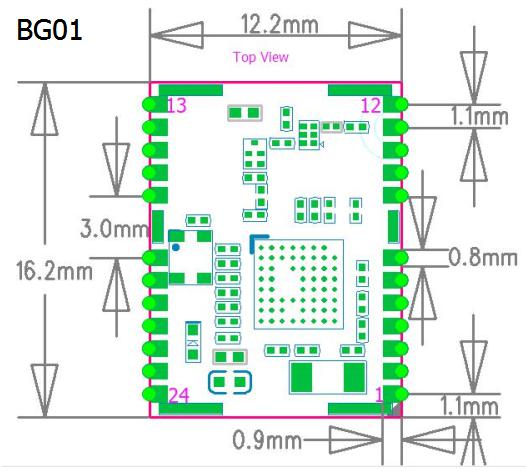

BG01

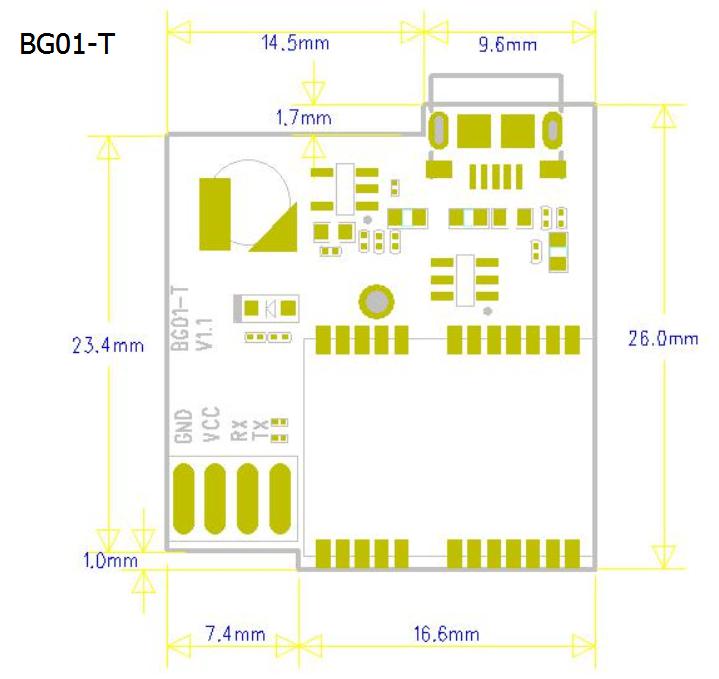

BG01-T

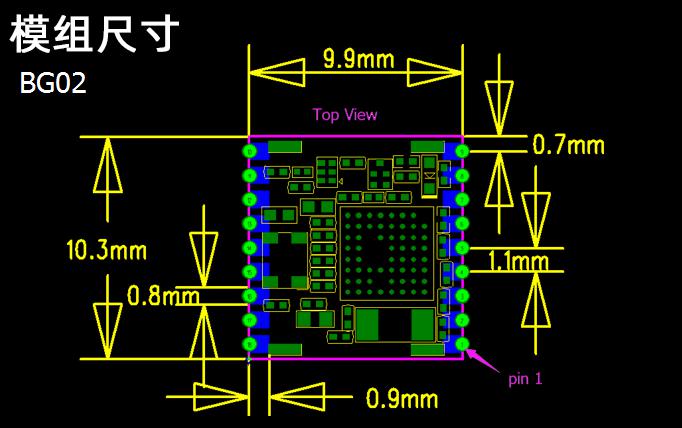

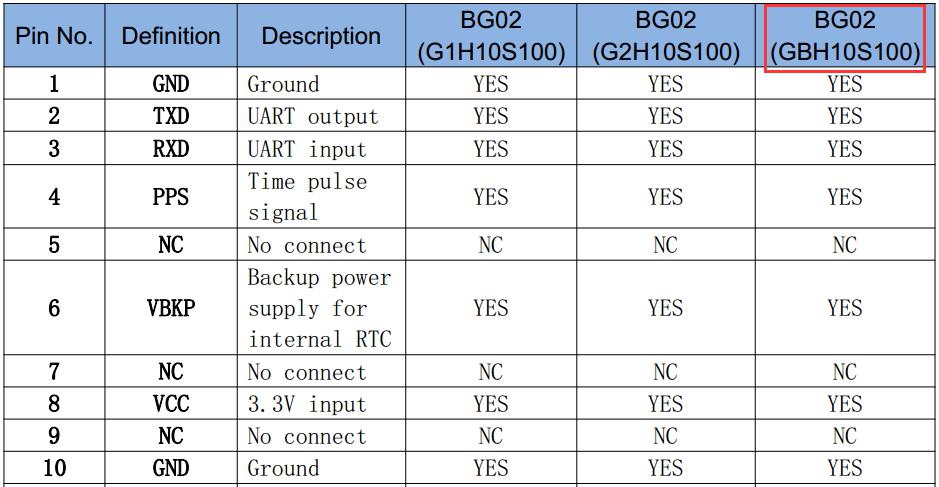

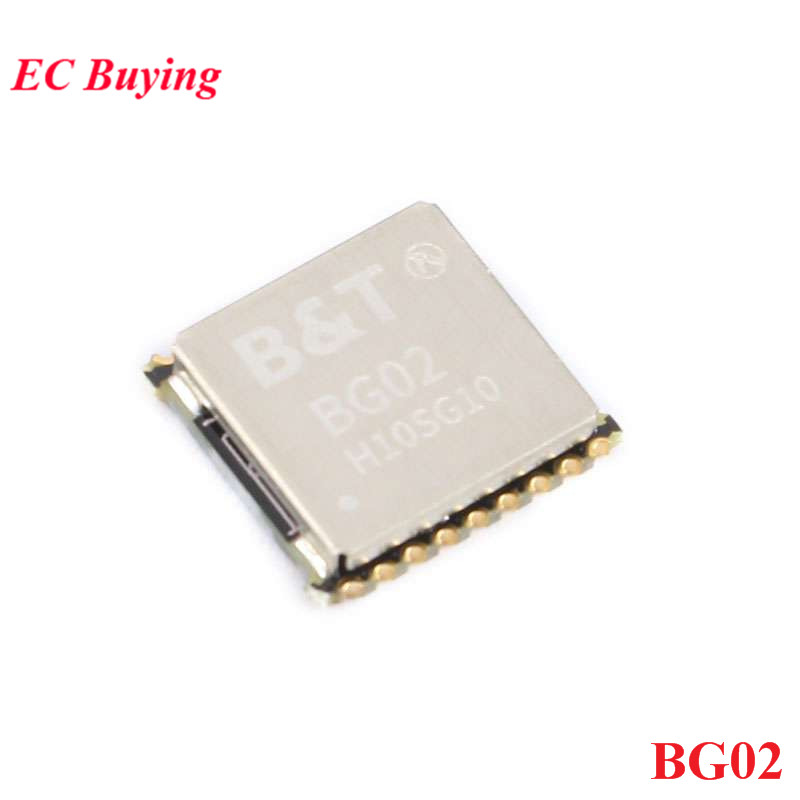

BG02

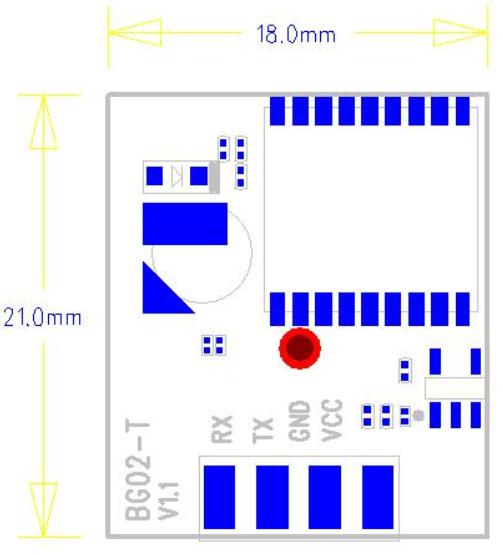

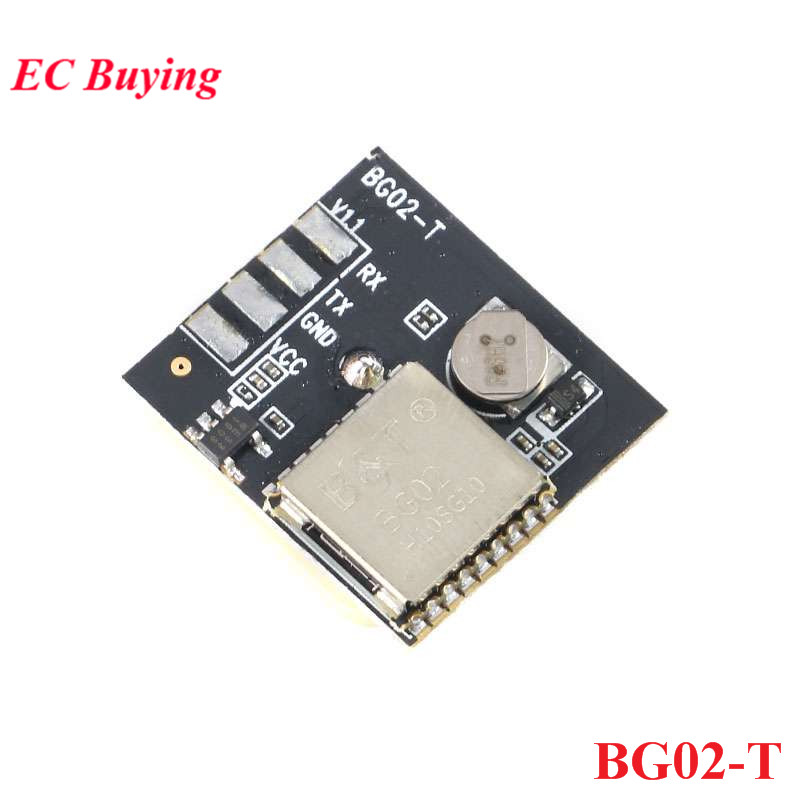

BG02-T
