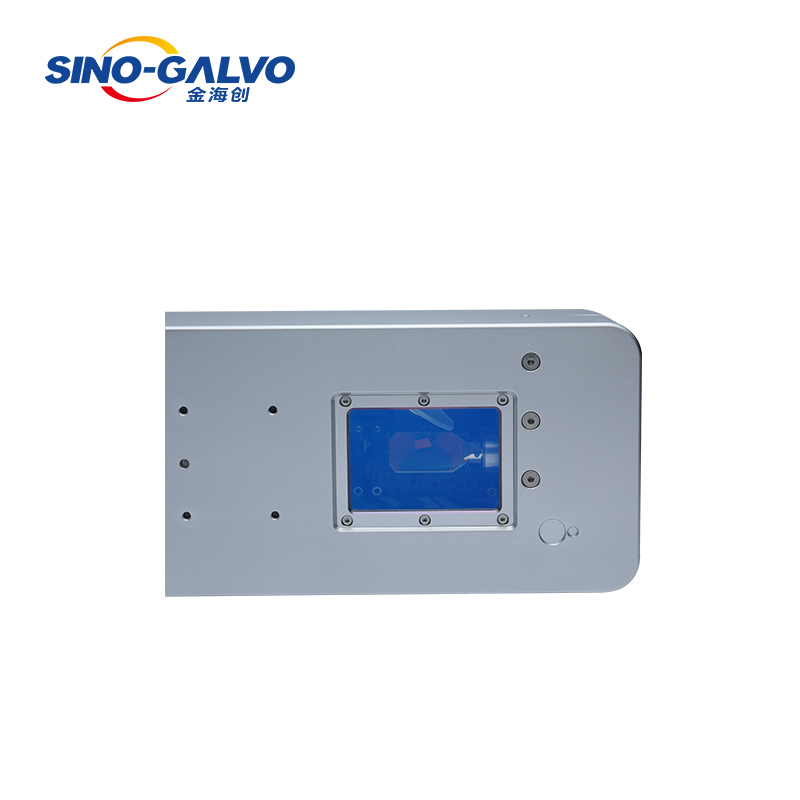

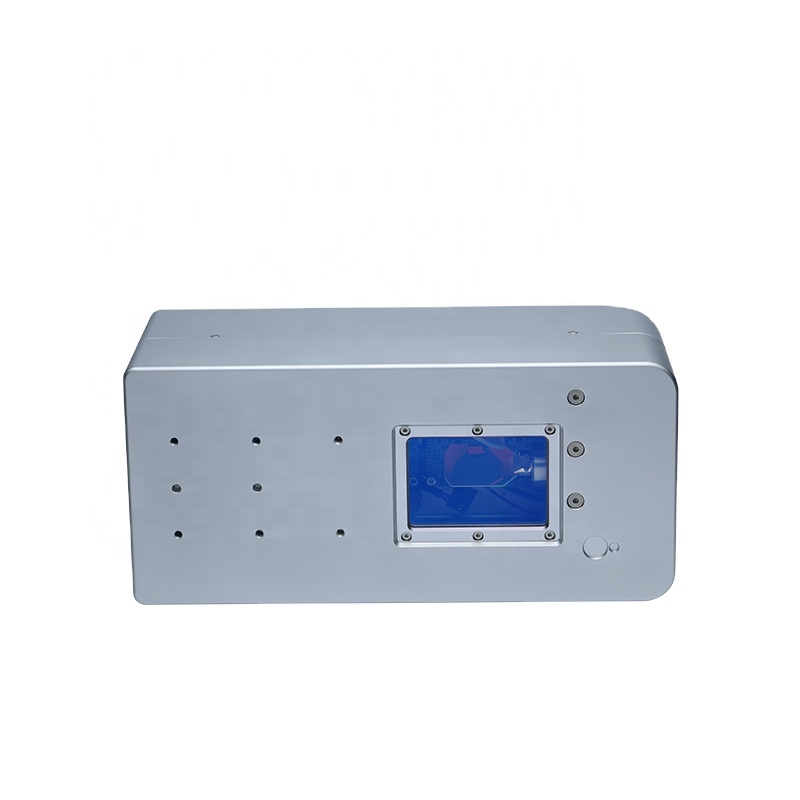

Industrial Galvo Laser Scanner Curved Surface Non-contact Permanent 3D Marking Head
Product Description
The model FL8220-3d Galvo scanner has compact design, high positioning accuracy, higher marking speed, and strong anti-interference ability. In the process of dynamic marking, the marking line has high precision, distortion free, power uniform, pattern without distortion, the overall performance has reached the international leading level in the field.
Motor Specification of laser scanner 3d:
| Working Temperature | 0℃-45℃ |
| Linearity | 99.9% |
| Setting Time | ≤0.8ms |
| Scale Drift | <40PPM/℃ |
| Zero Drift | <15μRad./℃ |
| Long-term Drift over 8 hours | <0.5mRad |
| RMS Current | 2.0A |
| Peak Current | 15A |
| Maximum Scan Angle | ±15° |
| Storage Temperature | -10 to +60℃ |
| Resolution | 12μRad |
| Repeatability | 8μRad |
| Input Aperture | 20mm |
| Beam Displacement | 18.7mm |
| Motor Weight | 280g |
