Product Description



Technical parameters:

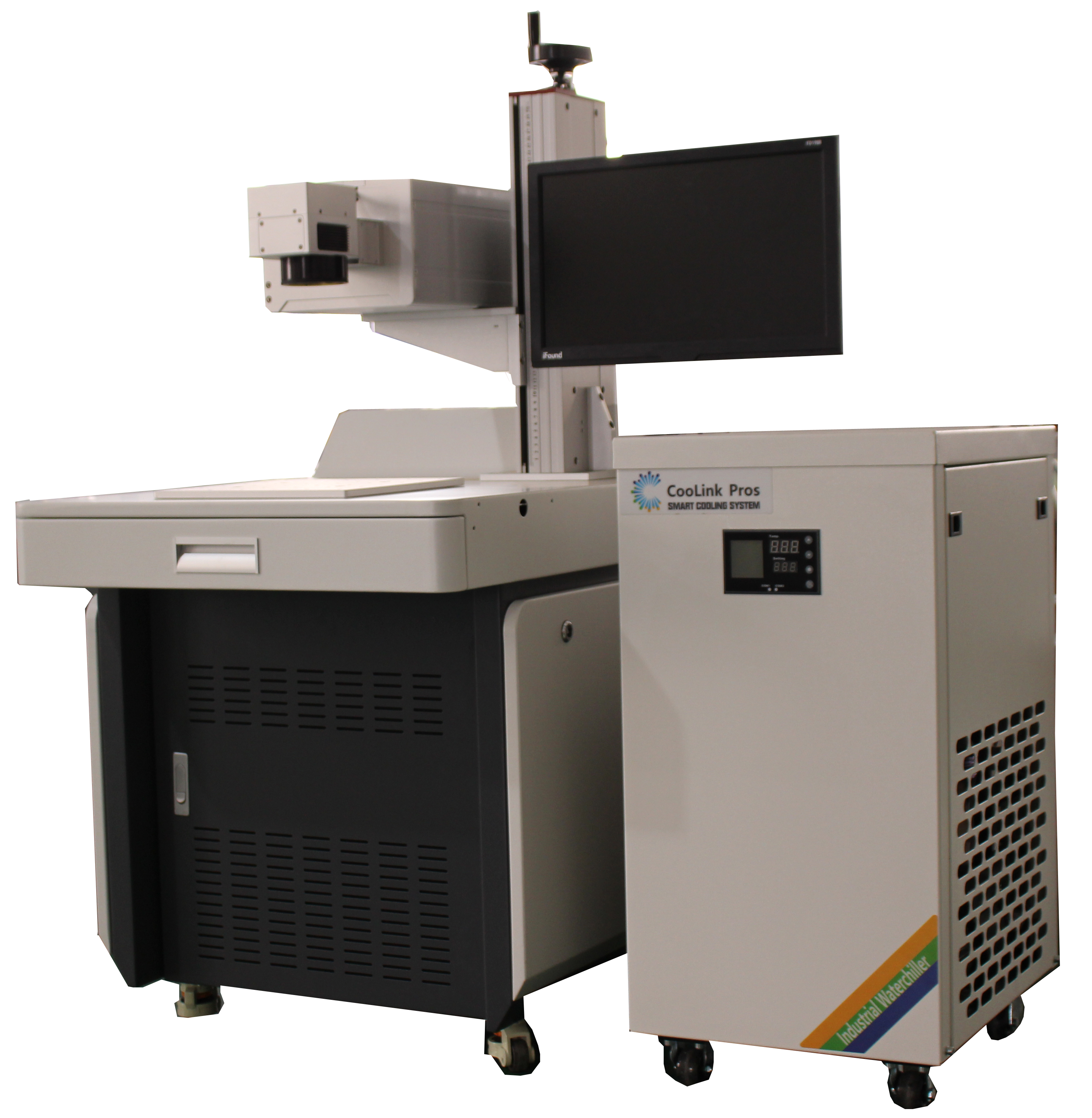

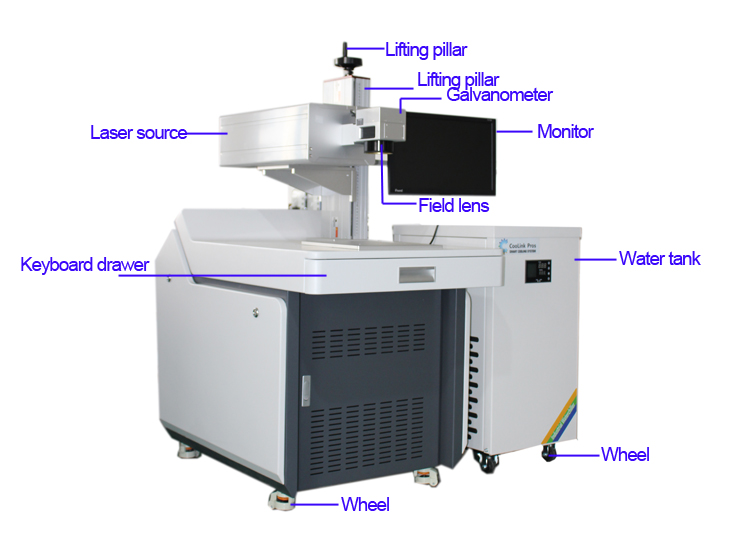

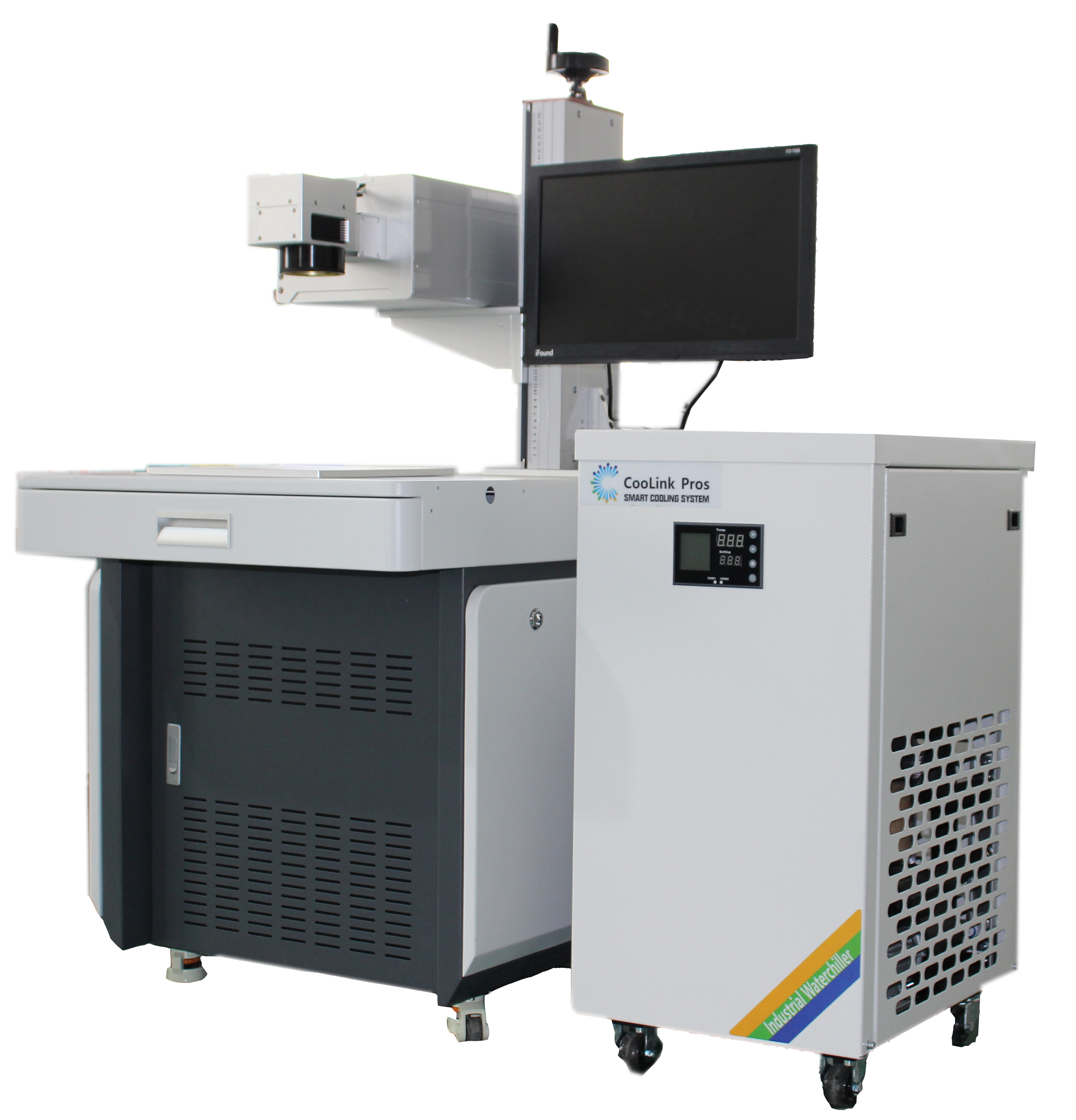

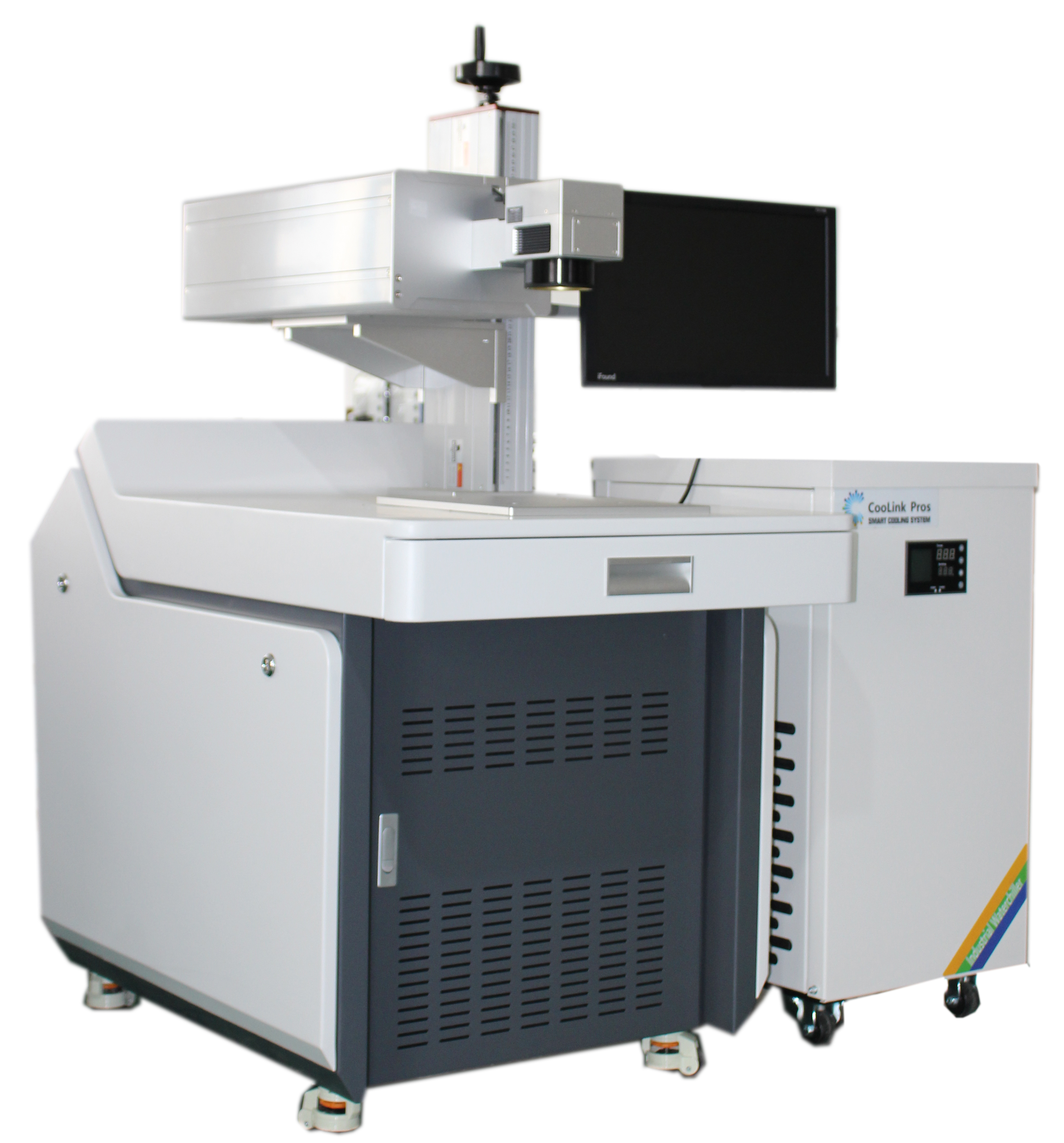

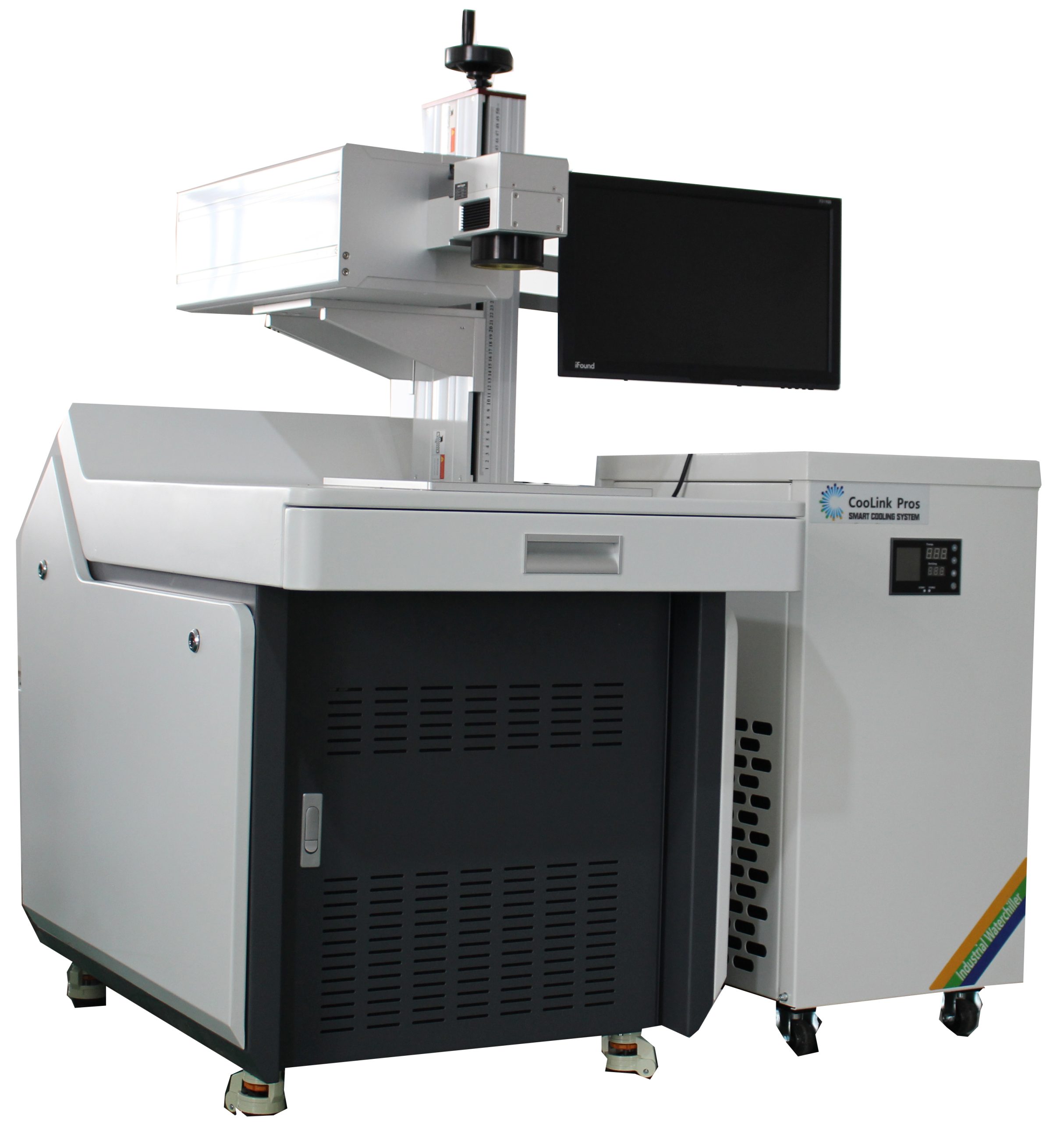

Product name:	UV laser marking engraving machine
Laser power:	3W, 5W, 7w, 10W
Frequency:	20KHz-80KHz
Marking area:	110*110mm(70*70mm-300*300mm optional)
Output power of laser:	10%-100% continuously to be adjusted
Cooling mode:	Air cooling or water cooling(for big power)
Laser source wavelength:	355nm
Minimal character:	0.05mm*0.05mm
Repeated accuracy:	0.001mm
Scanning head:	High speed optical scanning galvanometer
Marking format:	Picture, character, date, number, bar code, QR code etc.
Working condition:	humidity 5%-75%, free of condensed water
Warranty:	1 years
Power supply:	220V/50Hz or 110V/60Hz
Operation system:	Windows XP/W7-32/64bits/W8-32/64bits



Customized Service:

1) Option laser source: Raycus, IPG, JPT, MAX etc.

2) Logo silk-screen printing

3) Double red light positioning assistance

4) Electric lift

5) Automatic focusing

6) Electronic gate

7) Gaiting protection

8) Customized working table

Copy below link to your browser, check our customized services

https://youtu.be/EBWAvf3gFiU



Quality Comparision:

1) Line aligenment inside of the control box



2) Fans, marks outside of the control box



3) Laser source: fake IPG VS real IPG



4) Without technical support VS Full technical support



 Contact Supplier  to get detailed specification and latest price.

Application
