Description
- Brand Name: Aideepen
- Origin: CN(Origin)
- Certification: CE
- Model Number: Russian Version GM328 Transistor Tester
- is_customized: Yes
- Type: Resistance meter, inductance meter, capacitance meter
- Feature1: DIY LCD Screen GM328B Transistor Tester
- Feature2: voltage frequency meter
- Feature3: PWM square wave signal generator SMT welding
- Model: Full Assembled GM328 Transistor Tester
RECOMMEND
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Instructions for use of GM328A transistor tester
(The following functions are all available in English version, some functions are not updated in Russian version on July 23, 2020)
Input voltage: DC 6.8V-12V
Working voltage: about 30mA, measured when inputting 7.5V DC voltage
Transistor tester control
The tester is controlled by a rotary encoder switch,
The rotary encoder switch can have a total of 6 operations, short press, long press, left rotation, right rotation, hold left rotation, hold right rotation.
In the shutdown state, short press once to turn on the power and start the test.
After a test is completed, if the device is not detected. Long press the switch or the left and right rotary switch to enter the function menu. After entering the function menu, the left or right rotary switch can be selected up and down in the menu item. To enter a function item, short press the switch once. When you need to exit from a function, press and hold the switch.

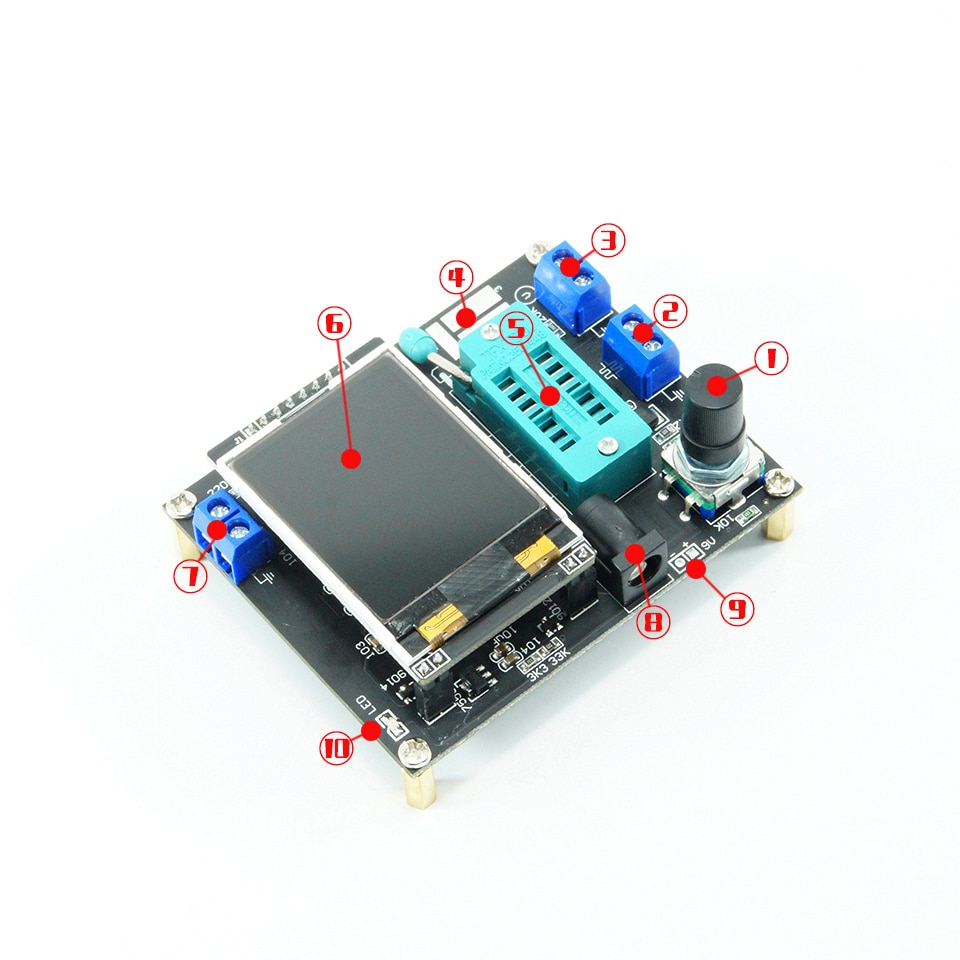

①Control button
②Square wave and PWM outputinterface
③voltage measurement interface
④Original test bit
⑤In the original test base
⑥160×128 full color display
⑦Frequency messurement interface
⑧Power adapter socket
⑨9V battery contact 9V
⑩Work indicator
②Square wave and PWM outputinterface
③voltage measurement interface
④Original test bit
⑤In the original test base
⑥160×128 full color display
⑦Frequency messurement interface
⑧Power adapter socket
⑨9V battery contact 9V
⑩Work indicator
