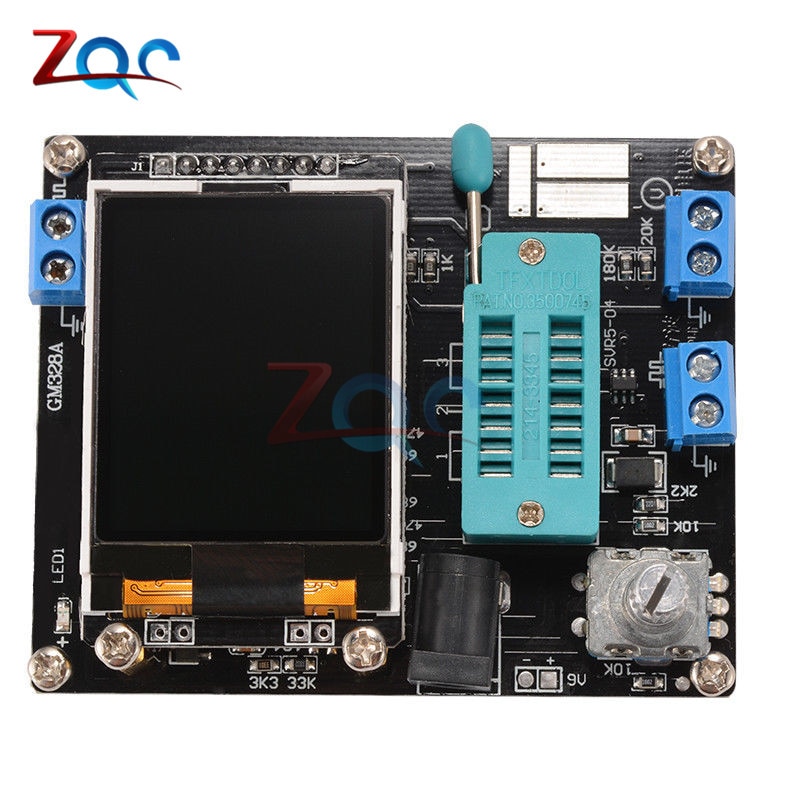

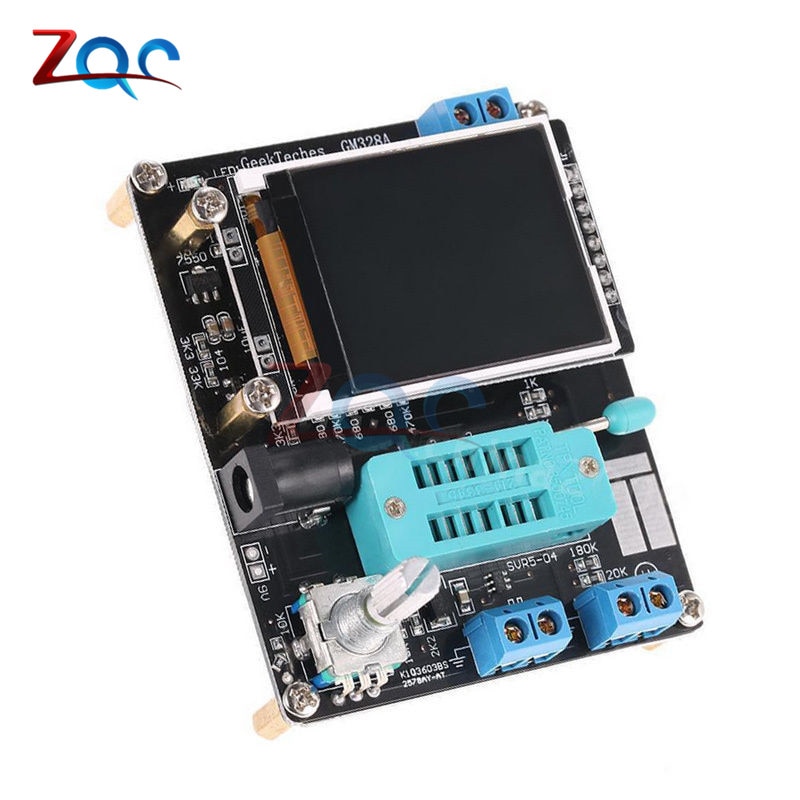

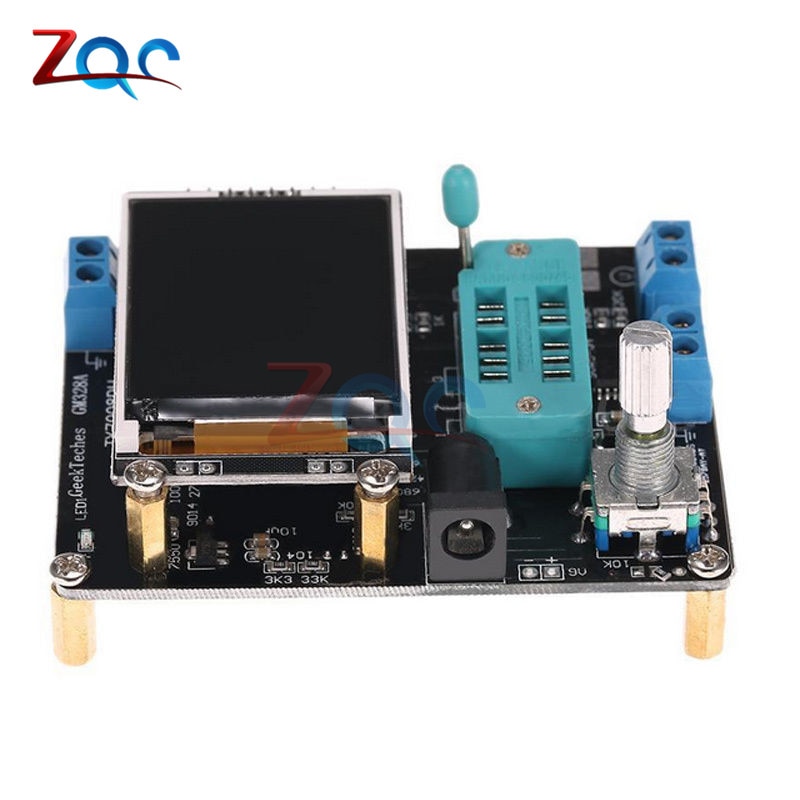

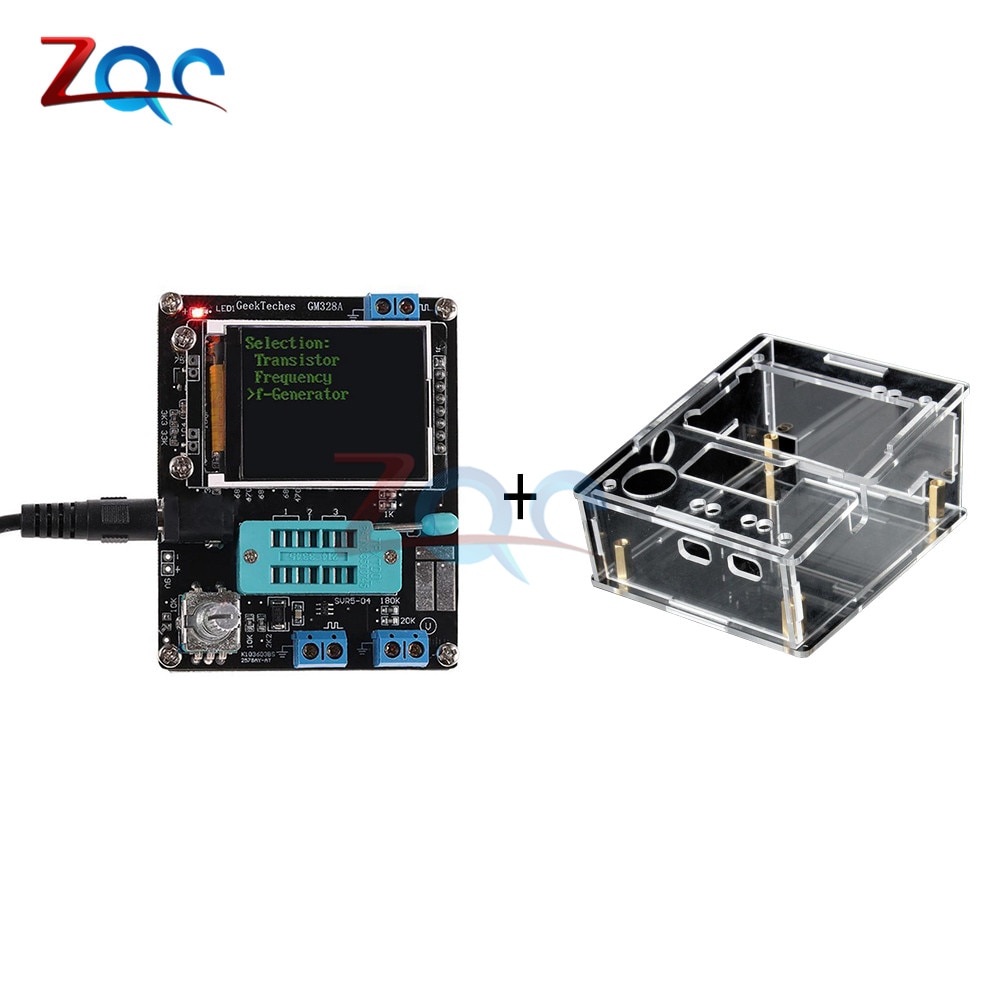

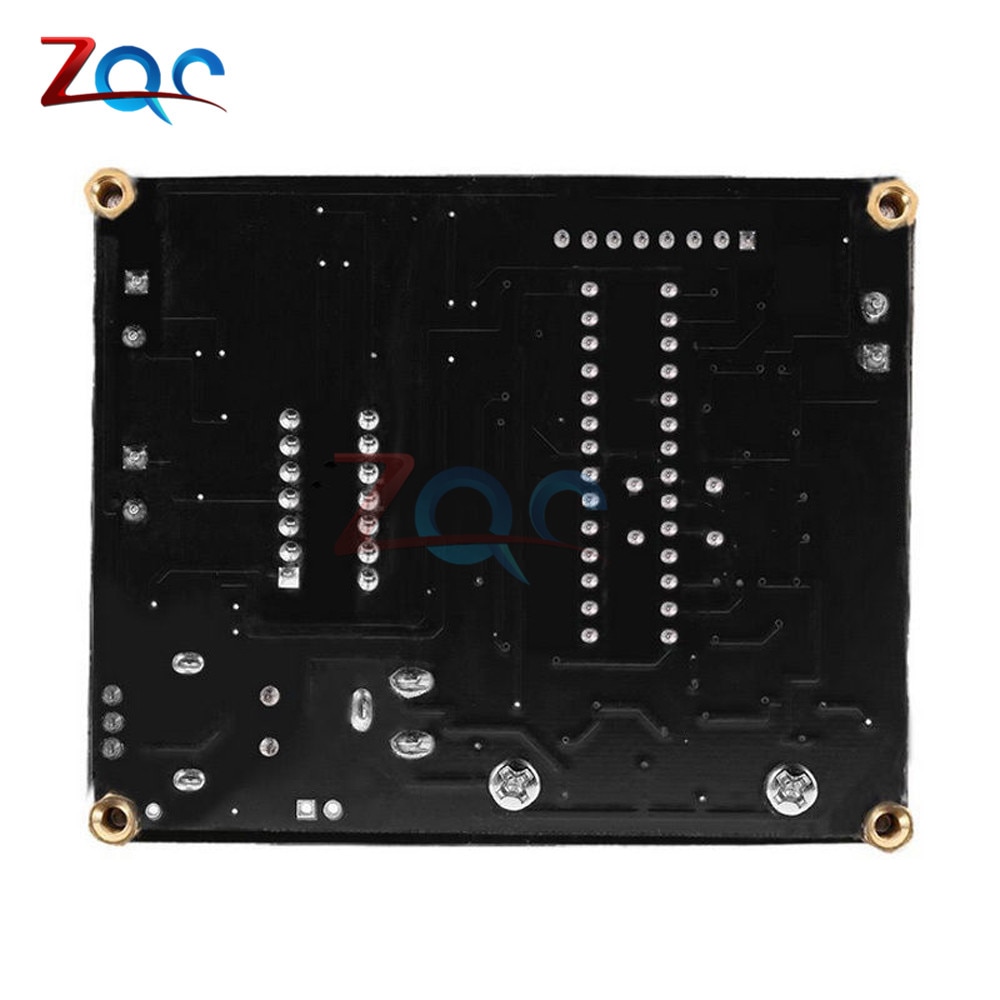

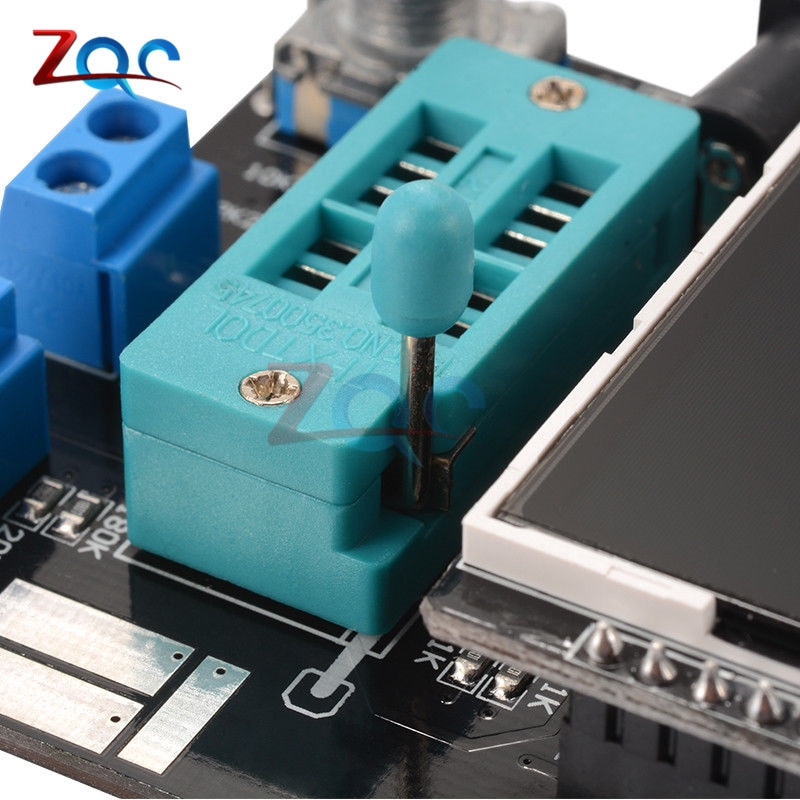

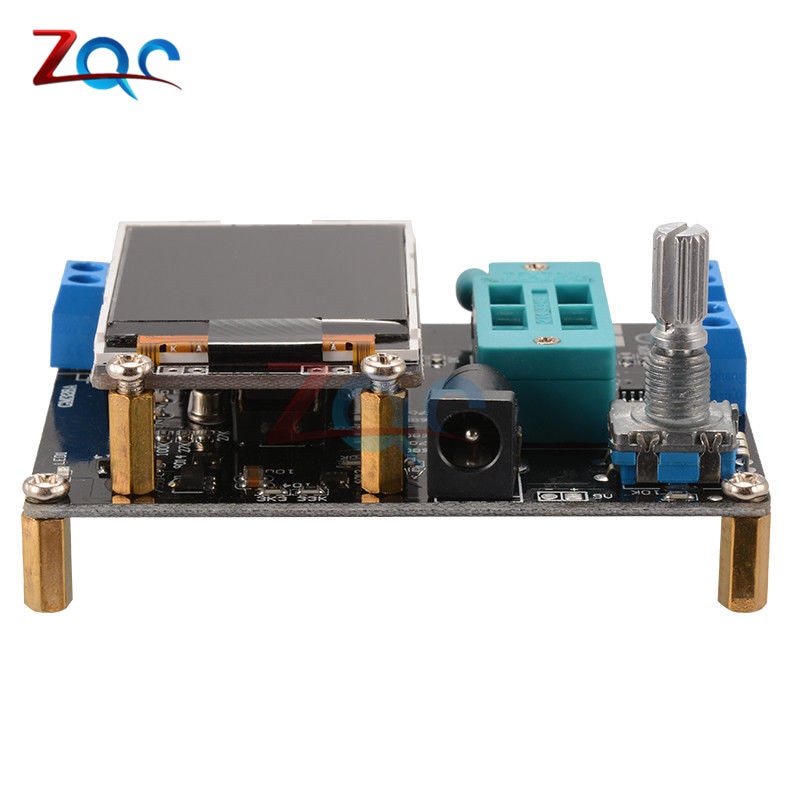

LCD GM328A Transistor Tester Diode Capacitance Voltage Frequency Meter PWM Square Wave Signal Generator SMT Soldering Meter
Feature:
Digital LCD display for easy readings, can display measured data and graphics.
Rotary switch control, a key measurement for convenient use.
Main chip is the SMD, easy for electronic enthusiasts to DIY or update the main chip.
Use 9V battery(not included), can also use DC power(DC 6.8-12V).
Automatic shutdown, shutdown current is only about 20nA.
Automatically detects NPN and PNP transistors, FET, diodes, dual diode, thyristor, SCR, automatic identification of the transistor pinout.
Test NPN and PNP transistor common-emitter current amplification factor, the base-emitter threshold voltage, off the collector – emitter leakage current.
Support 2 resistors measurement, show its positive and negative, on-state voltage.
Resistance measurement maximum resolution 0.01Ω, can be measured up to 50MΩ.
Automatically test the pins of a component and show on the display.
Measure FET gate threshold voltage and gate capacitance.
For the following 2100Ω resistor while measuring its inductance measuring range from 0.01mH – 20H.
Can be used as signal generator and frequency meter: frequency range from 1Hz-2MHz and can generate 1%-99% PWM(pulse width modulation) signals.
Notice:
Before measuring capacitance, the capacitor must be discharged, otherwise very easily damage the meter.
Specification:
Display: 160*128 LCD
DC 6.8-12V
Current: Approx. 30mA
Resistance Measurement: Max. 50MΩ
Resistance Resolution: 0.01Ω
Capacitance Measurement: 25pF~100mF
Capacitance Resolution: 1pF
DC Voltage Measurement: Up to 50V
Language: Russian / English (Optional)
Screen Size: 3.7 * 3cm / 1.45 * 1.18in
PCB Size: 7.8 * 6.2cm / 3.1 * 2.44in

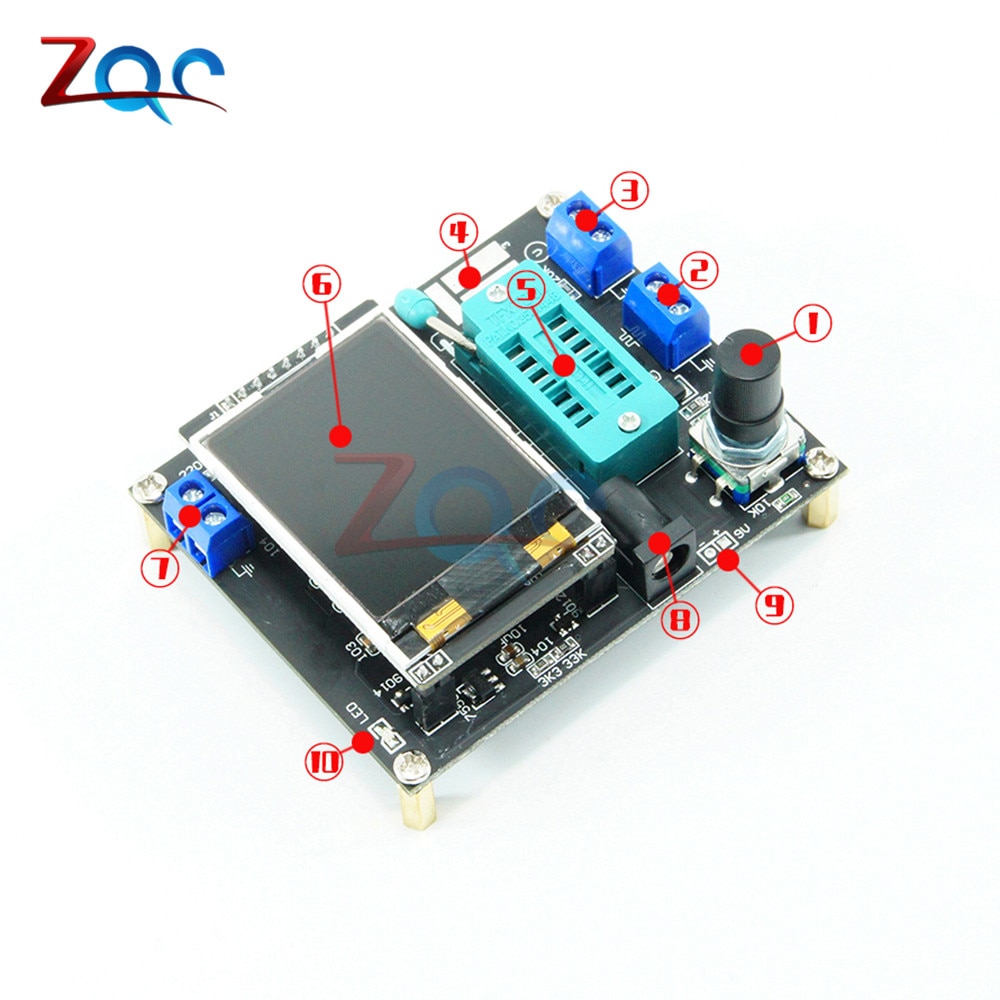

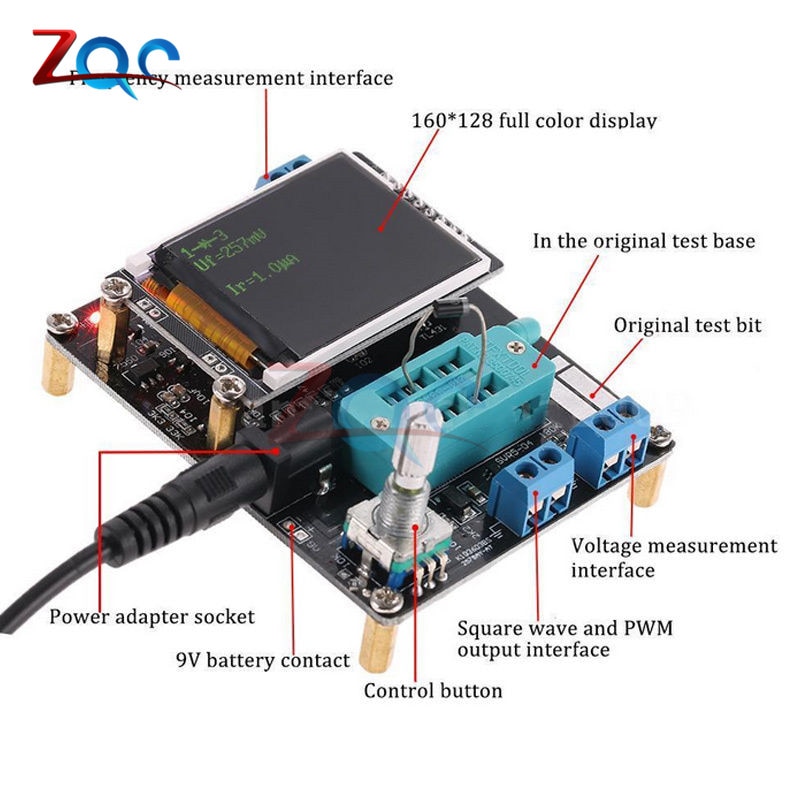

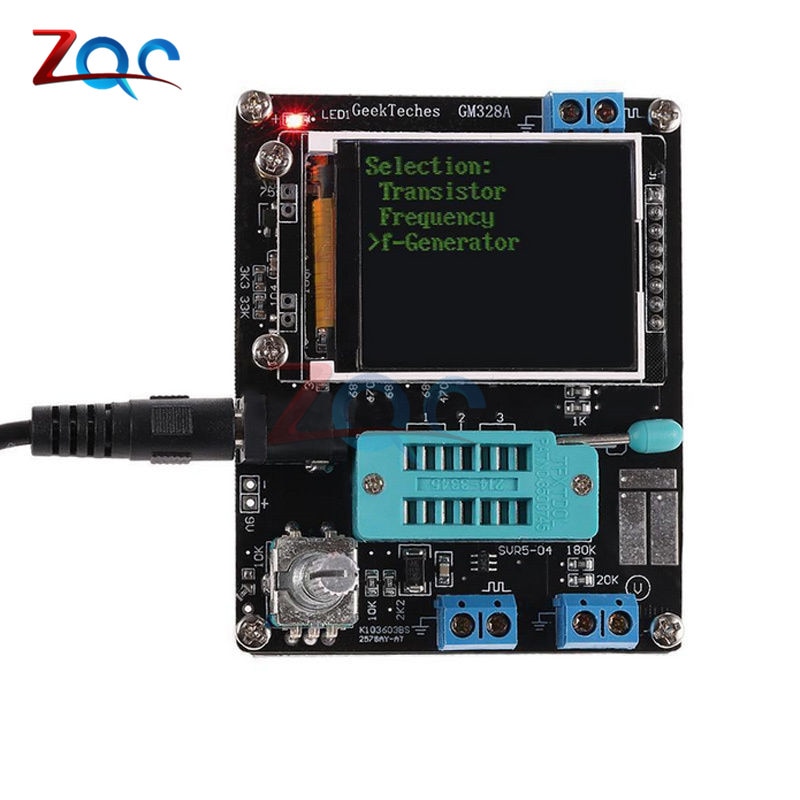

①Control button
②Square wave and PWM outputinterface
③voltage measurement interface
④Original test bit
⑤In the original test base
⑥160×128 full color display
⑦Frequency messurement interface
⑧Power adapter socket
⑨9V battery contact
⑩Work indicator
|
Function
|
English Version
|
Russian Version
|
|
Switch off
|
Y
|
|
Transistor
|
Y
|
|
f-Generator
|
Y
|
|
10-bit PWM
|
Y
|
|
C+ESR@TP1:3
|
Y
|
|
|
Y
|
|
1-||-3
|
Y
|
|
DS18B20
|
Y
|
N
|
|
C(uF)-correction
|
Y
|
|
IR-Decoder
|
Y
|
N
|
|
IR-Encoder
|
Y
|
N
|
|
DHT11
|
Y
|
N
|
|
Self Test
|
Y
|
|
Voltage
|
Y
|
|
Front Color
|
Y
|
N
|
|
Back Color
|
Y
|
N
|
|
Show data
|
Y
|
