Description
- Brand Name: MLHJ
- Origin: CN(Origin)
- Certification: CE
- Place of Origin: Shanghai, China
- Brand Name: WELDY
- Condition: New
- Voltage: 230
- Warranty: 6 Months
- After-sales Service Provided: Free spare parts, Online support, Video technical support
- Key Selling Points: Automatic
- Weight (KG): 3.9 KG
- Power (kW): 800
- Marketing Type: New Product 2020
- Machinery Test Report: Provided
- Video outgoing-inspection: Provided
- Name: Portable sewing machine
- Frequency: 50/60 HZ
- Weld seam width: 20mm
- MAX. Power: 800w
- Temperature: 60 -480°C
- Speed: 0.4 – 7.5m/min
- Weight: 3.9kg
- After Warranty Service: No service, Online support, Spare parts
- Local Service Location: None
- Showroom Location: None

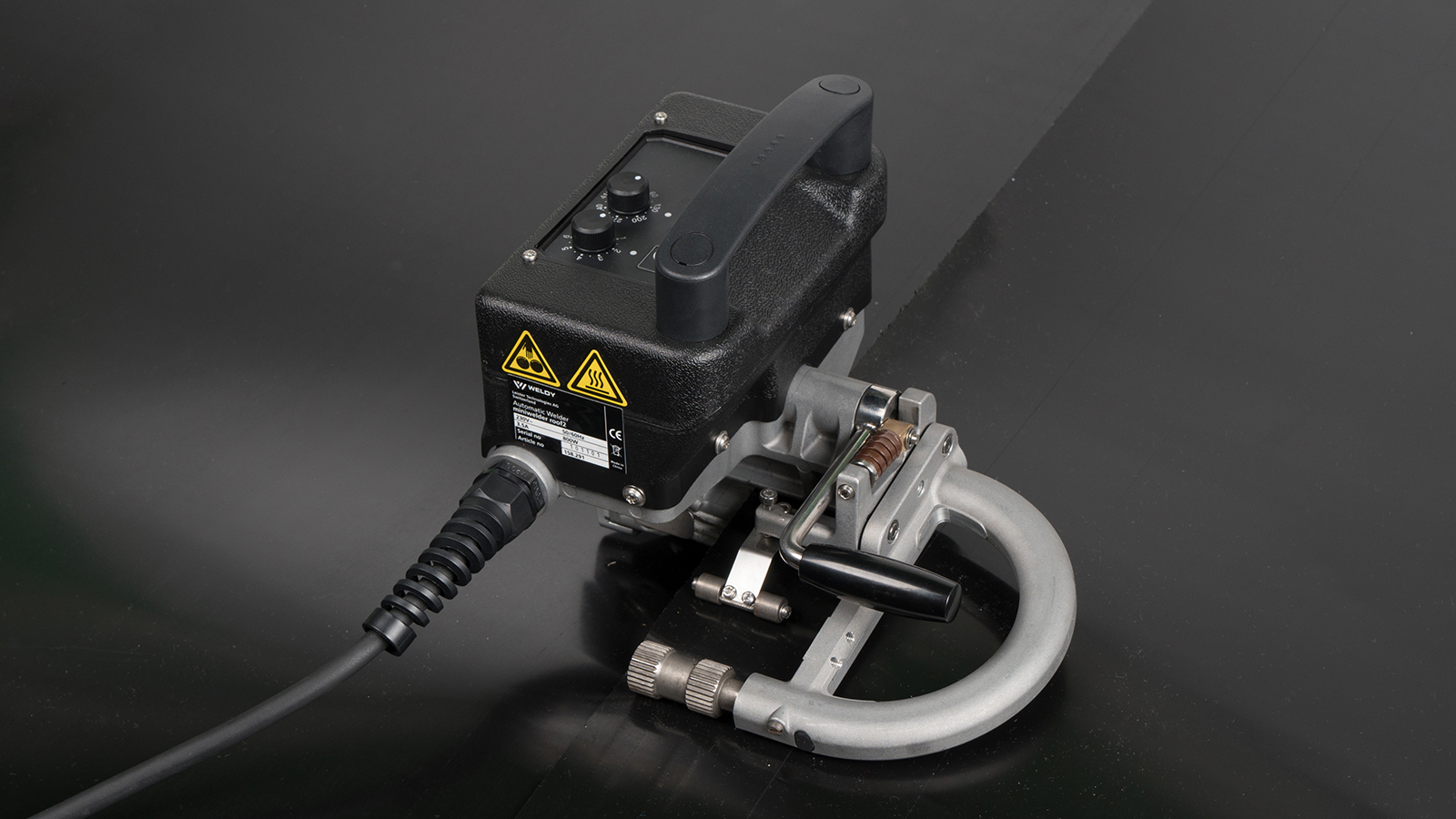

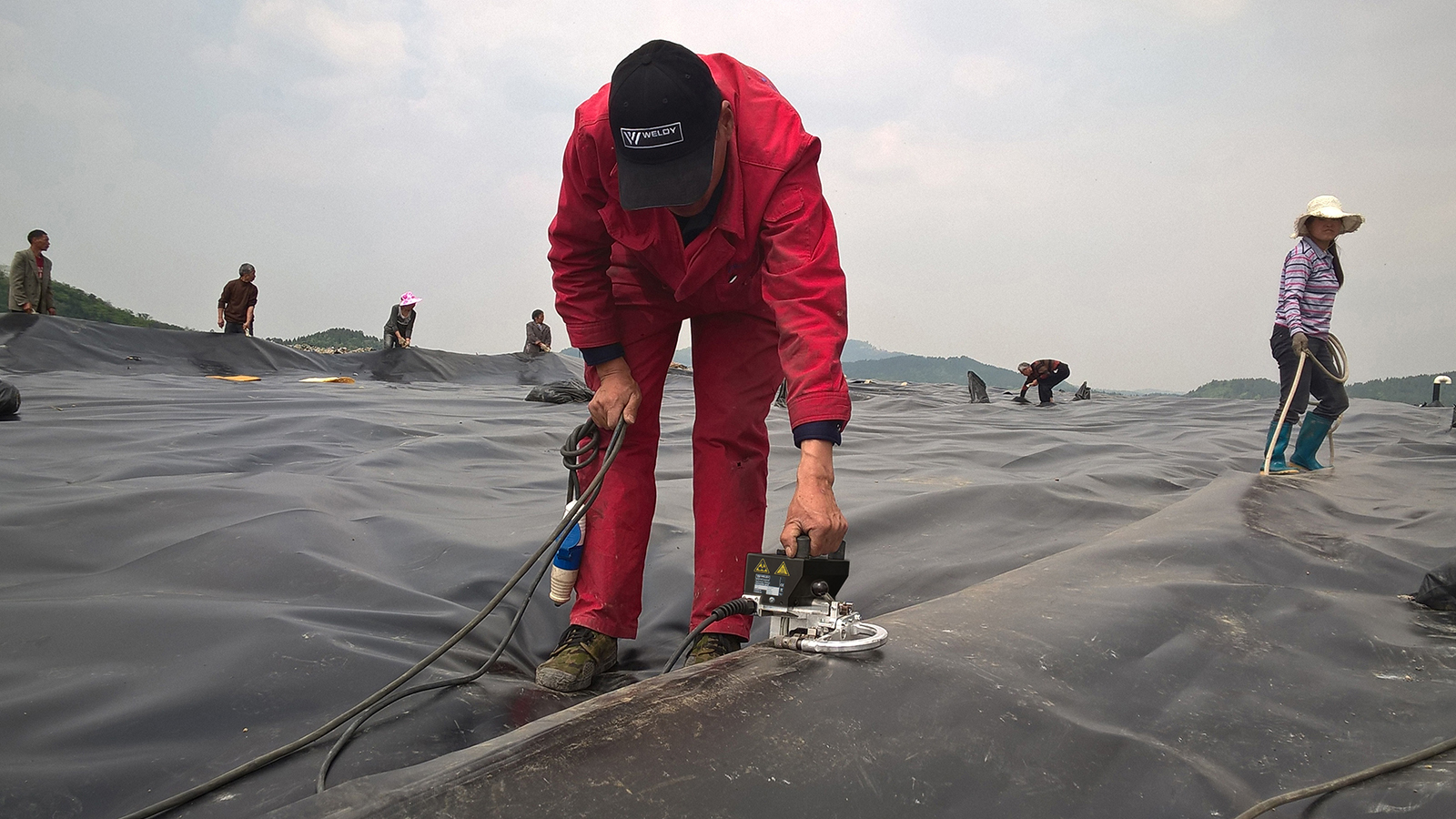

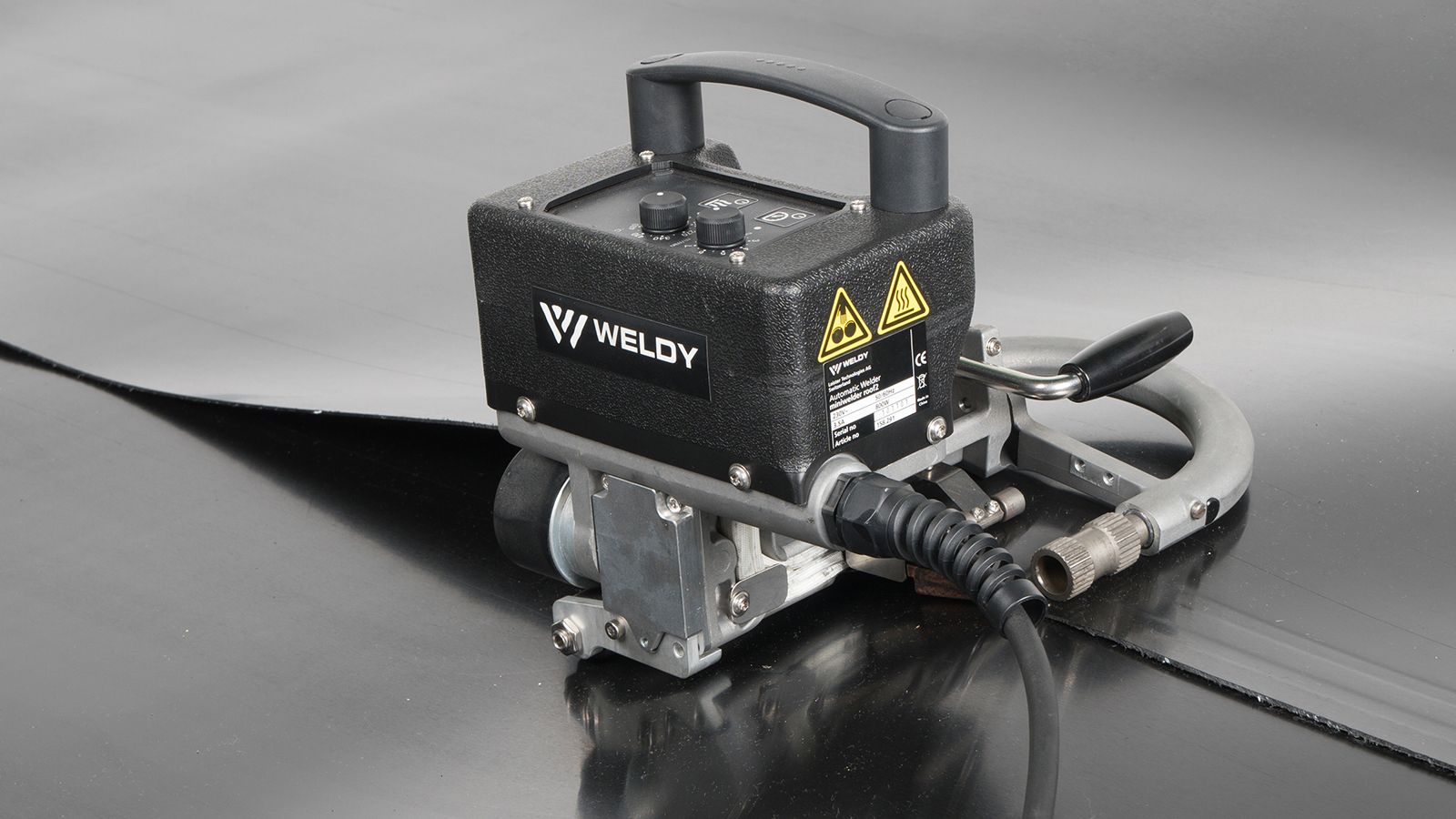

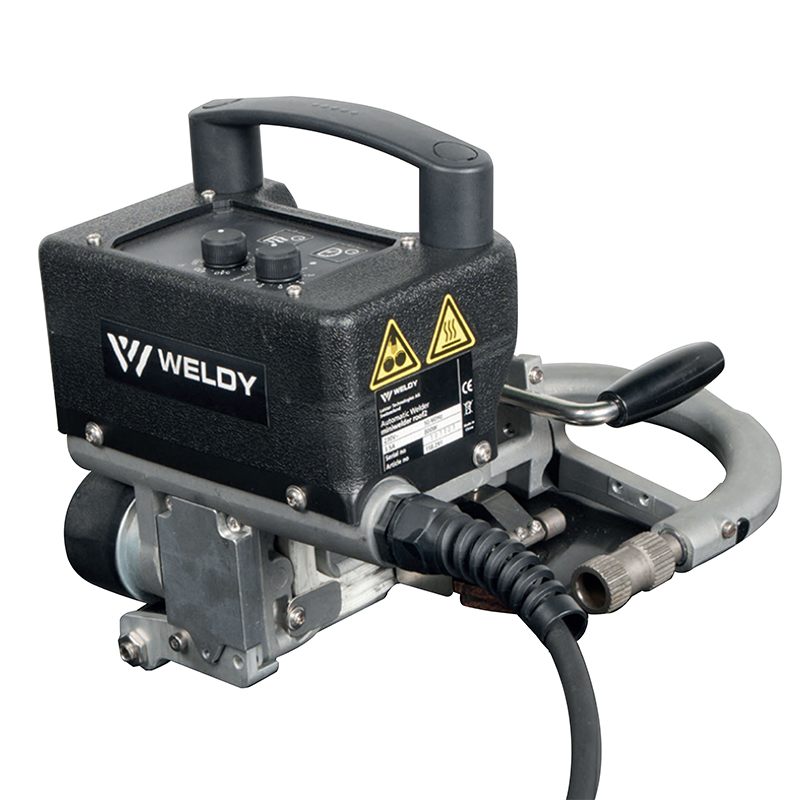

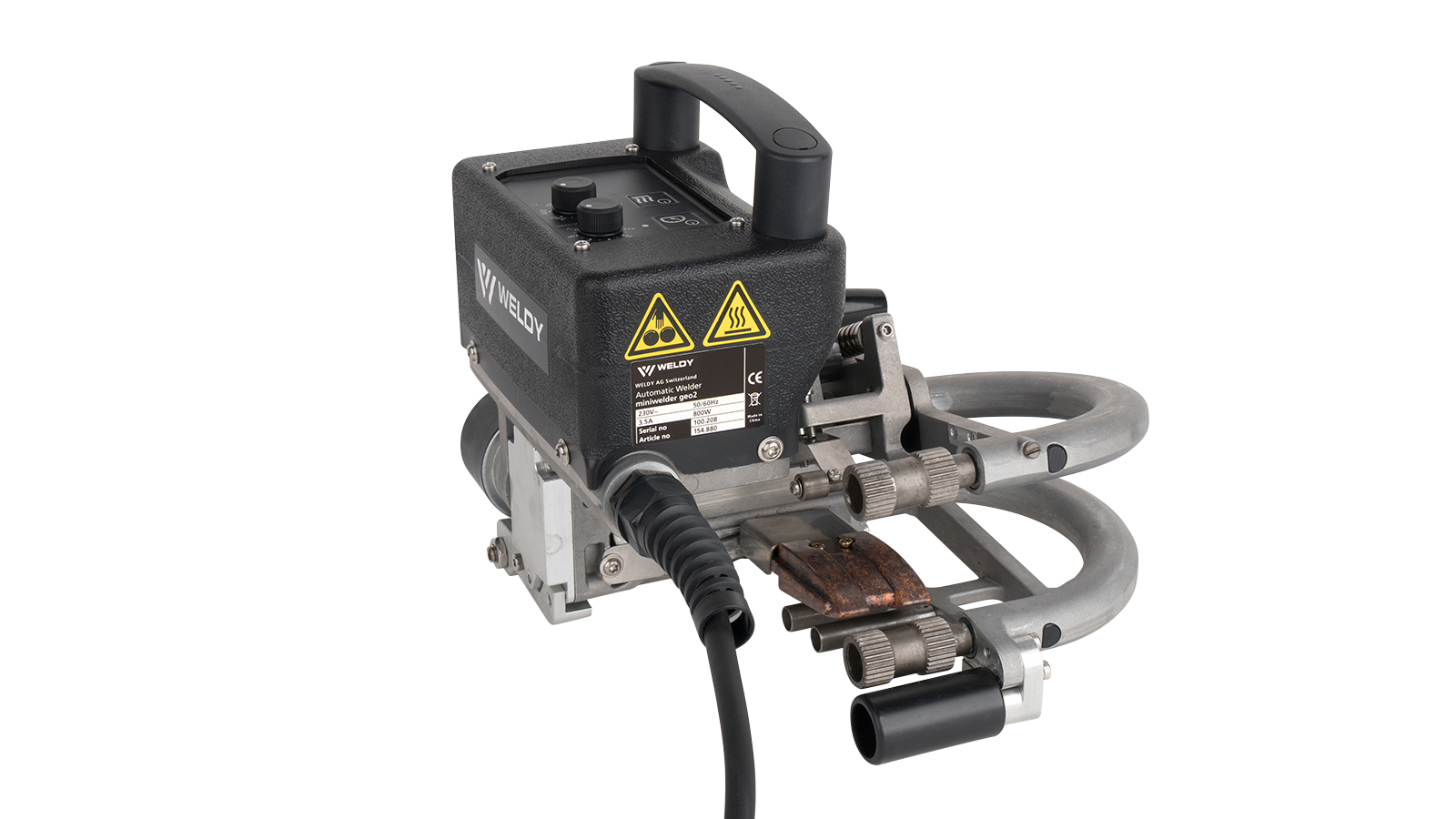

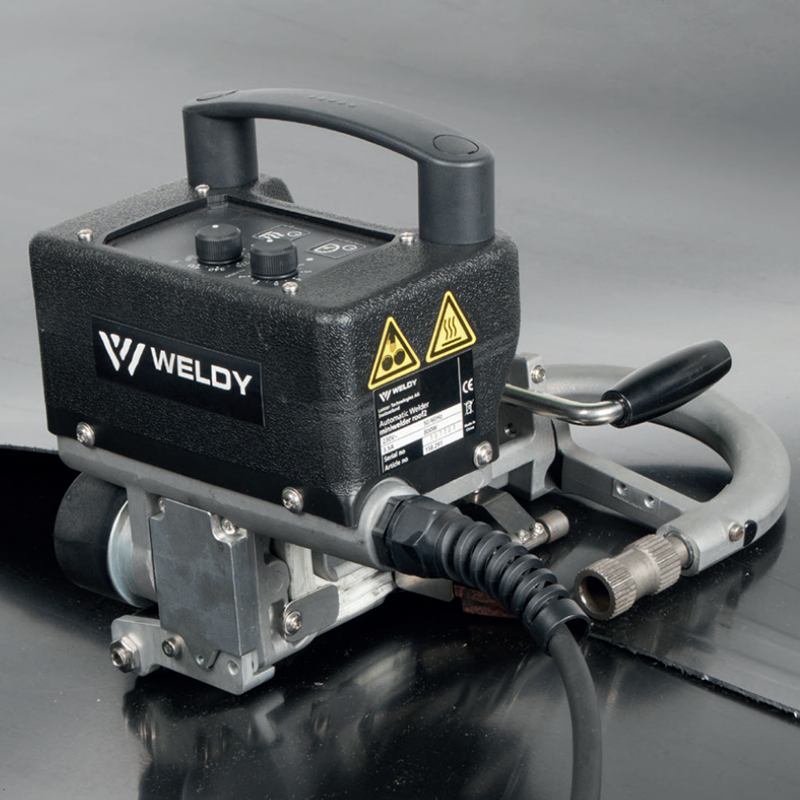

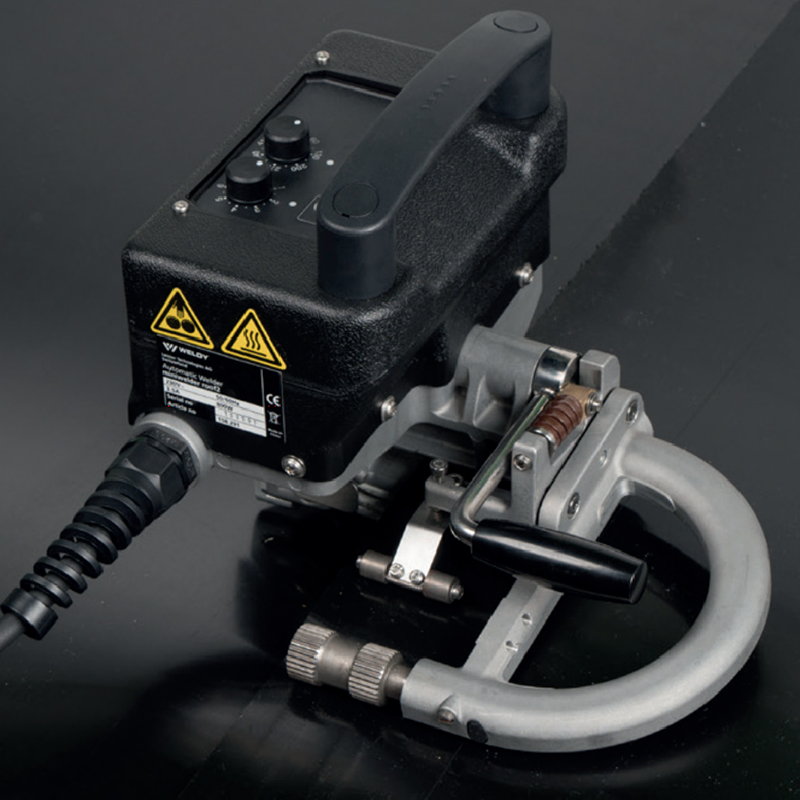

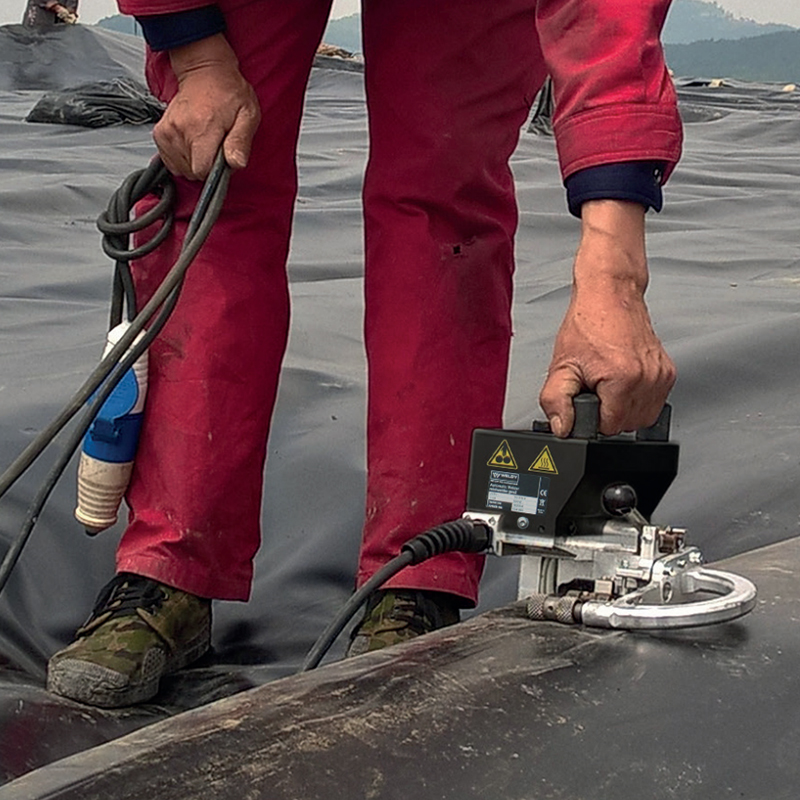

This quick and lightweight welding machine is ideal for geomembranes from 0.5 to 0.8 mm thick (HDPE 0.4–0.8 mm; TPO 0.7–0.8 mm).The miniwelder geo2 can be used to weld fish farm and water tanks, in foundation sealing and many other industrial areas. The miniwelder geo2 distinguishes itself through its revolutionary drive technology and its intuitive use. Temperature and speed easily can be activated and deactivated by means of two buttons, and adjusted using two dials. The current process status is displayed by two LEDs.
* Lightweight (< 4 kg)
* Welding speed up to 7.5 m per minute
* Intuitive operation
* Revolutionary chainless drive technology
* Automatic wedge positioning
|
Attribute
|
Unit
|
Value
|
|
Frequency
|
Hz
|
50/60
|
|
Weld seam width
|
mm
|
20
|
|
Voltage
|
V~
|
120/230
|
|
MAX. Power
|
W
|
800
|
|
Hot wedge material
|
|
Copper/Chrome steel
|
|
Weld seam width
|
mm
|
2 x12
|
|
Temperature
|
°C
|
60 -480
|
|
Speed
|
m/min
|
0.4 – 7.5
|
|
Size (L × B × H)
|
mm
|
228 x 228 × 170
|
|
Weight
|
kg
|
3.9
|
|
Conformity marking
|
|
CE
|
|
Protection level
|
|
|
|
Weldable materials
|
|
LD-PE,PVC*(0.5-0.8mm)
TPO/FPO (0.7-0.8mm)
HD-PE (0.4-0.8mm)
*PVC Only with steel wedges
|
simple. good. affordable.
Weldy started its business activities in 1997 to complement the Leister Product Portfolio with simple Hot-air-Guns to serve the “Do- it-Yourself” markets as well as to enable business opportunities with “Private Label “partners.
Already in 2007 Weldy enlarged its product portfolio by including functional plastic welding tools to serve the local requirements in China as well as to expand into “Emerging Markets” and selective countries.
Functional Plastic Welding Tools:
Since 2004, all Weldy products are manufactured according to the Leister standards for function and quality by Leister China. The location of Leister in Shanghai and its proximity to the key markets is a perfect match for Weldy to meet the customers’ requirements. Today, Weldy has expanded its activities in China to develop, design and manufacture new products to enhance and simplify the customers needs according to its slogan – simple. good. affordable.
WELDY Product portfolio:
* Hot-air guns for „Do-it-yourself” markets
* Hot-air guns for „private label”partners
* Hot-air tools for universal uses and for shrinking*
* Hand extrusion welders*
* Automatic Welding tools and welding machines for the tarpaulins and billboard Industries*
* Automatic Welding tools for the Roofing industry*
* Only available in dedicated countries
Weldy also offers services like:
* Product presentations, in the house and at the customer
* Application test and welding tests
* Technical consultation and support
* Application and operator training
* Repair
Our production sites are located in the heart of Qingdao port and Tianjin port, so we have faster transportation capacity andcheaper transportation costs.
WhatsApp:+8613396279191
A: WHAT WE CAN DO IF THE WELDER IS FAILED DURING THE WARRANTIES? Q: We will try to help repairing the tools first, if the welder can not repaired or not worth to repair,we will offer new welders to replace whole set.
