Description
- Brand Name: Tenmars
- Origin: Taiwan China
- is_customized: Yes
- Model: TM190
- Place of Origin: Made in Taiwan

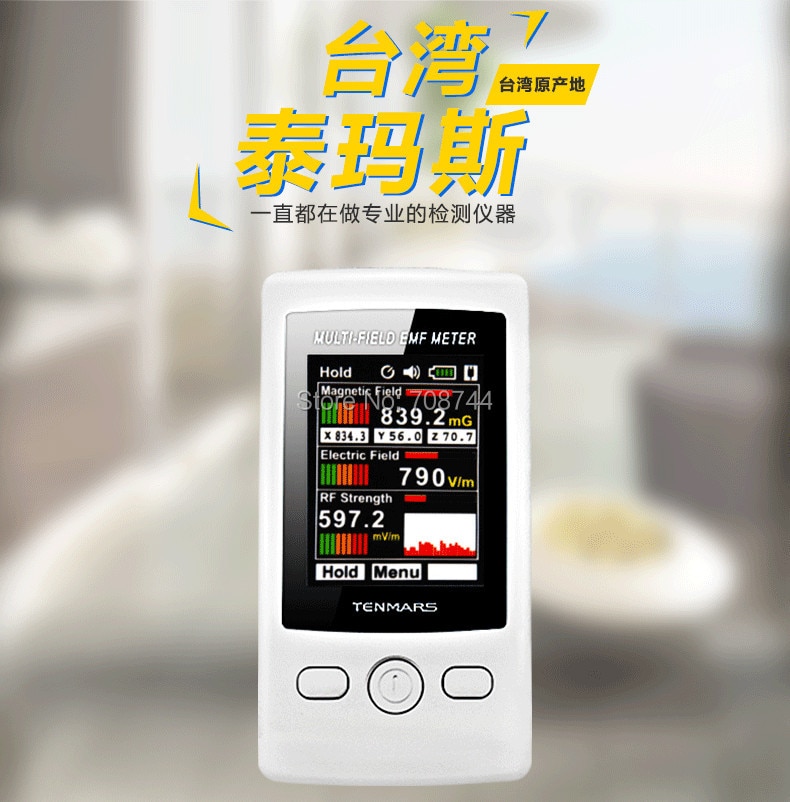

Gauss 3-axis Magnetic Electric RF Field Strenght Digital Electromagnetic Radiation Detector TM-190 Multi-Field EMF Meter TM190
Features:
– 4 digits, 2.4 inches color TFT LCD.
– 3 measurements in one meter:
Electromagnetic Field ( 3 – axis ).
Electric Field.
RF Strength Field.

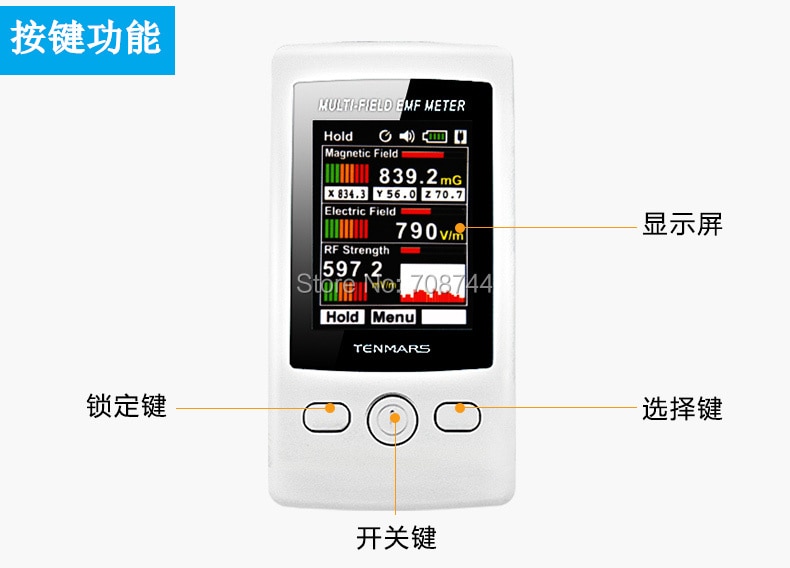

– Data Hold (HOLD).
– Language Selection (choose your language):
English; Traditional Chinese; Simplified Chinese; Japanese; Spanish.
Specification:
|
|
Electromagnetic field |
Electric field |
RF Strenght field |
|
Sensor type: |
Low Frequency Triple axis (X, Y, Z) |
LF Electric Fields |
RF Strength |
|
Range: |
50V/m to 2000V/m |
50V/m to 2000V/m. |
0.01uW/cm² to 44.4uW/cm² |
|
Resolution: |
0.01/0.1/1 mG or 0.01/0.1/1 µT |
1 V/m |
0.01μW / m², 0.1μA / m, 0.1mV/m, m, 0.001μW/cm ², 1dB |
|
Frequency: |
50/60 Hz |
50/60Hz |
50MHz to 3.5GHz |
|
Accuracy: |
±(15%+100dgt) |
± (7% ± 50dgt) |
± 2dB at 2.45GHz |

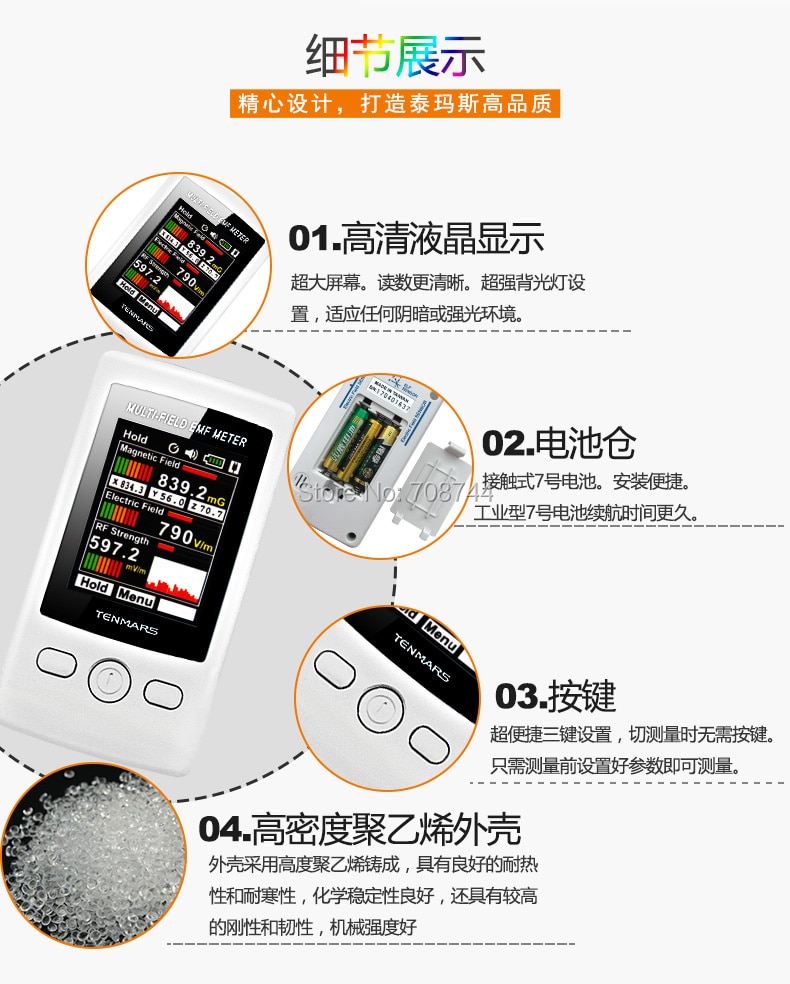

– Display: 4 digits, 2.4 inches color TFT LCD.
– Sample rate: 6 seconds per time.
– Battery life: approximate 8 hours.
– Battery: 1.5V AAA alkaline battery*3.(not included package)
– Audible key tone alarm: buzzer
– Operating temperature & humidity: 5°C to 40°C, below 80% RH.
– Storage temperature & humidity: -10°C to 60°C, below 70%.
– Weight: about 120g.

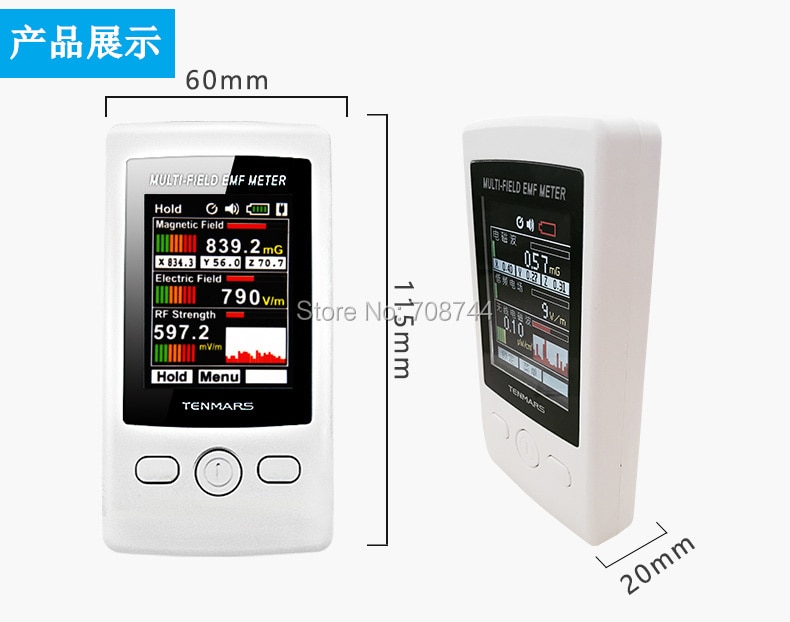

– Dimensions: 115(L) x 60(W) x 21(H) mm.
