Description
- Brand Name: LanYuXuan
- Certification: NONE
- Origin: CN(Origin)
- Warranty: 2 years, 24 Months
- Certification: CE
- Customized support: OEM, ODM, OBM
- Place of Origin: Guangdong, China
- Brand Name: RIGHT
- Model Number: RT-1217XRF
- Size: 650mm*450mm*350mm
- Weight: 32KG
- Focal Length: CCD Pixel 5million
- Wavelength Range: Detection limit:≤2ppm
- Product name: Full Automatic XRF RoHS and Halogen Detector,Metal Light Spectrometer
- Application: Solid/Liquid/Powder
- Testable Elements: S~U
- Collimator Facula: dia1mm,3mm,5mm (Software Automatic Option)
- Minimum Detectability: Pb/Cd/Cr/Hg/Br/Cl≤2ppm
- Testing Duration: 60-200s(Software Automatic Adjustment)
- Optimum Resolution: 145±5eV
- Rated Power: 128W
- Entocoele Dimension: 280mm*280mm*200mm
#detail_decorate_root .magic-0{border-bottom-style:solid;border-bottom-color:#53647a;font-family:Verdana;font-size:24px;color:#fc3e02;background-color:#5b5b5c;font-style:normal;font-weight:bold;border-bottom-width:2px;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-1{vertical-align:top}#detail_decorate_root .magic-2{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-3{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root .magic-4{padding:0;margin:0;white-space:pre-wrap;font-size:14px}#detail_decorate_root .magic-5{font-size:18px}#detail_decorate_root .magic-7{margin-bottom:10px;line-height:0}#detail_decorate_root .magic-8{margin-bottom:0}#detail_decorate_root .magic-9{position:relative;width:100%}#detail_decorate_root .magic-10{font-size:16px}#detail_decorate_root .magic-11{width:750px}#detail_decorate_root .magic-12{overflow:hidden;width:750px;height:1112px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-13{margin-top:0;margin-left:0;width:750px;height:1112px}#detail_decorate_root .magic-14{overflow:hidden;width:750px;height:973px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-15{margin-top:0;margin-left:0;width:750px;height:973px}#detail_decorate_root .magic-16{vertical-align:top;display:inline-block;padding-right:4px;width:50%;box-sizing:border-box;margin-bottom:-4px;padding-left:0;margin-top:-4px}#detail_decorate_root .magic-17{width:375px;height:618px;overflow:hidden}#detail_decorate_root .magic-18{position:relative;left:-17px;top:138px;width:375px;height:471.5px}#detail_decorate_root .magic-19{vertical-align:top;display:inline-block;padding-right:4px;width:50%;box-sizing:border-box;margin-bottom:-4px;padding-left:0;margin-top:-4px;margin-left:-3px}#detail_decorate_root .magic-20{width:364px;border-collapse:collapse}#detail_decorate_root .magic-21{min-height:18px;padding:5px 10px;width:113px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-22{text-align:center}#detail_decorate_root .magic-23{font-size:16px;color:#000}#detail_decorate_root .magic-24{min-height:18px;padding:5px 10px;width:210px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-25{color:#000}#detail_decorate_root .magic-26{color:#000;background-color:#bde6ff}#detail_decorate_root .magic-27{background-color:#bde6ff}#detail_decorate_root .magic-28{width:320px}#detail_decorate_root .magic-29{overflow:hidden;width:320px;height:236px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-30{margin-top:32px;margin-left:3px;width:314px;height:194px}#detail_decorate_root .magic-31{overflow:hidden;width:320px;height:236px;margin-top:4px;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-32{margin-top:44px;margin-left:0;width:321px;height:182px}#detail_decorate_root .magic-33{overflow:hidden;width:426px;height:474px;margin-top:0;margin-bottom:0;margin-left:4px;margin-right:0}#detail_decorate_root .magic-34{margin-top:7px;margin-left:32px;width:344px;height:461px}#detail_decorate_root .magic-35{overflow:hidden;width:750px;height:563px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-36{margin-top:0;margin-left:0;width:750px;height:563px}#detail_decorate_root .magic-37{overflow:hidden;width:750px;height:750px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-38{margin-top:0;margin-left:0;width:750px;height:750px}#detail_decorate_root .magic-39{overflow:hidden;width:750px;height:2529px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-40{margin-top:0;margin-left:0;width:750px;height:2529px}#detail_decorate_root .magic-41{overflow:hidden;width:373px;height:248.66666666666666px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-42{margin-top:0;margin-left:0;width:373px;height:248.66666666666666px}#detail_decorate_root .magic-43{overflow:hidden;width:373px;height:248px;margin-top:0;margin-bottom:0;margin-left:4px;margin-right:0}
Product Description

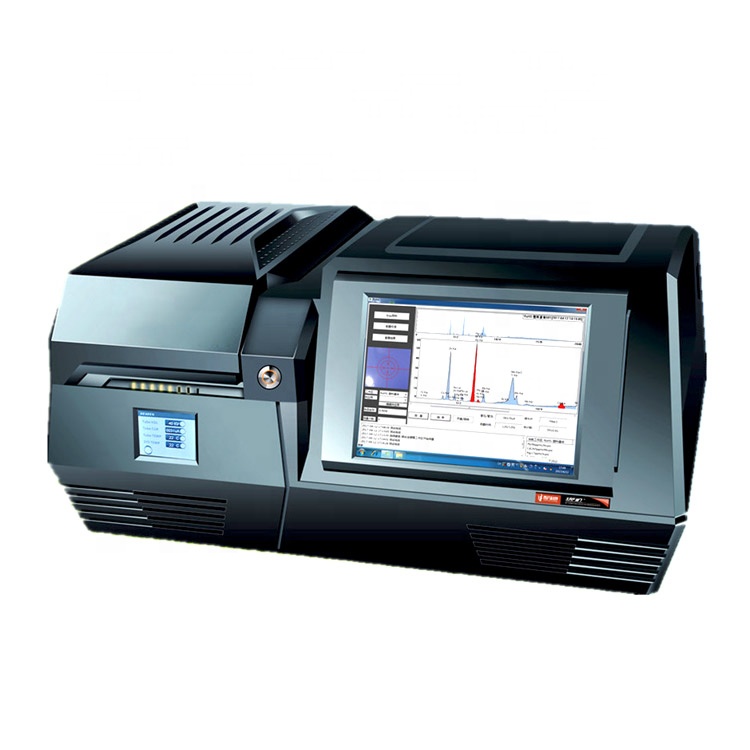

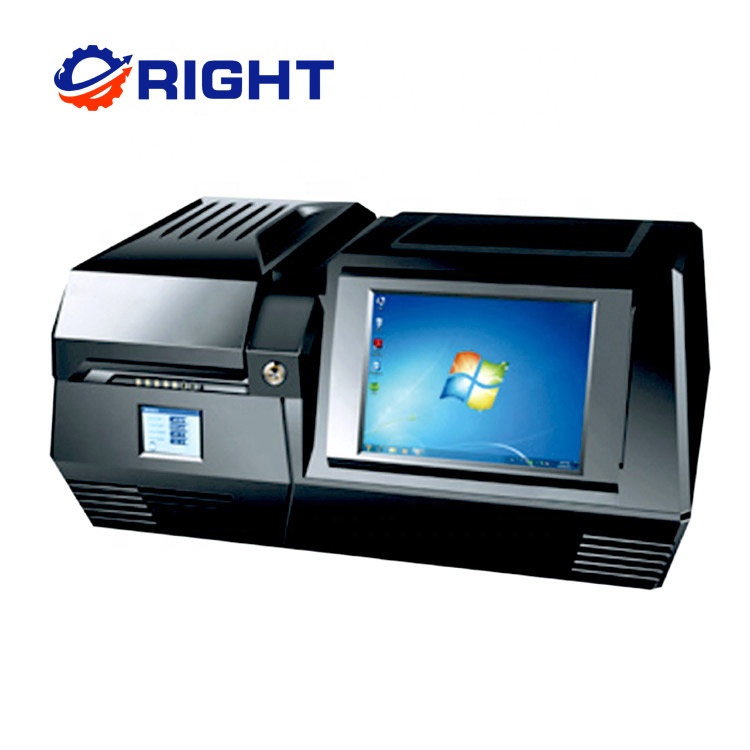

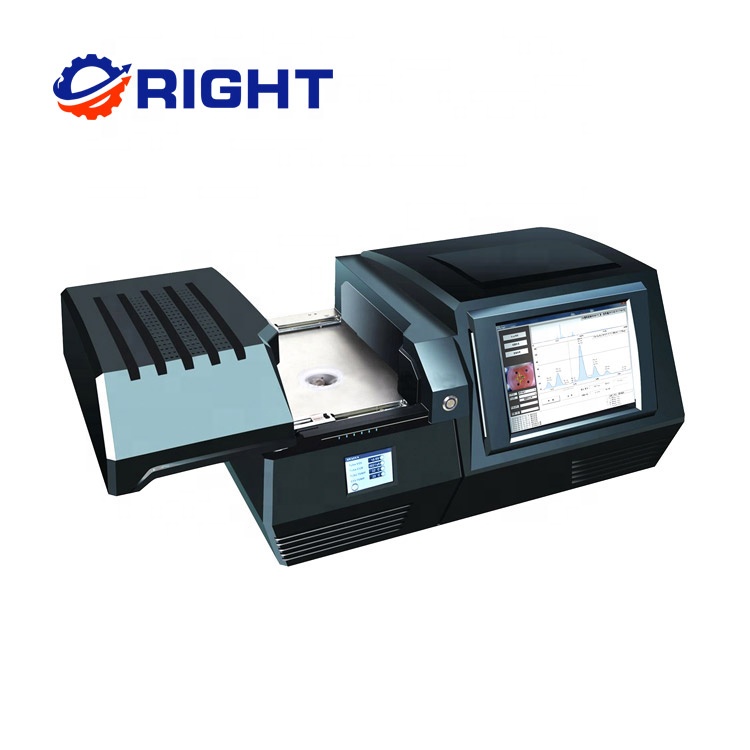

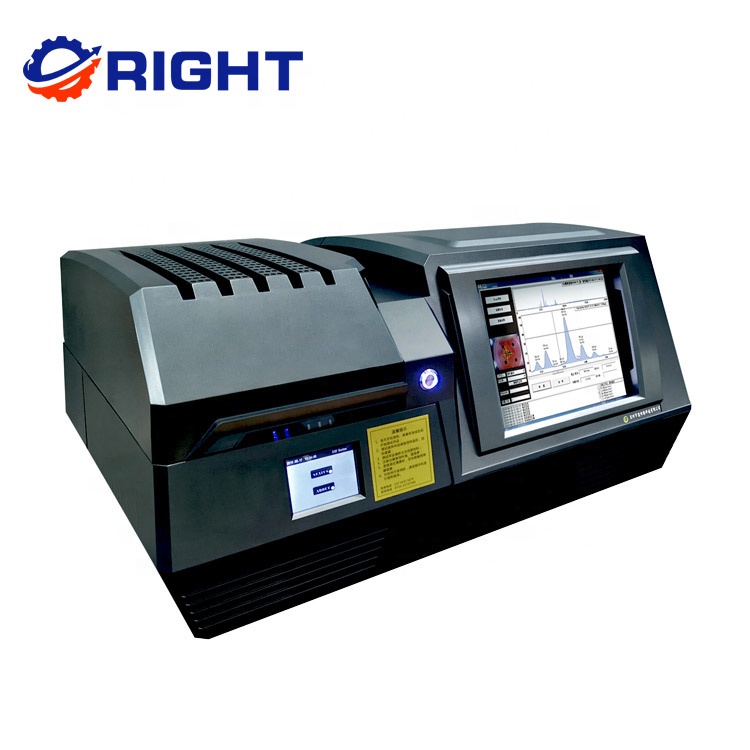

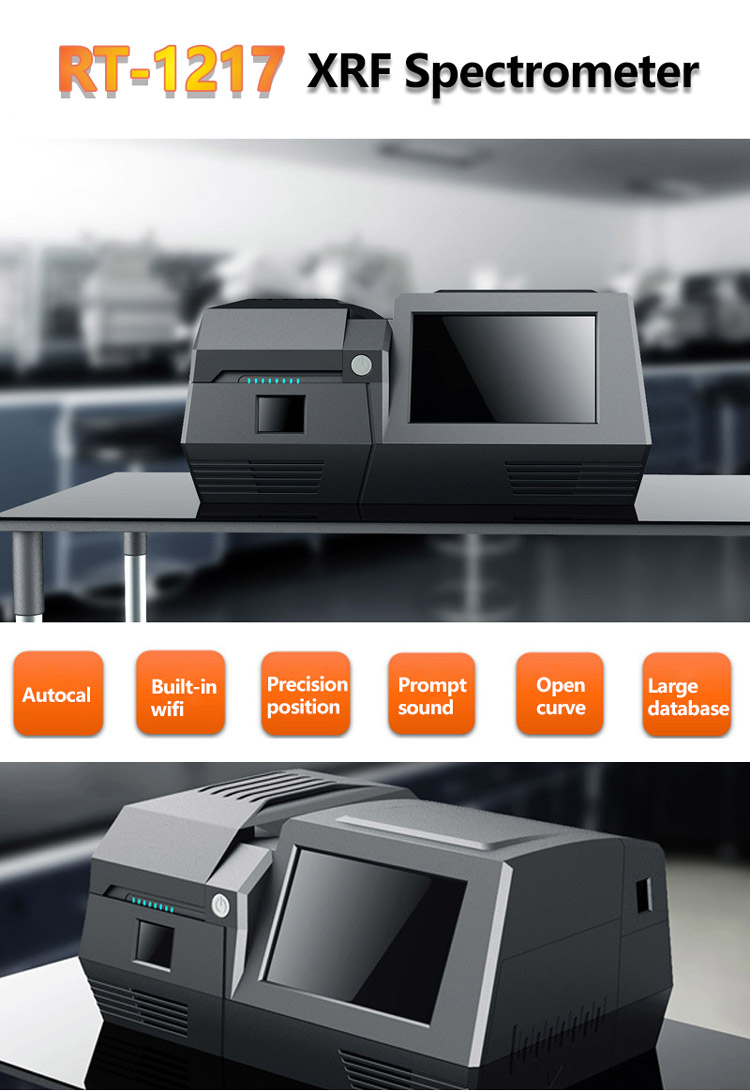

RT-1217XRF Full Automatic XRF RoHS and Halogen Detector,Metal Light Spectrometer
XRF short for X-ray Fluorescence Spectrometers is a physical elements analysis methods. For the past few years XRF as a rapid test method has played a great part in environment protection, material composition, nonferrous metallurgy, chemical , medicine and other industries.XRF has great technology superiority in rapid ,non-destructive ,multiple elements simultaneous analysis, low analysis cost. In environment protection and foodstuff areas, XRF can screen out heavy metals whether near harmful levels through direct testing methods. ROHS is a compulsory standard established by European Union legislation which aims to eliminate Pb , Hg, Cd, Cr-VI, PBB, PBDE in electrical electronic products. As rapid testing equipment, XRF is playing an important part in the application. Moreover, XRF has wide application in site analysis and process control analysis, such as scrap metal recycling, soil site inspection, online material inspection.
Product Details
Product Paramenters
|
Testable Elements
|
S-U
|
|
Test Sample
|
Solid、Liquid、Powder
|
|
Collimator Facula
|
φ1mm、3mm、5mm
(Software Automatic Option)
|
|
Testing Duration
|
60-200s(Software Automatic Adjustment)
|
|
Minimum Detectability
|
Pb/Cd/Cr/Hg/Br/Cl≤2ppm
|
|
Optimum Resolution
|
145±5eV
|
|
Rated Power
|
128W
|
|
Detection limit
|
≤2ppm
(accuracy: accuracy ±0.05%)
|
|
X – ray Tube Service Life
|
>20000 hours
|
|
Radiation Protection Standard
|
GB18871-2002 GBZ115-2002
|
|
Detector Cooling Type
|
Electrical Cooling
|
|
Machine Dimension
|
650mm*450mm*350mm
|
|
Sample Entocoele Dimension
|
280mm*280mm*200mm
|
|
Weight
|
About 32 Kg
|
|
Computer
(Integrated)
|
Intel(R) Celeron cpu1.6GHz，RAM:4G Hardware 120G
|
Product Advantages

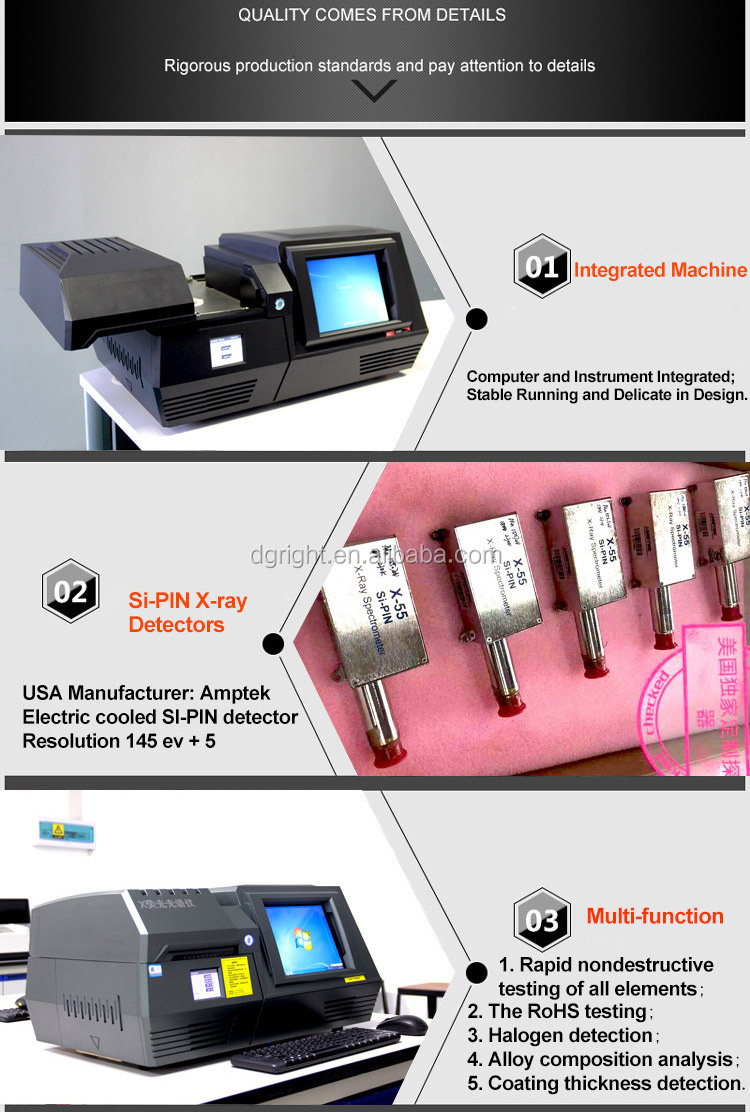

1. Industry Computer and Instrument Integrated. Stable Running and Delicate in Design. 2. 5 Mega-pixel Camera, Clear Observation, Accurate Positioning. 3. Unique Elements Secondary Extraction Algorithm, Improve Microelement Detection Algorithm. 4. Self-defined Material Testing Finish Audio Alarm Function, Convenient for Operators Multitasking Job. 5. Running Light Control Module Working Indicator, Operator Intuitively Know Equipment Status. 6. Software Integrated with Multiple ROHS Limit Standard Judgement Function in One Mode.
7. Each Core Accessory Separately Design, Avoid Interactive Electromagnetic Interference.Improve Equipment Detection Limit and reduce Equipment Failure Rate. 8. Multi-language Software Version(Chinese, English, Korean).
7. Each Core Accessory Separately Design, Avoid Interactive Electromagnetic Interference.Improve Equipment Detection Limit and reduce Equipment Failure Rate. 8. Multi-language Software Version(Chinese, English, Korean).

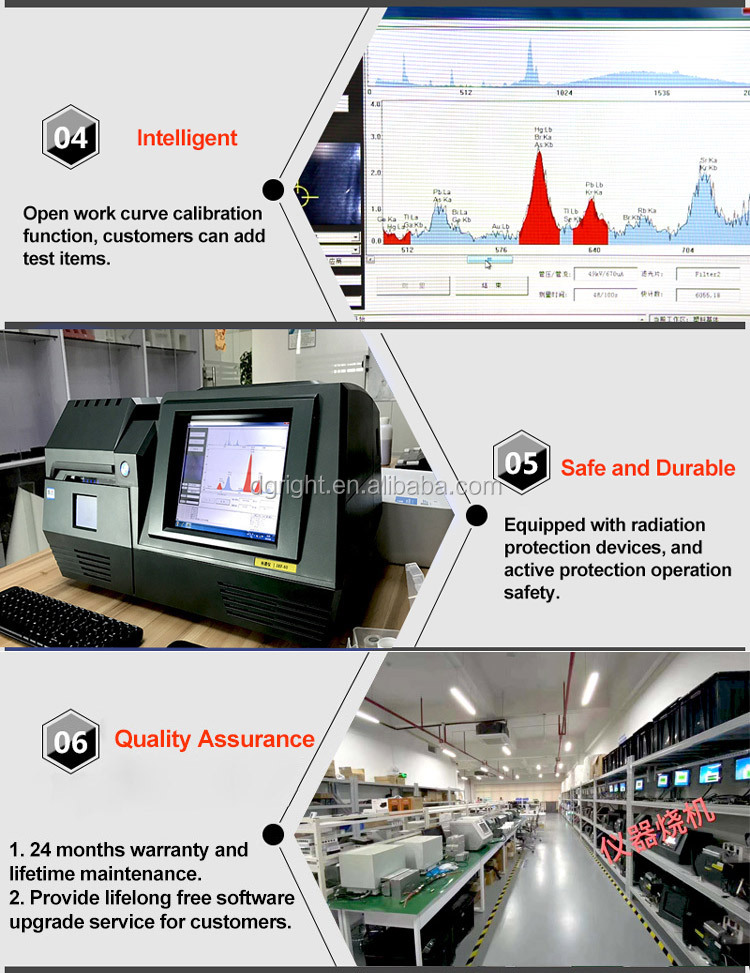

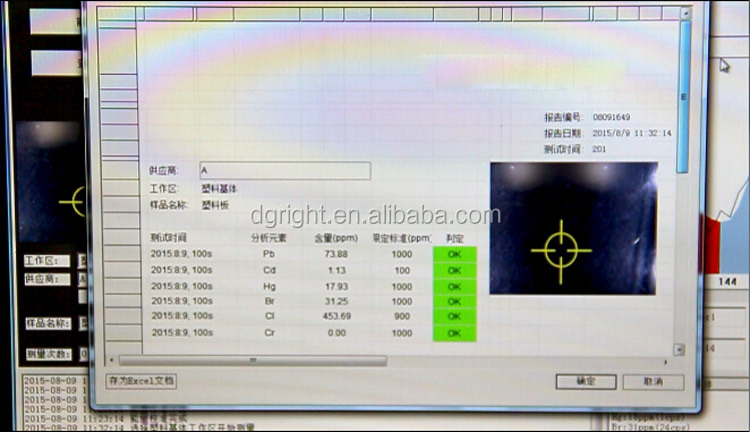

9. Integrate data statistics function, Convenient for QC Dept statistic suppliers, Materials Name, Components and Different Time Quantum(Such as Cycle, Monthly, Quarter)Testing Statues. 10. Open Working Curve Calibration Function, Customized Hazardous Substance Inspection Methods and Control Schemes. 11. Software Power On Self Test and failures judgement function, Keep Equipment Running under optimal operating conditions and debugging in time once abnormal. 12. Analyze data Onekey Backup/Restore Function, Avoid Loss Resulting from Misoperation or Other Reasons, Ensure Data and System Files Safety. 13. Self-Defined Testing Report Output Format(Excel、PDF and List Chart) According to Customers Requirements. Conform to Factory Multiple Statistical Requirements . 14. Support Multi-User Registration, Convenient for QC Dept Rapidly Trace Materials Inspection Status. 15. Core Hardware Real Time Temperature Monitoring Function. By Heat Source Analysis Design and Software Real Time Control, Heat in Hardware Can be Discharged in Time in order to Keep Detector from Temperature Change. 16. Analysis Software can Automatically Set Tube Voltage/Tube Current based on Sample Material, Shape, Size. Extend Light Tube Working Life and Improve Testing Precision. 17. Support Large Sample Testing and Process Guidance Design.
Technical Support and After-Sales Service
1. Complete Equipment Warranty: 2 years Lifetime Technical Support Service. 2. Free Maintenance for Non-human Factors Failures within Warranty, Response Time: within 4 Hours. 3. Free Software Upgrade Service. 4. Provide comprehensive services of dealing with various environmental directives detection and control solution. 5. Based on user specific need and controlled materials features, combined with thetechnical characteristics of XRF analysis, integrating equipment analysis methods into user’s QC system in order to provide the best testing program and help user establish material acceptance criteria and provide risk analysis methods for special materials.

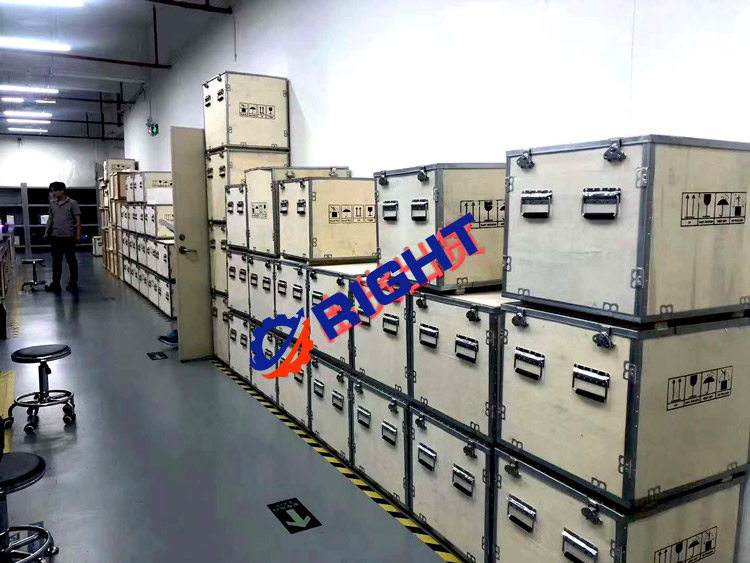

Product packaging
Why Choose Us
Environmental Protection is an everlasting subject. Dongguan RIGHT Testing Co., Ltd always considers“Environmental Protection New Technology, Create New Life” as products R&D and enterprise development strategy orientation, committed to supply with safe, health and environment protection standard products. Based on our R&D professional team, American advanced production equipments, European and American top technology, selected superior imported accessories and successfully blending excellent arts and high-tech elements in our products, we have been one of the industry leaders. Facing with the challenge of worldwide economy integration tides, we are constantly introducing advanced technology, professional talents and group capital in order to be an international competitive green technology enterprise.Adhering to” Civilization, intelligent, professional, enterprising ”culture, holdding fast to quality and reputation dual promise,RIGHT people are achieving long-cherished “offer extraordinary quality with extraordinary attitude” business philosophy.

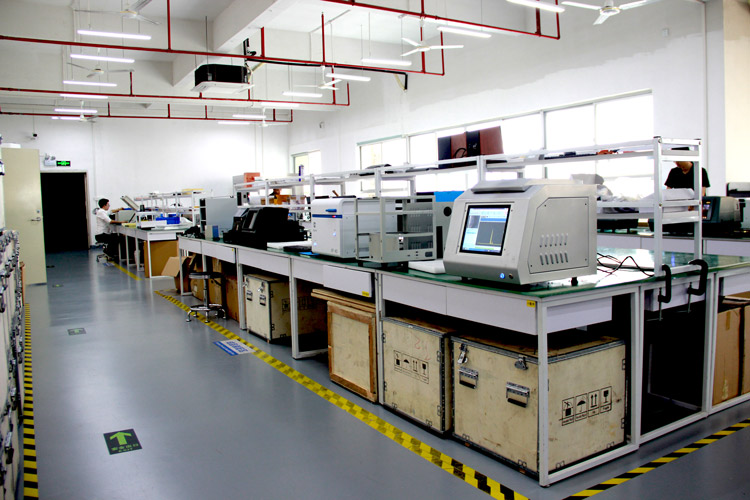

Company Profile
