Description
- Brand Name: BETTERSHENGSUN
- Origin: CN(Origin)
- Usage: Pressure Sensor
- Material: Porcelain
- Type: Humidity Sensor
- Output: Analog Sensor
- Theory: Resistance Sensor
- Model Number: FPC1020
- is_customized: Yes

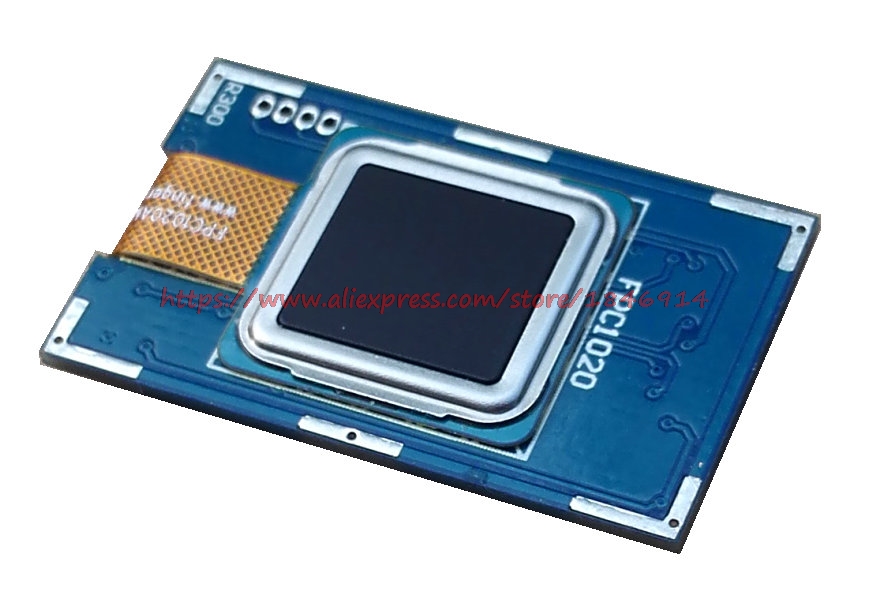

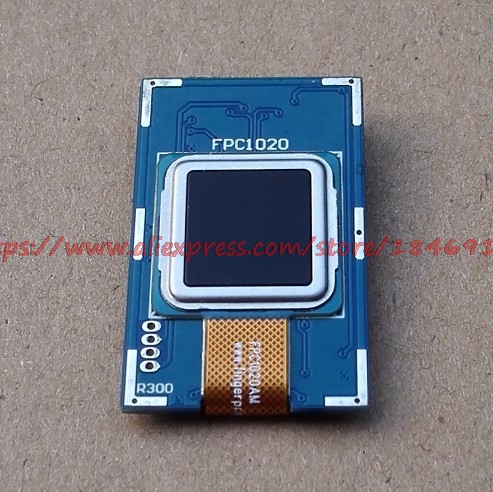

R300 fingerprint module with Swedish fpc1020 small area of the capacitor surface shaped acquisition chip, integrated fingerprint algorithm chip, with fingerprint input, image processing, feature extraction, template generation and template storage, fingerprint matching (1:1) or fingerprint search (1: n) and other functions.
With finger output, suitable for low power applications, low power consumption is 38uA.
Technical parameter:
Supply voltage: 4.2–6.0V DC
Supply current:
Standby current: 38uA
Working current: 40mA (typical)
Peak current: 50mA
Fingerprint image entry time: < 0.1 seconds
Acquisition window area: mm 10.5*11.5
Line board size: 33.4*20.4*1mm
Matching mode:
Comparison method (1:1)
Search mode (1:N)
Template file: 512 bytes
Storage capacity: 1000
Safety level: five (from low to high: 1, 2, 3, 4, 5).
False rate (FAR): < 0.0001%
FRR (FRR < 1%).
Search time: < 0.2 seconds (1:1000, mean)

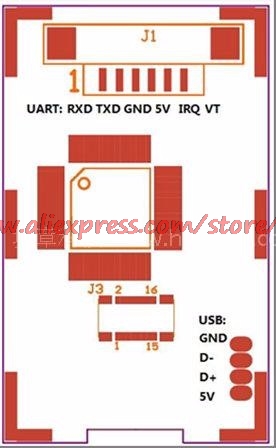

PC interface: RS232 (TTL logic level), USB
Baud rate: (9600 x N) BPS N=1 ~ 12 (the default value of N=6 57600bps)
Working environment:
Temperature: -20 degrees C +50
Relative humidity: 10%RH90%RH (no condensation)
Storage environment:
Temperature: -40 degrees C +55
Relative humidity: less than 85%H (without dew)
Suitable for fingerprint lock, fingerprint safe and other battery powered applications.
