Description
- Brand Name: HYXC
- Max Measuring Range: 400 Bar & Above
- Model Number: HYXC-MP
- Power Supply: 10-30V DC
- Output Signal: 4-20mA
- Pressure Connection: G1/4
- Accuracy: 0.5%FS
- Electrical Connection: DIN 43650C
- Protection Class: IP65
Welcome to Global electronics wholesale
We provide low price & high quality and best service.
100% Customer satisfaction is our goal
Please note that we are Wholesale products.
If you need products in large quantities,
Please contact us, to negotiate! Cooperation Happy!!

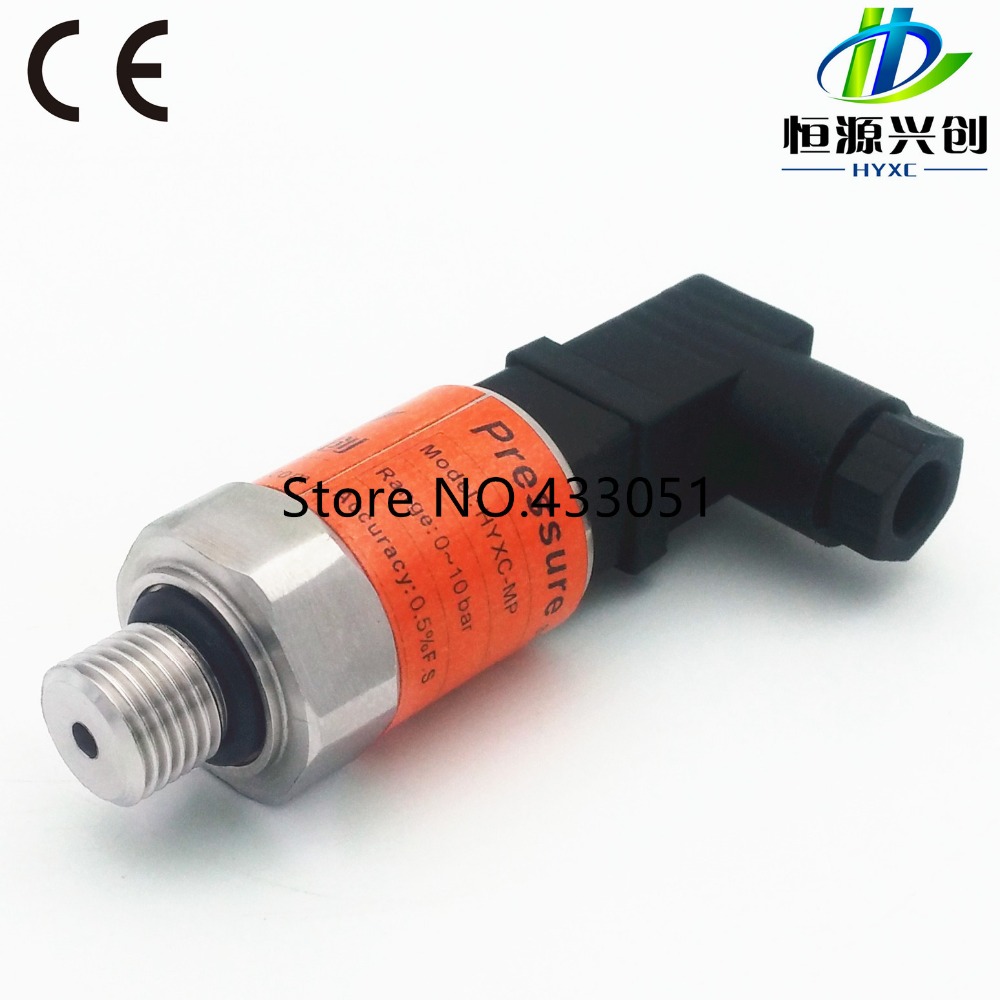

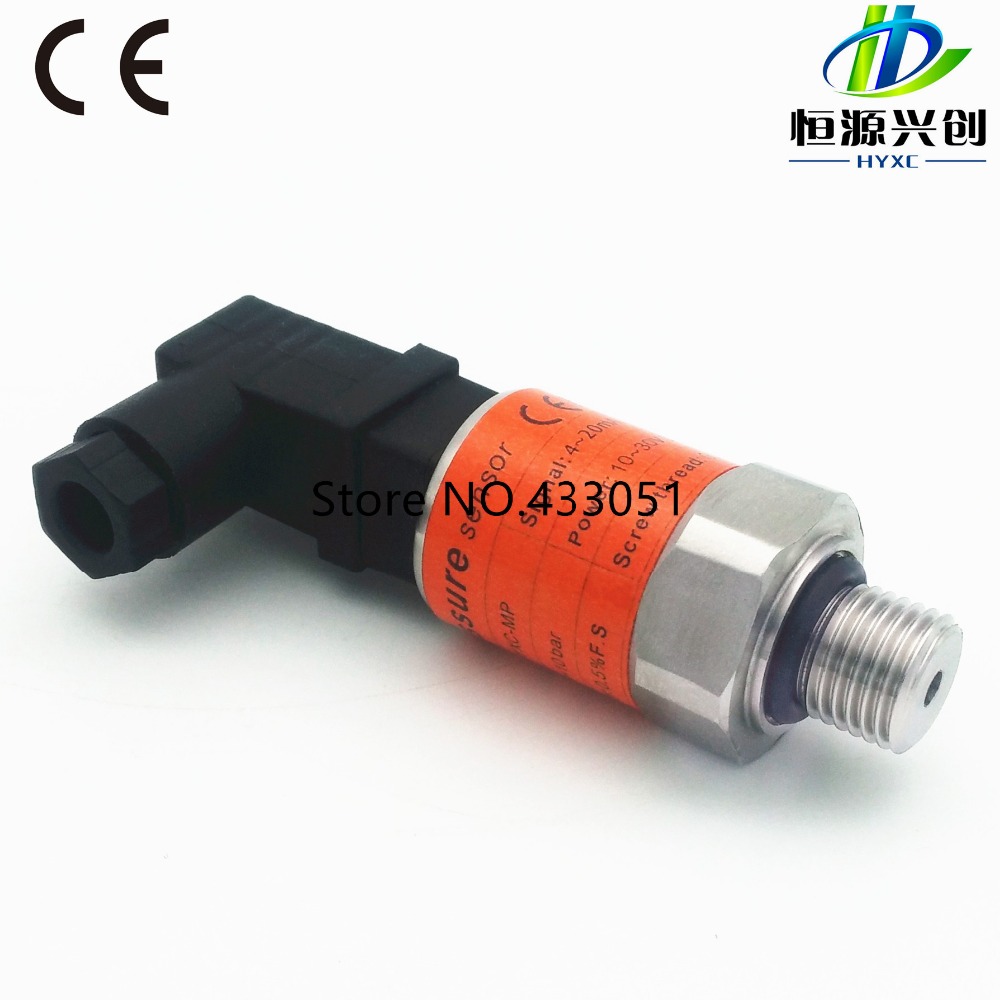

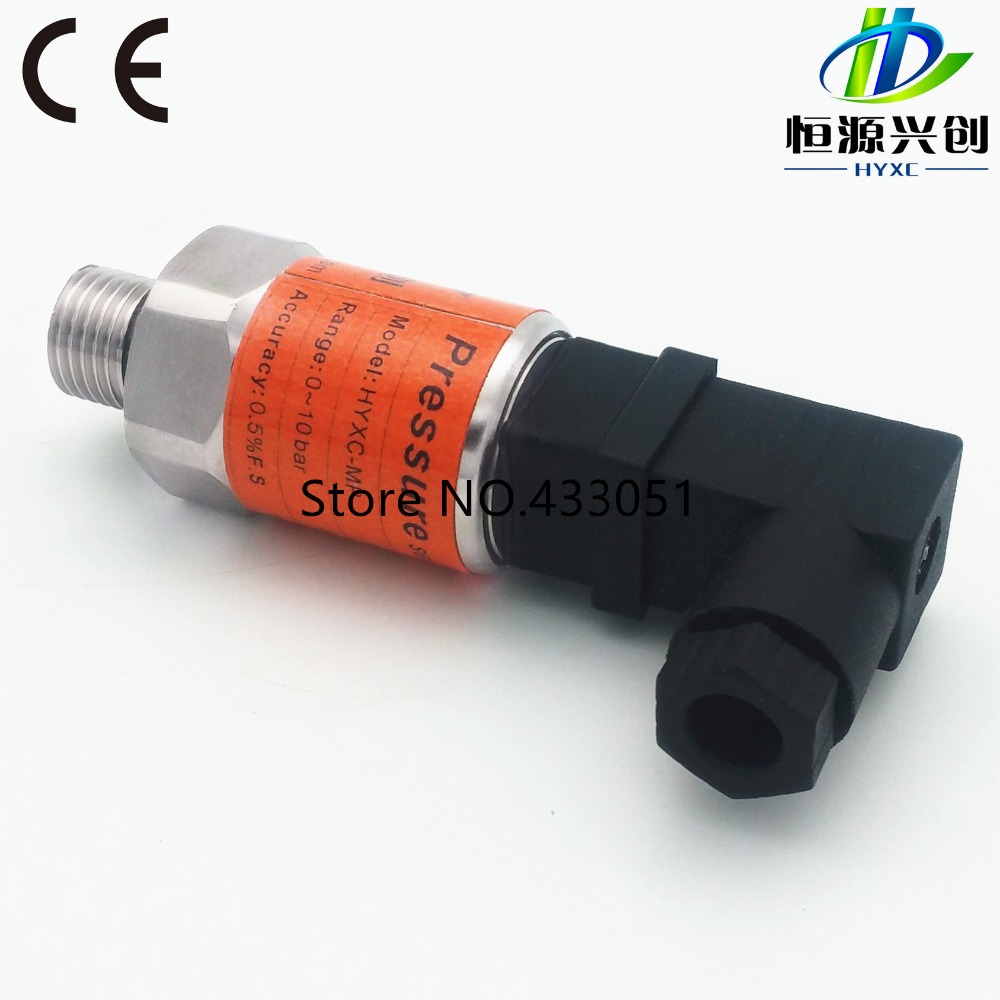

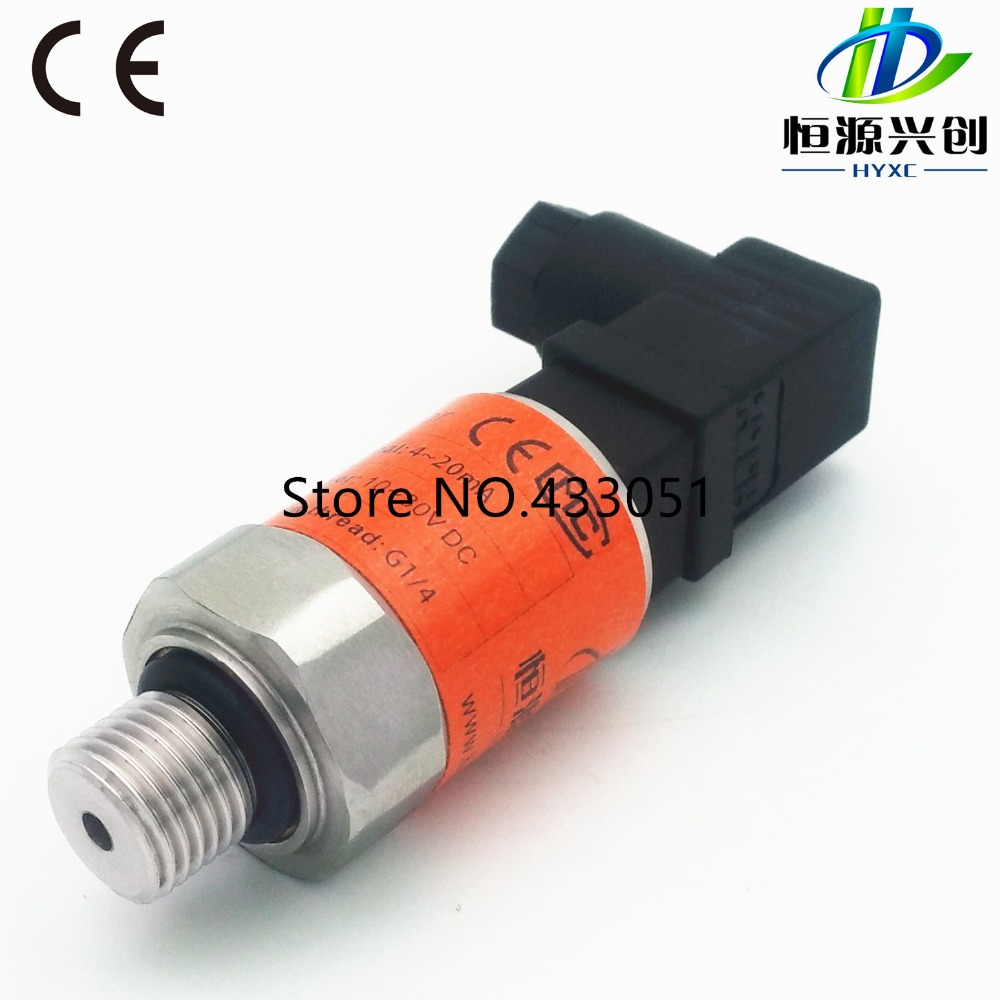

The heart of HYMP is a ceramic pressure sensor that is temperature compensated and laser trimmed for accurate span and offset calibration. The supply voltage required is 10~30V DC with an output current of 4~20mA or 0~10V DC on request. The typical advantage is the compact size, which make it convenient to be installed in small room. Some typical applications for this pressure sensor are: Process control and automation, compressors and pumps, engine controls, off road vehicles to name few.

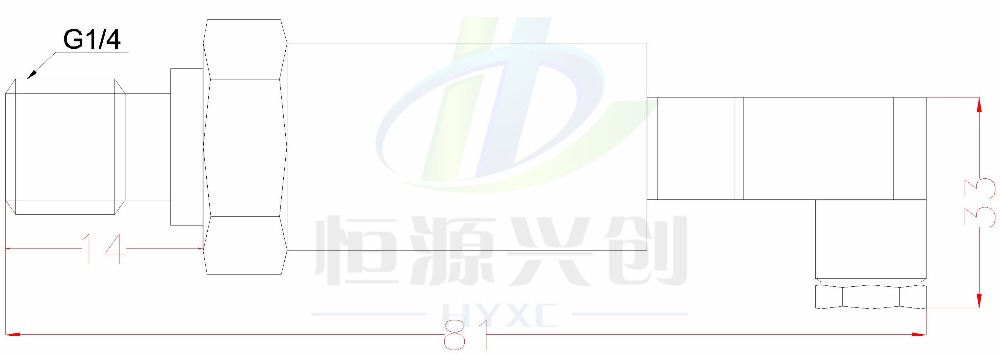

Overall dimensions:(mm)
Application:
Aerospace, electric power, sewage treatment, water supply system, petroleum chemical industry, pharmaceutical industry, power units, air conditioning units, refrigeration units, compressor unit, laboratory pressure detection and efficacy, industrial process control, internal combustion engine, engine, hydraulic and pneumatic system, constant pressure water supply system in sectors such as liquid, gas measurement and control,
|
Measuring Range |
-1~400bar (can choose any range) |
||||
|
Media |
Air, Water, Oil, Refrigeration liquid, Other weak acid and alkalescent media |
||||
|
Output |
4~20mA (Default) |
0~5V (Buy here) |
0~10V (Buy here) |
||
|
Power Supply |
10~30V DC |
10~30V DC |
24V DC |
||
|
Accuracy |
±0.5%F.S |
||||
|
Long Term Stability |
≤±0.2%F.S |
||||
|
Overload Pressure |
200%F.S |
||||
|
Resolution ratio |
1/100000 |
||||
|
Zero temperature coefficient |
Typical: ±0.02%FS/℃; Maximum: ±0.05%FS/℃ |
||||
|
Sensitivity temperature coefficient |
Typical: ±0.02%FS/℃; Maximum: ±0.05%FS/℃ |
||||
|
Impact resistant |
100g, half sine of 11ms, duration |
||||
|
Anti-vibration |
≤±0.01% F.S(X, Y, Z axis, 200Hz/g) |
||||
|
Insulation resistance |
> 100 MΩ, inspired 500 VDC |
||||
|
Response time |
≤2ms |
||||
|
Load |
Current type: ≤[(U-7.5V)/0.02A]Ω Voltage type: ≥10kΩ |
||||
|
Working Temperature |
-20 ℃～+120 ℃ |
||||
|
Pressure Connection |
G1/4(Default),NPT1/4, 7/16-20UNF (Female and other connection available on request) |
||||
|
Electrical Connection |
DIN 43650C (Default) |
Cable (Buy here) |
Packard (Buy here) |
||
|
Protection Class |
IP65 |
IP67 |
IP65 |
||
|
Pressure Form |
Guage pressure |
||||
|
Insulation |
>100M(Ω)@50V |
||||
|
Electromagnetic Compatibility |
EN50081-1/-2; EN50082-2 |
||||

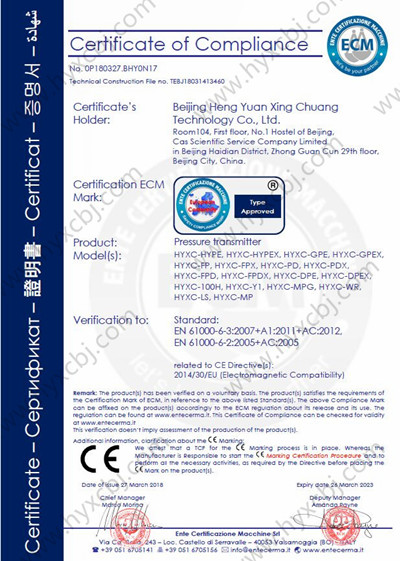

Product certificate
