Description
- Item Type: Stage Lighting Effect
- Model Number: 100mW 405nm
- Brand Name: Q-BAIHE
- Occasion: Home Entertainment
- Style: Mini
- Power: 0.1W
.
|
Model No. |
LSR405NL |
|
Wavelength |
405±5 nm |
|
Spatial Mode |
TEM00 |
|
Output Power |
100mW |
|
Operation Mode |
CW or Modulation |
|
Modulation |
0~30khz Analog or TTL(Optional, note to us which one you need, we will ship Analog one as default) |
|
Pointing Stability |
<0.05 mrad |
|
Height |
25mm |
|
Beam Diameter(1/e2) |
4 mm |
|
Beam Divergence(full angle) |
0.5 mrad |
|
Power Stability |
<3% over 4 hrs |
|
Cooing Method |
TEC (can work long time ) |
|
Warm Up Time |
<2 minute |
|
MTTF |
10,000 hrs |
|
Working Temp |
20-30degree |
|

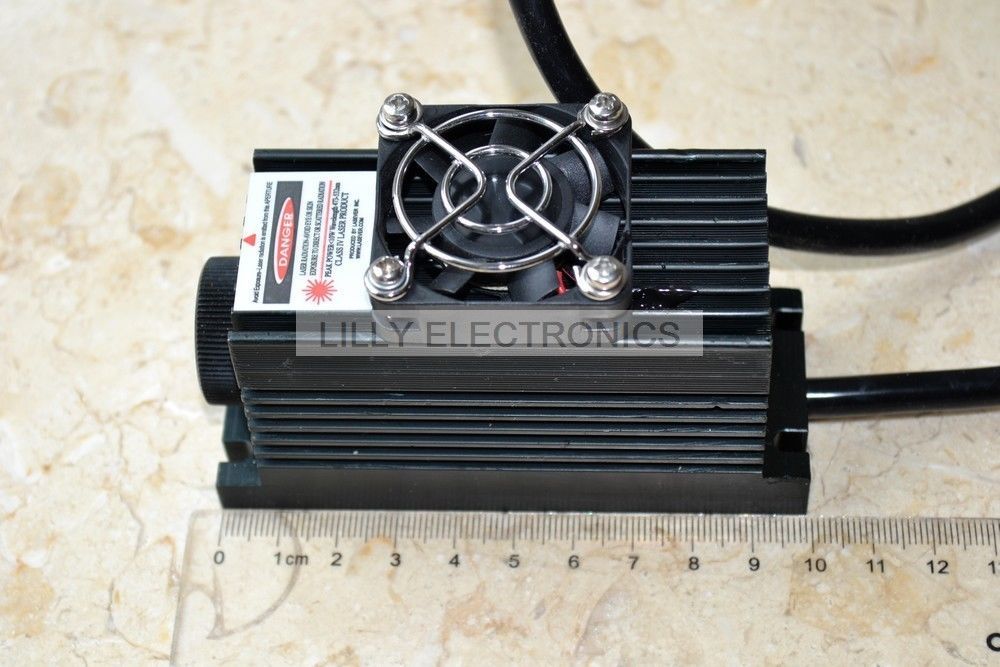

Laser head dimensions |
100(L)x40(W)x50(H)mm3 (fan adds 15mm height) |
|
Power Supply (Optional, note to us which one you need, choose B or C type for addtional cost as below. We will ship Power supply A type as default) |

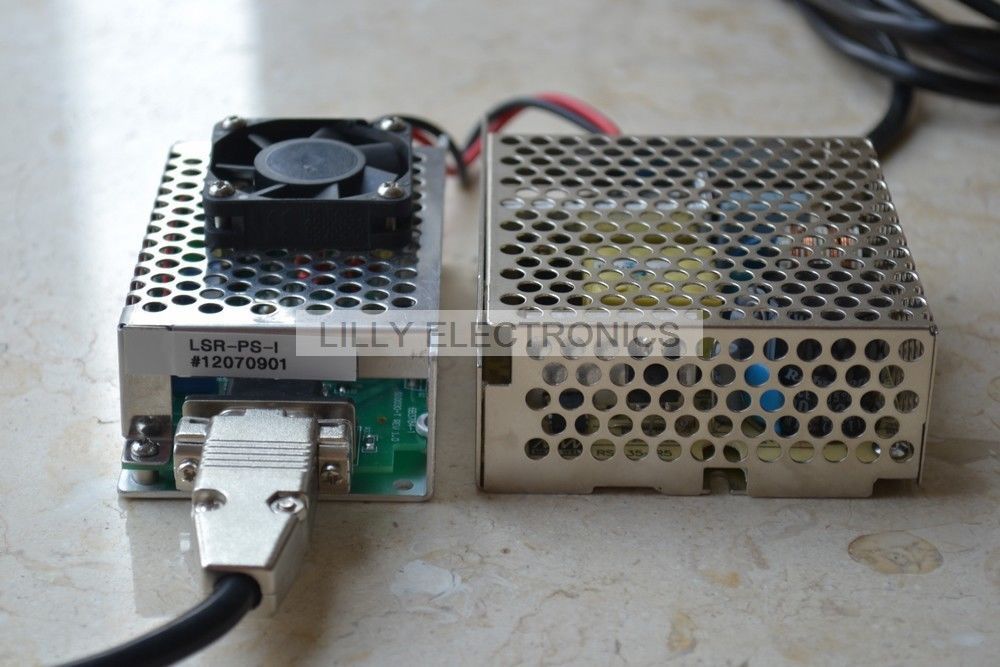

A. OEM type LSR-PS-I:100(L)x58(W)x32(H)mm3 AC/DC PSU: 85~265V 50/60Hz input |
|

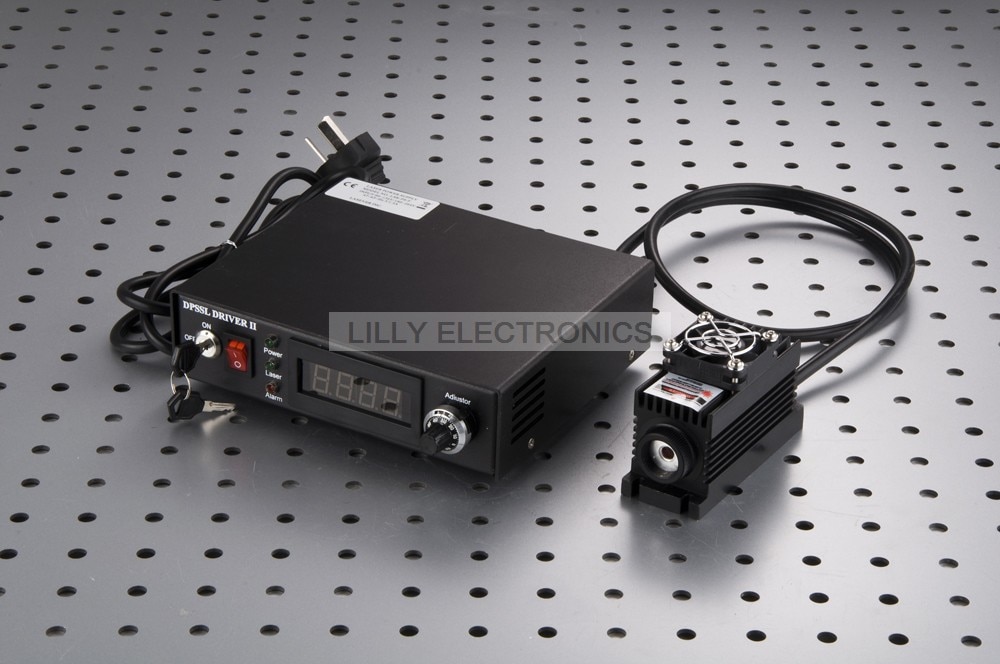

B. Lab type LSR-PS-IIS: 104(W)x128(D)x89(H)mm3 85~265V 50/60Hz input |
|
|
C. Lab Adjustable type LSR-PS-IIS: 179(W)x148(D)x56(H)mm3 85~265V 50/60Hz input |
Warranty
1 Year
A. OEM type power supply LSR-PS-I+5V PSU (The power supply type in the bid)
B. Lab type power supply LSR-PS-IIS (For additional cost of $35)
C. Lab Adjustable power supply LSR-PS-II (For additional cost of $60)
Application:
Laser show
Display
Laser Alignment
Scanning Biochemistry
Material Inspection Lidar
Pakage:
1 X 100mW 405nm Violet Laser Dot Module + TTL/Analog 0-30KHZ + TEC Cooling + 85-265V
