For Line array CCDTCD1209 Serial port STM32 module 485 5000 times per second Hamamatsu line array CMOS customization
- Brand Name: oein
- Certification: NONE
Line array CCDTCD1209 Serial port STM32 module 485 5000 times per second Hamamatsu line array CMOS customization
1: can be high-speed acquisition, high-speed processing, find the edge, thousands of times per second, and according to customer requirements to output the results.
2: Need to cooperate with the light road, light road customer design.
A: Single 12V power supply, the power supply must be stable, not more than 12V.

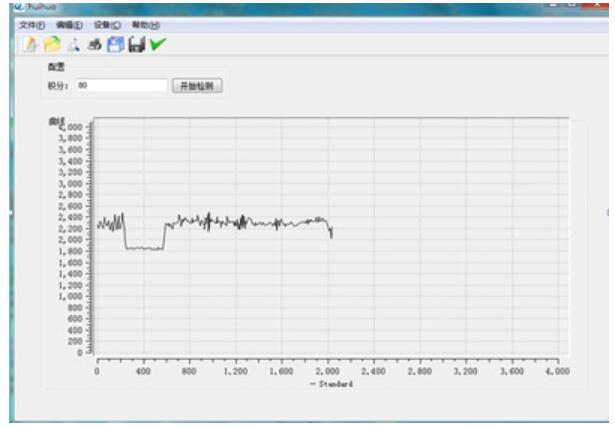

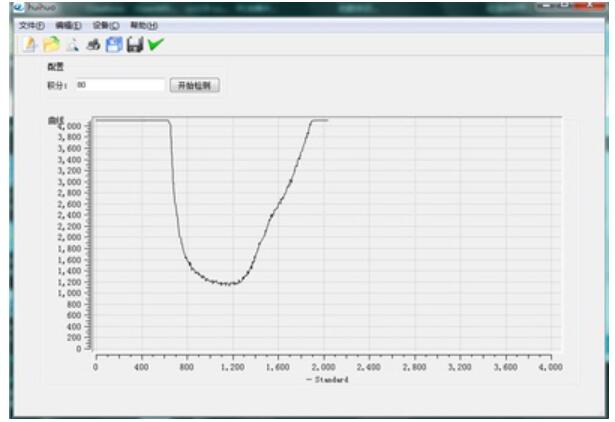

B: Only one data reading instruction, @ C0080 #@, ASCCII code format, is sent once to read a frame of data, a total of 2048* 2,4096 image data, each pixel takes up two bytes, the first byte is the high 4 bits, the last byte is the low 8 bits, 12 bits of data sampling. The image data is binary. The serial port assistant can receive and display the image data. Huihuo. exe software can display the received data.
C: the CH340 module will be connected before delivery. After installing the CH340 driver on the computer, connect the computer to the USB port with 12V power supply. Only when the mapping serial port number is less than 10, you can use huihuo.
D: Internal master clock 12.5mhz, so 12.5m /2048 is greater than 5000 frames per second sampling, but because the serial port output is slow, all the output image data is only the image data sampled at a certain moment.

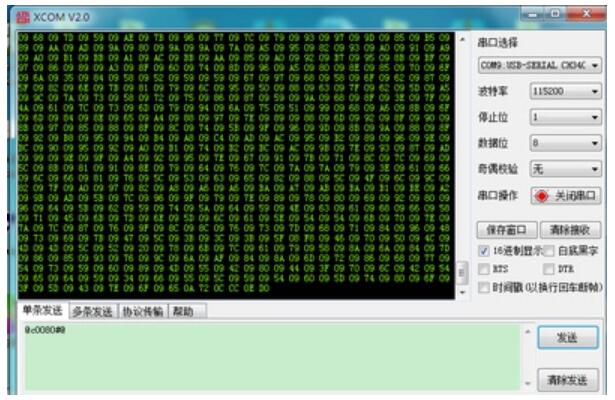

E: Serial debugging assistant instruction, baud rate, setting data format, such as baby screenshot.
F: Can be customized, 100M network port, USB2.0 interface, high-speed data transmission.
