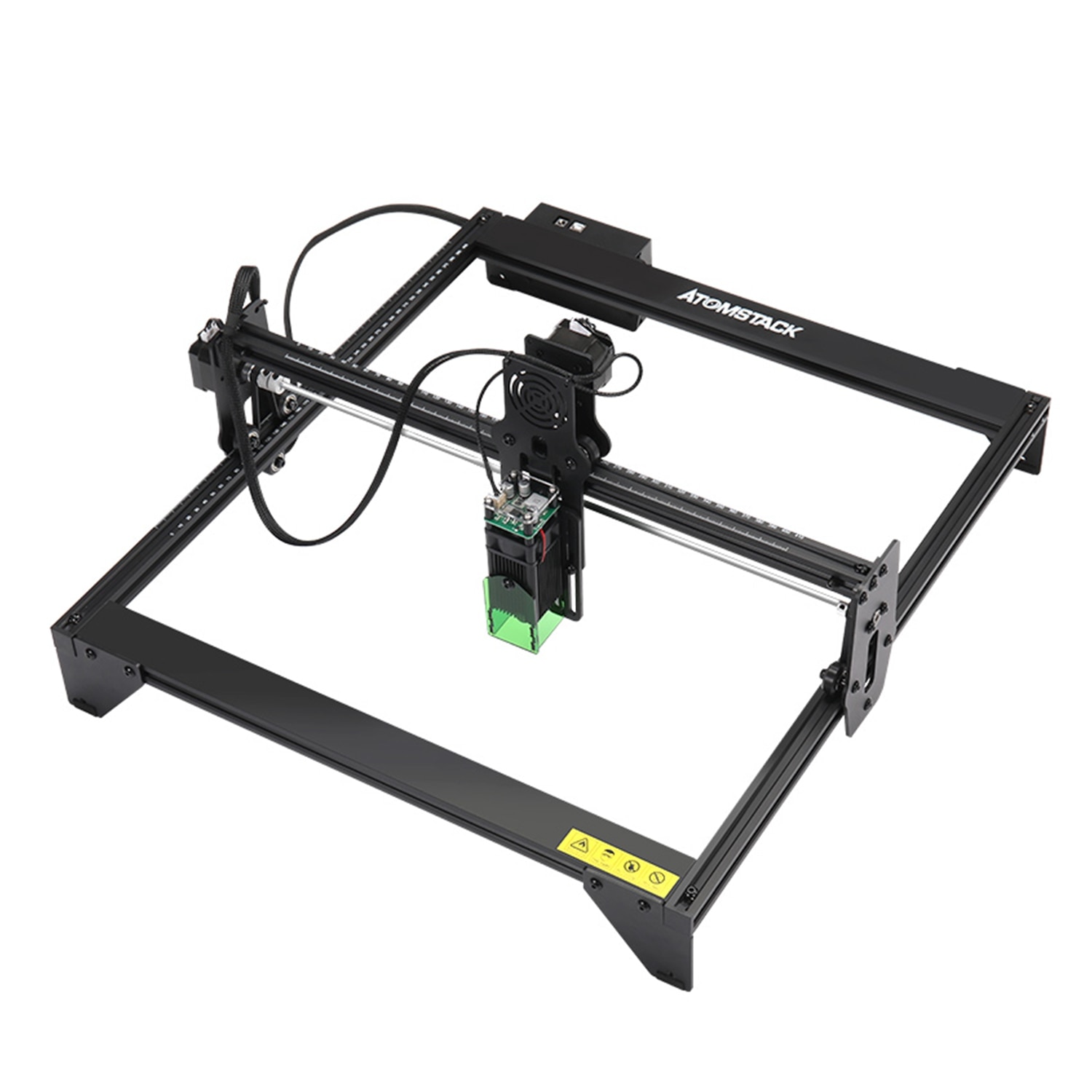

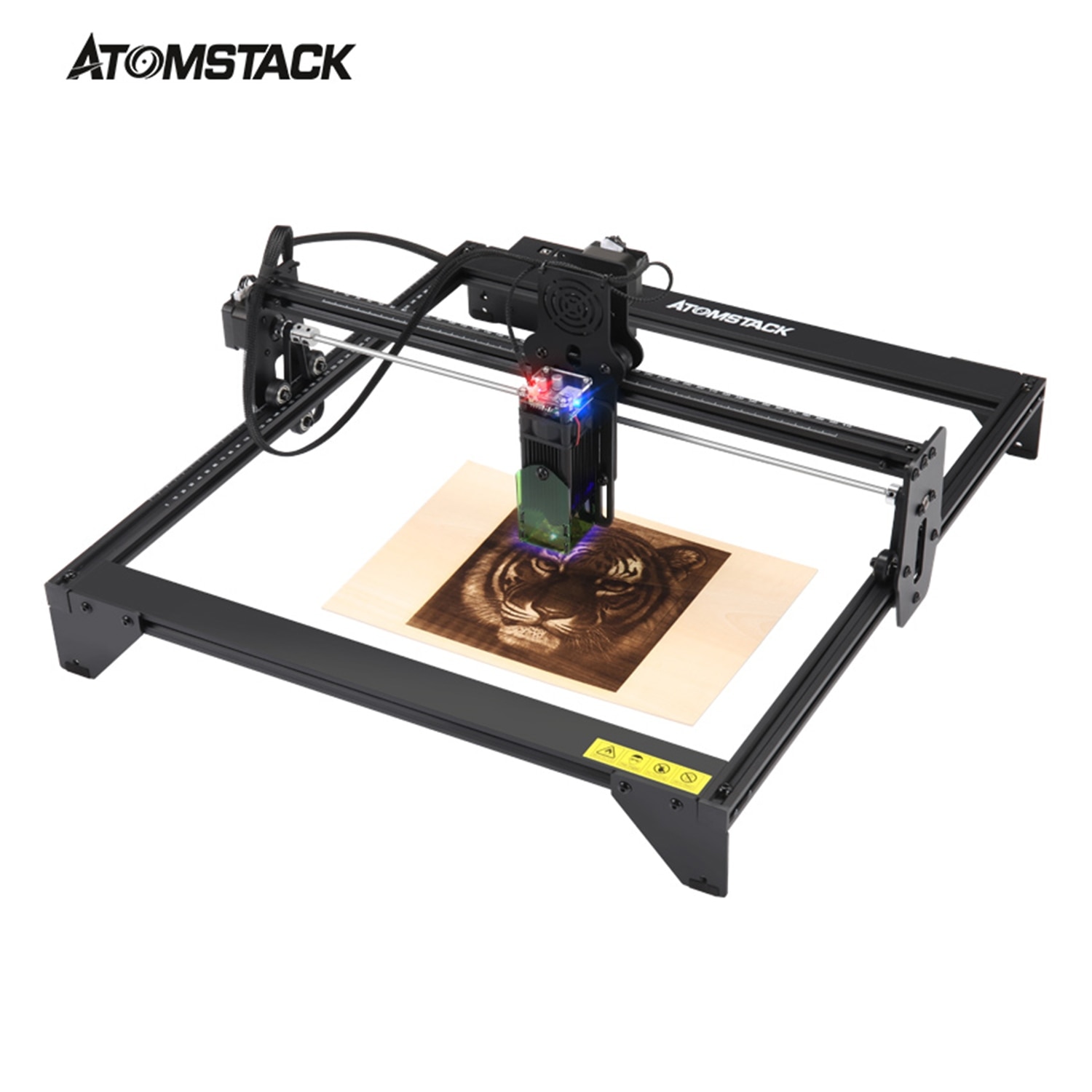

ATOMSTACK A5 20W Laser Engraver CNC Quick Assembly 400*430mm Carving Area Full-metal Structure Desktop DIY Engraving Cutting Machine Upgraded Fixed-focus Laser Excellent Eye Protection Precise Scale Lines vs NEJE Master
Features:
【New Eye Protection Design】: The laser protective cover perfectly protect your eyes, filter UV light for 97%. You and the people around can watch laser engraving without wearing goggles. Reduce the cost of your goggles and the inconvenience of wearing goggles.

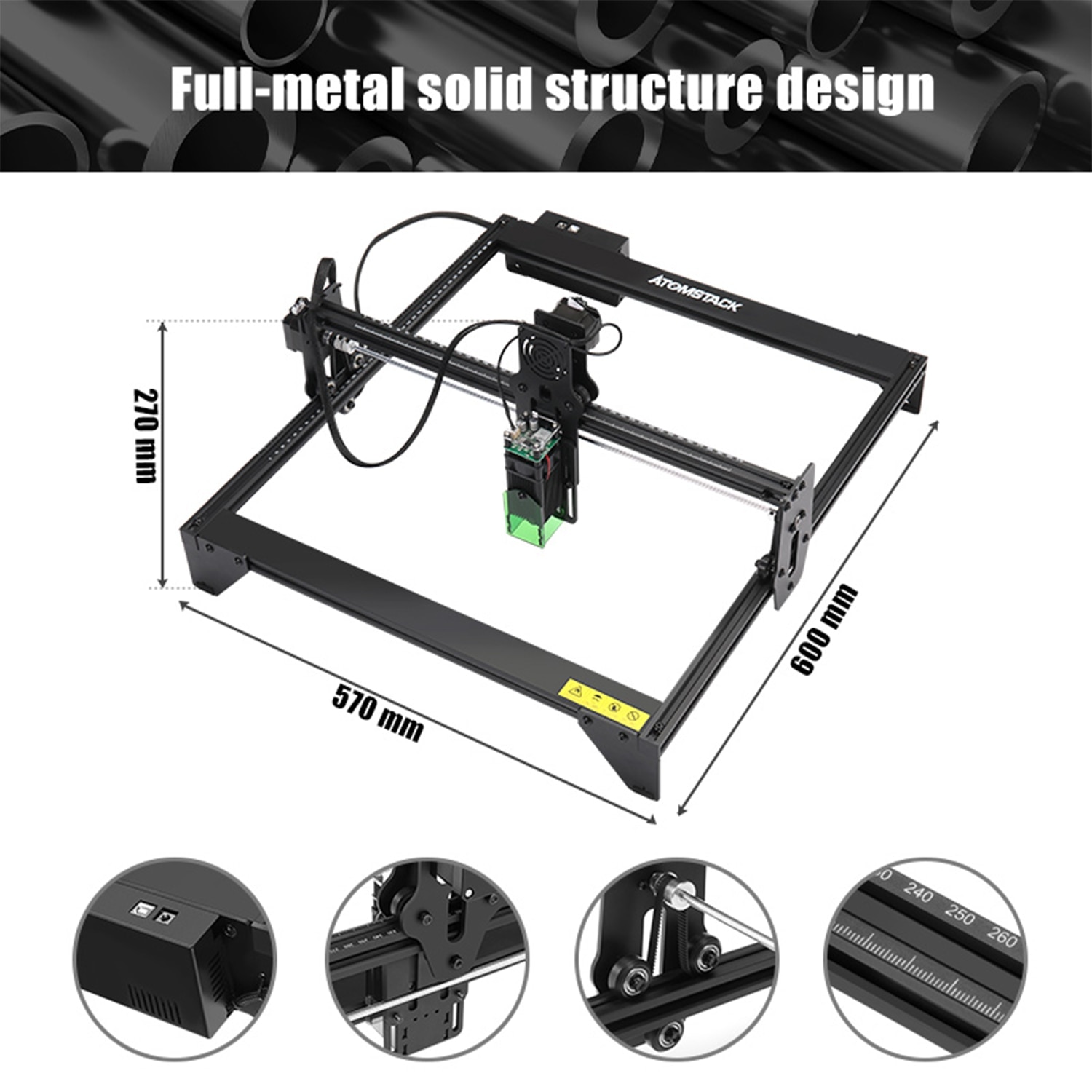

【Solid and Easy Installation Structure Design】: The full-metal structure design makes the machine more solid, and improves the accuracy of engraving. The entire structure has been designed for quick assembly, and the assembly can generally be completed within 10-20 minutes.

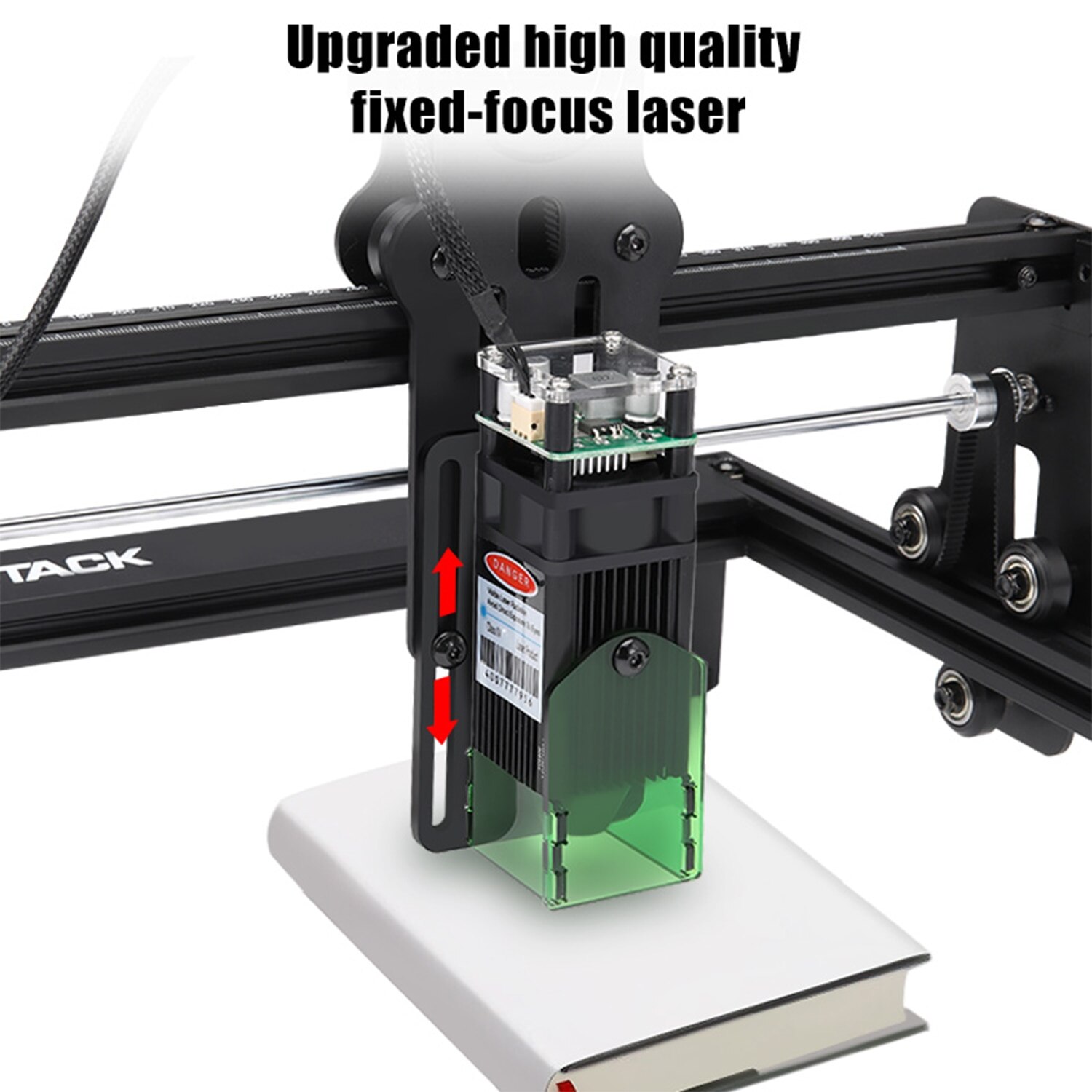

【Upgraded Fixed-focus Laser】: Engraving can be done without adjusting the focus; The new laser can combine both precision engraving and high-energy cutting at the same time. The laser power of the fixed-focus laser is more stable than the zoom laser.
【Intelligent Security Protection】: When the laser is in an abnormal state for continuous static irradiation, the laser will automatically stop to prevent fire; when the engraving machine is impacted by an external force to move the position, the laser will automatically stop to avoid danger(Customers can choose whether to use this function).
【Wide Compatibility】: The machine can be compatible with various mature engraving software, such as Windows (works with LaserGRBL), MAC OS and Linux (works with LightBurn)

【Precise Scale Lines Axis】: There are precise scale lines on the X-axis and Y-axis to facilitate quick length measurement. 410*400mm large area engraving interval can meet your various engraving needs.

Features:

1.Activate protection position: There is a G-sensor on the motherboard, if the machine detects unauthorized movement, the laser beam will stop.

2.Laser beam safety guard: If your computer system stops or the USB cable is disconnected, causing the laser engraver to stop moving, the laser beam will stop, to avoid fire.

3.High speed: The engraving speed could be up to 3000MM / Min. (If you don’t consider the laser carving result, the moving speed could be up to 1000MM / S).

Description:

It could preprocess 32 instructions, support baud rate up to 921600, more powerful, suitable for laser engraving cutting.



Specifications:

Motherboard: 32-bit motherboard with STM32 MCU

Firmware: Ortur laser master Firmware

Higher computer operating system: Windows (works with LaserGRBL), MAC OS and Linux (works with LightBurn)

Laser engraver power: 36W, 12V 3A

Electric power of laser module: 20W

Wavelength: 445 ± 5nm

Variable Focus: Yes

Default Focal Length: 55MM for 15W and 20W laser module; 58MM for 7W laser module

Input format: NC BMP JPG PNG DXF, etc

Size: 400X430MM

Carving speed: 3000MM / Min and less

Image size: No limit (the pixel precision could be adjusted freely, and the default value is 300 pixels per inch, it is about 0.81 um pixel precision)

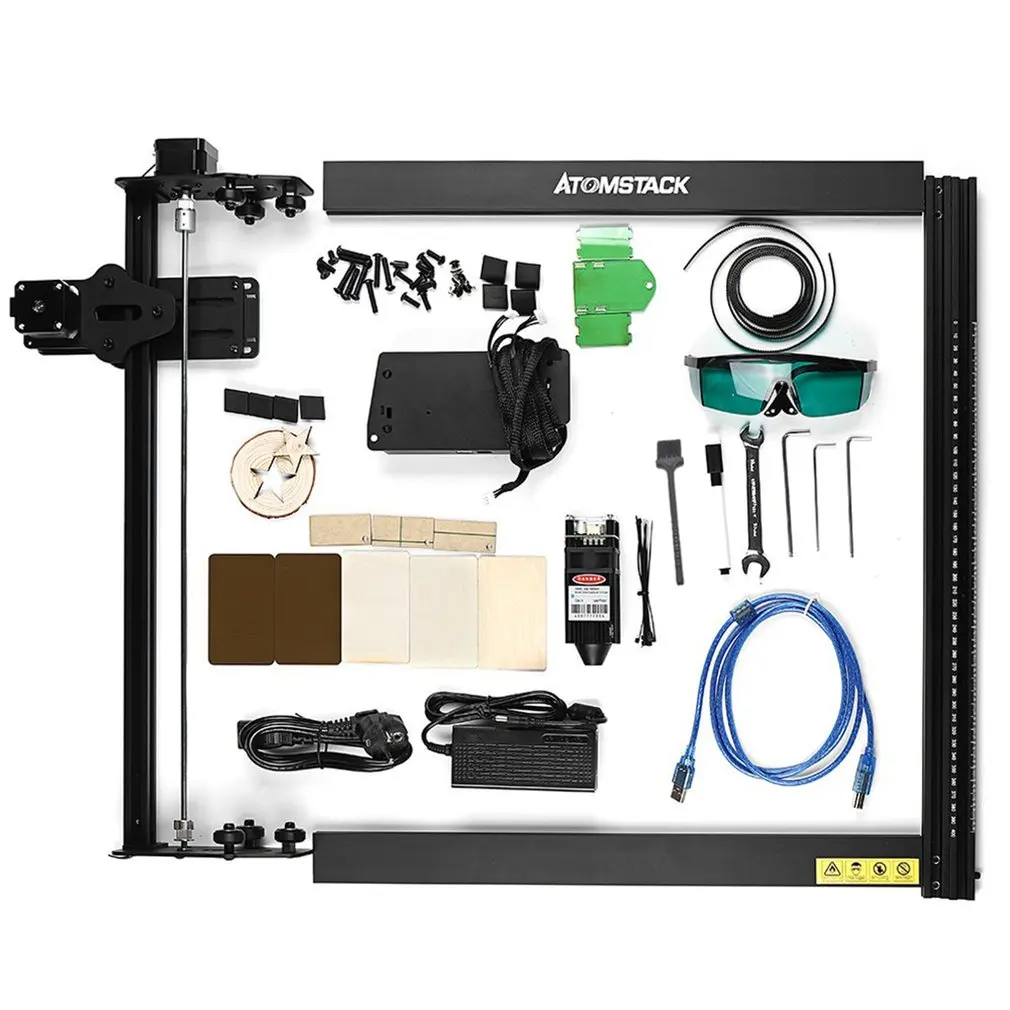

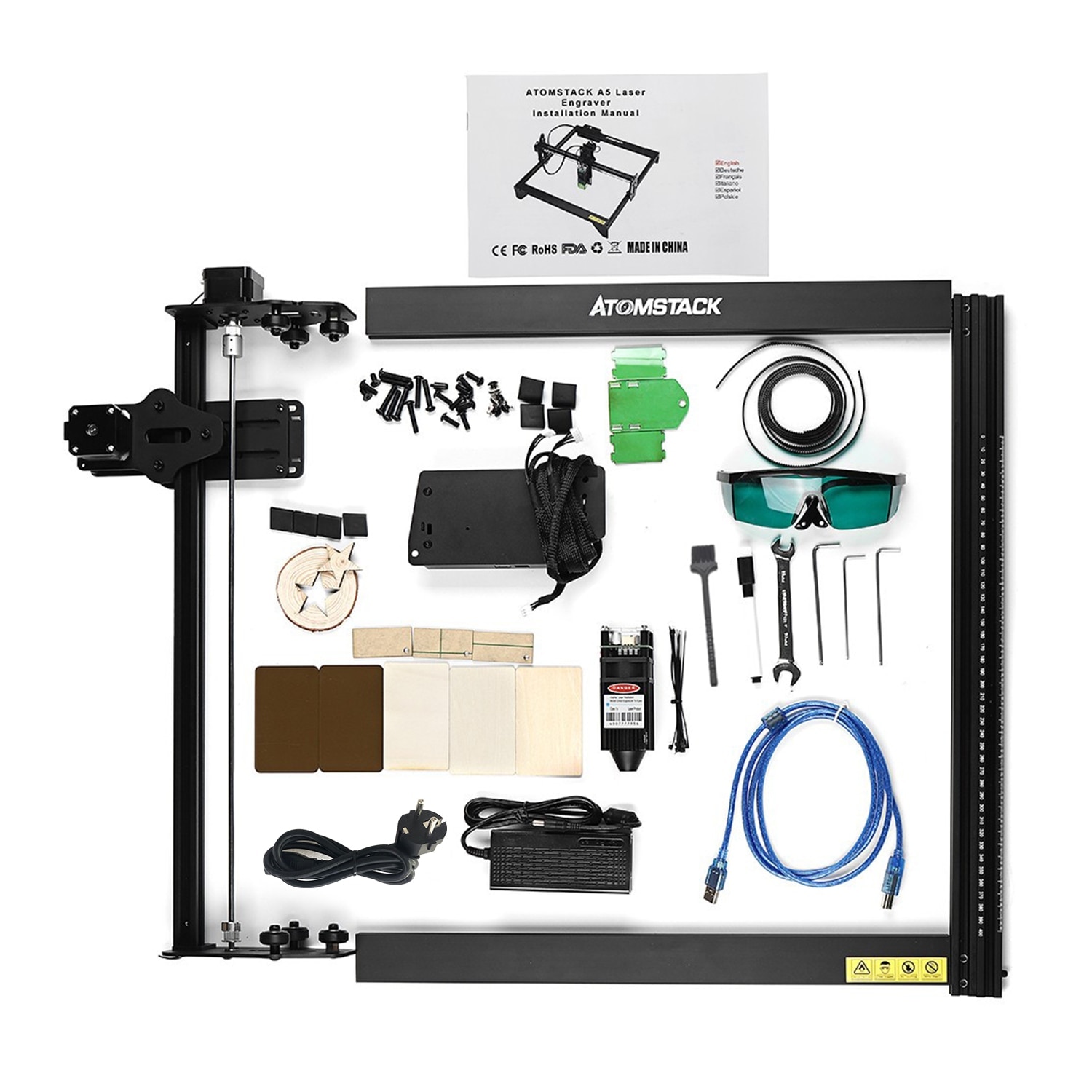

Package Included:

1 set*Laser Engraving Cutting Machine



Notes:
1. Due to the difference between different monitors, the picture may not reflect the actual color of the item. We guarantee the style is the same as shown in the pictures.
2. Please allow slight dimension difference due to different manual measurement.
