Description
0.5w 5.5w 2.5wFocusing Blue Laser Module Laser Engraving And Cutting TTL Module Laser Can Engrave On Wood
- Model Number: DK070
- CNC or Not: CNC
- Condition: New
- Operating Voltage: 12V DC
- Control Method: Automatic
- Cooling Method: Air Cooled
- Weight: 0.6KG
0.5w 5.5w 2.5wFocusing Blue Laser Module Laser Engraving And Cutting TTL Module Laser Can Engrave On Wood

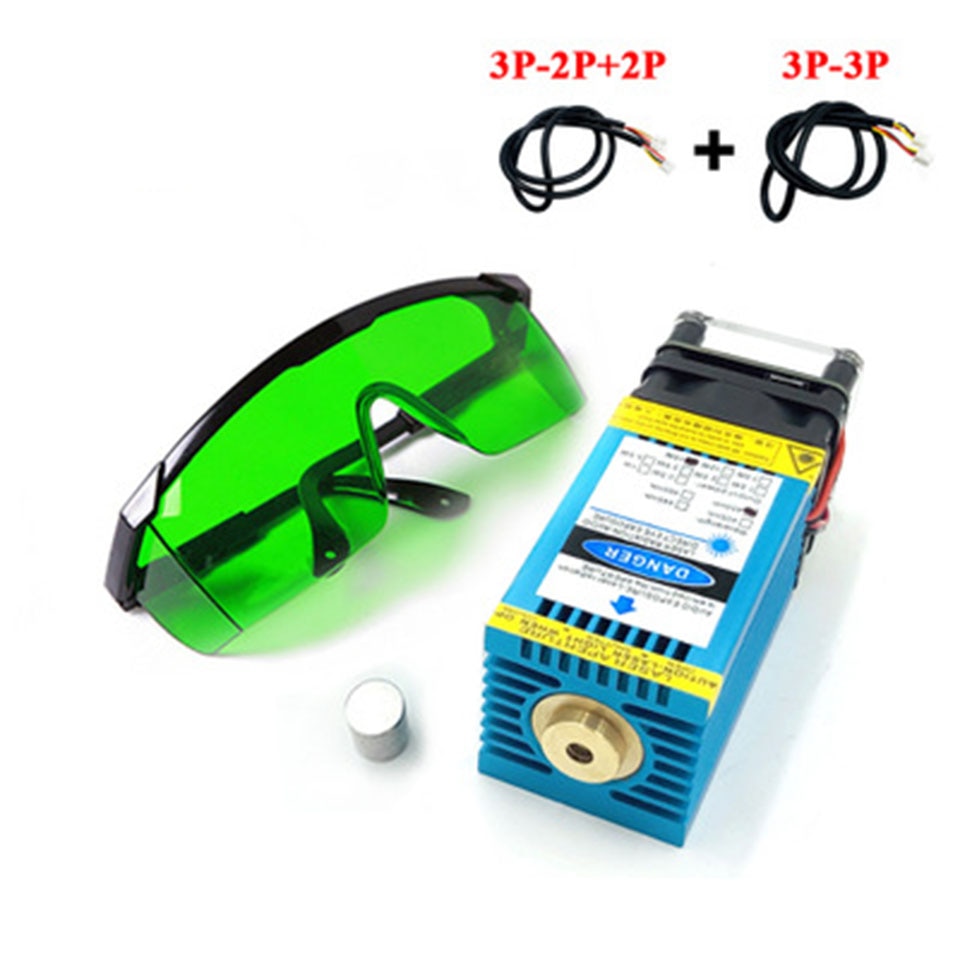

Product Including
– 1*Laser
– 1*3p-3p & 1*3p-2p+2p Cable
– 1*Glasses
– It can cut 1-3MM plywood, but it needs to adjust the speed very slowly 100-150MM/MIN, cut 2-3 times! Can not cut or engrave metal, white reflective plastic or transparent material
– The laser only has one 3PIN line, one 3pin to 4pin connection line and one laser. It is suitable for direct installation on the engraving machine. If you need to connect directly to the power supply, please prepare the 12V 5A power cord and cut off the power supply. Line DC plug, then cut off the 3PIN line, connect the red line and the red line, connect the black line and the black line, the yellow line does not need to be piped. Then do the insulation treatment, it can be inserted into the socket and directly lit up.
– Can be used for: CNC 3018, CNC2418, CNC1610 engraving machine, etc., can not engrave mirror stainless steel.
– Special Material Description:
Cutting 3mm plywood, it is very suitable for hand-made DIY various patterns and models, can not engrave mirror stainless steel.
