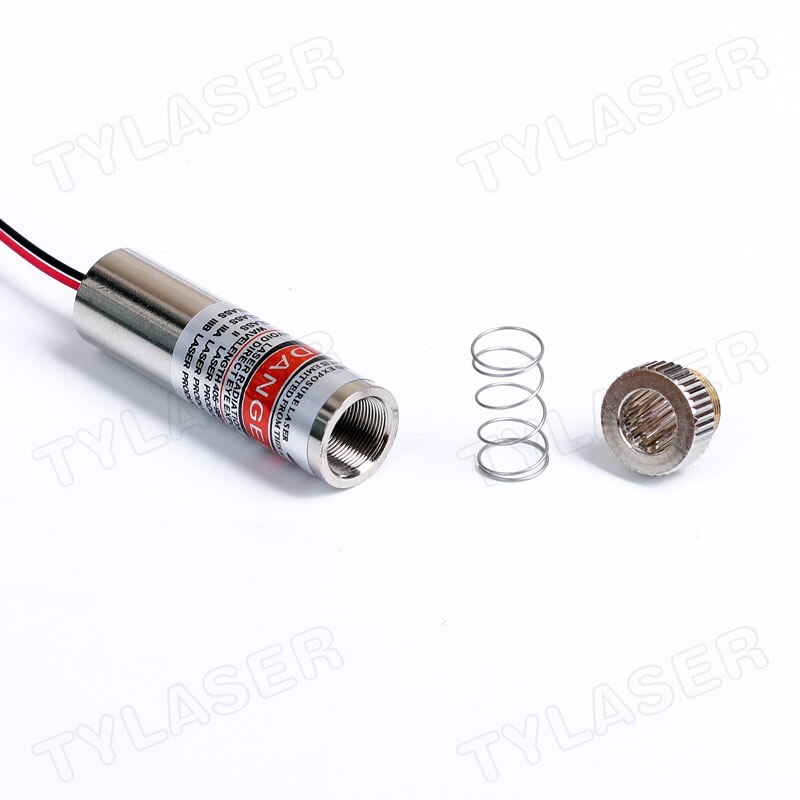

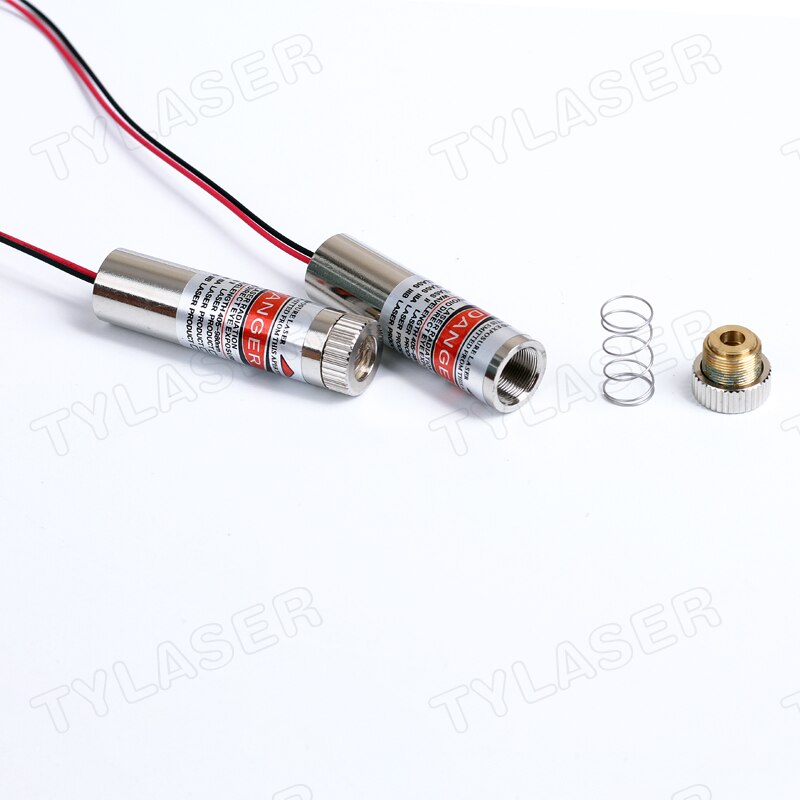

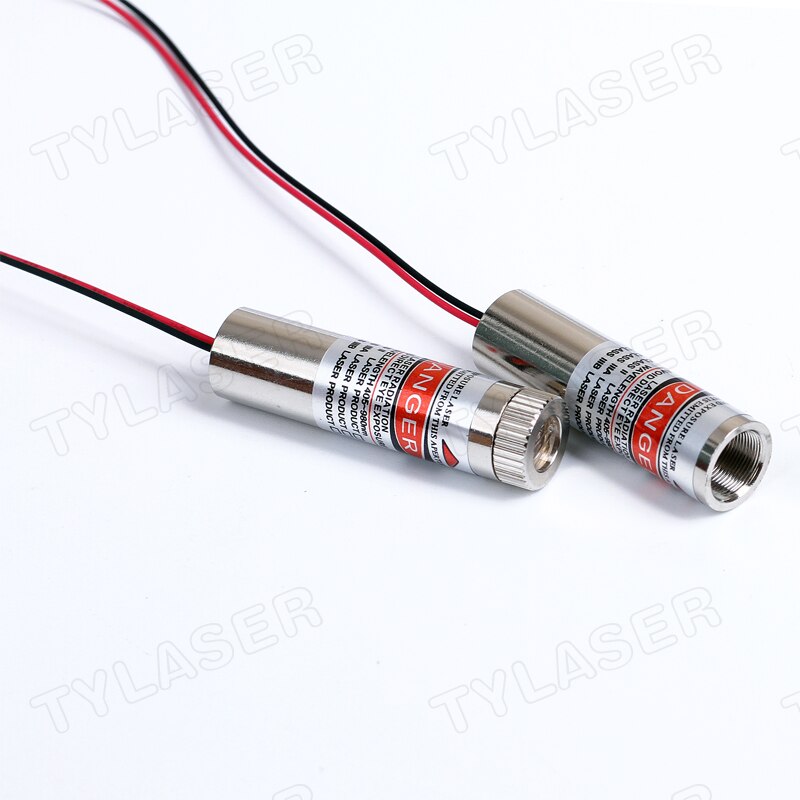

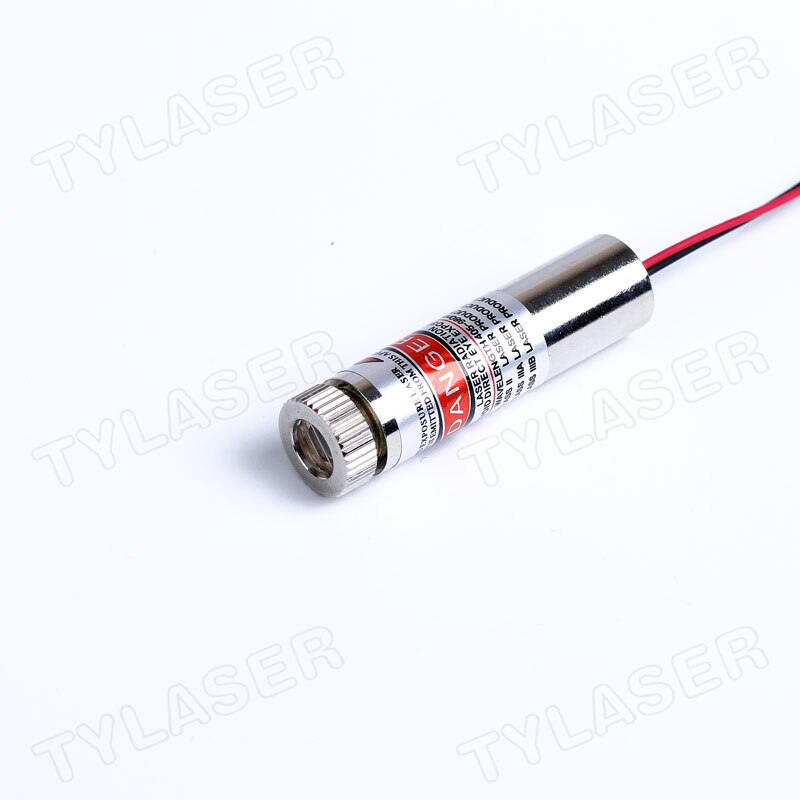

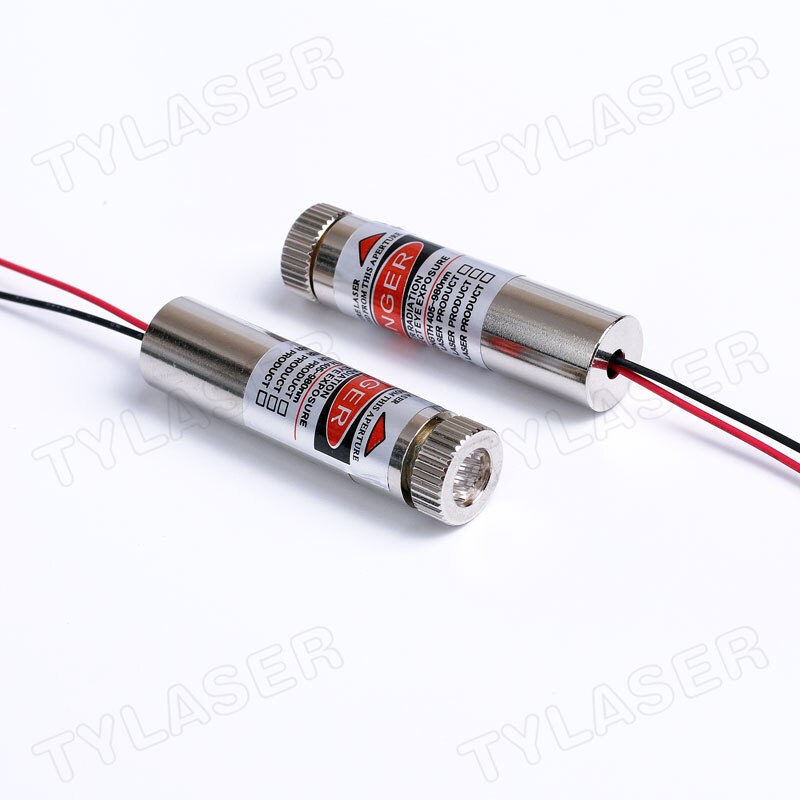

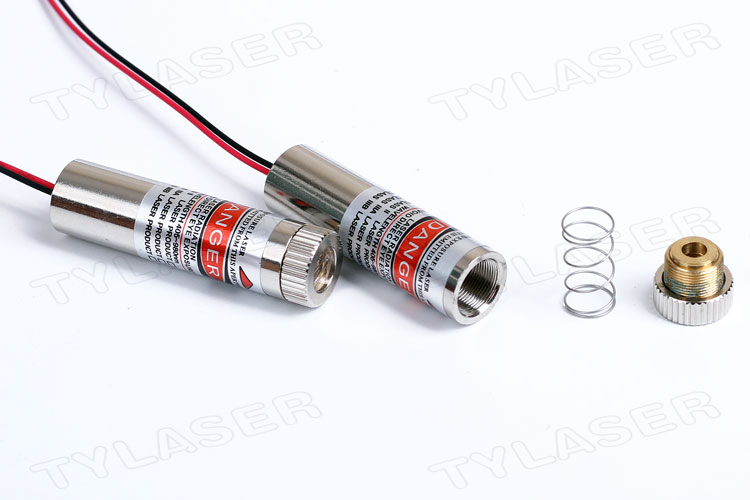

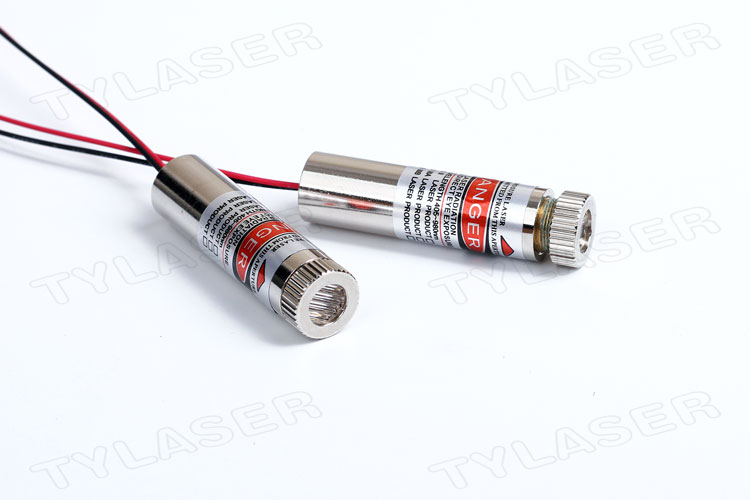

Focusable Red Dot Laser Diode Module 12mm 650nm 5mW Industrial Grade Class IIIA for Cutting Positioning (ECONOMICAL Dot Laser)
- Certification: CE,RoHS
- Wavelength: 650nm
- Spot: Dot
- CW Operating Current: <40 mA
- Operating Temperature: -10℃~ 40℃
- Mean time to failure: >8000 hrs
- Housing Material: Brass/Aluminum
- Operating Voltage(DC): 3V / 5V
Product Description:
Dimension:12x35mm
Wave length: 650nm
Application:
Widely used in textile printing and dyeing laser alignment, mechanical
processing industry, wood / stone cutting, paper cutters, metal cutting machines and
other areas requiring high precision positioning.
Notice:
This item is not a laser pen. Laser modules are not supposed to be used for
commercial use like normal laser pointers.
Any part or specification of each module can be modified.
We divide a laser diode module structure into 4 main sections:
– a laser diode
– an optical lens
– a laser driver circuit
– optical and mechanical properties
1. Laser diode:
-Main characteristics of laser diode: wavelength, output power, and operating temperature
2. Optical Lens:
– Main characteristics for the beam collimation: divergence angle, laser spot size
– Choice of the laser pattern: laser dot, laser line, laser cross line, or any kind of laser pattern achieved through using DOE

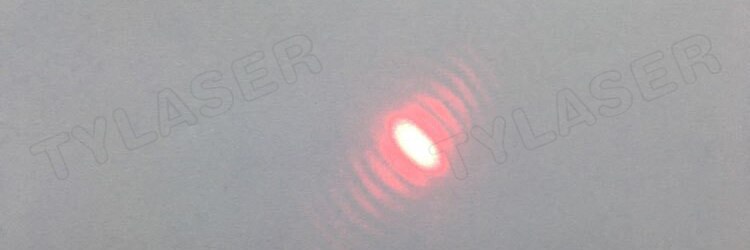

Spot size: The laser spot size has a direct relationship to the distance of projection.
3. Laser Driver Circuit:
The driving circuit of the laser modules can be either APC (Auto Power Control) or ACC (Auto Current Control).
An APC driver controlled laser module will automatically adjust the input current in order to output a constant value of optical power.
An ACC driver controlled laser module will in another way have a constant value of input current, while the output power may vary.
4. Optical and mechanical properties:
