Parameters

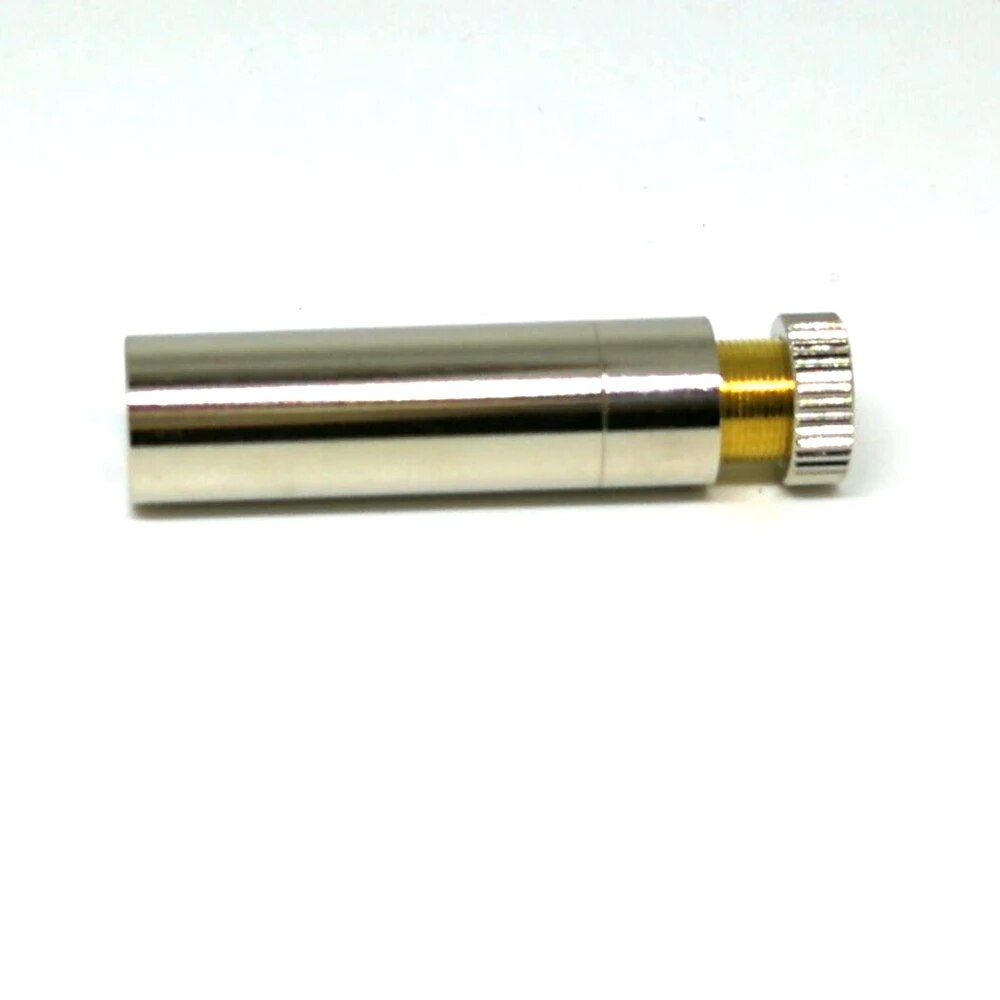

Housing Dimensions:12x40mm
Suitable for 5.6mm TO18 laser diode

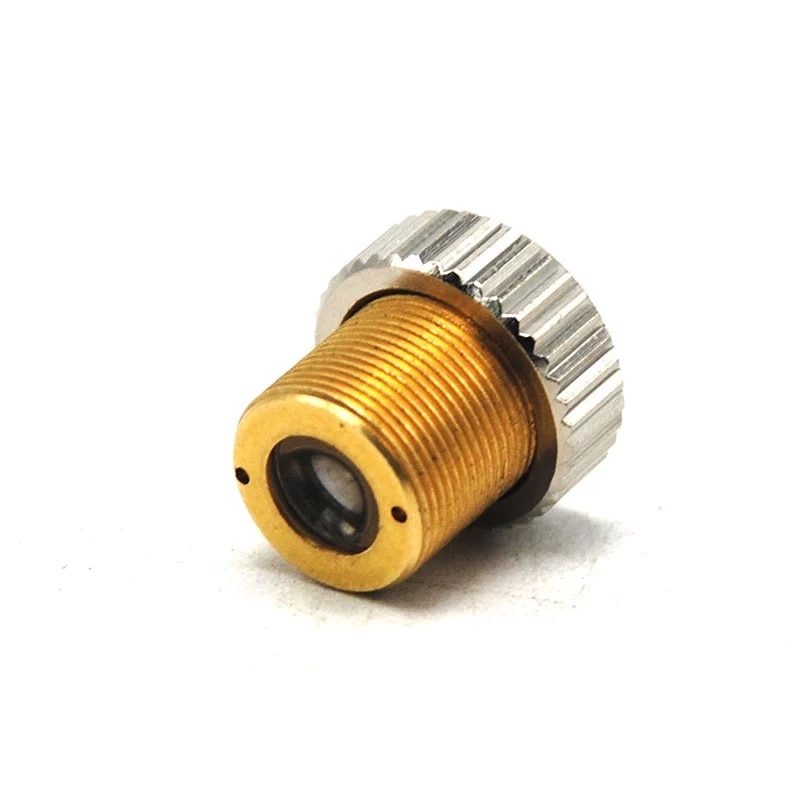

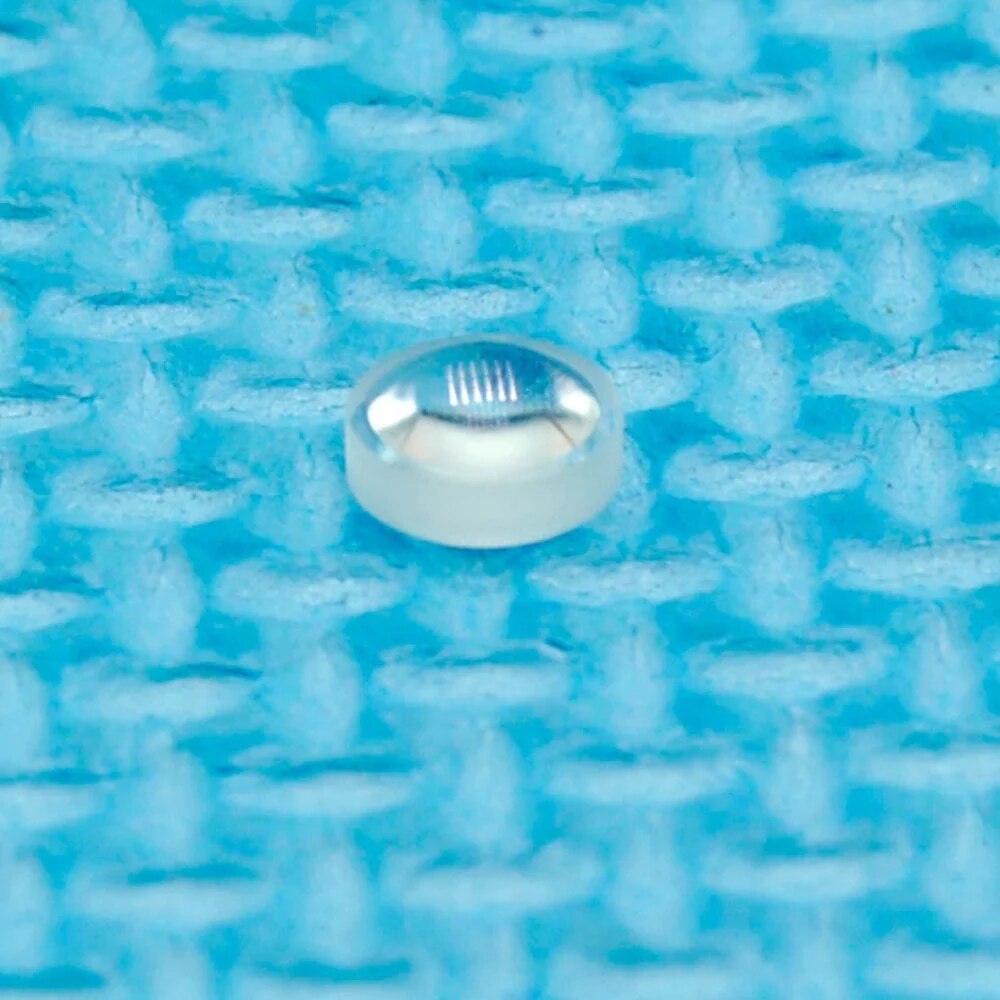

Lens Model:405-G-2
Material:high quality coated glass optical lenses for all types of blue violet / blue laser products;
Lens demention: 6.33mm diameter
Transmittance: 98% or more
Lens focal length: 4.02mm
Back focal length: 4.8mm
Working distance: 2.357mm
Glass material: L-BAL35
Lens properties: single-chip
Surface treatment: 405nm / 445nm antireflection coatingThey are collimating lens for blue laser diodes, can be used for NDB7875/NDB777 laser diodes.
Please keep the lens clean.Application
This coated laser lens is a high permeability optical component used for as Industrial testament, Lab, DIY.
Before carrying on some laser DIY activities, please read about the technical information first and protect your eyes before laser ray.
Be sure the operator has experience in optics DIY or testing.

Package

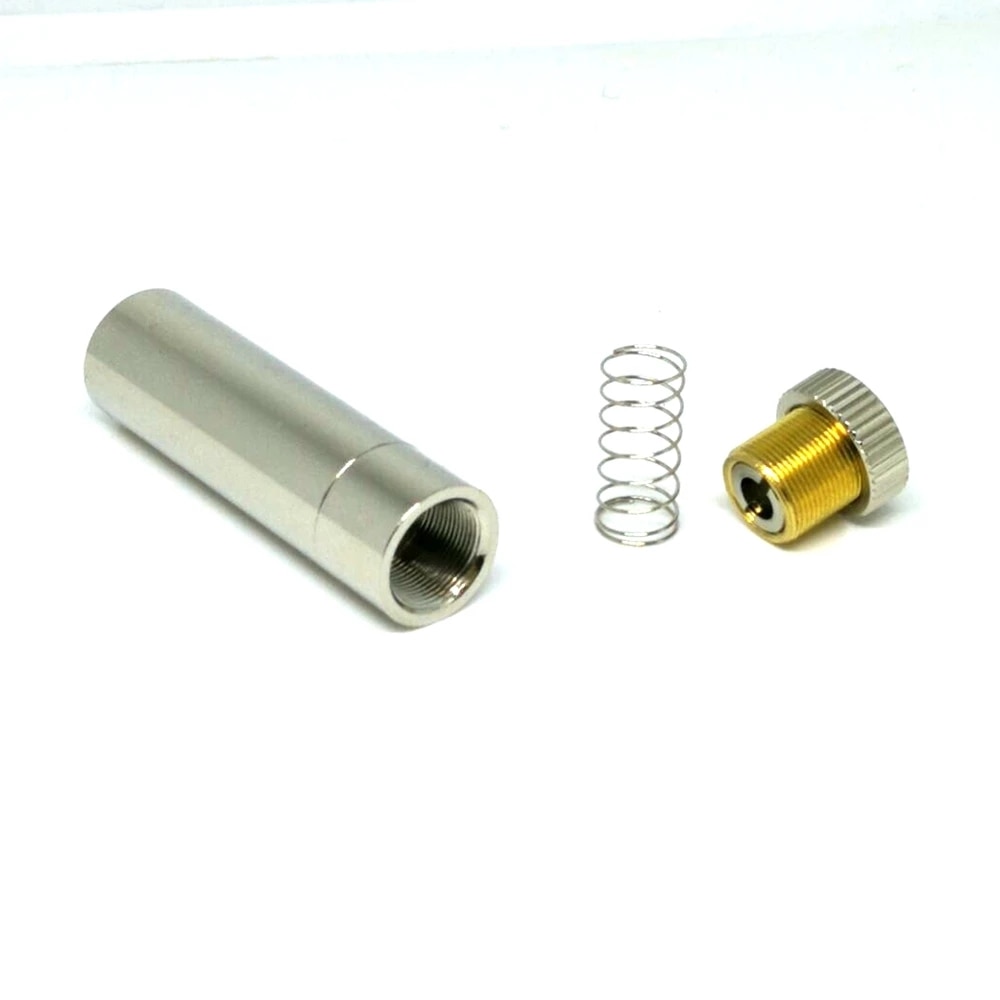

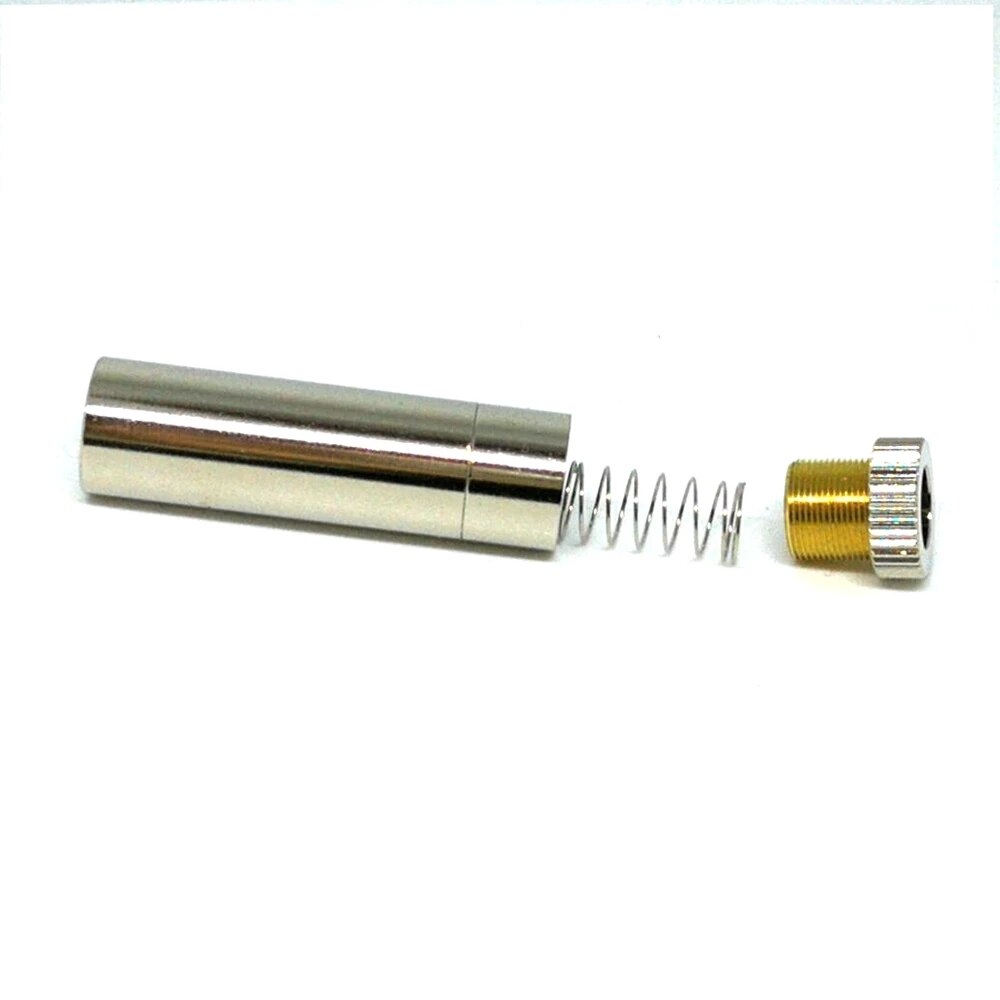

1pc 12x40mm housing w 405-G-2 Glass lens
