Description
- Brand Name: Jolooyo
- Certification: NONE
- Origin: CN(Origin)
- Item Type: Stage Lighting Effect
- Power: 30mw
- Model Number: 830MD-30-1845-TTL-BL
Parameter:
Output Power 30mw
Wavelength 830nm
Working Voltage 5.0VDC
Working Temperature -10 ~40 ℃
Dimensions ø18mmx45mm
Working current <300mA
with TTL
TTL modulation
Voltage 0-5V Off low, high open, normal status closeTTL frequency 0-15KHz
Frequency: 0-15KHz
Laser Shape:Dot (rectangular)
The Lens focus is adjustable, not fixed, can adjust to an appropriate spot size, and then fix it.
Three-wire input, the red line is positive, black line is negative, TTL signal yellow line is positive
Package:

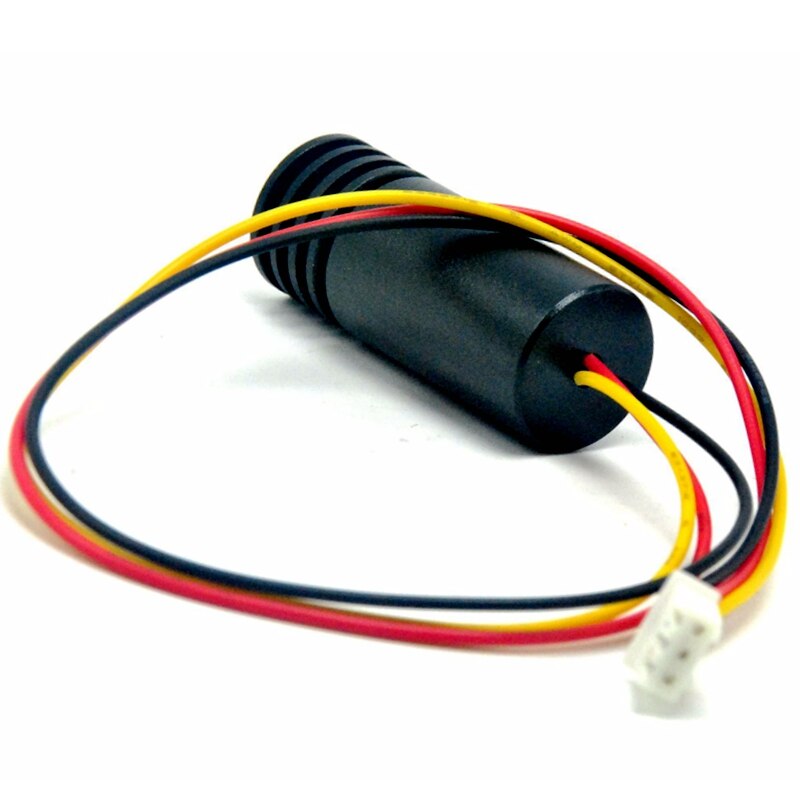

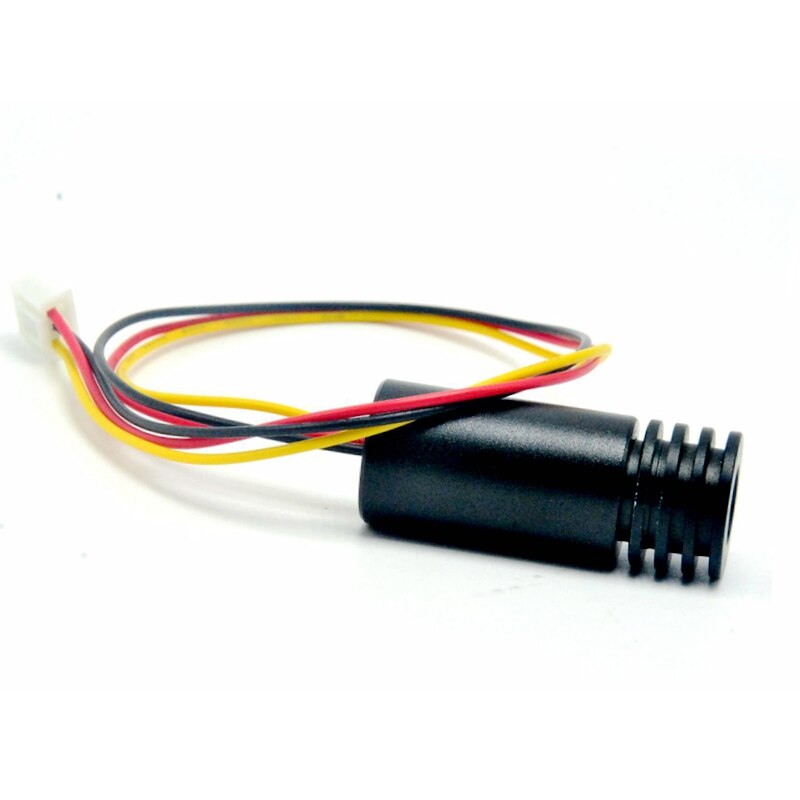

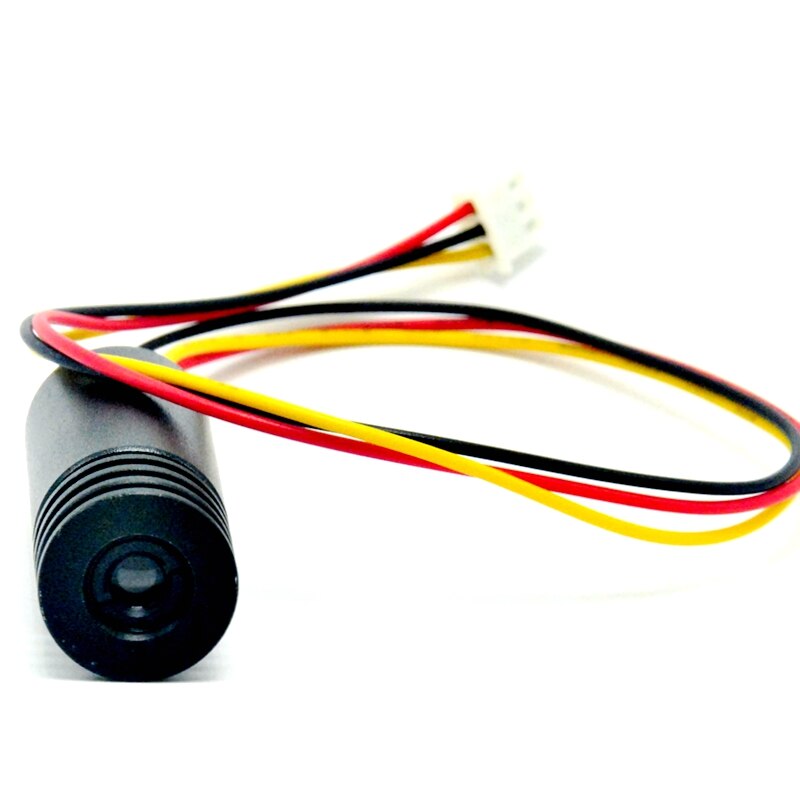

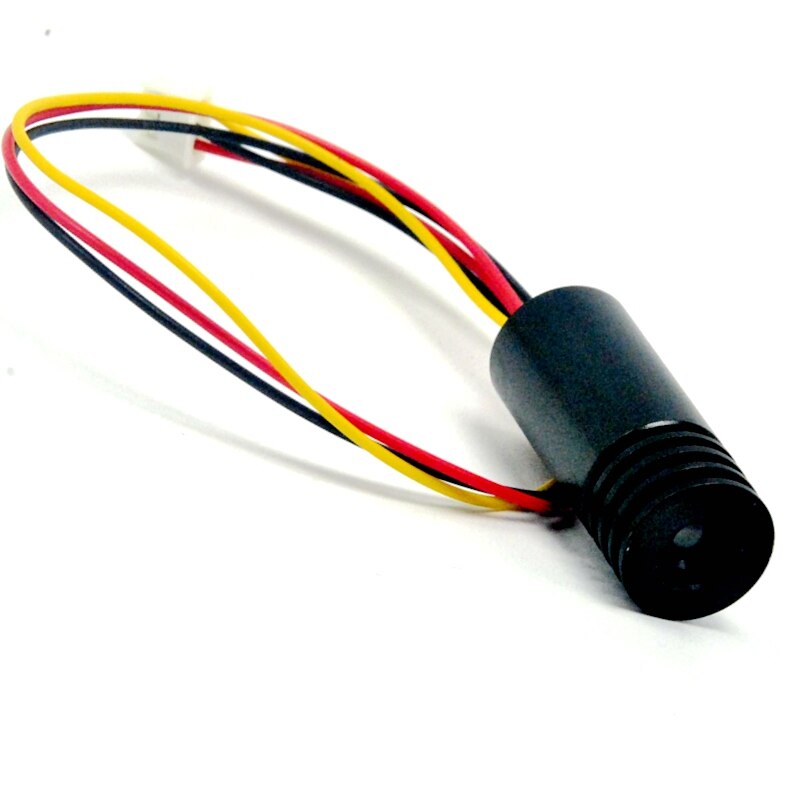

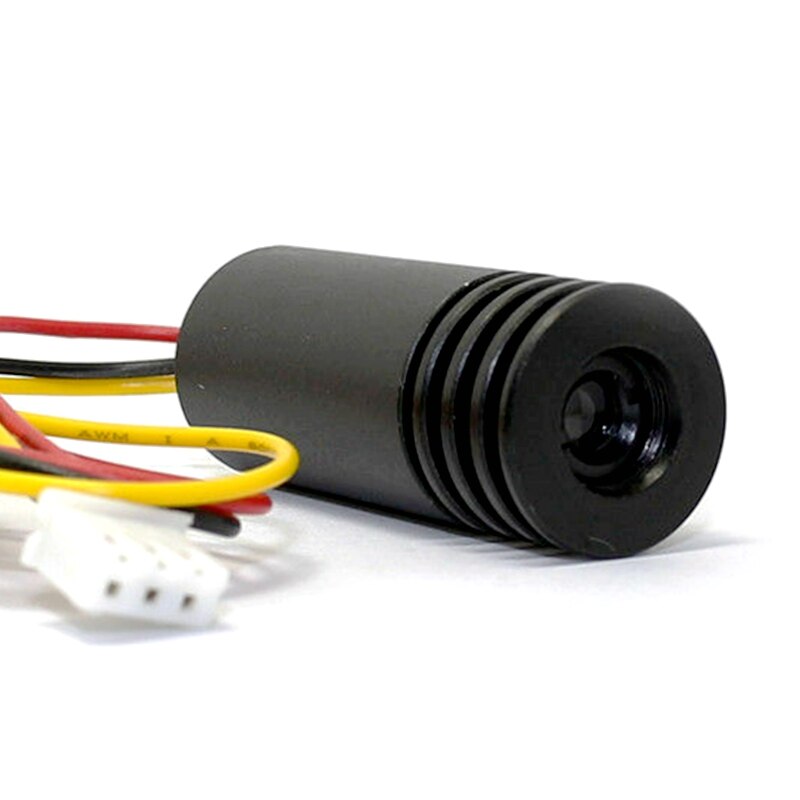

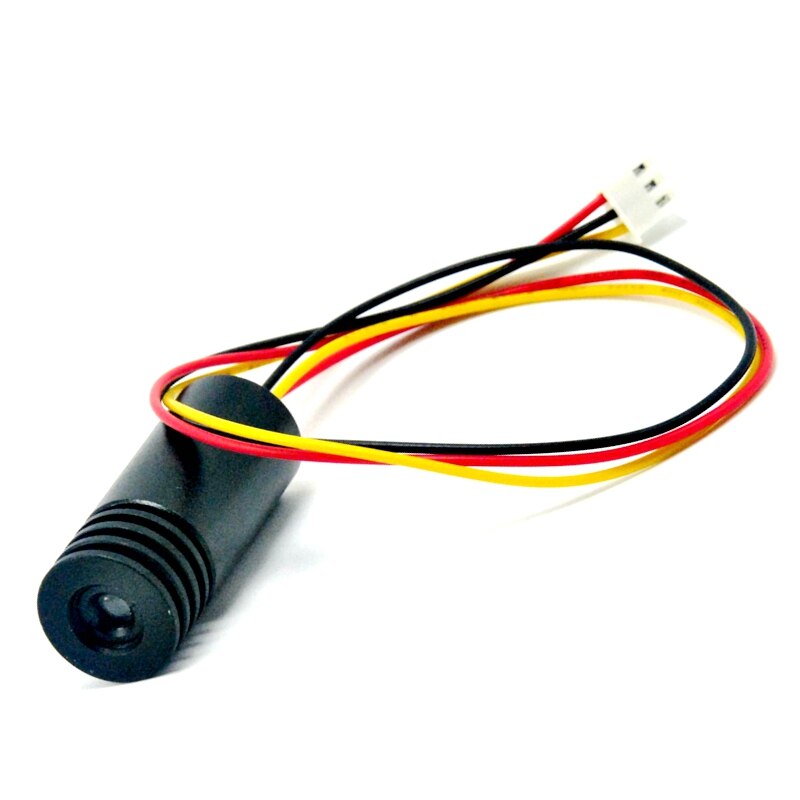

1x Focusable Infrared IR Laser Diode DOT Module 830nm 30mW 18*45mm with TTL 0-15khz 5V
