Description
- Origin: CN(Origin)
- Usage: laser engraver
- Voltage: DC 12V
- Wavelength: 450nm
- Color: Blue
- Voltage: DC 12V
- Control: TTL / Analog
- Power: 15000mw
- Frequency: <20KHz
- Lens: Focusable
- Laser Beam: Collimated / Focusable
- Power supply Voltage: AC 110V – AC 240V
Focusable High Power 15W Laser Engraving Machine diy Cutting Head Laser Engraver Cutter metal wood 12V 450nm 15000mw TTL Analog
Features:

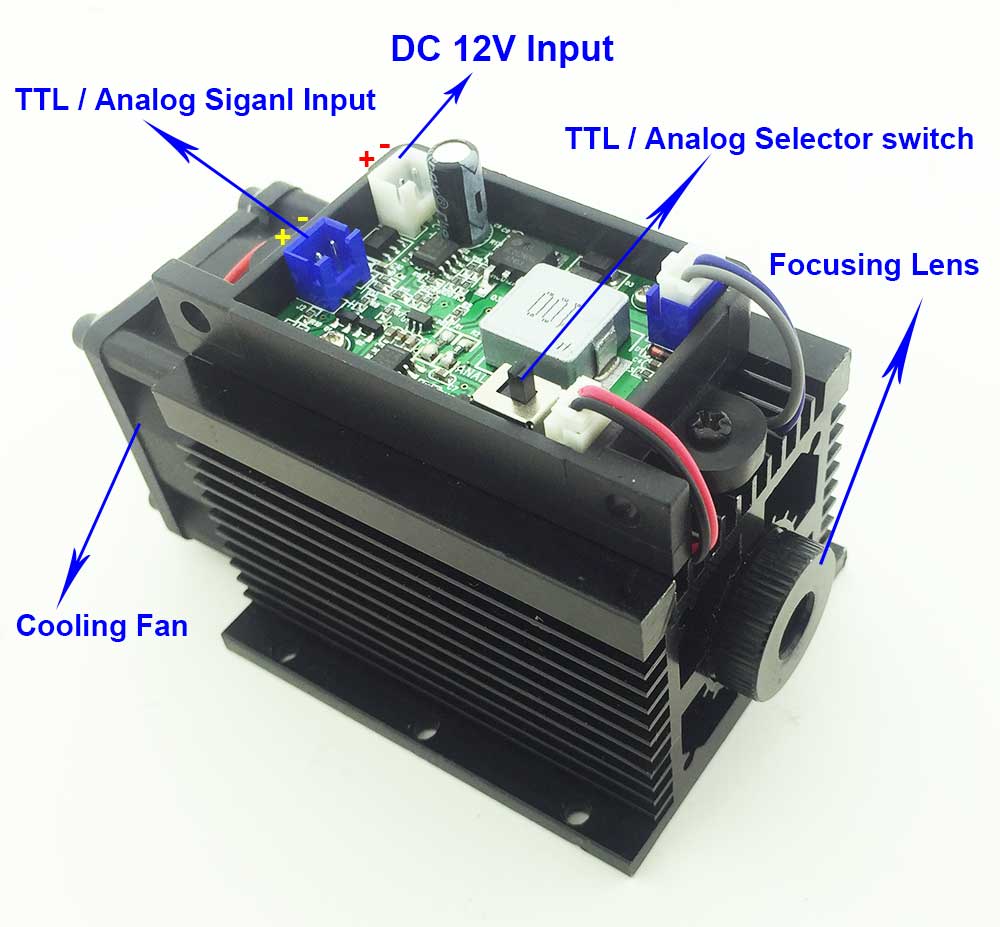

the module is a high power laser module, and with a focusable lens, can adjust the focus, output both focusable beam and collimated beam.
driver board supports TTL signal and Analog signal for easy control.
this powerful laser head suitable for laser engraver, laser engraving machine, laser cnc, laser cutter, laser machine, laser engraving, lazer cutting, diy laser, engraver, cutter, lasear machine parts etc.
Descriptions:
Focal length: Can be adjust
Wavelength: 445nm–450nm
Output Power: 15W pulsed
Average 8W (Max)
TTL Modulation: Yes
TTL Frequency: <20KHz
TTL logic:
0V: OFF
5V or Unconnected: ON
Module Operating Voltage: DC 12V
Module Working Current: <4A
Power supply Input Voltage: AC 110V – AC 240V
Power supply Output Current: 4A
Focal length: 15mm~50mm;(can adjustable)
Operating temperature: -10 degrees to 45 degrees
Spot diameter: 15mm~50mm at ≤Φ0.12 (mm)
Operation mode: pulsed laser 100 ns Duty 50%,
With TTL modulation/ Analog modulation
Material: hard aluminum + brass
Finish: Black anodized + sandblasting
Heat dissipation: Fan cooling
Can be carved materials: balsa wood, plywood, stainless steel, iron, aluminum, ceramics, stone, wood, bamboo, leather, plastics, etc.
the effect depend on the material color, reflectivity, transparency, density, thermal conductivity, etc, and cutting some thin material.
different materials have different effects. and reflected light reflected from highly reflective materials may cause damage to the module.
for metal, only a very thin line can be produced, the darker the color, the better effect, enhancing the effect may require multiple operations.
Attentions:
1. Voltage Input: DC 12V.
2. Please make sure input voltage polarity is correct and does not exceed 12V, and TTL / Analog input signal is correct, otherwise it will burn laser module.
3. Prevent high voltage electrostatic damage.
4. It is recommended to install on a metal plate with good heat dissipation.
5. The light beam can not shoot to anyone or any flammable, otherwise It can result in injury or fire!!!
6. A high proportion reflected beam reflecting to the module itself may cause damage.

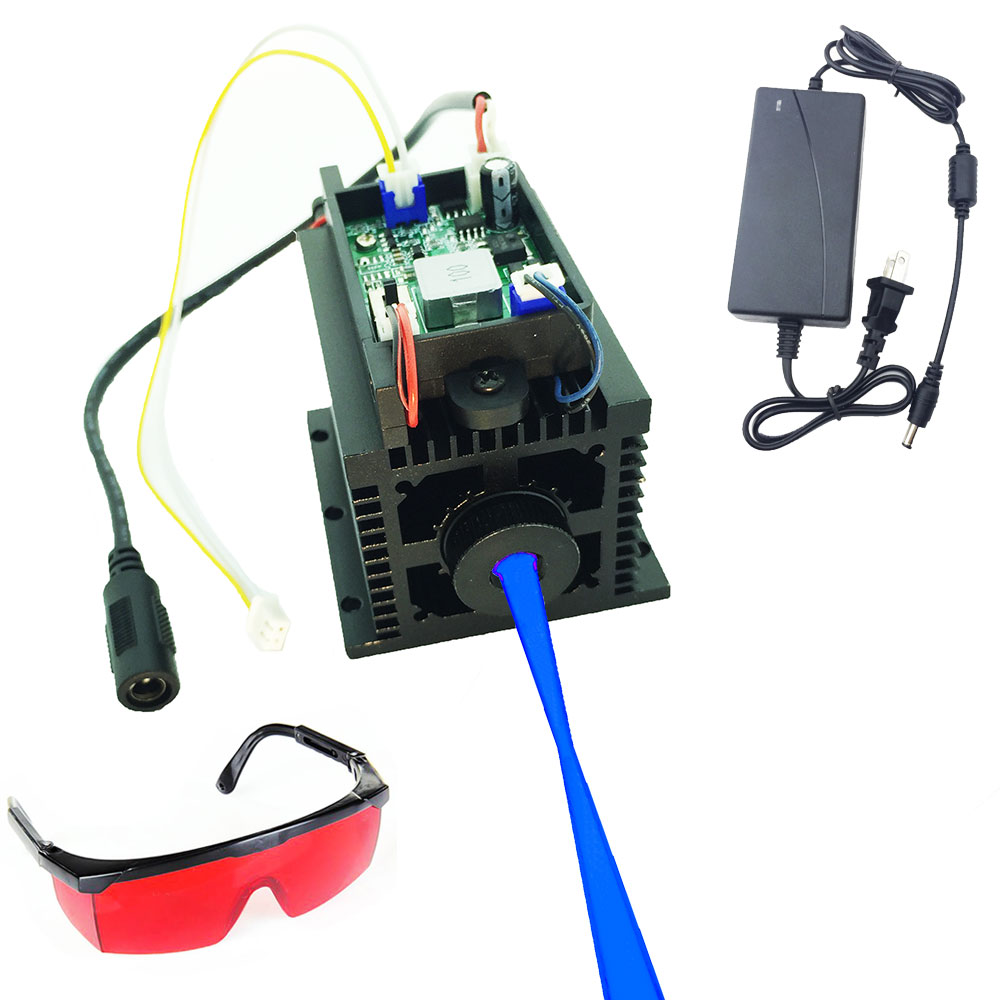

Package: 1 X 450nm 15W laser module with TTL / Analog
1 X Free Power supply
1 X Free Protective Glasses
