Description
- Brand Name: Q-LINE
- Certification: NONE
- Origin: CN(Origin)

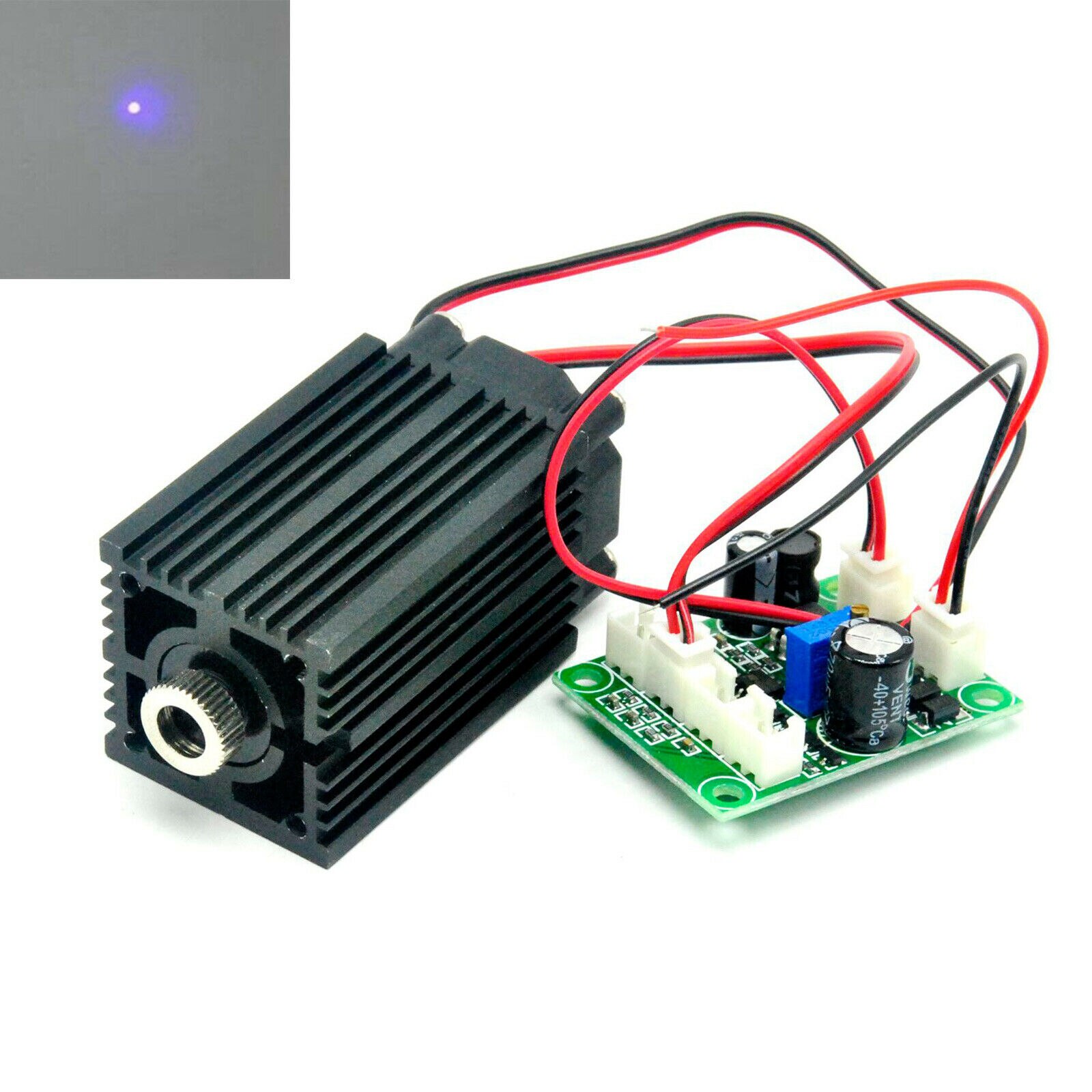

- Model Number: 405MD-200-12V Laser Module
- Item Type: Laser Flashlight
Parameter
Wavelength: 405nm
Output power: 200mW
Operating voltage: DC = 12V
Output Current: I <260mA
Laser shape: Dot
Focusable: Yes
Warm-up time: None
Operating Temperature: -10°C ~ 40°C
Storage temperature: -10°C ~40°C
Cooling Method: Fan Cooling
Modulation frequency: TTL modulation 1-20KHZ
Operation Method: Continuous work
Case Material: Aluminum
The circuits control: constant current
Laser head size: 50mmx33mmx33mm
Circuit Board size: 45mm*34mm
Reverse polarity protection: with automatically identify the positive and negative
Note:
The input voltage for this laser is 12V, working voltage >12v can cause damage to the circuit and laser instantly,if you have any technical problems, please contact us!
Please wear 405nm laser protection goggles to protect your eyes when working on this module.
Package
1pc 405nm 200mW 12V 33x50mm Dot Laser Module
