Description

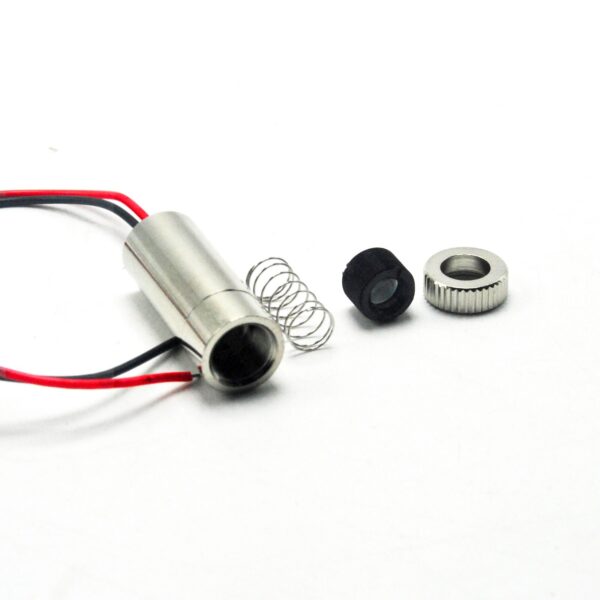

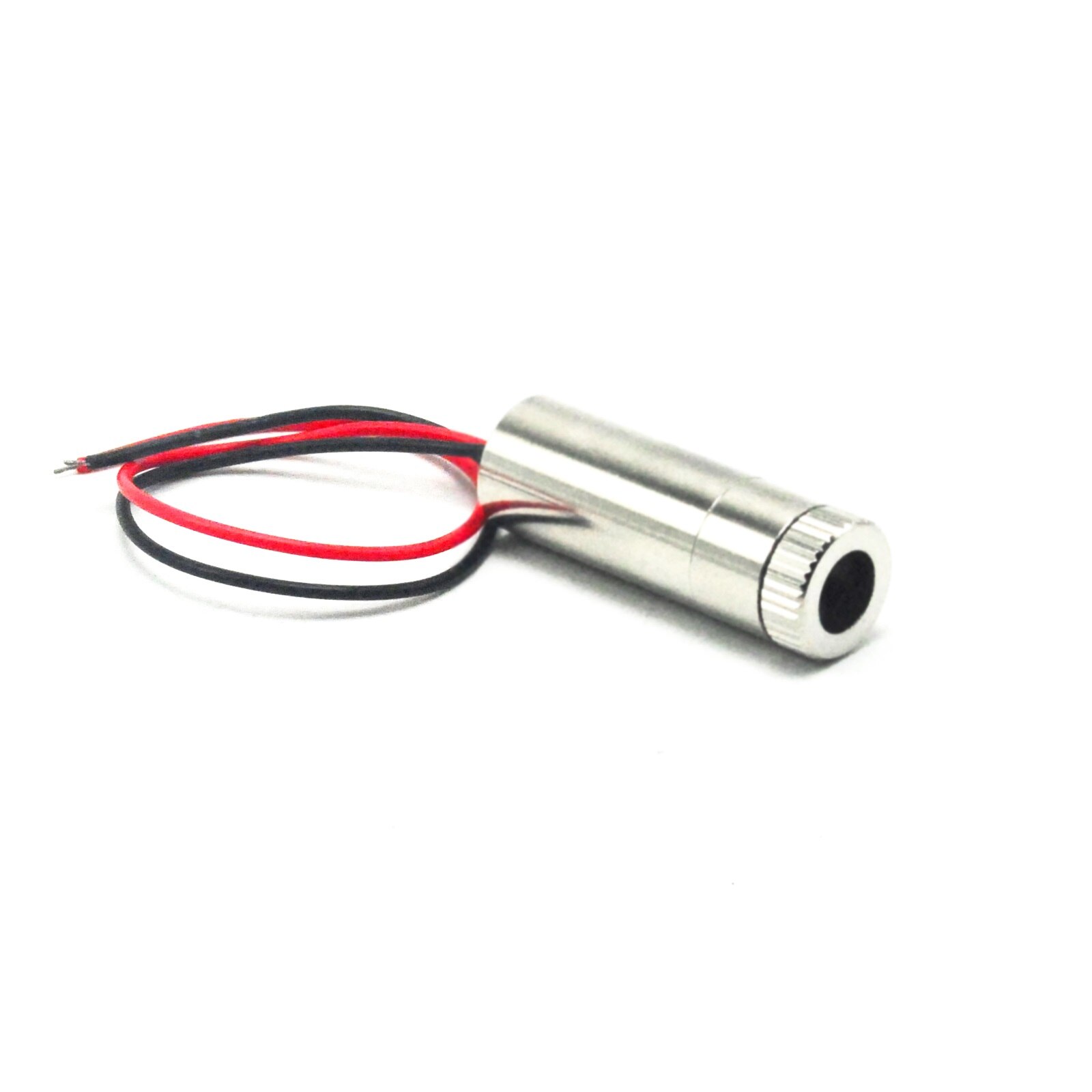

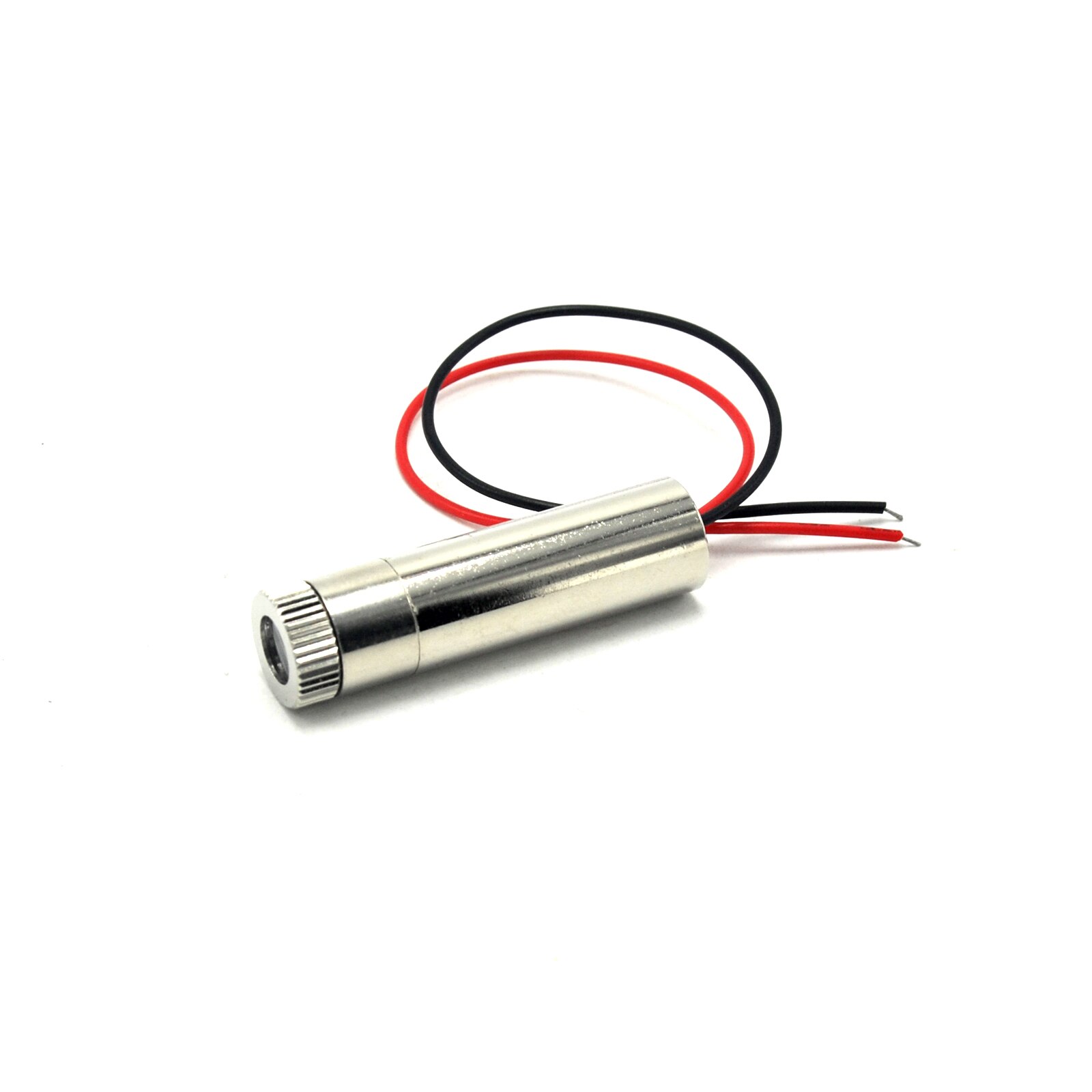

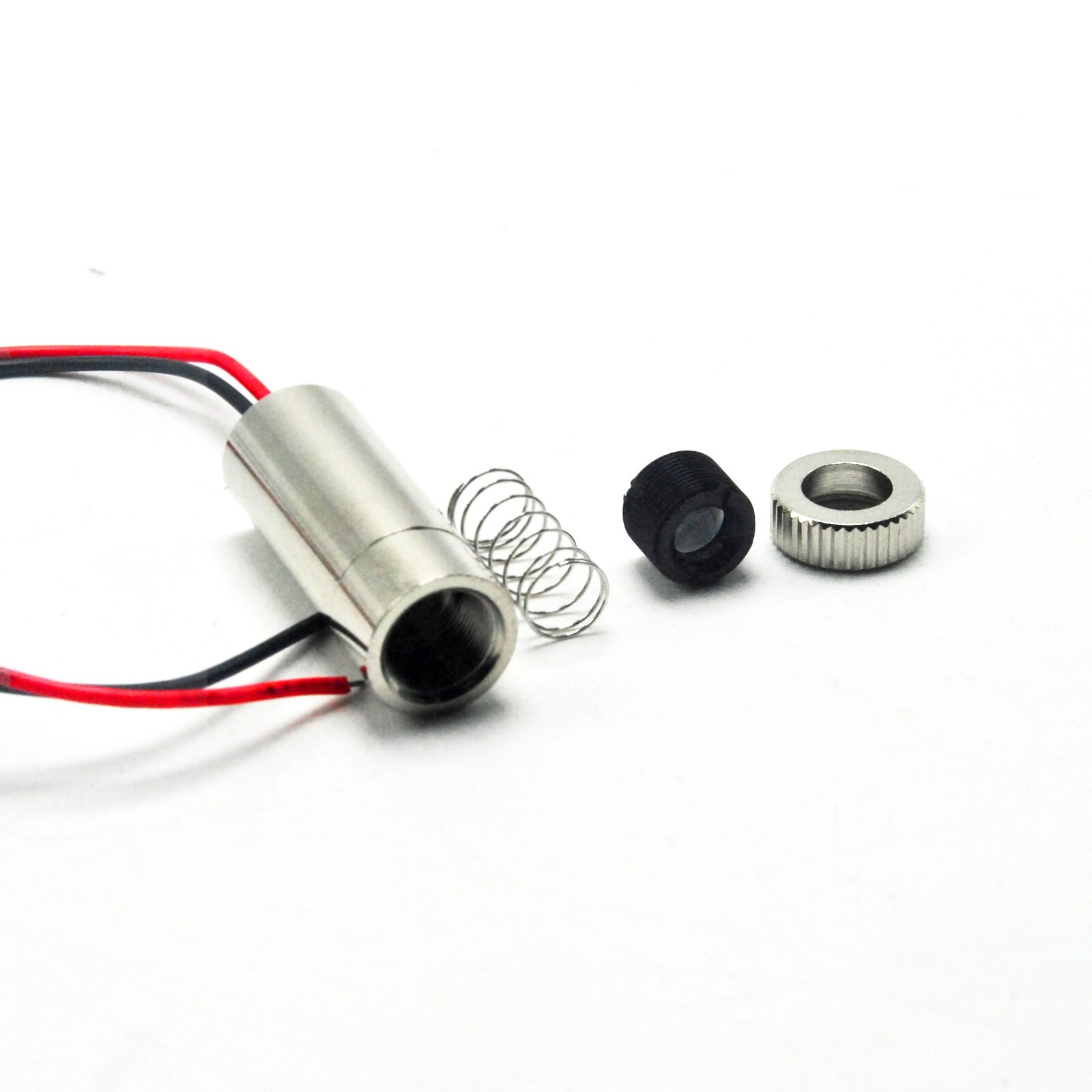

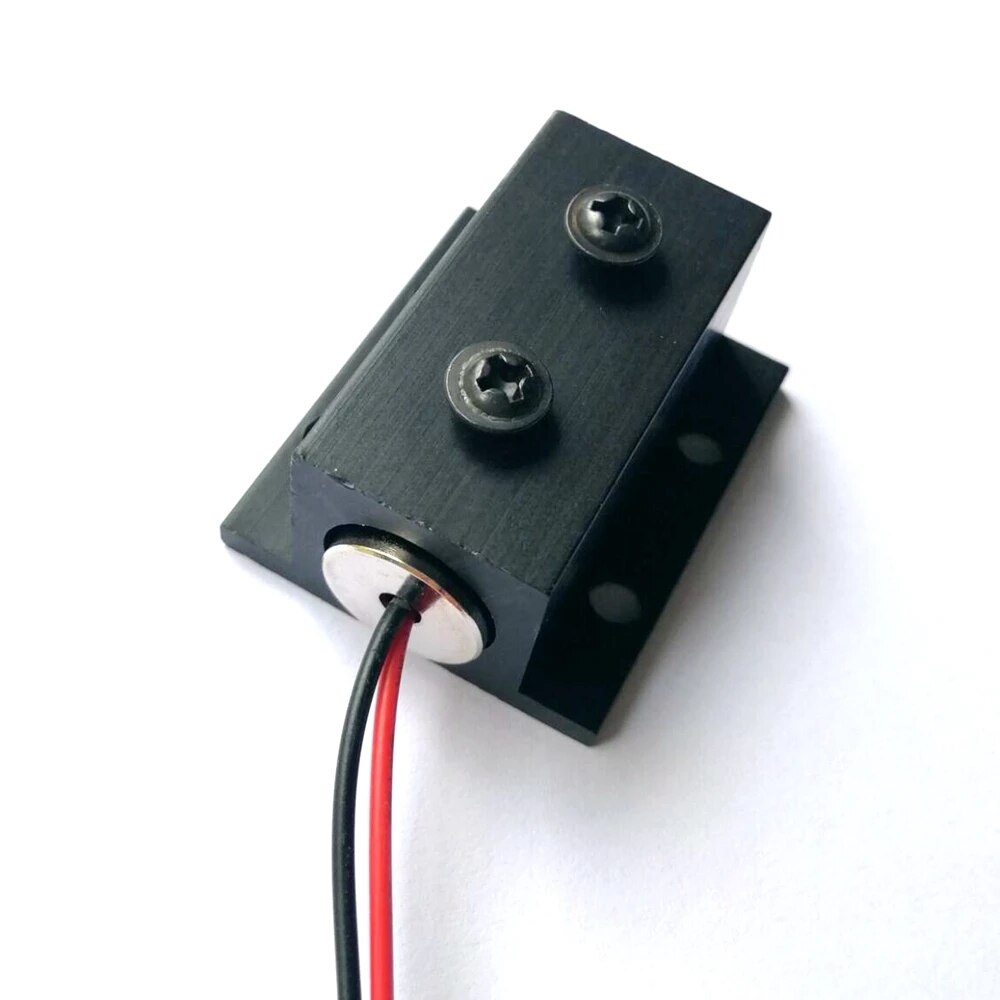

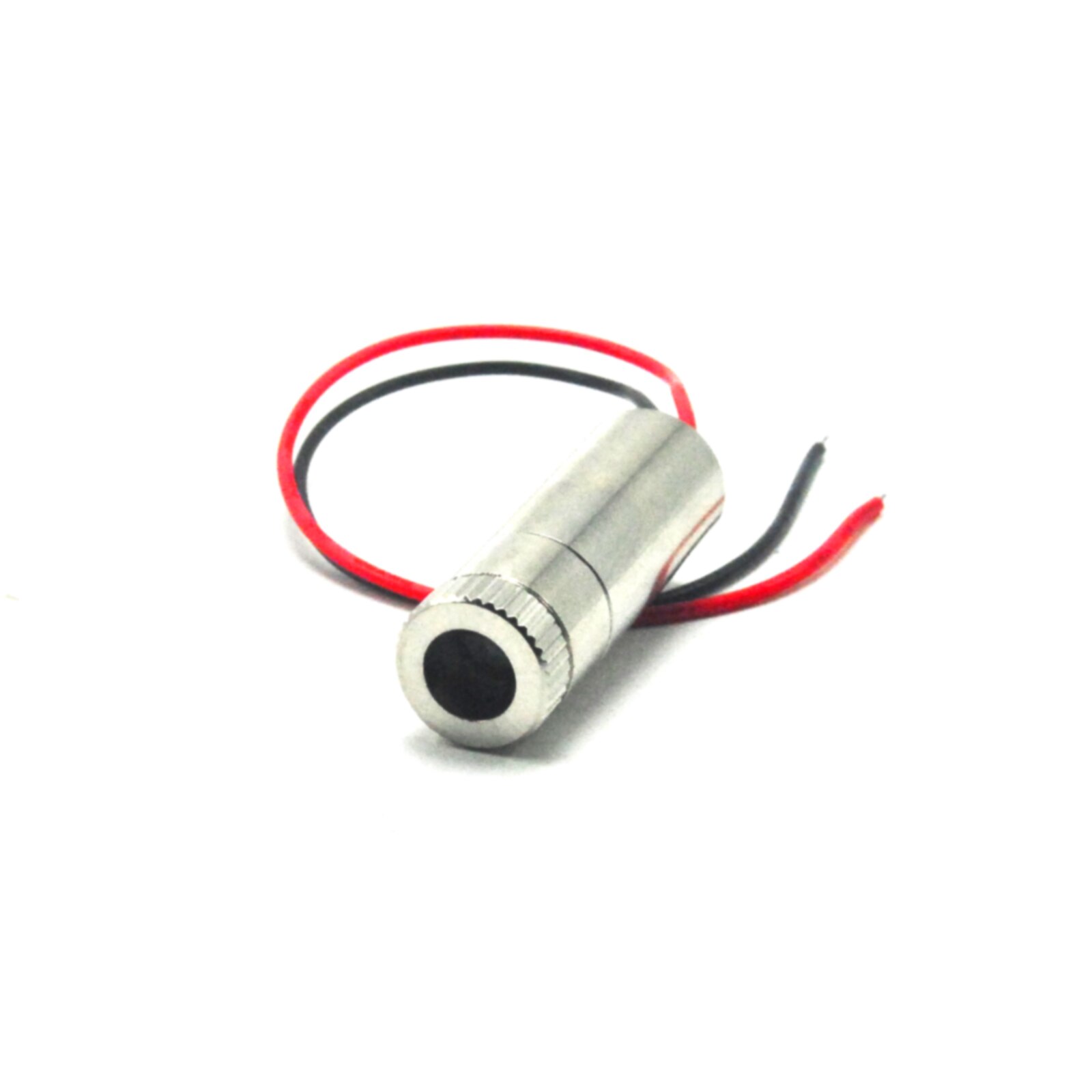

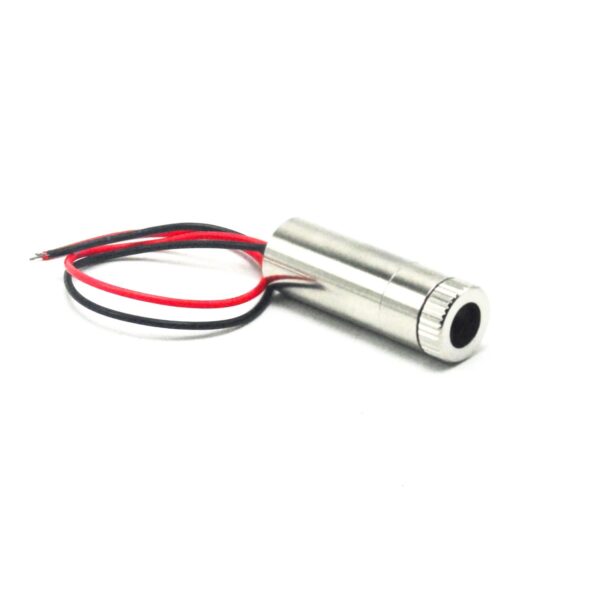

Focusable 980nm 30mW Infrared IR Dot Laser Diode Module with 12mm Heatsink
- Brand Name: Jolooyo
- Certification: NONE
- Item Type: Stage Lighting Effect
- Style: Mini
- Power: 30MW
- Model Number: 980MD-30-1235-PA-JL
- Voltage: 5V
- Occasion: Home Entertainment
Note: it’s IR Laser which can not be seen by naked eyes.You can get the light by night vision camera or IR detection card.
Parameters:
Wavelength:980nm
Output Power:30mw
Working Voltage:3-5V (Best 3.5-4V)
Working Current: <100mA
Laser Shape:Dot(rectangular to oval)
Focusable: Yes
Material:Aluminium
Size12x35mm
Working Temperature:15 ℃~35 ℃
Two-wire input, the red line is positive, black line is negative.
Package:
1pc Focusable 980nm 30mw IR Laser Diode Module
1pc 12mm Heatsink
