Product parameter：

Wavelength 980nm
Output Power 1.6W 1600mw
Input Voltage 12VDC
Working Current 2.5A
Working Temperature -10 degrees- 30 degrees
TTL >20KHz
Divergence 5mrad
Beam Diameter 6mm
Focusable YES
LD 980nm 2W
Lens Glass
Dimensions 33x33x80mm
Working Life more than 5000 Hours
Laser Shape DOT(The spot can be adjusted from rectangle to oval)

Details：

1. This laser module can not work for a long time if there is no cooling device to keep the laser working under 30℃.

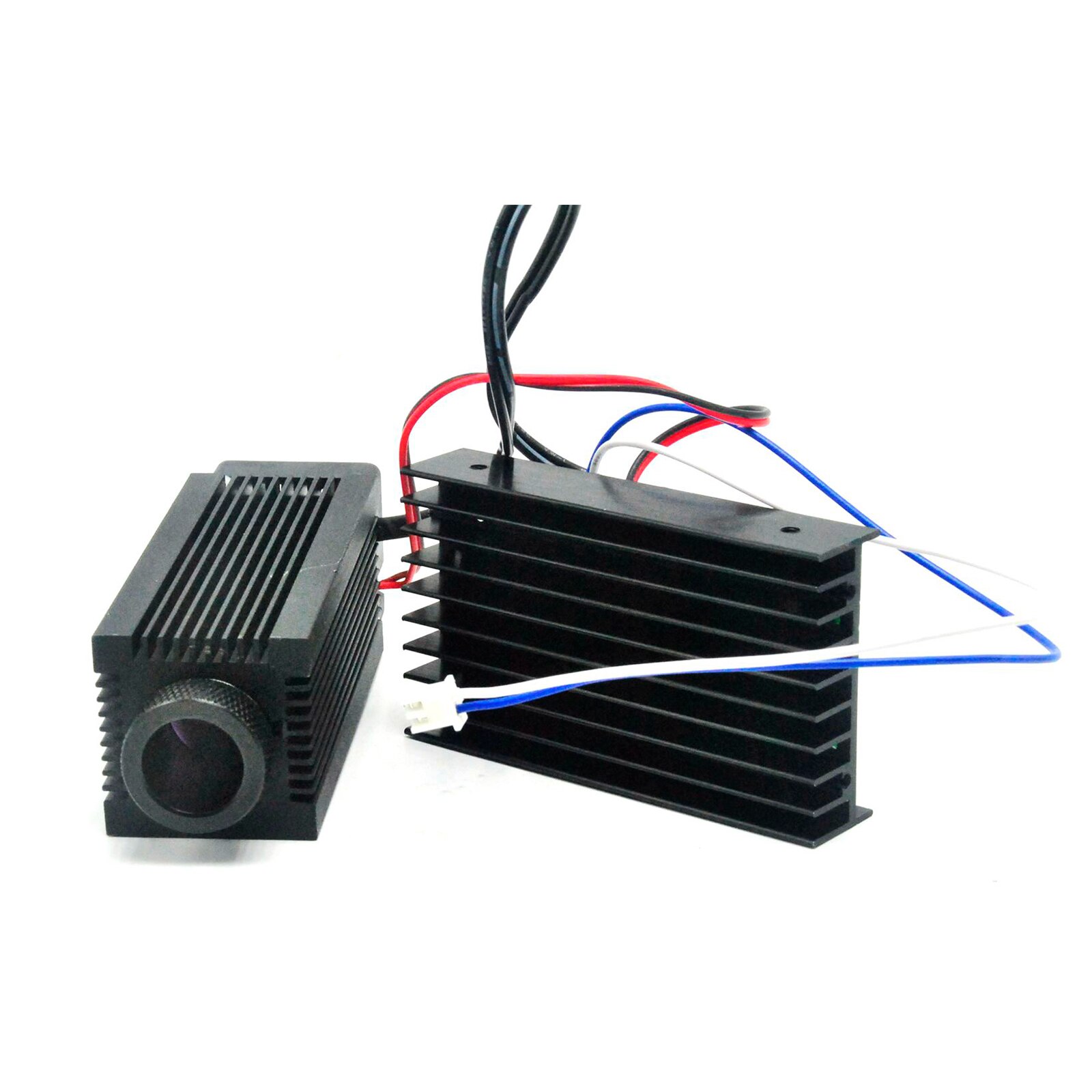

2. Please add a 12VDC power to this laser module. Red wire connects”+” pole; Black wire connects ”-” pole. TTL 3-5V on, 0V off. If you don’t use TTL, please just leave the blue and white wire.

3. This is a focusable laser module. Please do not take off the lens adjustable part off to avoid dust.

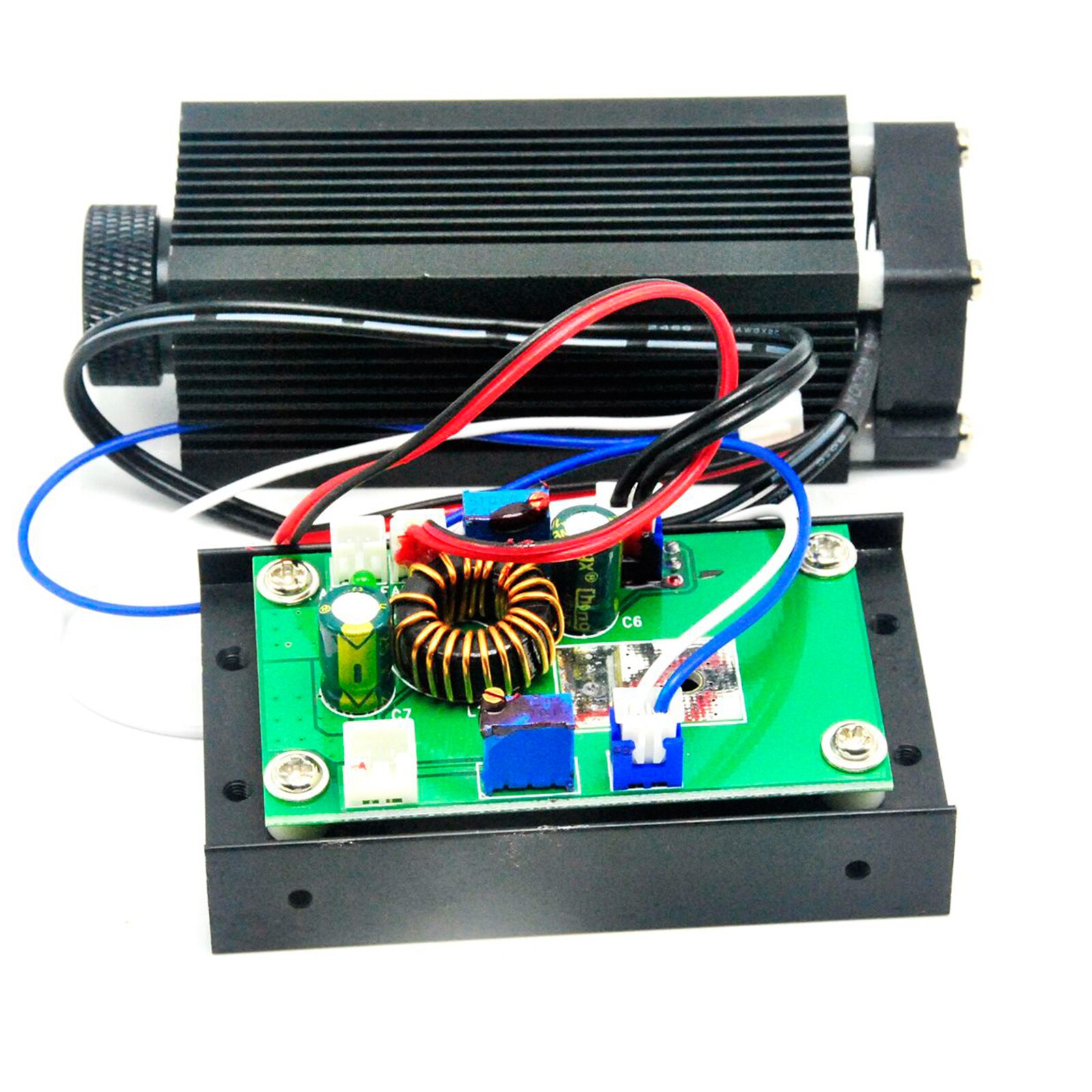

4. There is a potentiometer on the driver. You can turn it to adjust the power of the laser. Turn Clockwise to increase the laser power. Otherwise to decease the power. But the current can not surpass the current we have set up.

5.The modules are tested and the output power are measured by laser power meter before sending out.Please wear 980nm laser protection goggles to protect your eyes when working on this module.

6.It is IR laser,the laser light cannot be seen by human bare eyes with only using DDC/infrared camera get it.Buyers who buy IR lasers please make sure you know it.

Package：

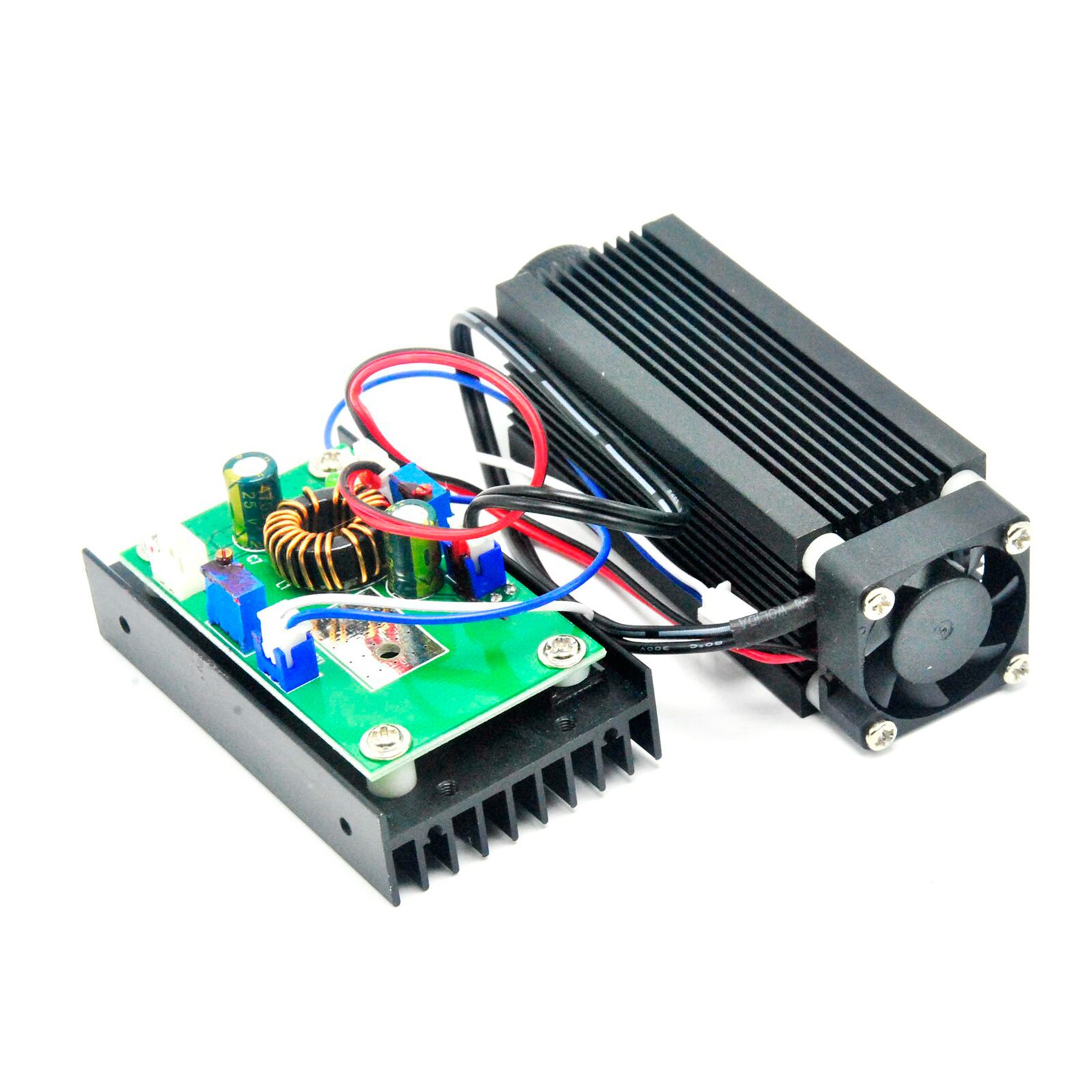

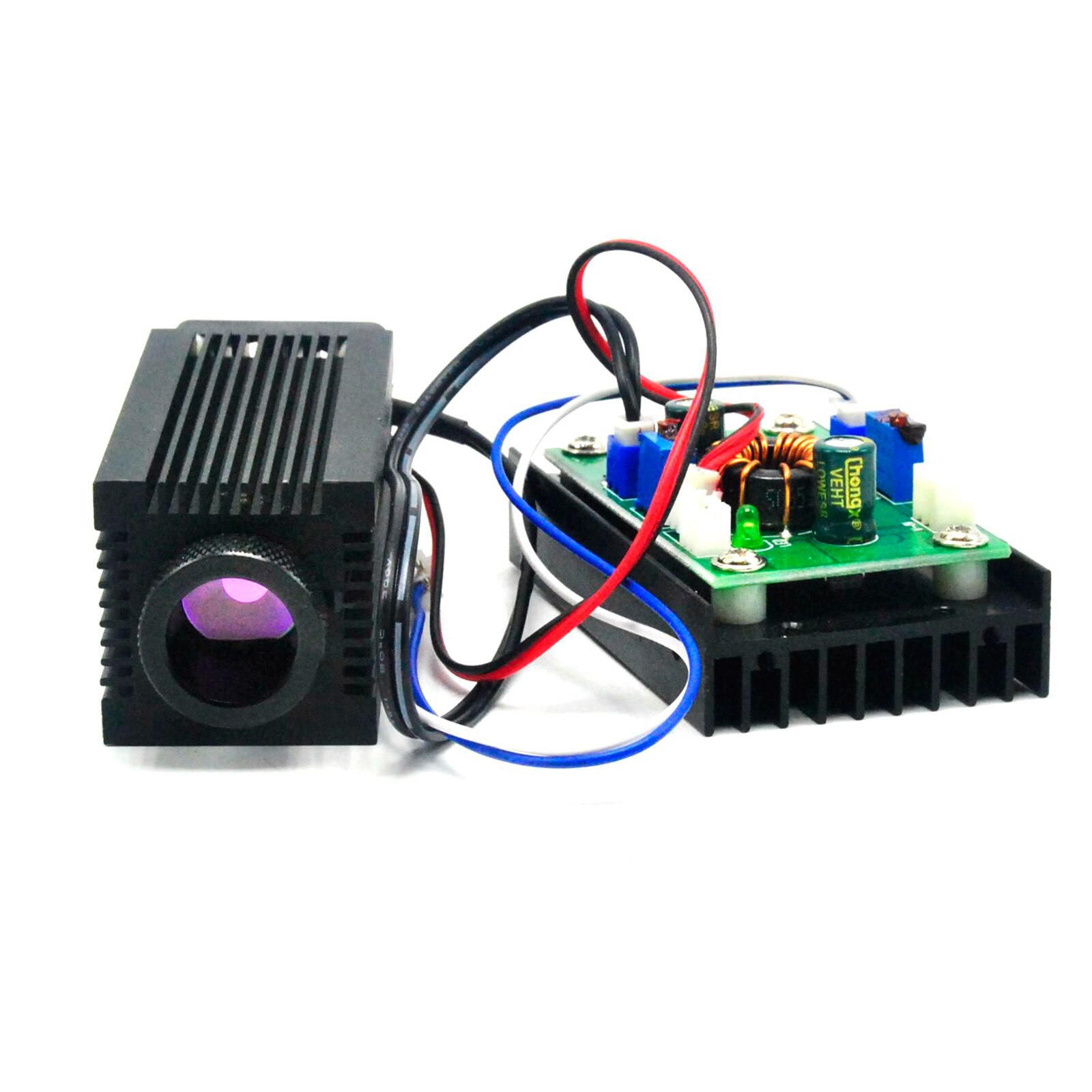

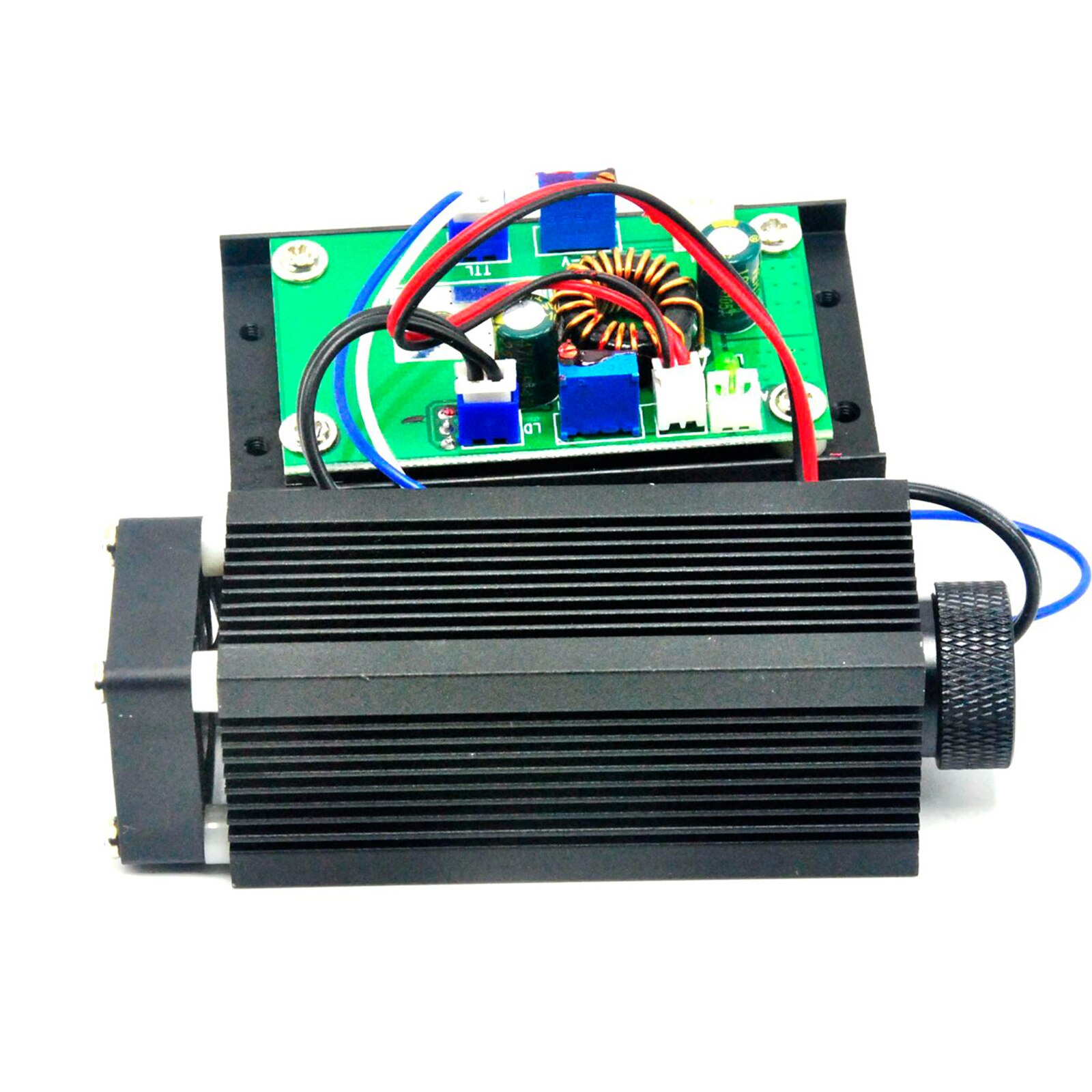

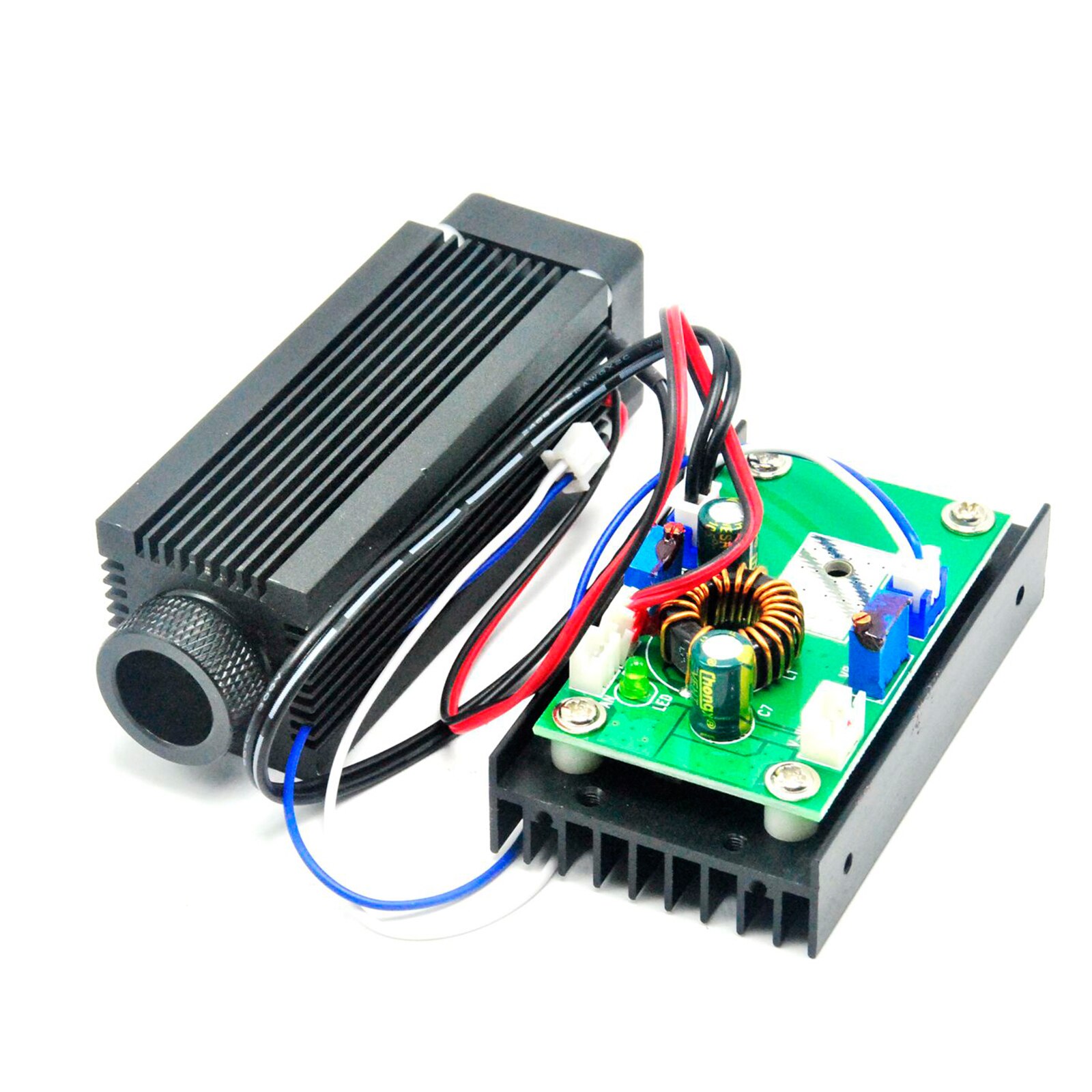

1pc Focusable 980nm 1.6W 1600mw Infrared IR Laser Dot Module 12VDC 2W Diode Laser & Fan & TTL
