Description

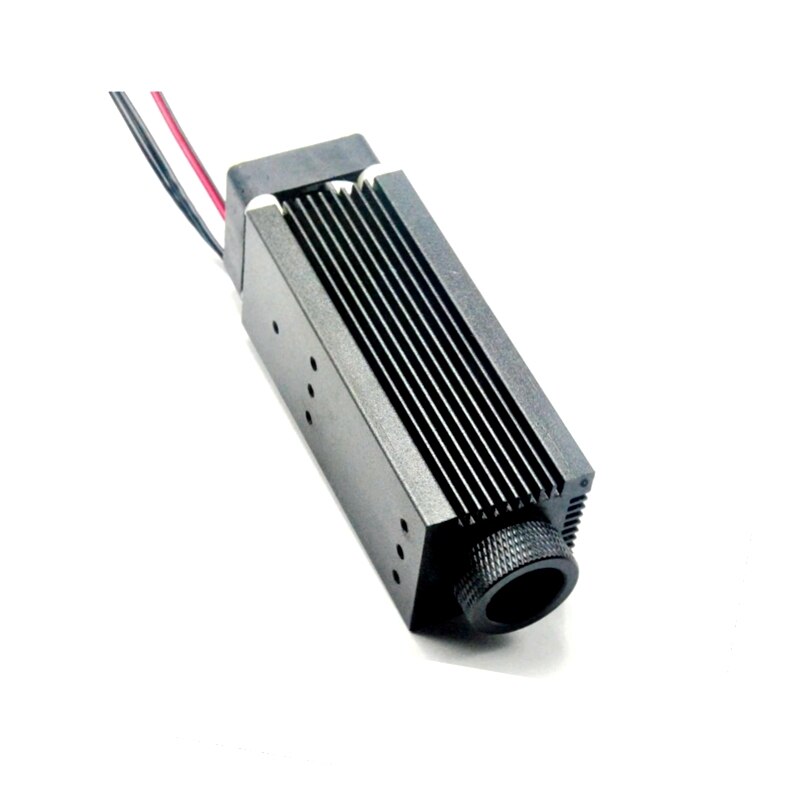

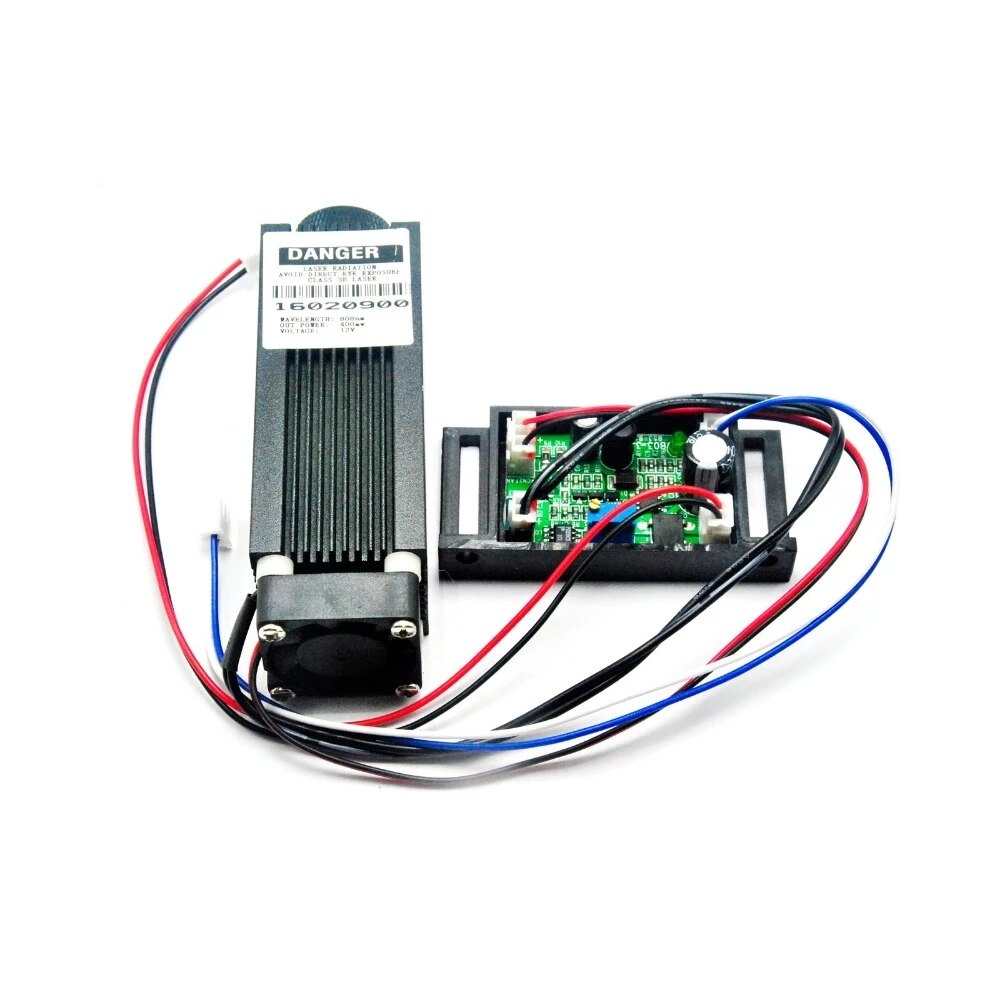

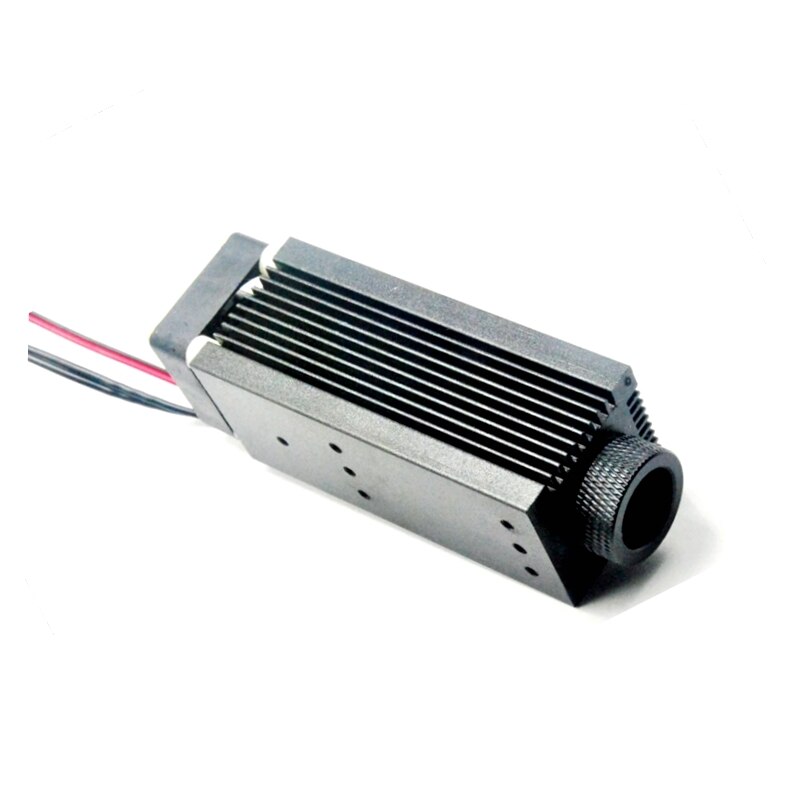

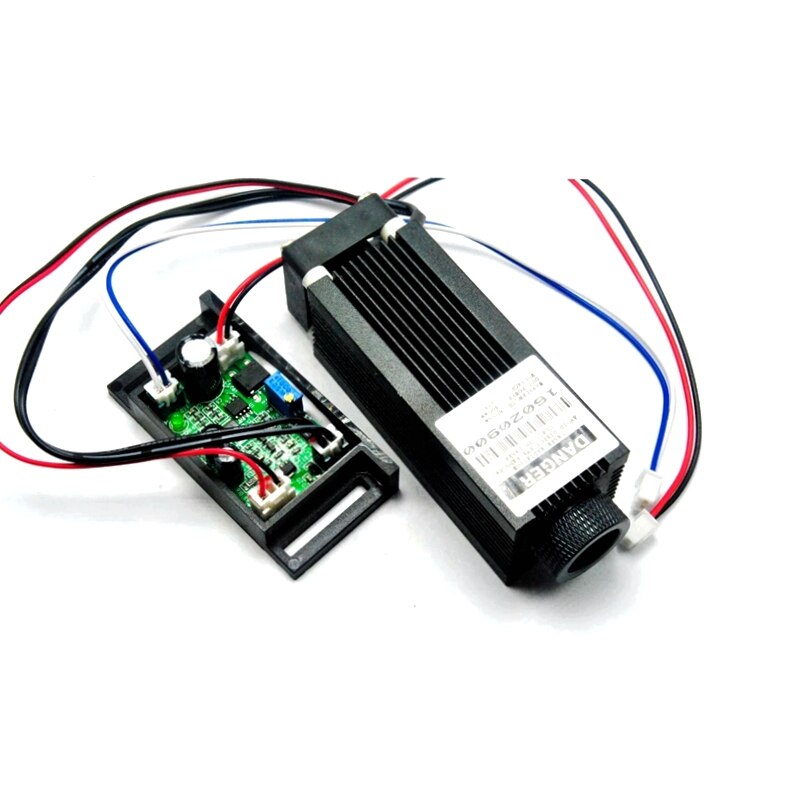

Focusable 830nm 800mW 0.8W IR Infrared Laser Diode Module 33x80mm 12v with TTL and Driver Board
- Brand Name: Jolooyo
- Certification: NONE
- Item Type: Stage Lighting Effect
- Model Number: 830MD-800-3380-TTL-BL
- Voltage: 12V
- Occasion: Professional Stage & DJ
Product parameter：
Wavelength 830nm
Output Power 800mW(0.8W)
Beam Diameter 6mm
Input Current 3A
Input Voltage 12VDC
Working Temperature -10℃- 30℃
TTL >20KHz
Divergence 5mrad
Laser Shape DOT(The spot can be adjusted from rectangle to oval)
Focusable YES
Lens Glass
Dimensions 33*33*80mm
Working Life >5000 Hours
Features：

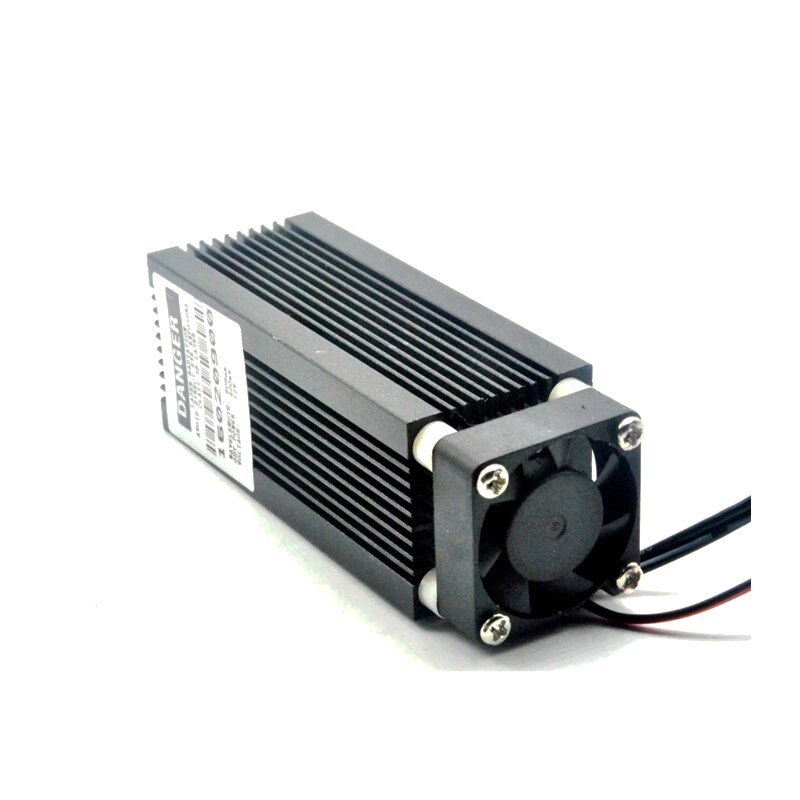

1. This laser module can work for a long time with cooling fan.But please make sure to keep the laser working under 30℃.
2. Please add a 12VDC power to this laser module. Red wire connects”+” pole; Black wire connects ”-” pole. TTL 3-5V on, 0V off. If you don’t use TTL, please just leave the blue and white wire.
3. This is a focusable laser module. Please do not take off the lens adjustable part off to avoid dust.
4. There is a potentiometer on the driver. You can turn it to adjust the power of the laser. Turn Clockwise to increase the laser power. Otherwise to decease the power. But the current can not surpass the current we have set up.
Note:
830nm is IR Lasers which can only be seen a weak red light.Please make sure you know it before ordering.Thanks!
Please wear 808nm laser protection goggles to protect your eyes when working on this module.
https://www.aliexpress.com/item/10000069989689.html?spm=5261.ProductManageOnline.0.0.daff4edfMt9X5Q
Package：
1pc 830nm 0.8w Laser Diode module
