Description
16X68mm Focusable 830nm 300mW IR Infrared Laser DOT Module w/ Adapter
wavelength 830nm
output:300-350mW
divergence:0.1-2mrad
working voltage:DC 3V-3.3V
dot diameter:min 0.5mm at 1 meter
Duty cycle: 45 seconds on 5 seconds off, if you add heatsink on it, the duty cycle can be more than 2hrs on, 5 minutes off
Lens: plastic glass

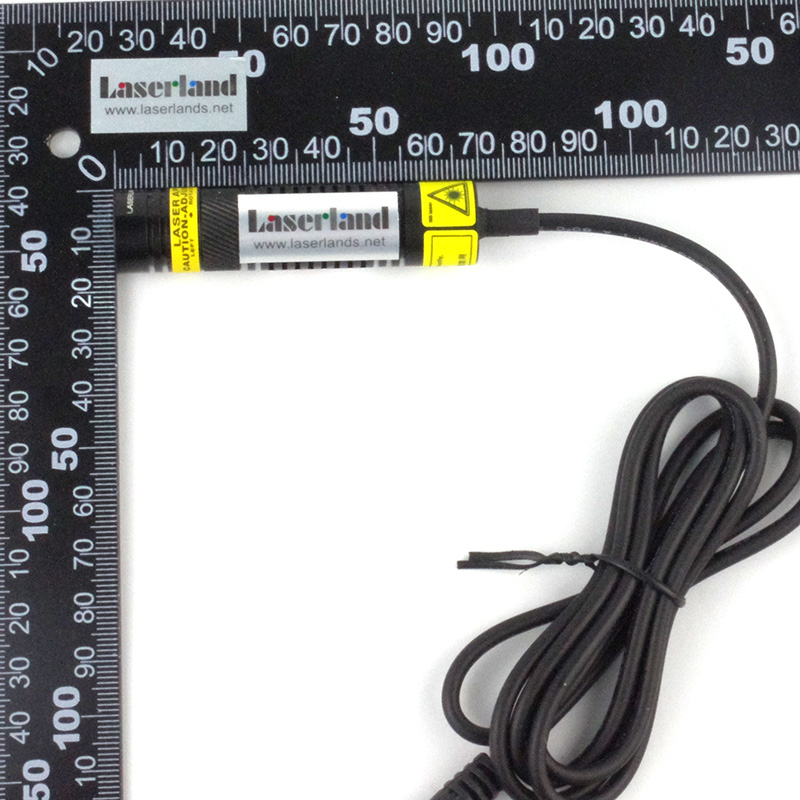

size:16mm×65mm

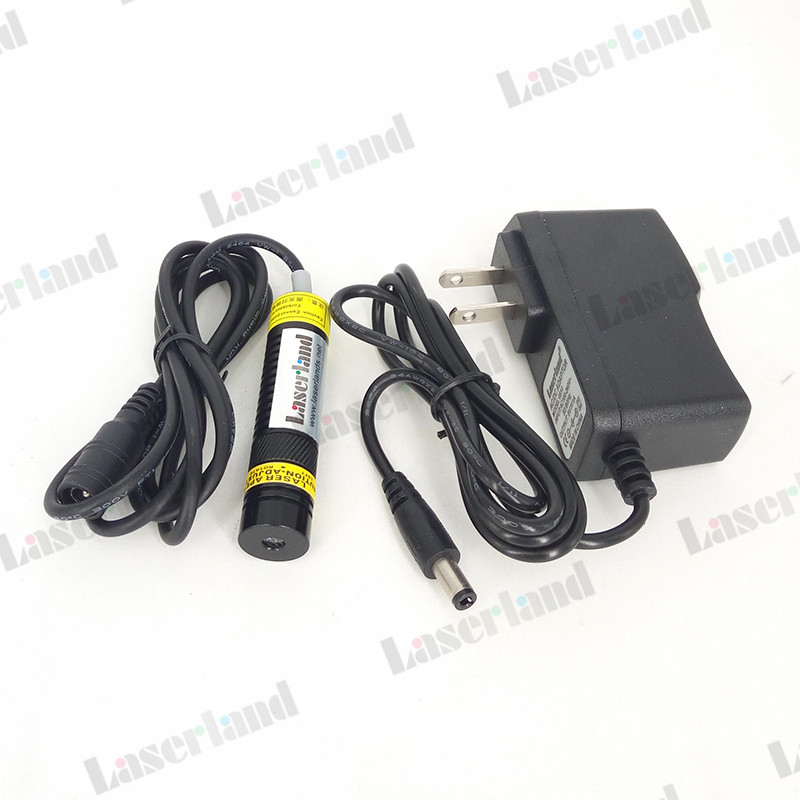

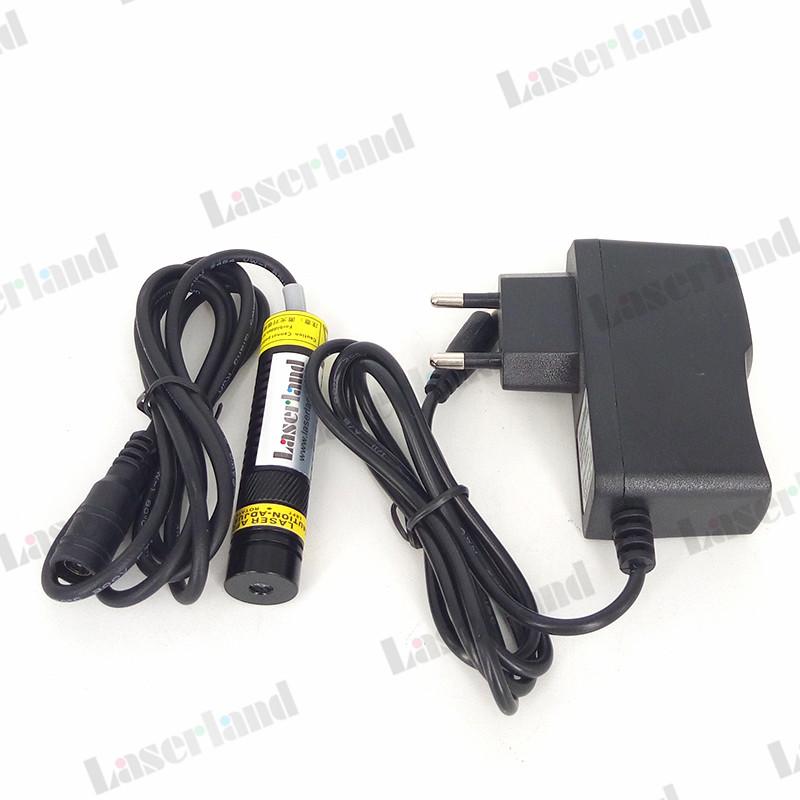

Package:one dot(rectangle) module, one adapter
Note:
The modules are tested and the output power are measured by laser power meter before sending out.
Please don’t compare the power of this one with a none-measured laser.
If you doubt the output, please have the laser you recieved checked by laser power meter.
If there is any problem, please feel free to contact us. We will solve the problem asap.
It is IR laser,the laser light cannot be seen by human bare eyes with only using DDC/infrared camera get it.
Focusable 830nm 300mW IR Infrared Laser DOT Module w/ Adapter 16X68mm
