Description

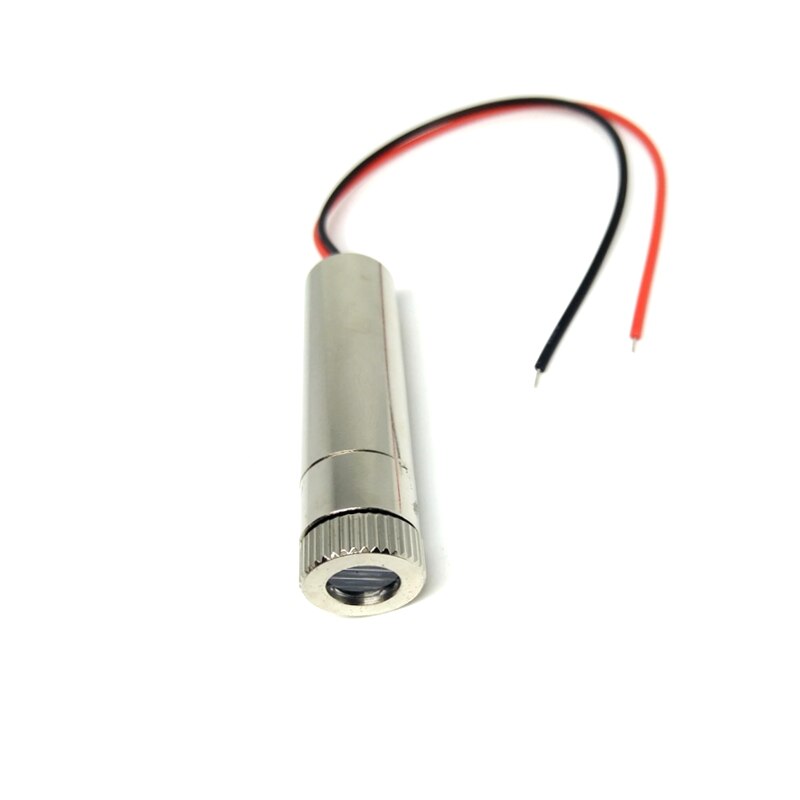

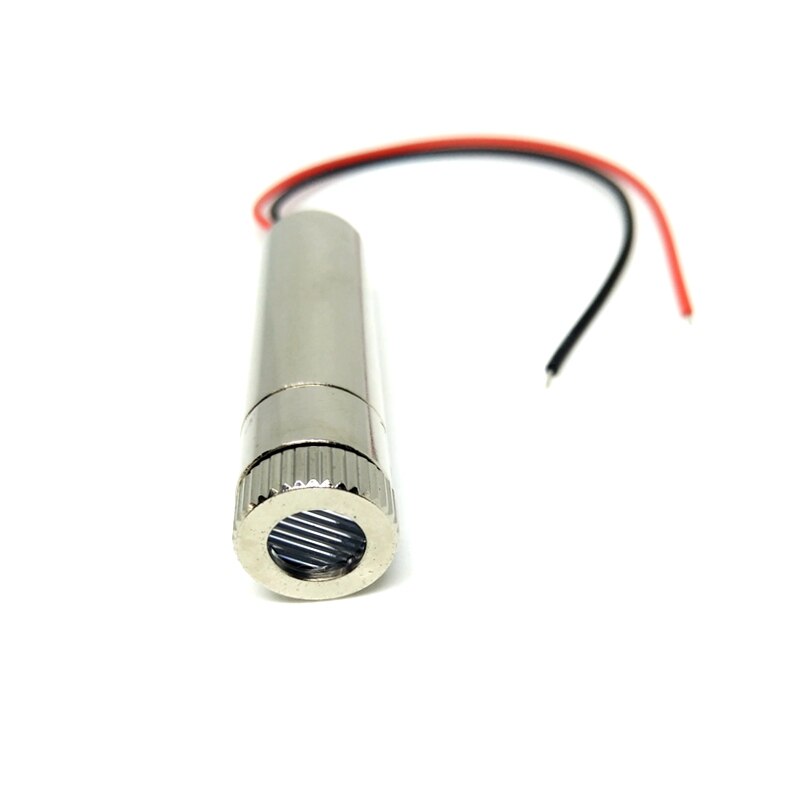

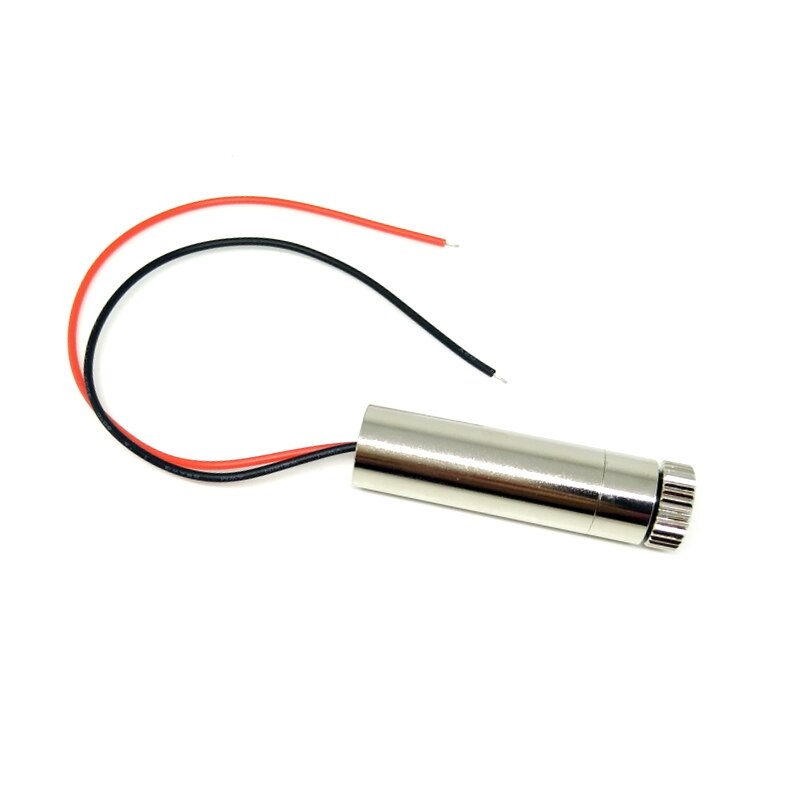

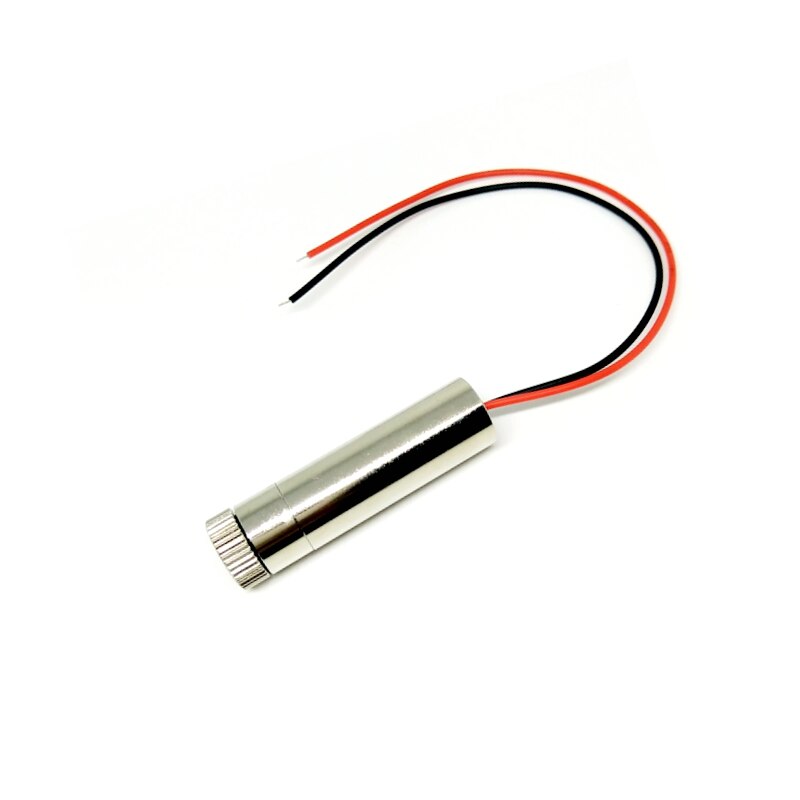

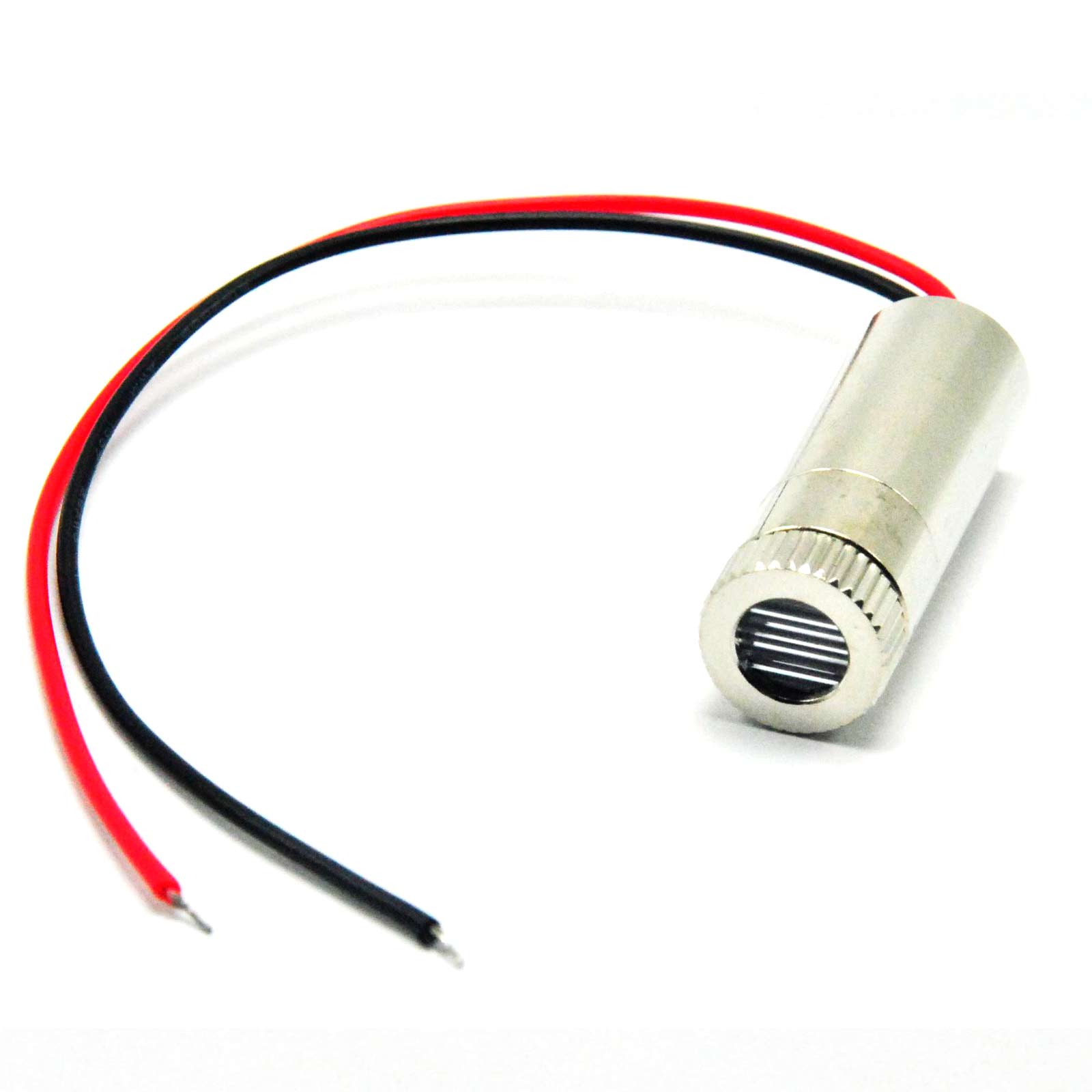

Focusable 808nm 50mw IR Infrared Laser Diode Module with 12x40mm 5V DC w 120° Line Lens
- Brand Name: Jolooyo
- Certification: NONE
- Item Type: Stage Lighting Effect
- Model Number: 808ML-50-1245-BL
Parameter:
Wavelength: 808nm
Output Power: 50mw
Working Voltage: 5VDC
Working Current: <200mA
Laser Shape:Line
Angle:120 Deg(default,But we also have 35°/45°/60°/90°,if you need,please leave us a message.)
Dimensions:12mm
Feature:
This module is 808nm laser line diode module infrared 50mw Angle 120 degree lens.
Red wire “+” pole; black wire “-” pole.
This 808nm laser diode is an industrial electronic component and used for as Industrial testament, Lab, DIY.
It is precise and sensitive optical instrument. Before carrying on some laser DIY activities, please read about the technical information first and protect your eyes before laser ray. Be sure the operator has experience in optics DIY or testing.
Please avoid eye contact and wear 808nm protection goggles when you work on it.Thanks！
IR Laser Safety Glasses：
https://www.aliexpress.com/item/10000054270649.html?spm=5261.ProductManageOnline.0.0.31bd4edfkLnt3E
Detail:
1.The modules are tested and the output power are measured by laser power meter before sending out.
2.It is IR laser, the laser light cannot be seen by human bare eyes with only using DDC/infrared camera get it. If you need a red laser, please choose a 650nm 660nm one. Buyers who buy IR lasers please make sure you know it. since it is IR near red, there is a red bomb. and it is normal. red bomb means a weak red if the ir laser is near red–close to the <700nm wavelength.
Package:
1PC Focusable 808nm 50mw IR Infrared Laser Diode Module with 12x40mm 5V DC w/120° Line Lens
