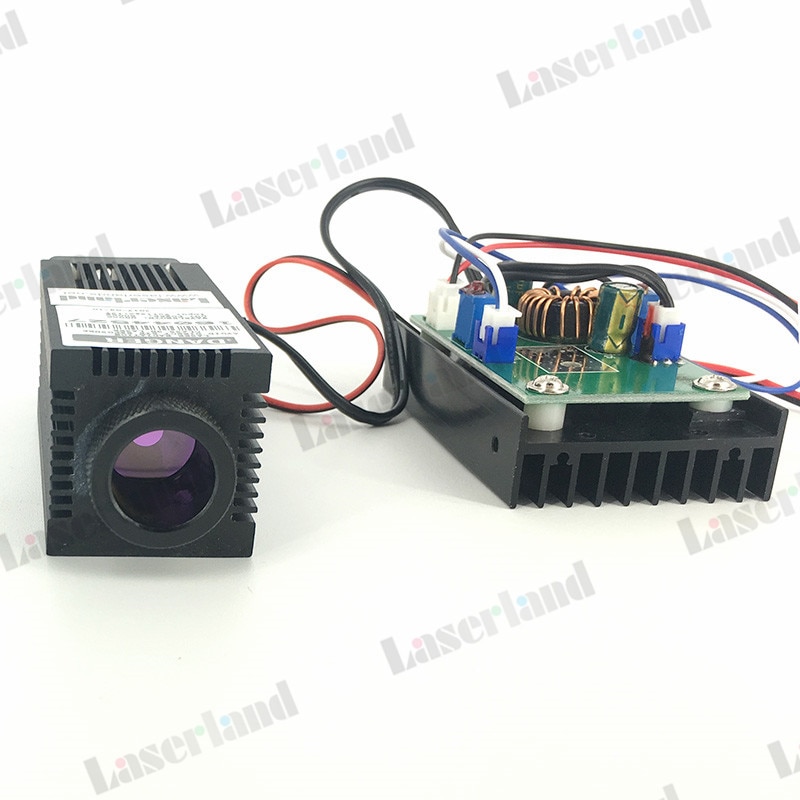

Focusable 800mW 808nm 810nm IR Infrared Laser Dot Diode Module

This Infrared laser diode is an industrial electronic component and used for as Industrial test, Lab, DIY.

1. This laser module can not work for a long time if there is no cooling device to keep the laser working

 under 30 centi-degree.

2.  Please add a 12VDC power to this laser module. Red wire connects”+”  pole; Black wire connects “-” pole. TTL 3-5V on, 0V off. If you don’t  use TTL, please just leave the blue and white wire.

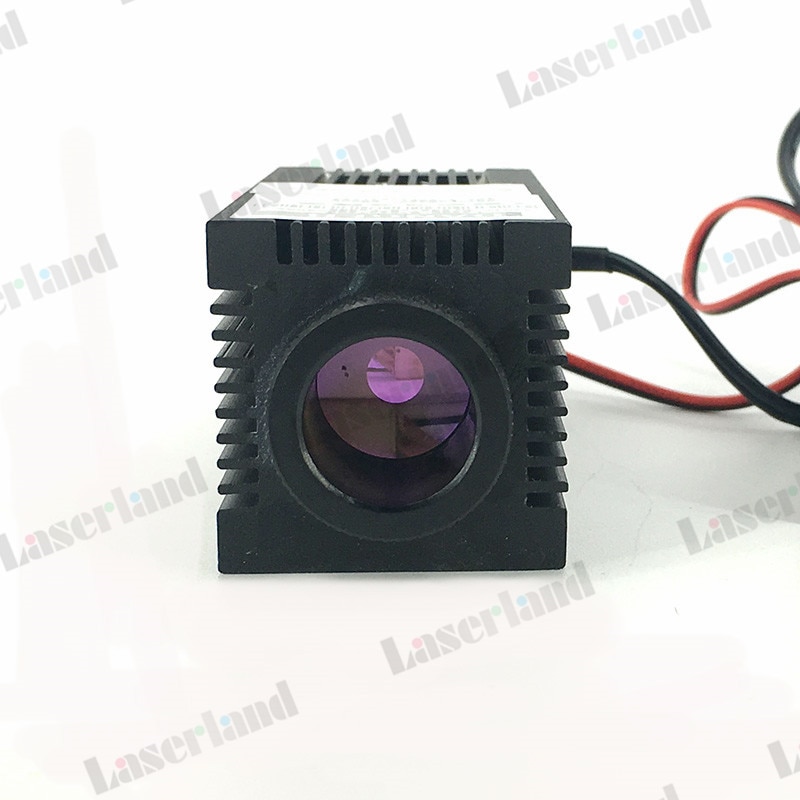

3. This is a focusable laser module. Please do not take off the lens adjustable part off to avoid dust.

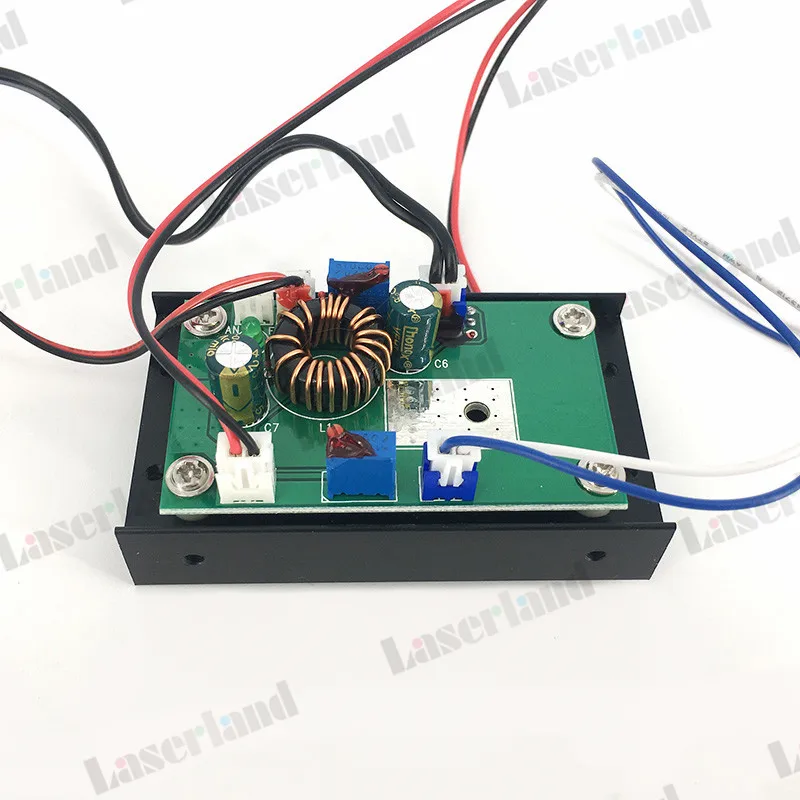

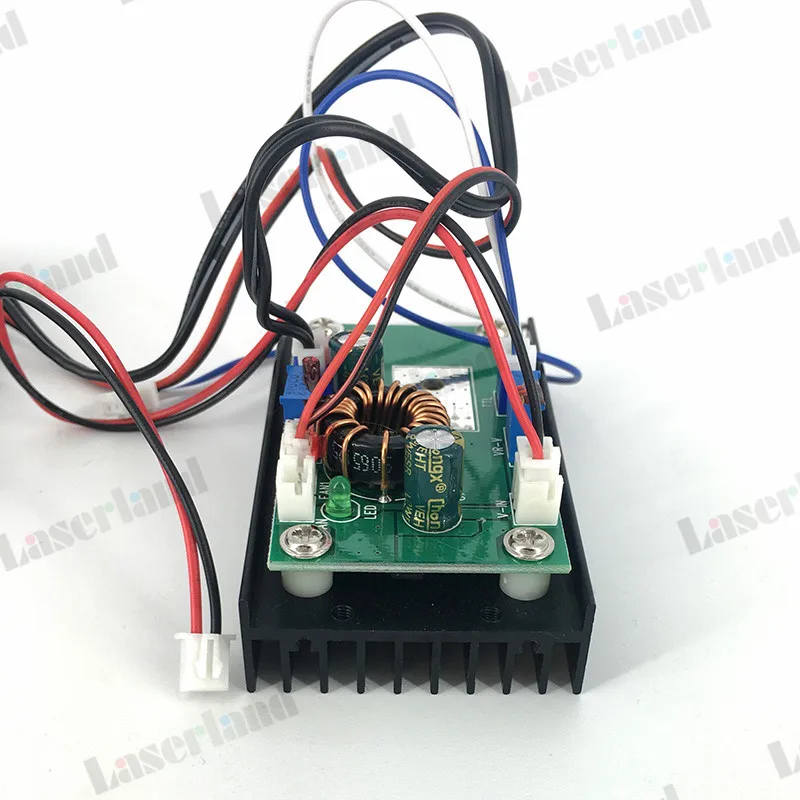

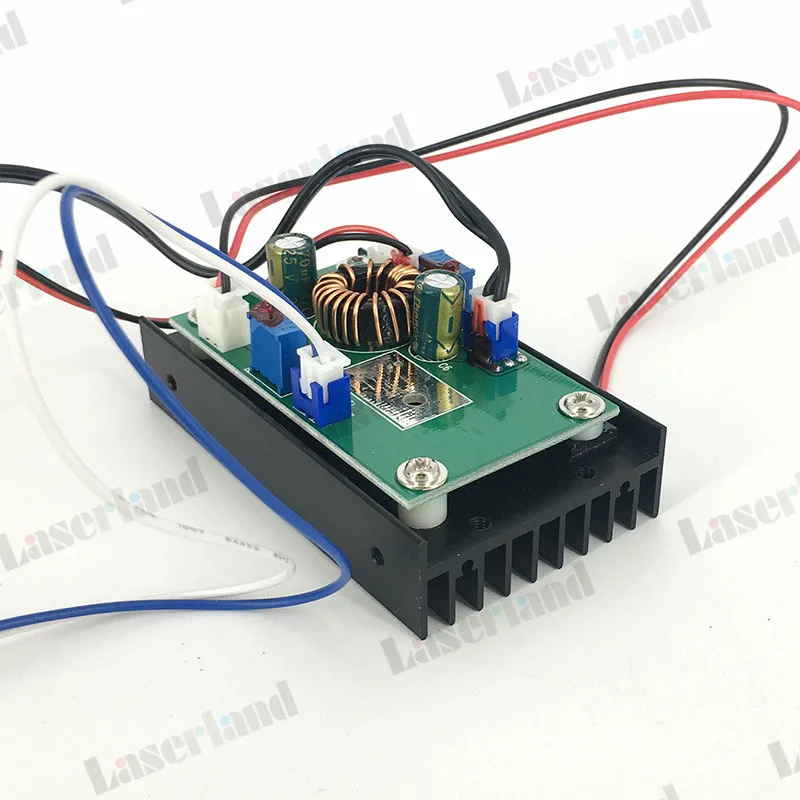

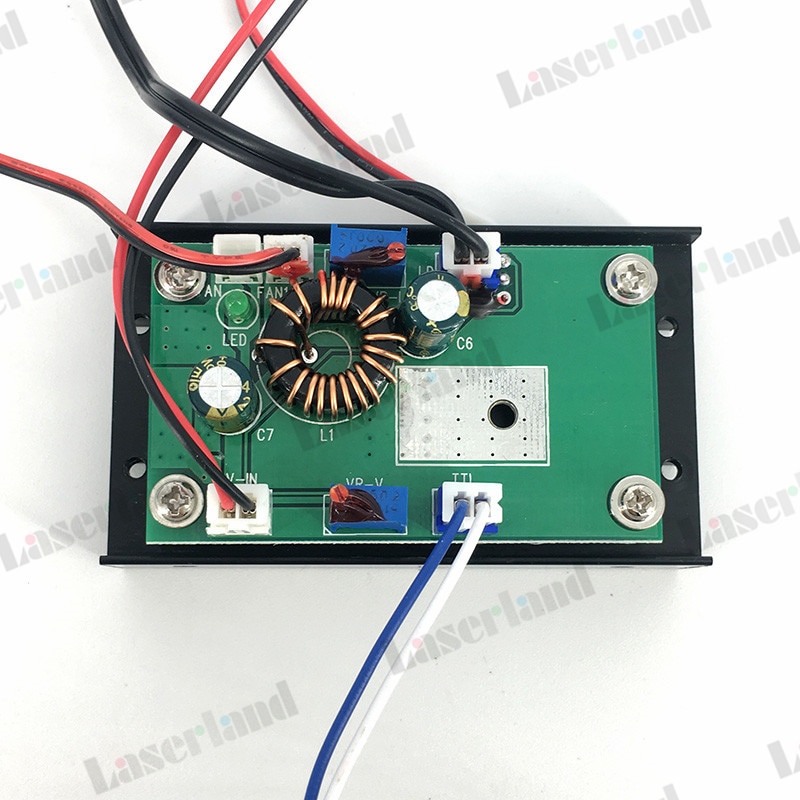

4.  There is a potentiometer on the driver. You can turn it to adjust the  power of the laser. Turn Clockwise to increase the laser power.  Otherwise to decease the power. But the current can not surpass the  current we have set up.

5. Please wear 1064nm laser protection goggles to protect your eyes when working on this module.

6. invisible beam by human bare eyes. you cannot see it without night version goggles

7. dot size: ellipse, not round

Specification
Model	808MD-0.8W
Output Power	800mw
Wavelength	808nm 810nm
working voltage	DC 12V
working current	3A
working temperature	-10- 30 centi-degree
TTL	3-5V
Divergence	5mrad
Focusable	Yes
Lens	Glass
Dimensions	33*33*80mm
Working Life	>5000 Hours



Note: The modules are tested and the output power are measured by laser power meter before sending out. Please don’t compare the power of this one with a none-measured laser. If you doubt the output, please have the laser you recieved checked by laser power meter.  If there is any problem, please feel free to contact us. We will solve the problem asap.   It is IR laser,the laser light cannot be seen by human bare eyes with only using DDC/infrared camera get it.
