Description

Specification:

1.Size:14.5*45mm

2.Output Power :100 mW

3.Wavelength: 780nm

4.Operation Voltage: DC=3-5V

5.Current: 110mA

6.Duty cycle:45 seconds on, 15 seconds off

7.Lens:k9 glass

8.Laser shape:Line

Feature:                                                                           .

Note:

1.The modules are tested and the output power are measured by laser power meter before sending out.

2.The LD in this laser module is 780nm 100mw LASER DIODE original and new. but the complete laser module output power is between 70-80mw. because the output power of the laser module has power loss bypass the collimating lens, and when you measure the output power, please focus to the smallest point to meaure its real output.

3.It is IR laser,the laser light cannot be seen by human bare eyes with only using DDC/infrared camera get it.Buyers who buy IR lasers please make sure you know it. since it is IR near red, there is a red bomb. and it is normal. red bomb means a weak red if the IR laser is near red–close to the <700nm wavelength.

4.If you need an absolutely IR laser without red bomb, please add a filter on it.

5.If you need a red laser, please choose a 660nm one.

6.If you do not know what is IR laser, please do not buy it.





Package:

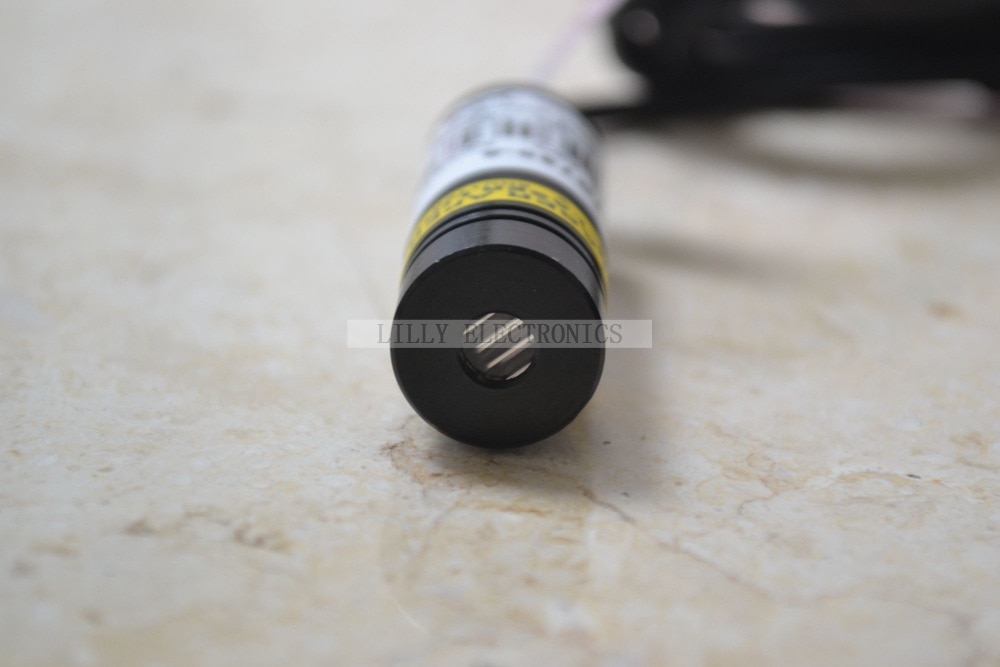

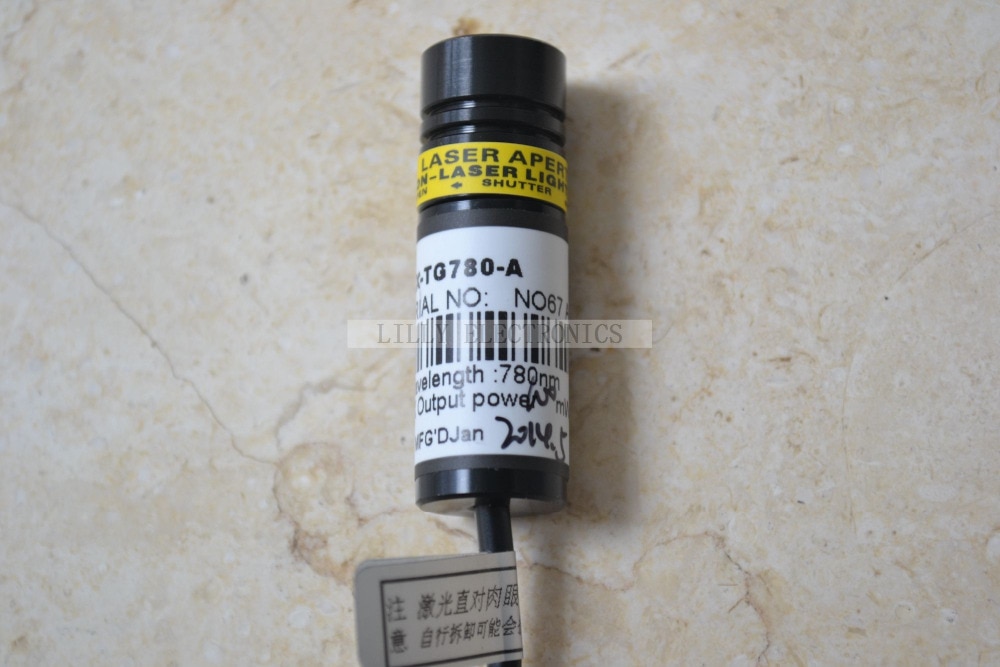

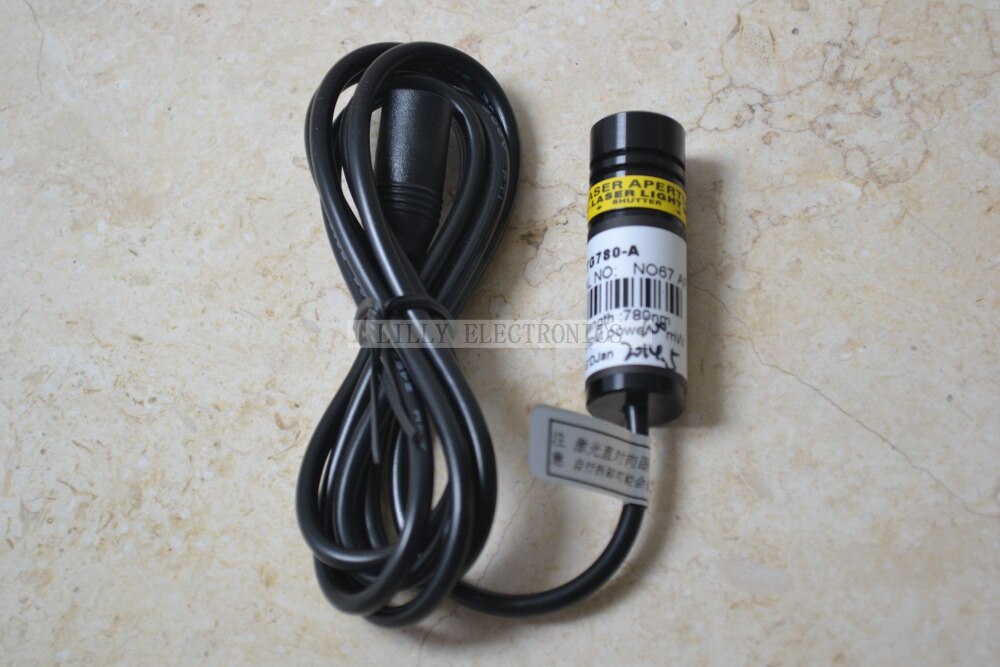

1x Focusable 780nm 100MW IR Infrared Laser Diode Module Laser Line

14.5x45mm 5VDC
