Parameter

Wavelength: 650nm
Output Power: 30mW
Working Voltage: 3 – 5V
Working Temperature: -10 ℃~+40 ℃

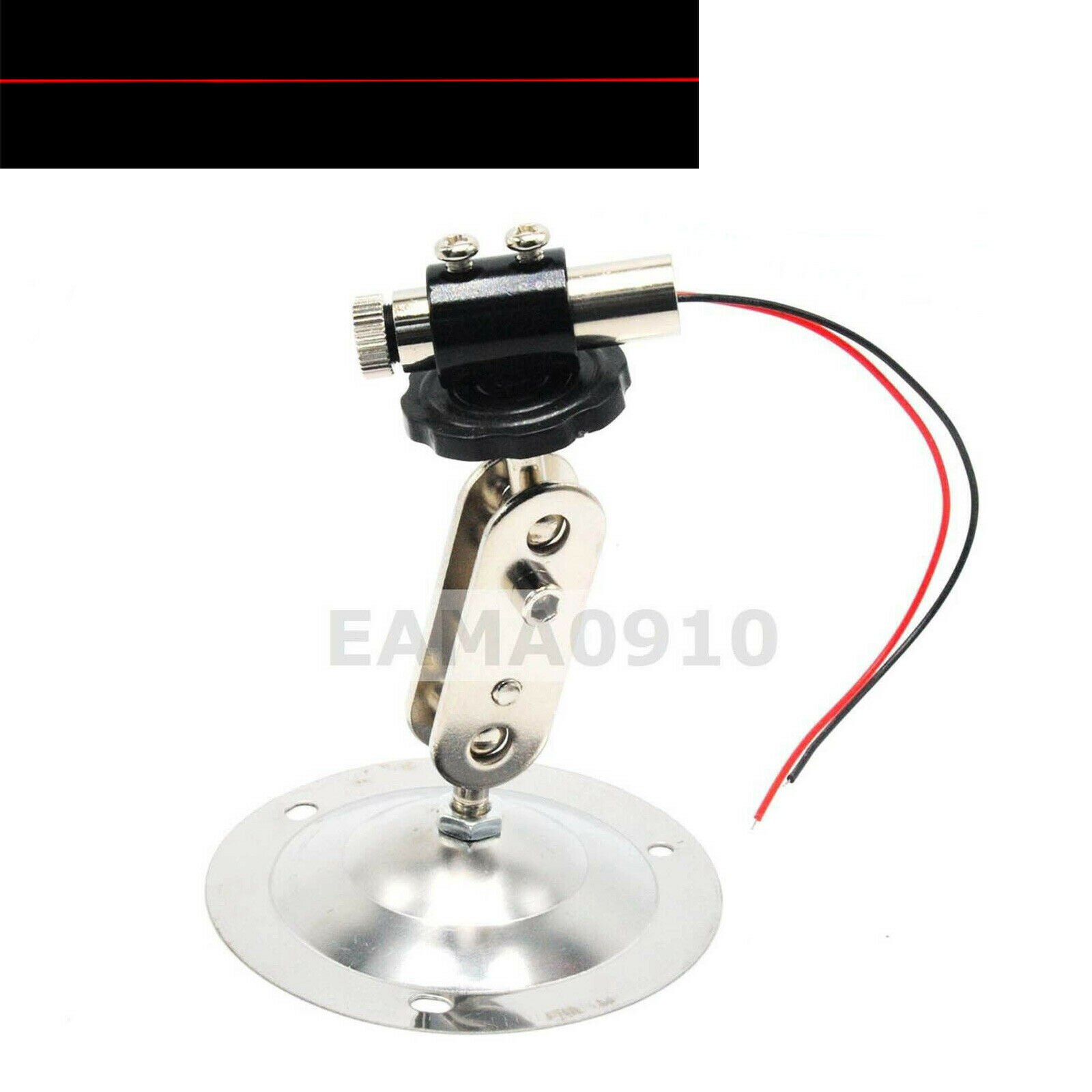

Laser Shape: Line

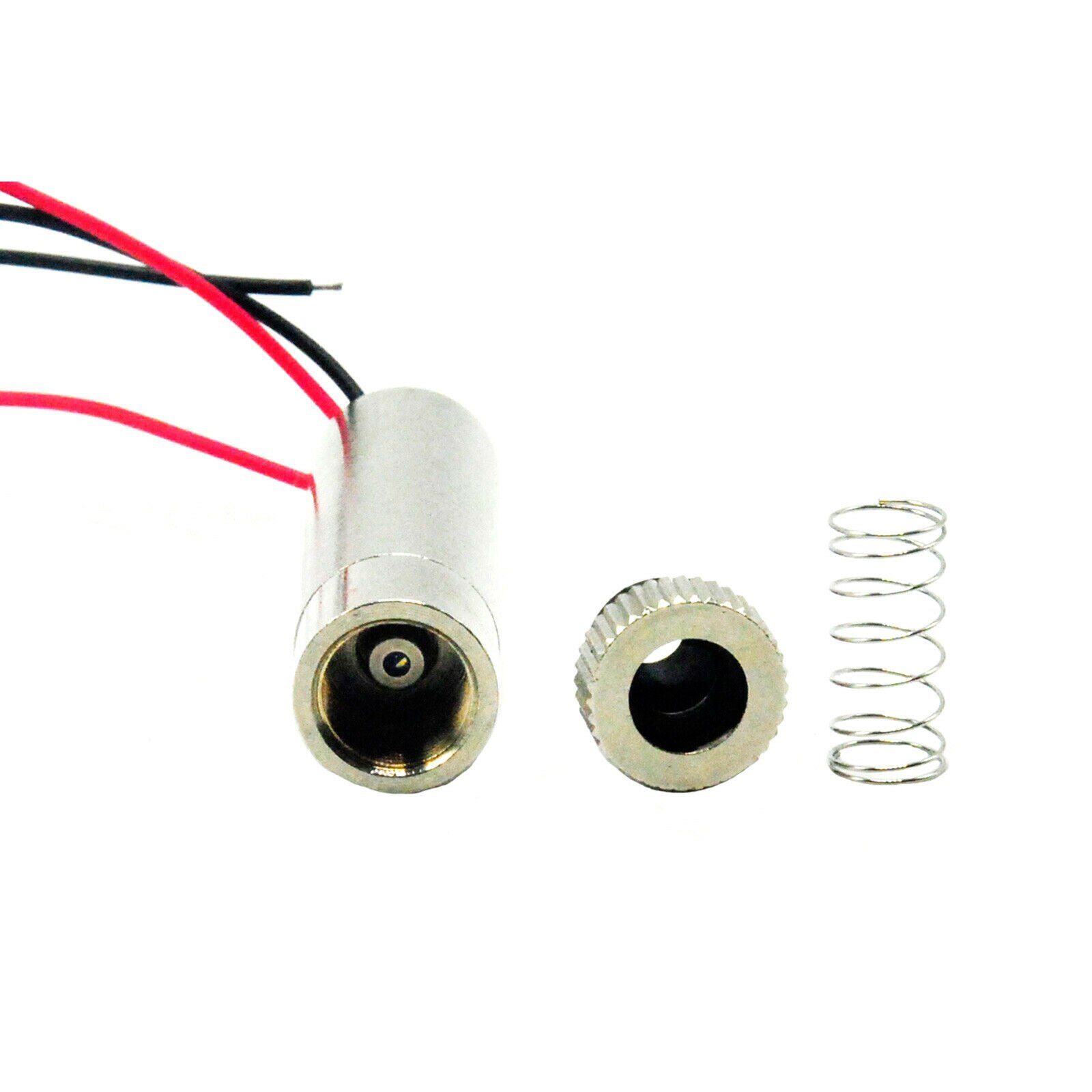

Focusable: Yes
Material and Color: Metal
Divergency: ≤Φ1(mm) at 1m
Dimensions: 12*12*35mm ( Sometimes 12x12x45mm)

Care Instruction:
Red wire “+” pole; black wire “-” pole.
Please keep the lens clean to make the laser beam clear and bright.
Before carrying on some laser DIY activities, please read about the technical information first and protect your eyes before laser ray.
Be sure the operator has experience in optics DIY or testing

Please add heatsink holder to prolong the working time of the laser!

Package

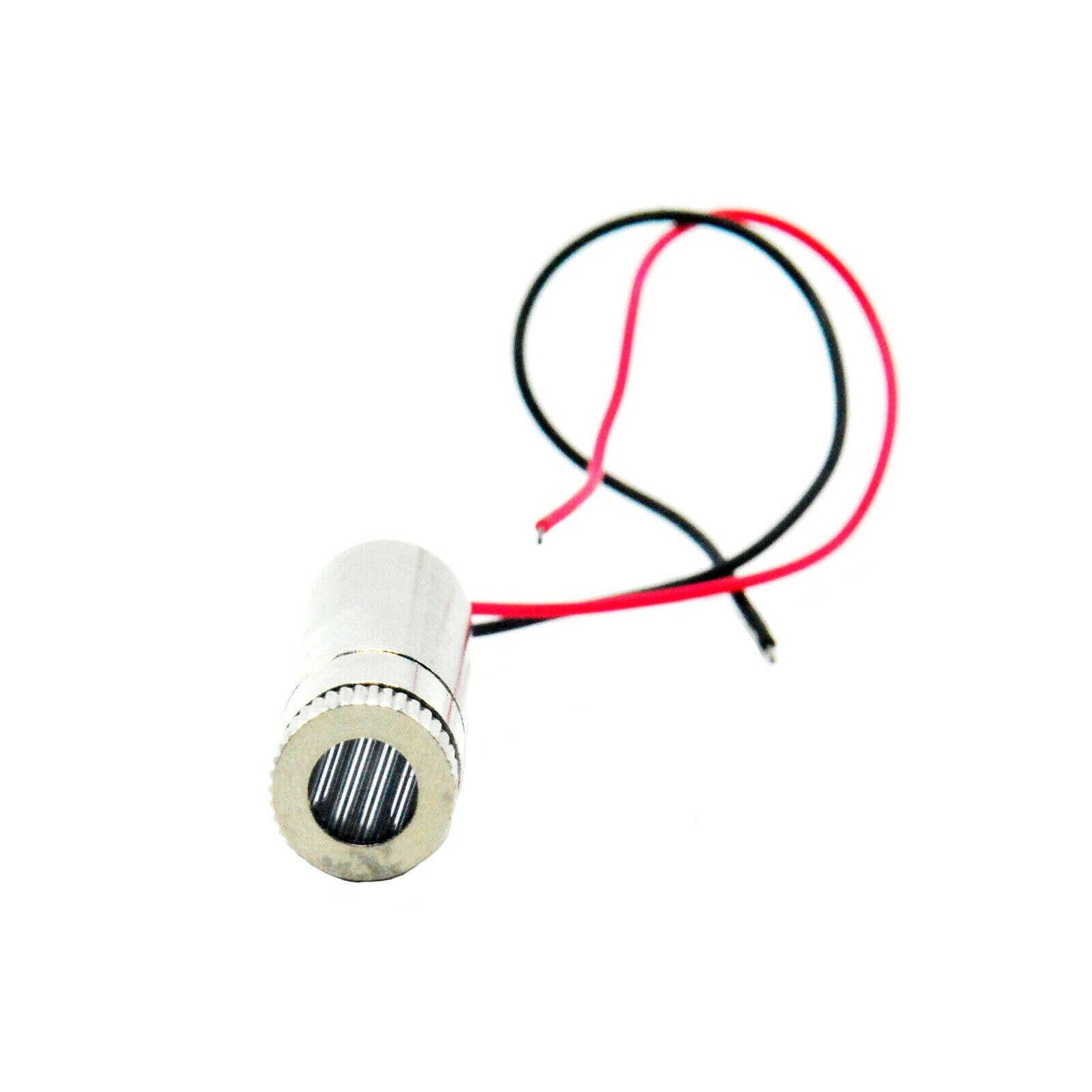

1pc 650nm 30mW Laser Line Module

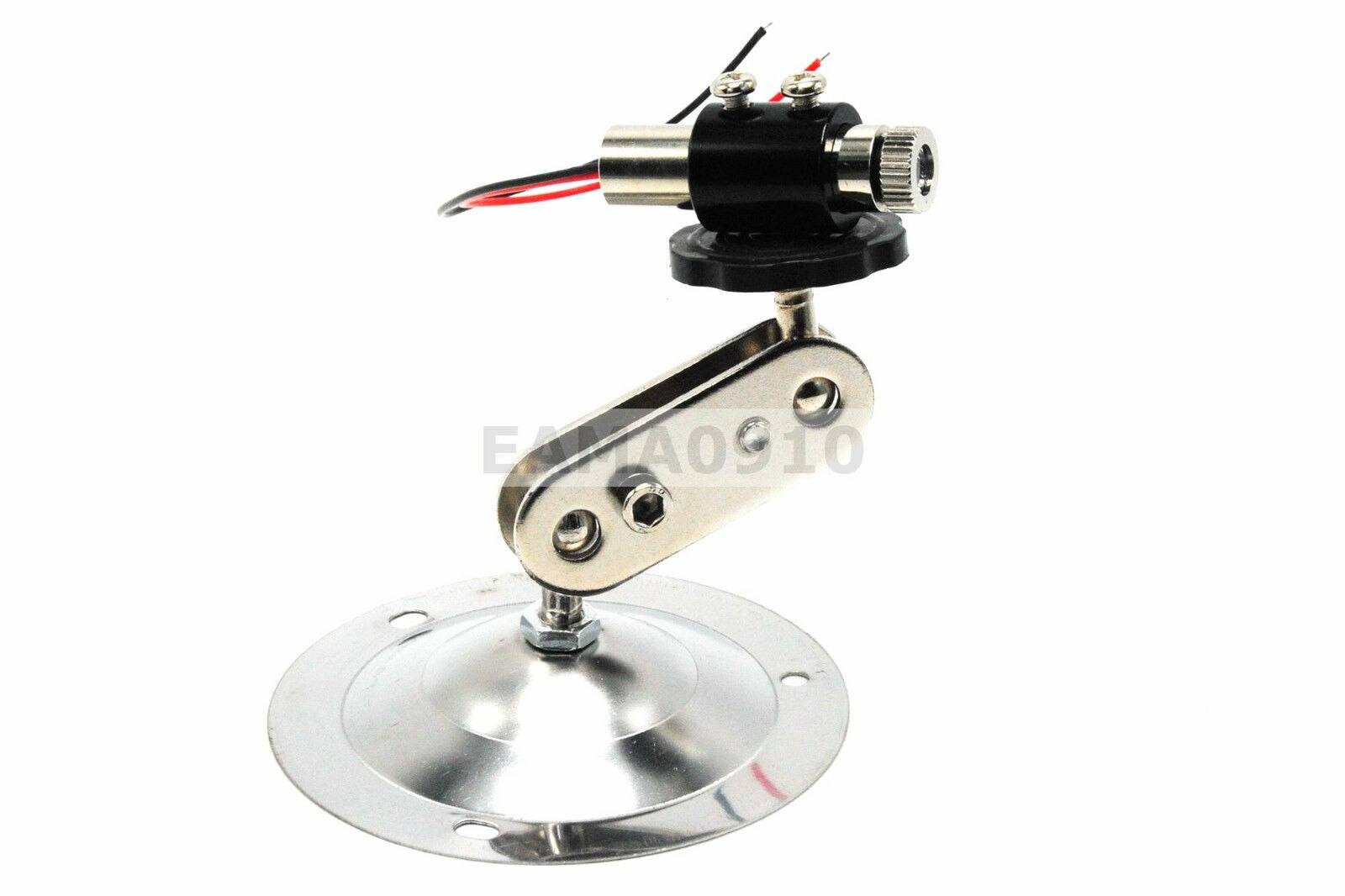

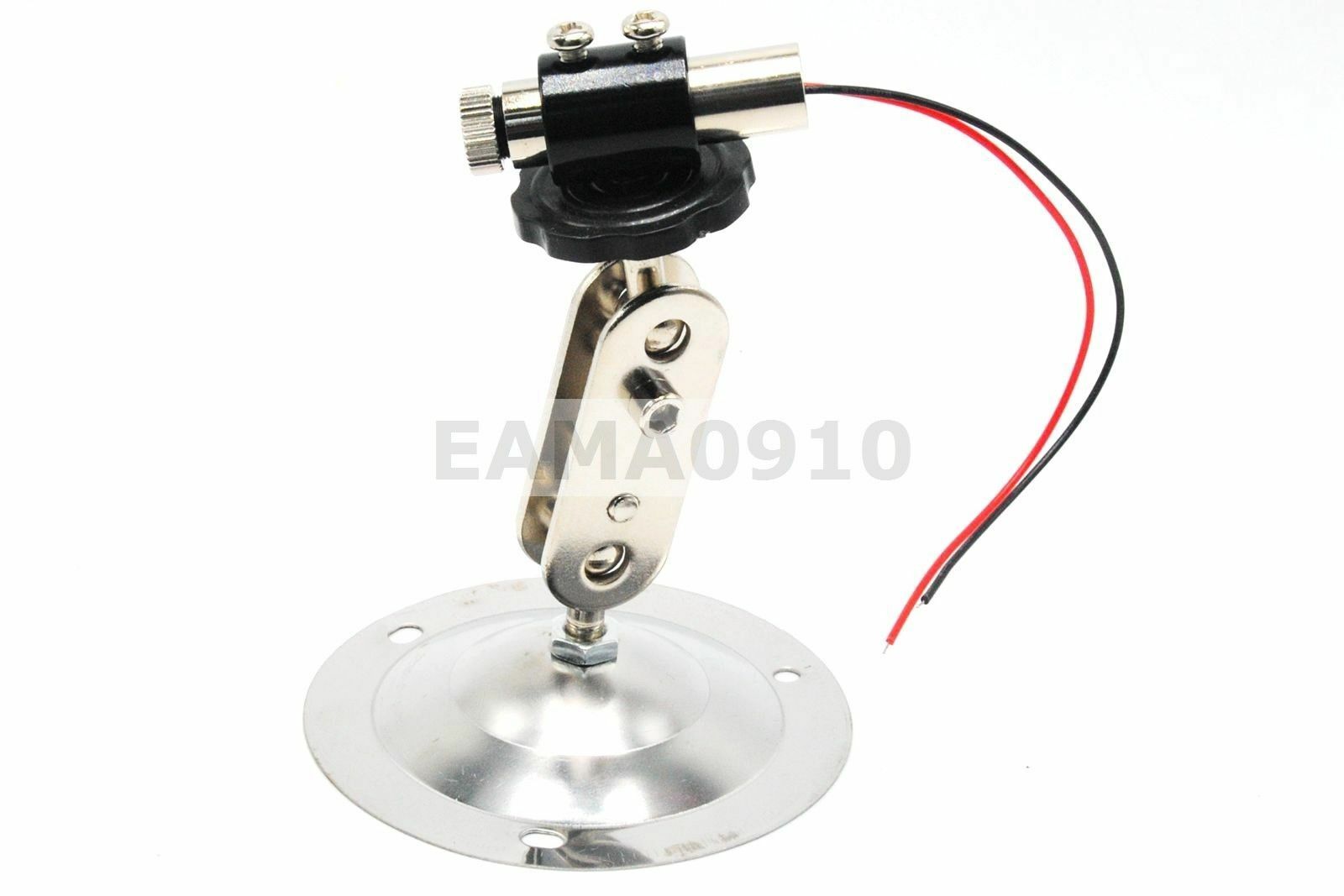

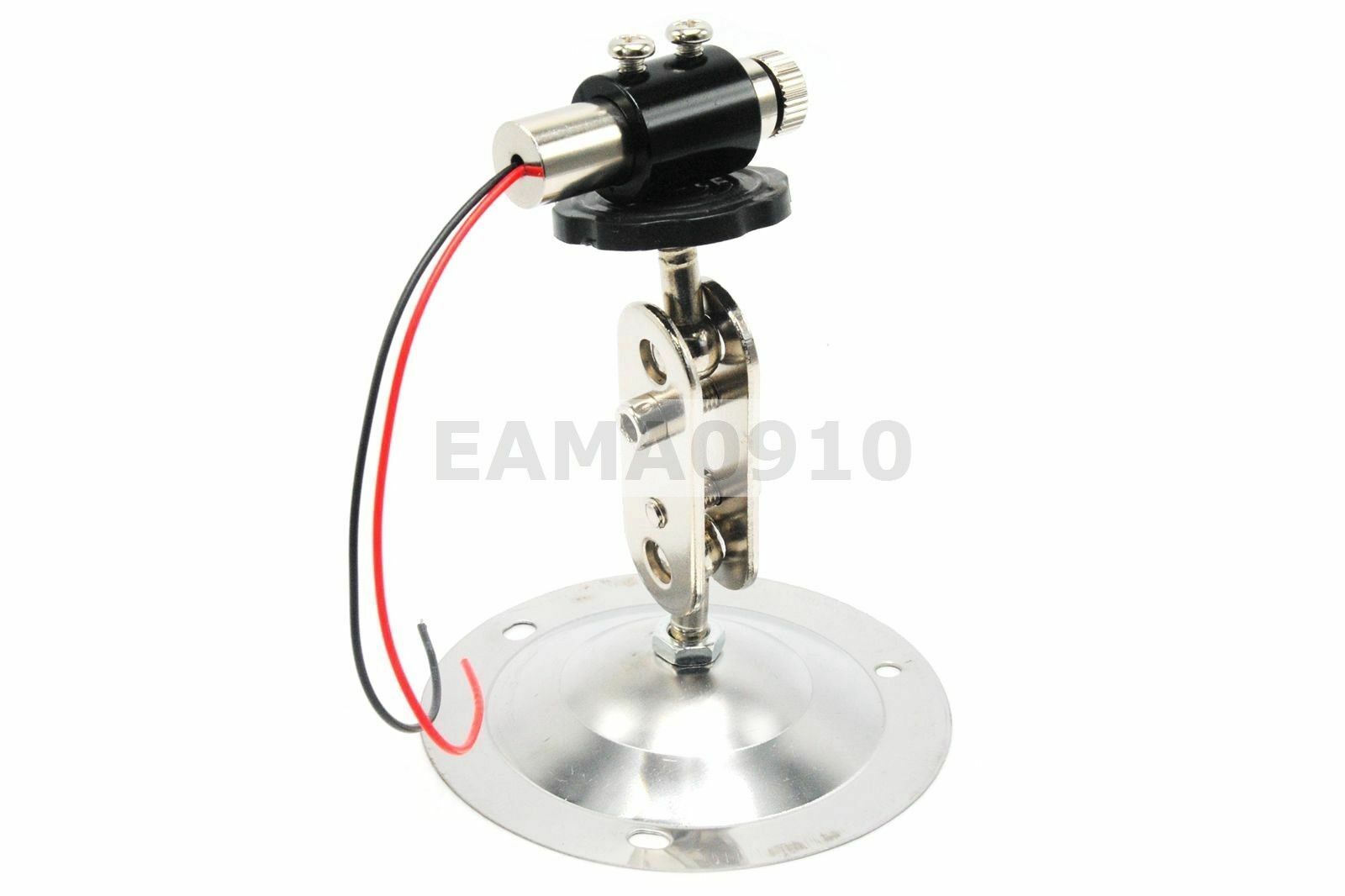

1pc 12mm Holder
