Description
- Brand Name: Jolooyo
- Certification: NONE
- Origin: CN(Origin)
- Item Type: Stage Lighting Effect
- Model Number: 650-200-1245-GD-3 in 1 202750HS
- Voltage: 5v
Specifications:
Module Parameters：
Wavelength:650nm
Output Power:200mW
Working Voltage:5V
Operating Current:I < 240mA
Working Temperature:＋15 ℃~＋35 ℃

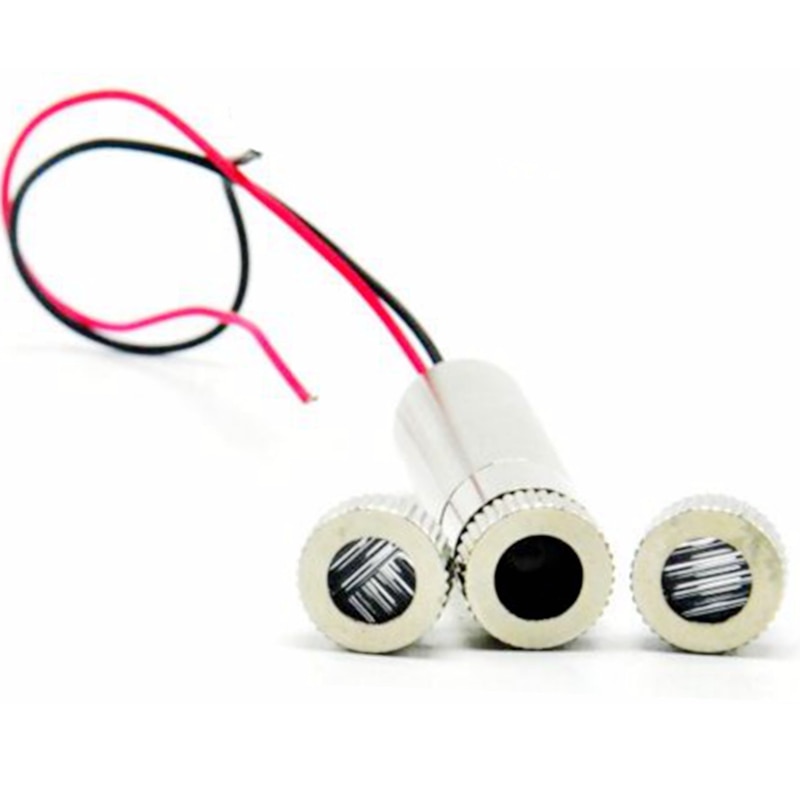

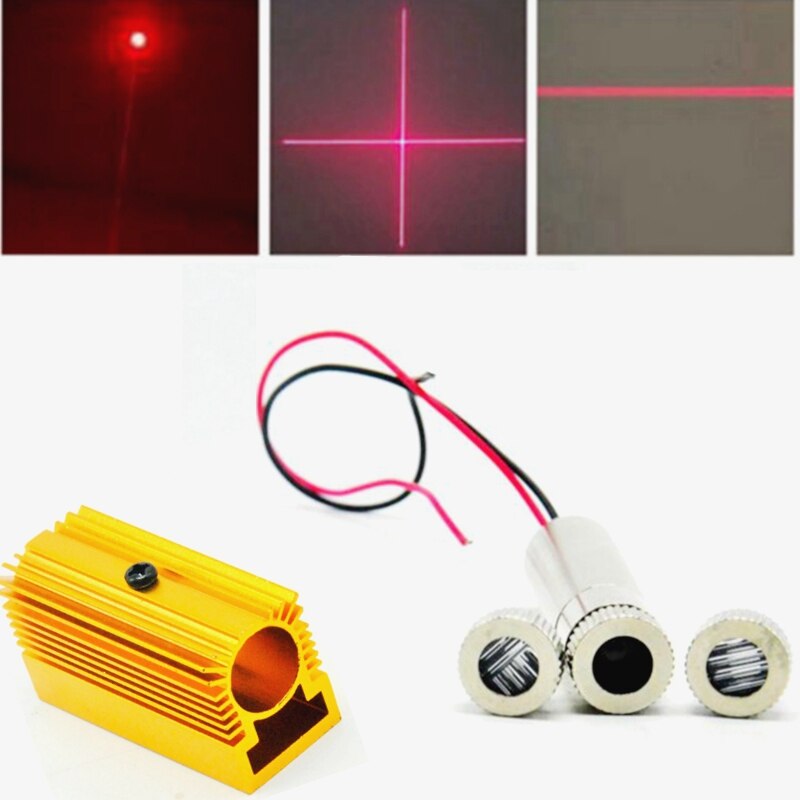

Laser Shape:Dot / Line 120 degrees lens as default / Cross

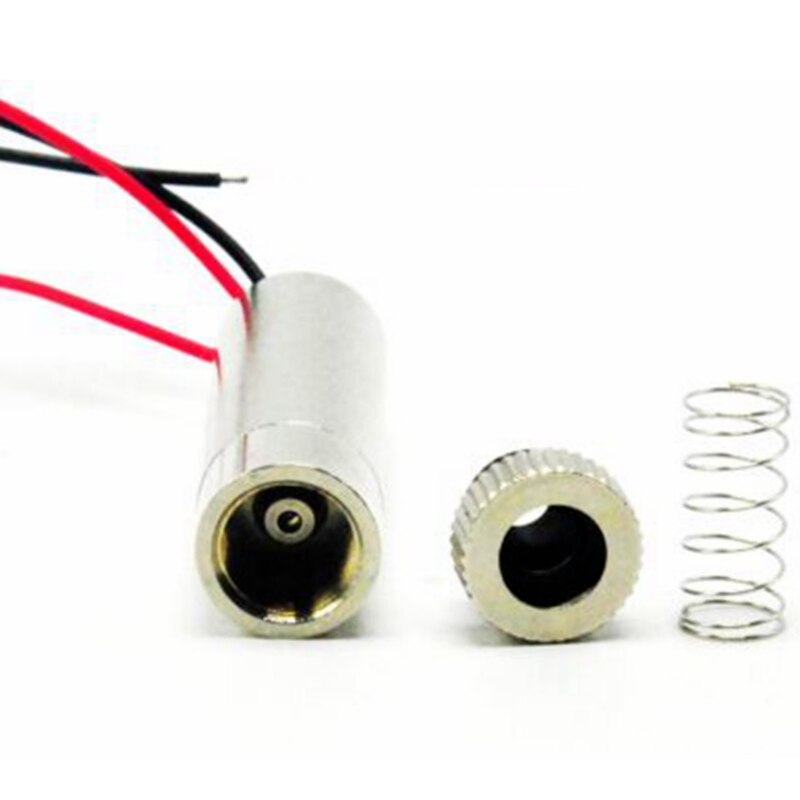

Focusable:Yes
Divergency:≤Φ2(mm) at 1m
Material:Metal
Dimensions:12x40mm

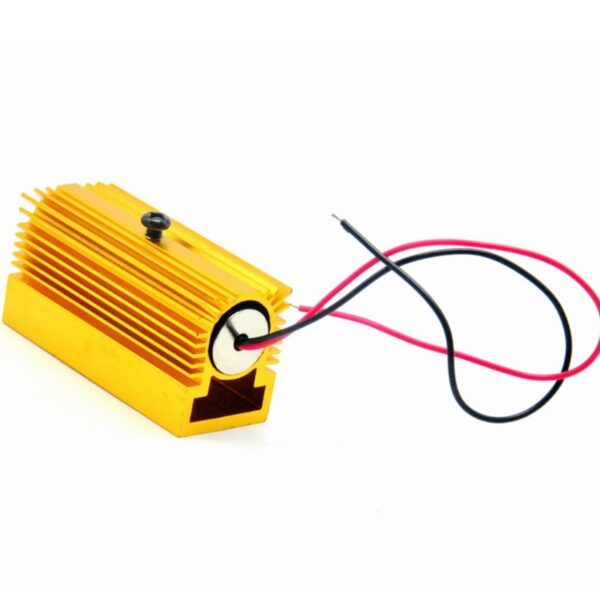

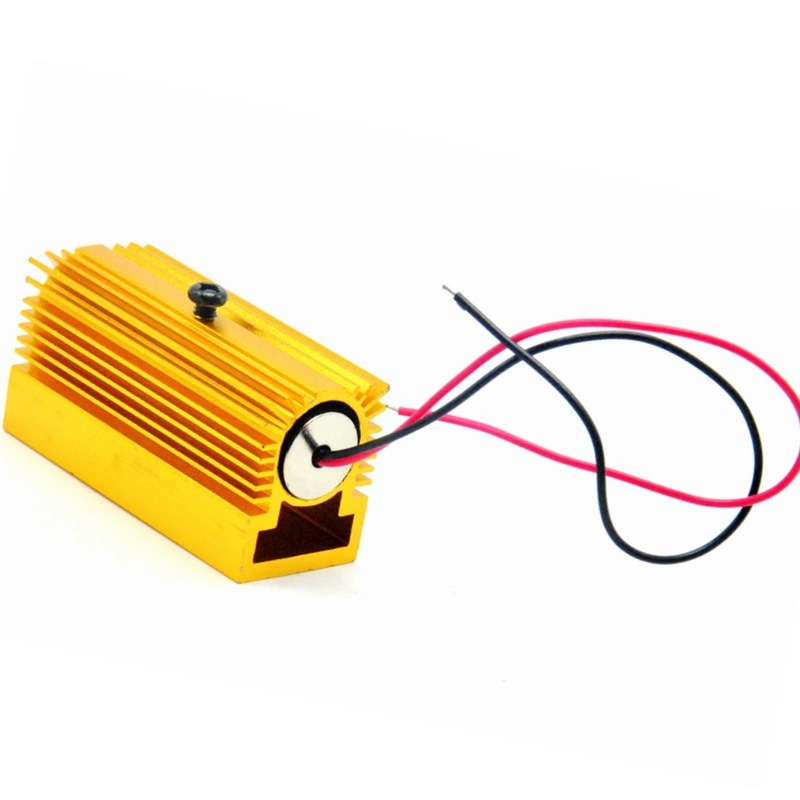

Heatsink Parameters：
Size: 50mm(L) * 20mm(W) * 27mm(H)
Internal diameter: 12mm
Suitable for: 12mm Laser Module
Material: Aluminium alloy
Feature:
This 650nm laser diode is an industrial electronic component and used for as Industrial testament, Lab, DIY.
It is precise and sensitive optical instrument. Before carrying on some laser DIY activities, please read about the technical information first and protect your eyes before laser ray. Be sure the operator has experience in optics DIY or testing.
Care Instruction:
Please keep the lens clean to make the laser beam clear and bright. Before carrying on some laser DIY activities, please read about the technical information first and protect your eyes before laser ray. Be sure the operator has experience in optics DIY or testing.
Red wire “+” pole; black wire “-” pole.
Tips：
Please avoid eye contact and wear 650nm protection goggles when you work on it.Thanks
Package:

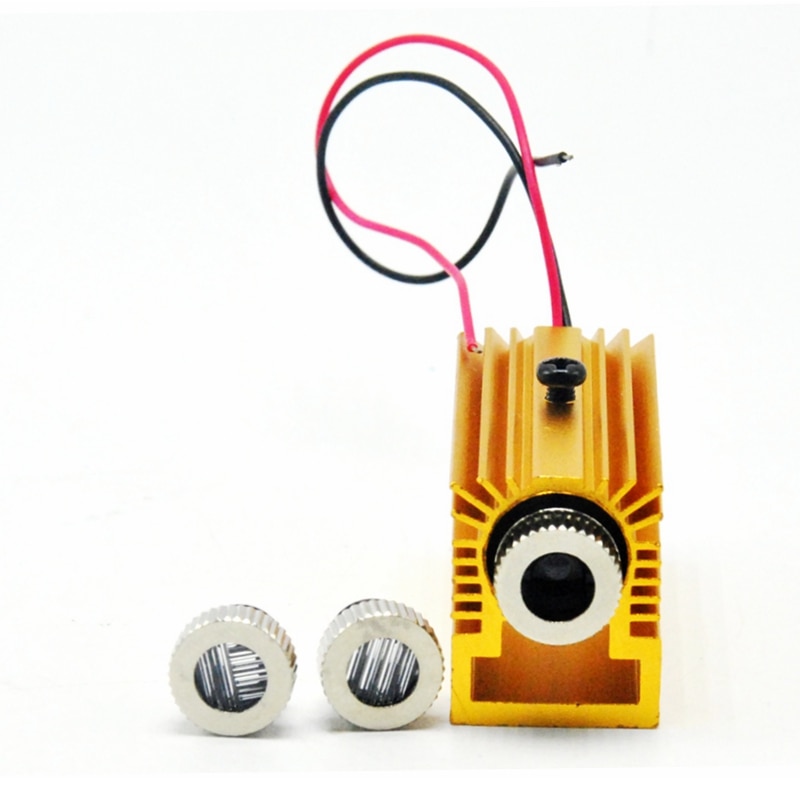

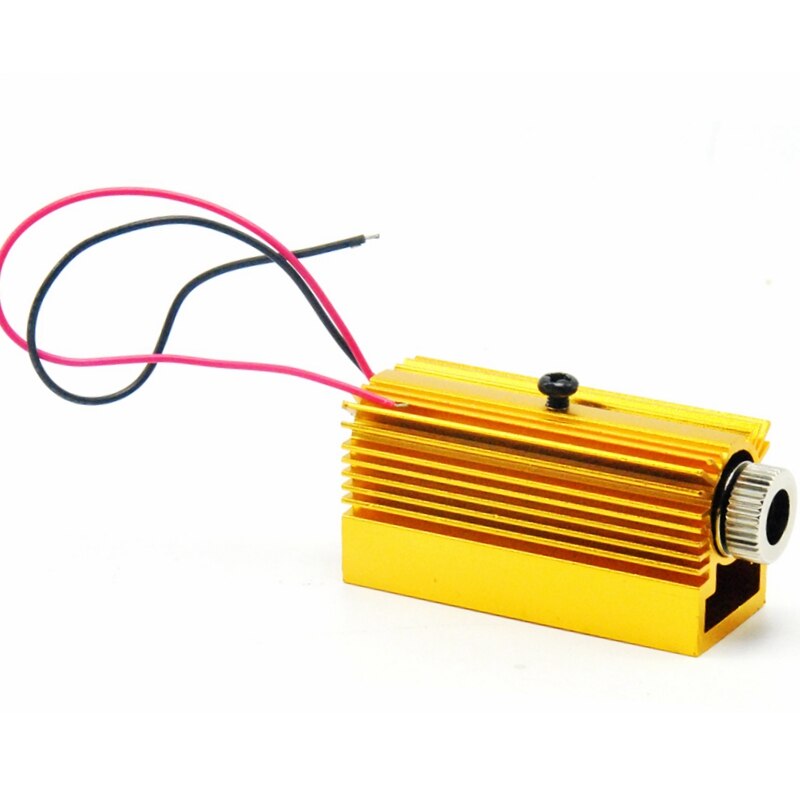

1PC* Focusable 200mW 650nm Red Laser Diode Dot Line Cross LED Module 12x35mm
1PC* 12mm Heatsink
