Parameter

Brand:MTO-laser
Type:M-16A660-200-L
Core device:Mitsubishi
Wavelength:648NM
Output Power:200mW
Power supply:DC5V
Working current:280mA
Spot mode:DOT
Output wave band:The visible light
Material:Aerospace aluminum
Optical portion:Focus Lens
Lens Material:pvc Focus Lens
Operating temperature:-40℃-75℃
Best working distance:< 7 meters
Working life:200mW can not work long hours,It can only work 20 minutes every time
Dimensions:∮16MM*68MM DC cable length 1.2 m (adjustable focus)
Structural features:Aluminum shell+ Imported laser diode+ K9 glass lenses+ Constant current driver board

Package

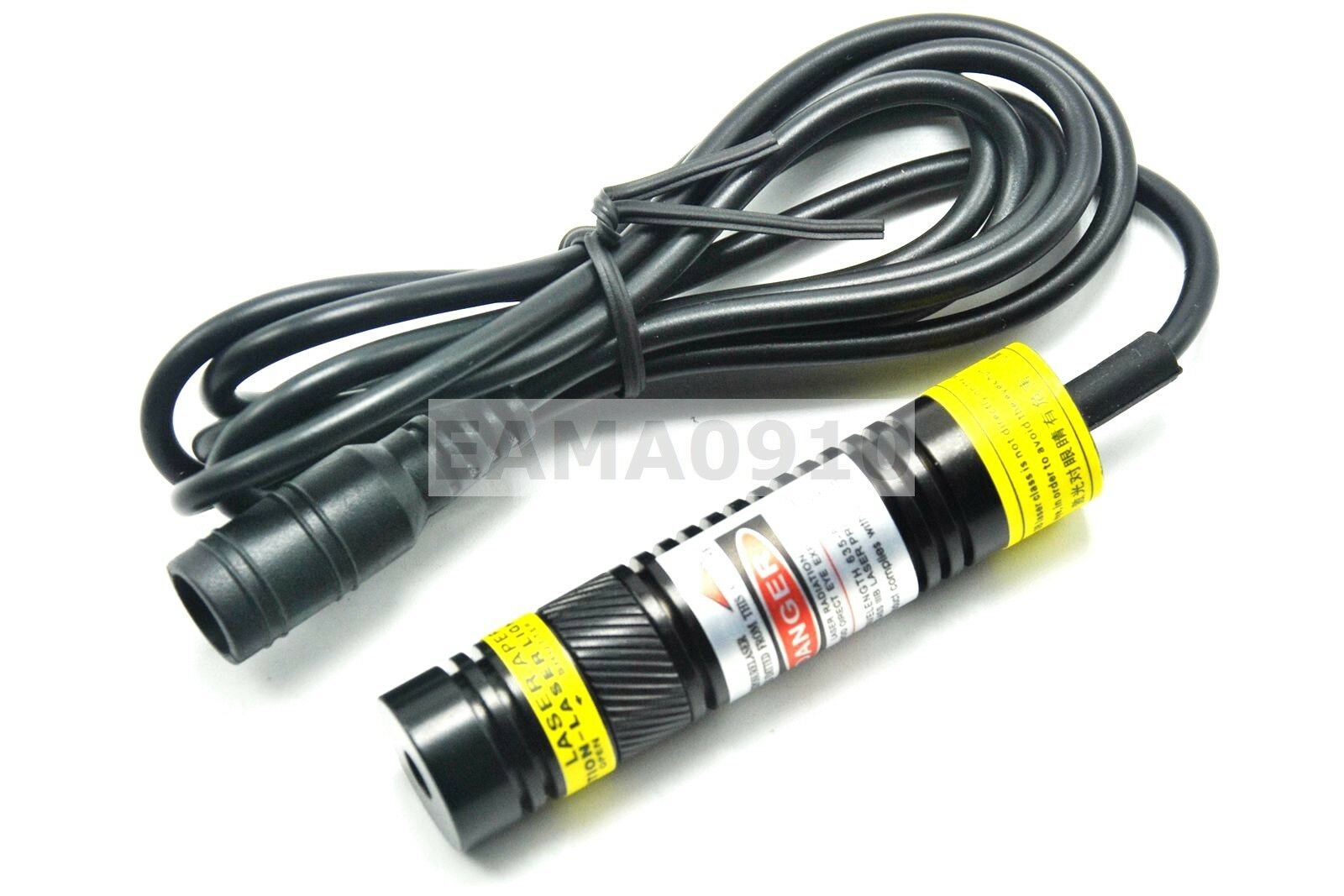

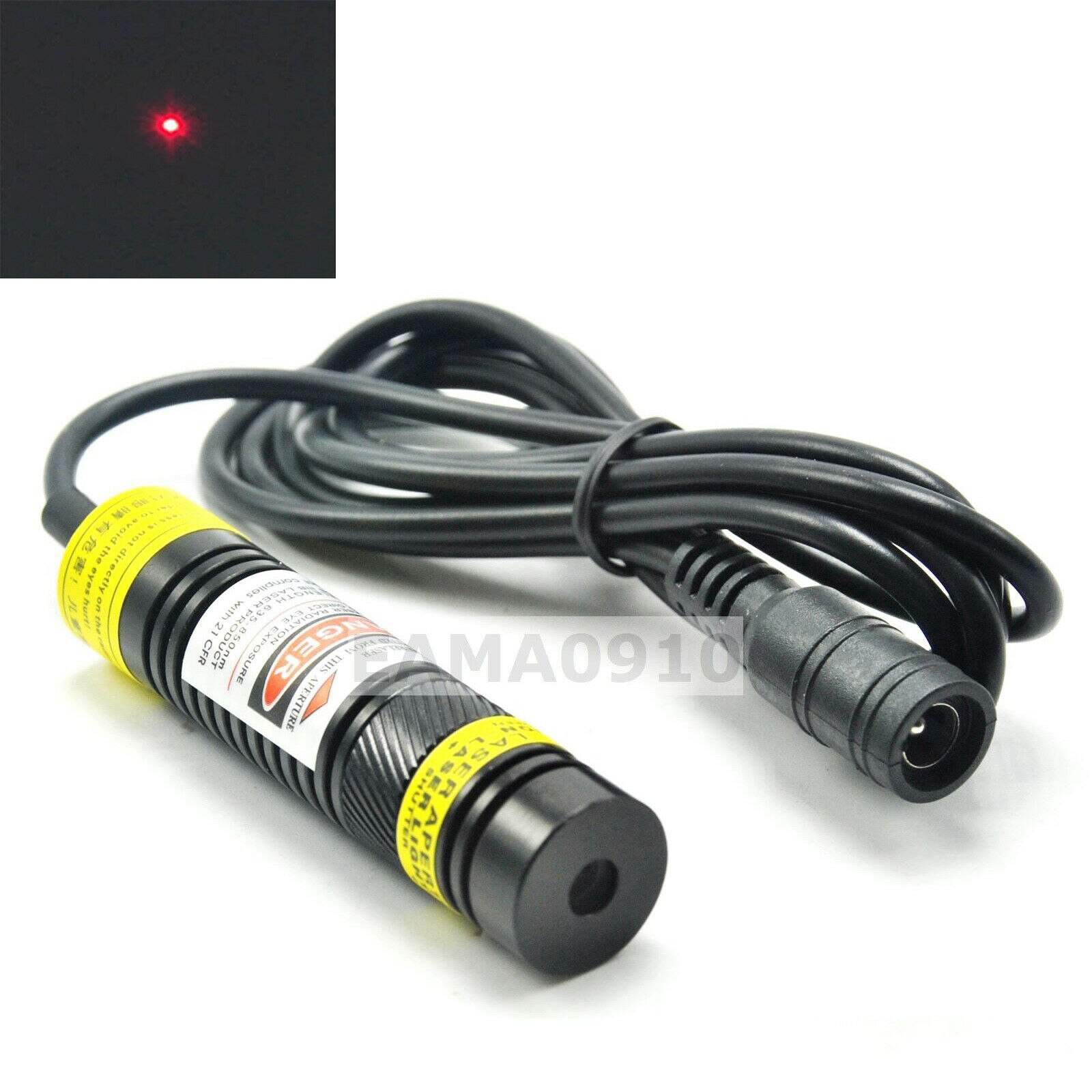

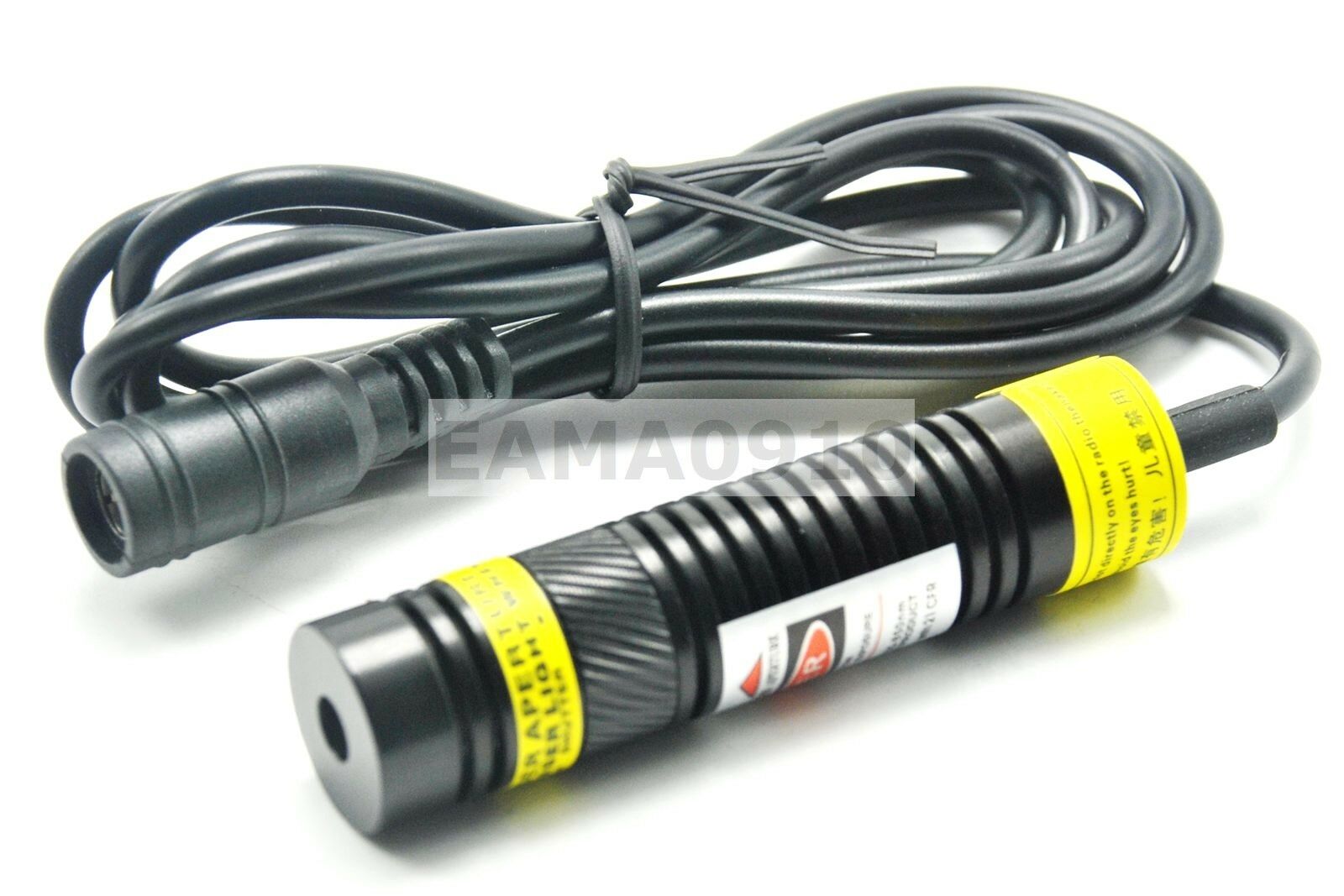

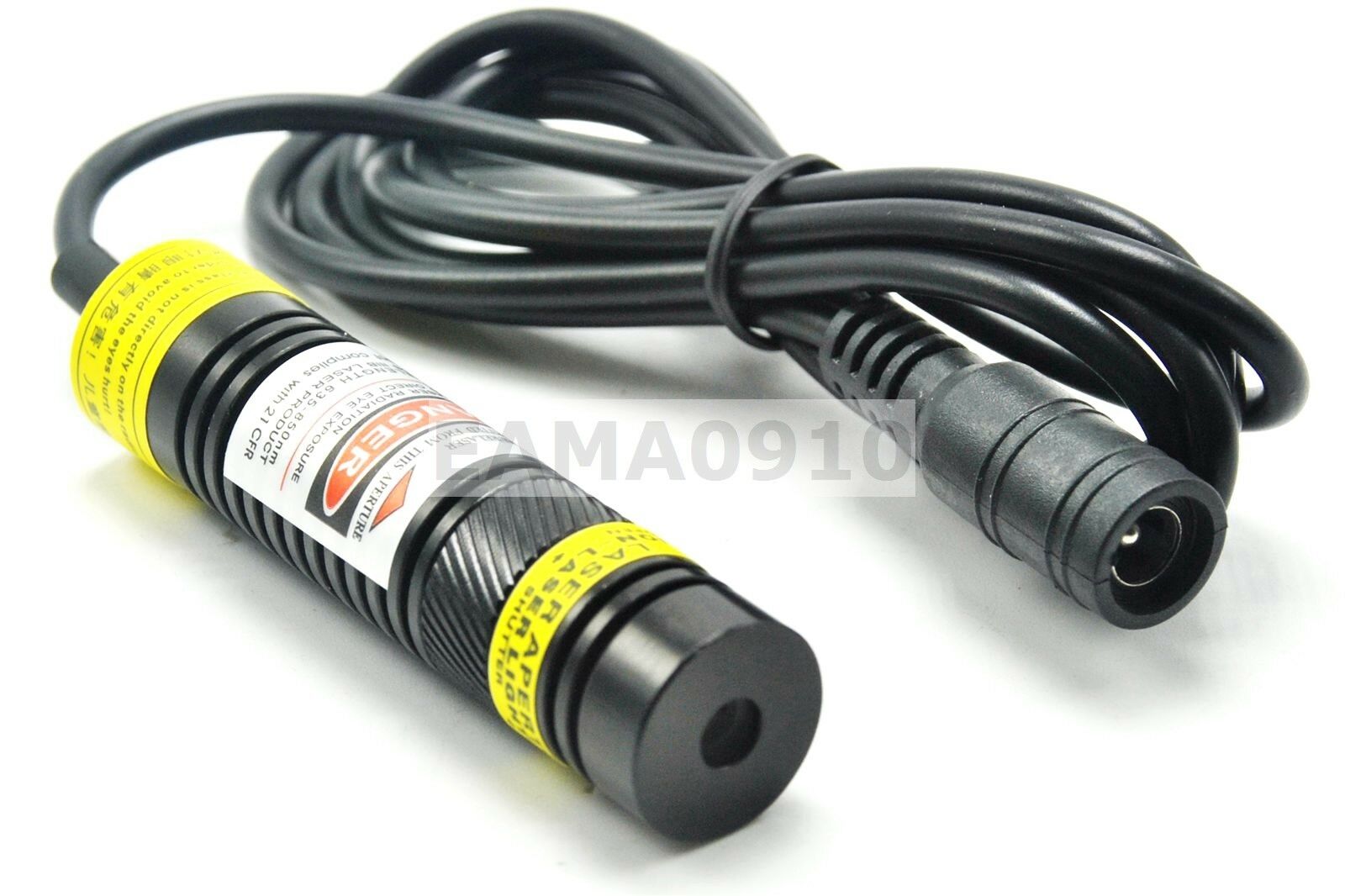

1pc Focusable 648nm 650nm 200mW Red Laser DOT Module Mitsubishi Diode 16MM*68MM
