Parameter

Wavelength: 532nm
Output Power: 80mW
Laser Shape: Line
Spot ellipticity:> 0.9
Light Height: 15mm

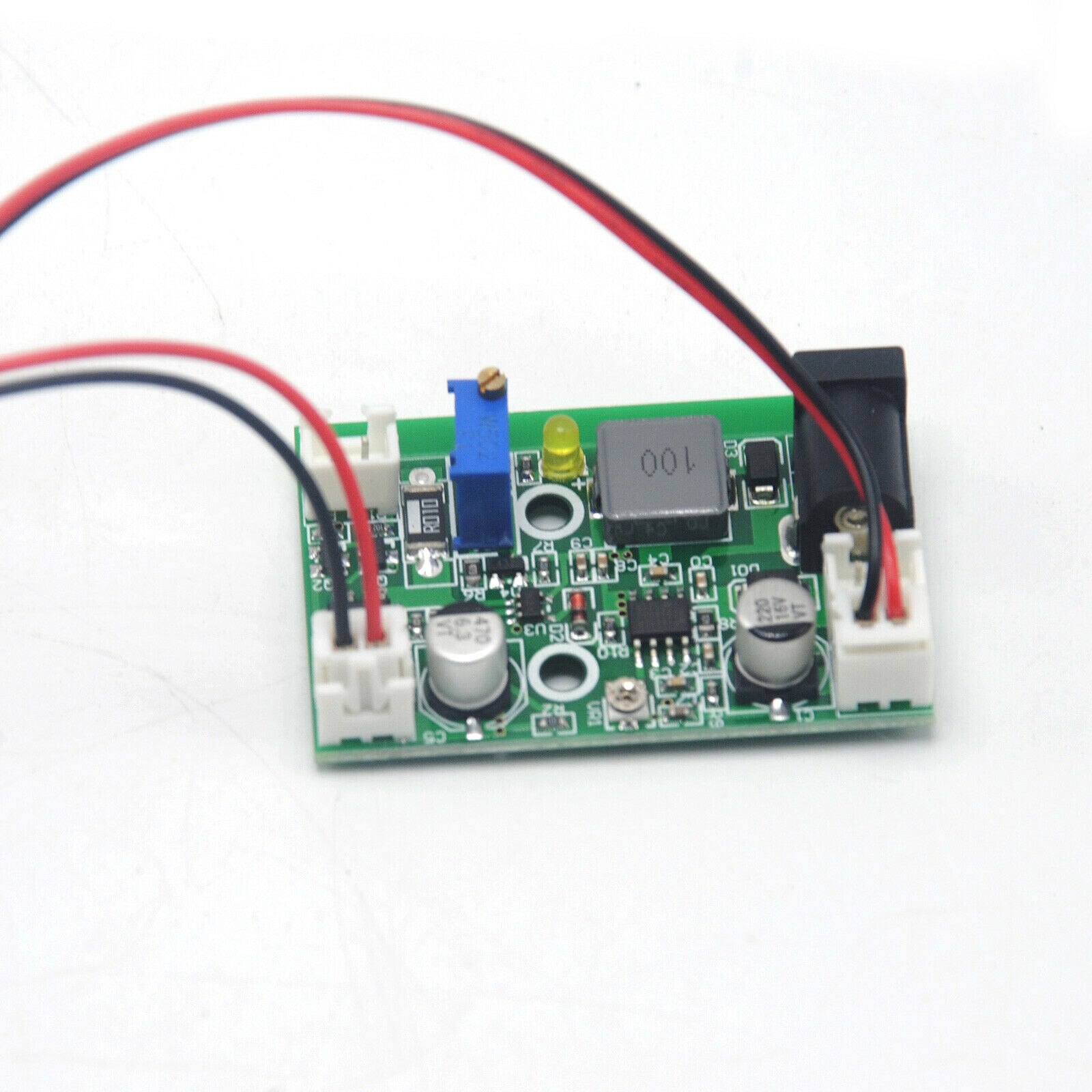

Divergence angle: <1.2mrad Beam diameter: <3mm Operating temperature: 0 ~ 40 ℃ Modulation: TTL level (0 ~ 20Khz) Input voltage: DC 12V Laser Size: 65 (L) X30 (W) X30 (H) mm Power Dimensions: 45 (L) X34 (W) mm Note: 1. Connect the power plug after turning on the switch. After 10 minutes, power-power into a stable state. Switching power supply interval should be greater than 5 seconds, otherwise easy to damage laser. 2.Power board should be placed on an insulator or overhead when using, otherwise it will bake bad laser power. At the same time, and not let the laser power supply cable at the force received a large order to avoid the laser within the cable break. 3. make the laser heat well, please laser fixed on a flat metal plate

Package

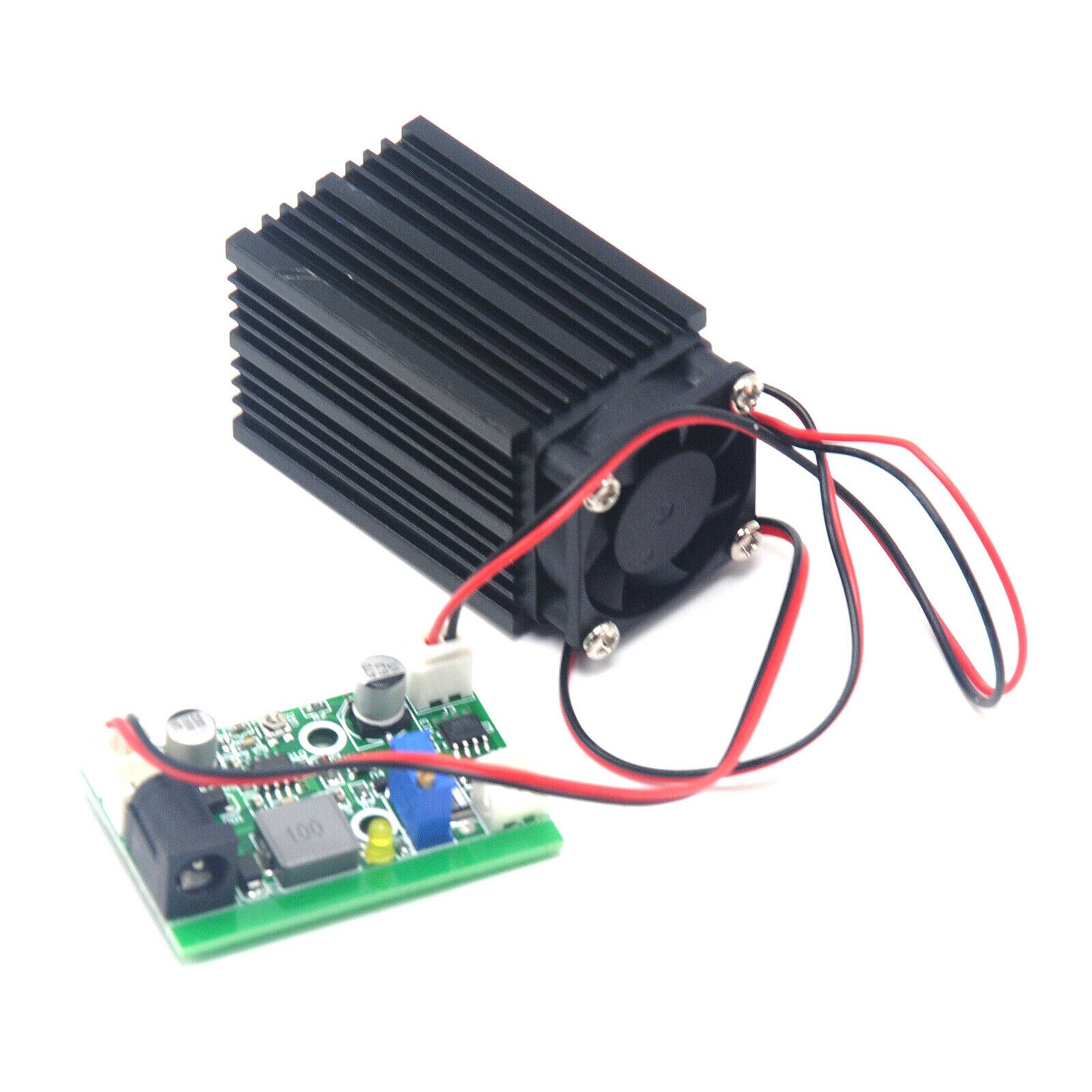

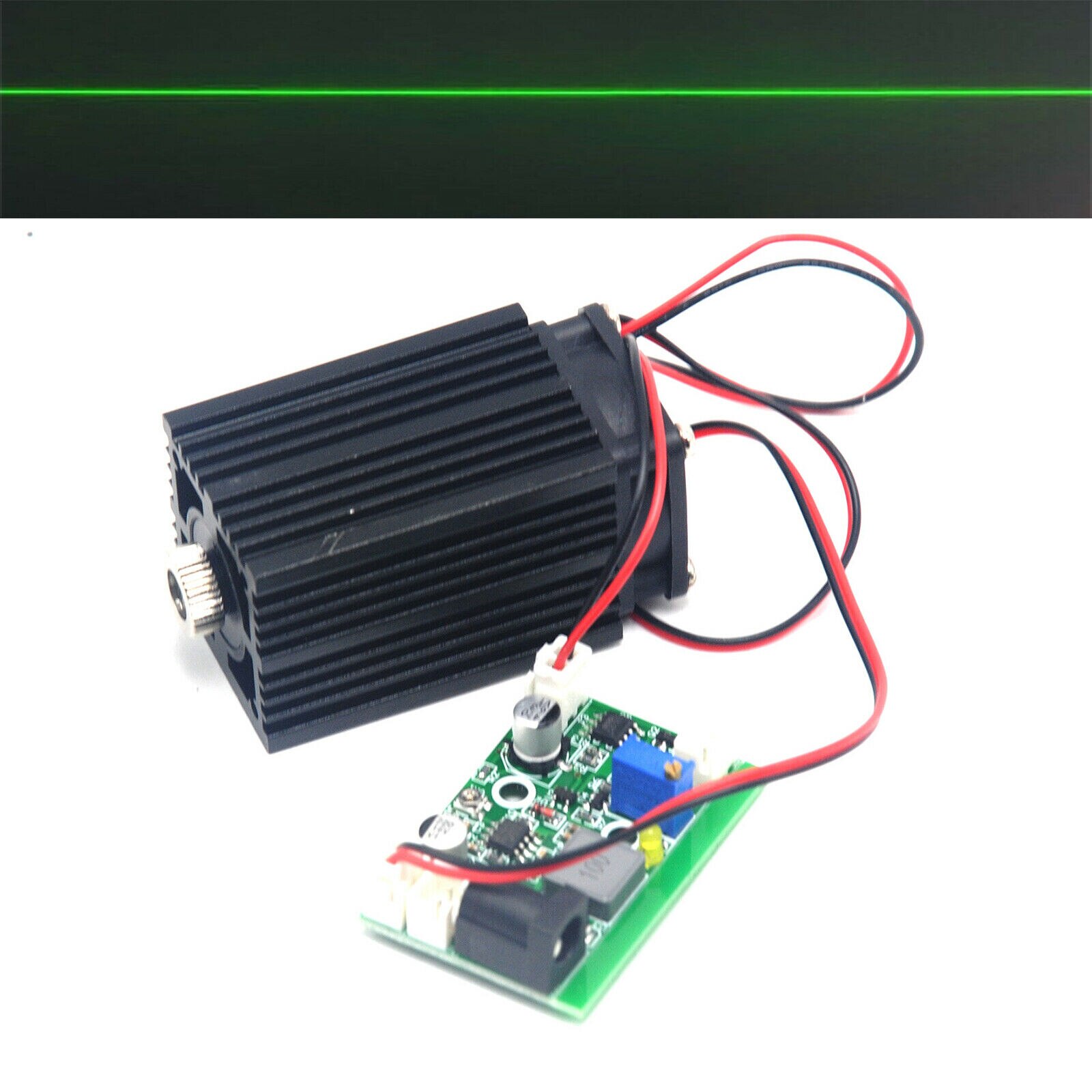

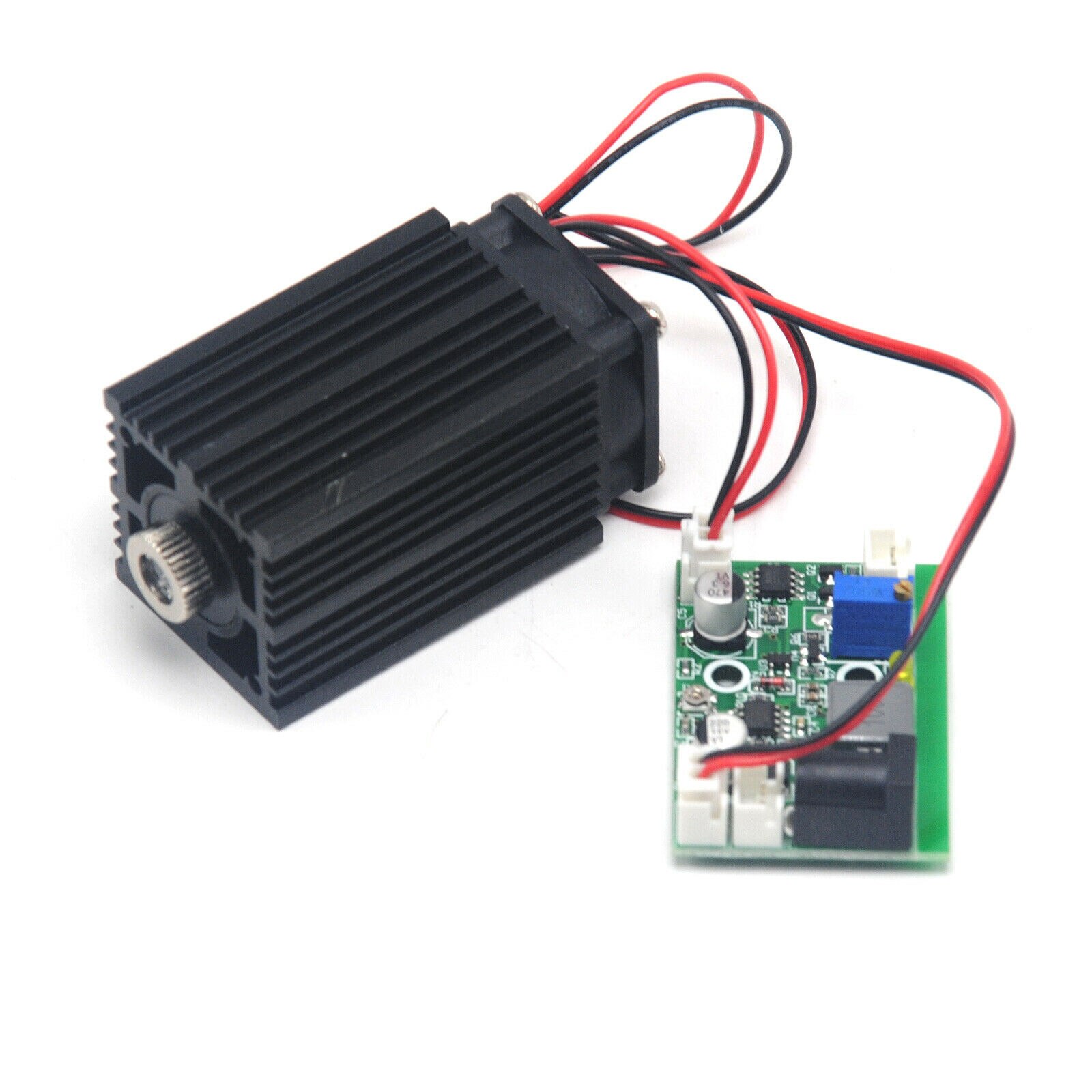

1pc 532nm 80mW Line Laser Module
