50mw 405nm Violet/Blue Focusable Adjustable Laser Line Module 120°

This laser module is an industrial electronic component and used for as Industrial test, Lab, DIY. Not a handheld laser.

Comparing  with 532nm green or 650nm red lasers, 405nm violet/blue laser is hard to be seen by human since the wavelength is on the range of spectrum by human eye sensibility. Even though a 405nm laser is powerful enough to burn, it is not as bright as green or red lasers.





Specification

Model  1235-405D-50

Output Power  50mW

Working Voltage 5.0VDC

Wavelength  405nm

Working Temperature -10 ~40 centi-degree

Laser Shape Line

Divergence 120°

Focusable Yes

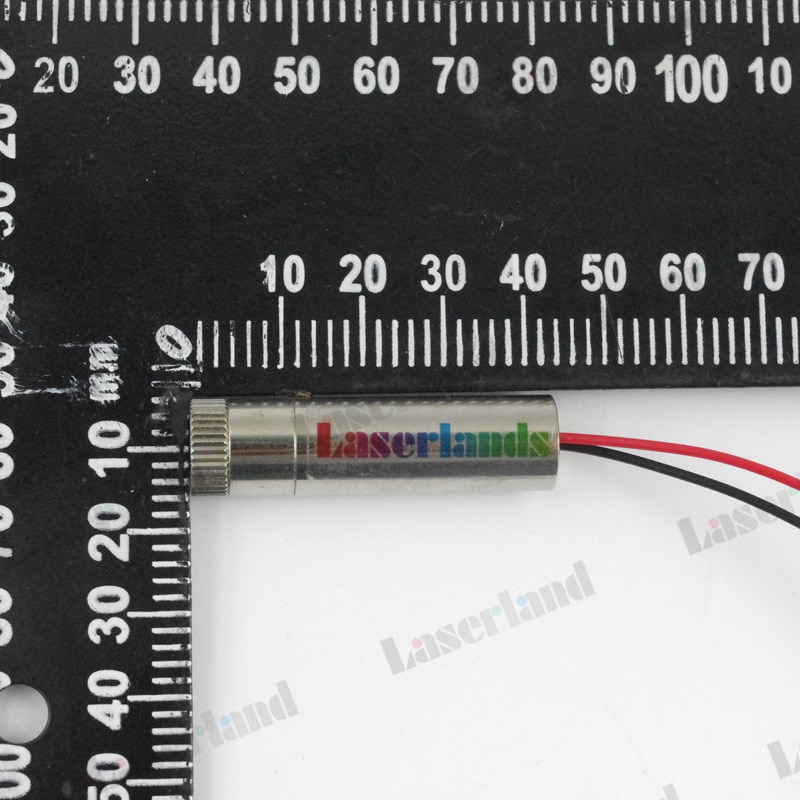

Dimensions Ø12mmX45mm

Electronica Pole Red wire to “+” and BLK to “-“

Working Time(under normal operation) >5000hours

Package 405nm laser module







Note:

The modules are tested and the output power are measured by laser power meter before sending out.

Please don’t compare the power of this one with a none-measured laser.

If you doubt the output, please have the laser you recieved checked by laser power meter.

If there is any problem, please feel free to contact us. We will solve the problem asap.

405nm Violet Blue Laser is on the range of human eye sensibility, so that it will NOT as bright as green and red ones.

Please find out the spectrum and human eye sensibility as reference.
