Description

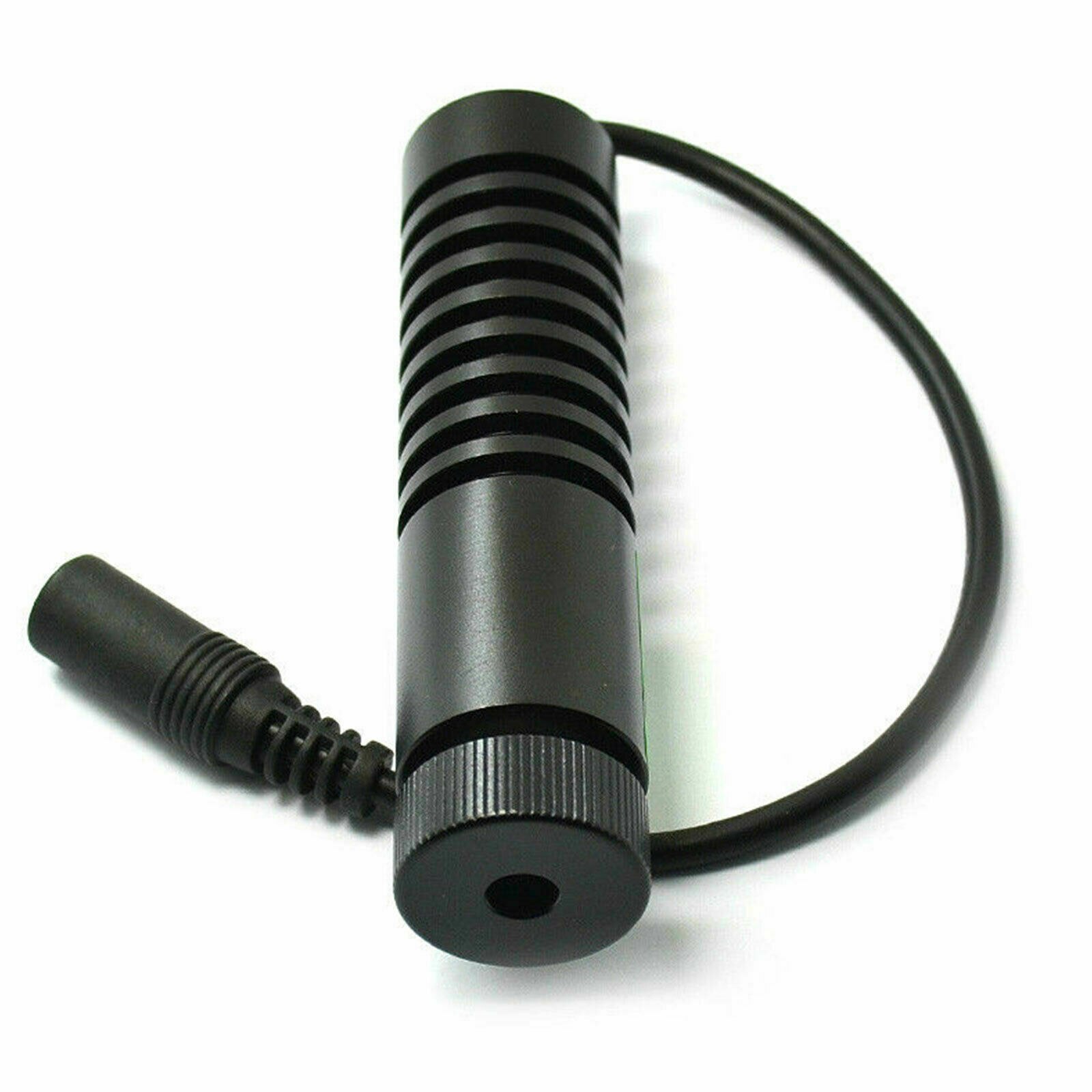

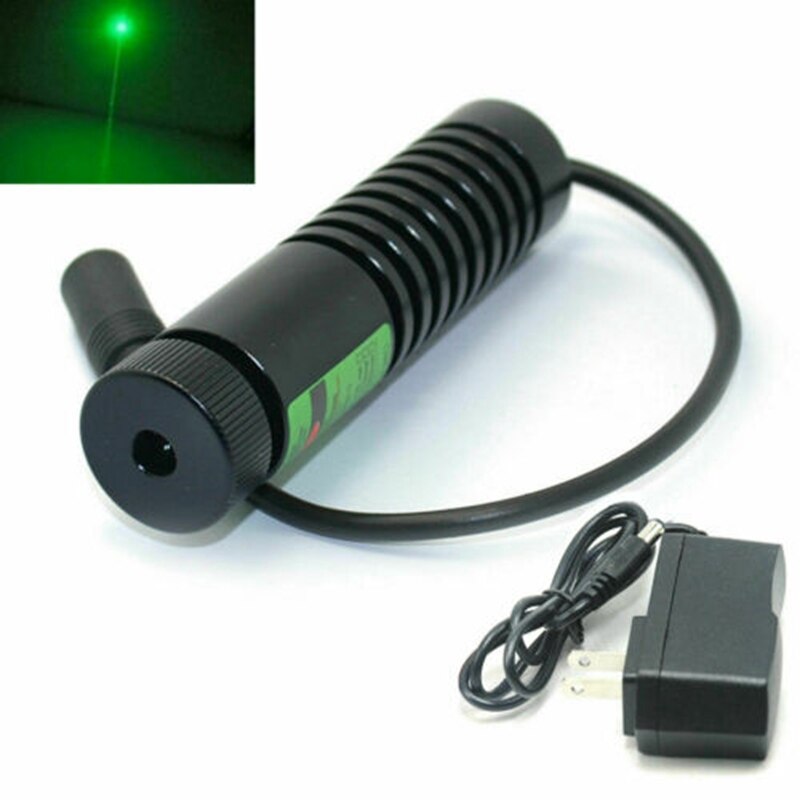

Focusable 505nm 510nm 50mW Spot Dot Green Laser Diode Module w 12V Adapter
- Item Type: Stage Lighting Effect
- Style: Mini
- Model Number: 510MD-50-12V-XL-ADPT
- Occasion: Professional Stage & DJ
Focusable 505nm 510nm 50mW Spot Dot Green Laser Diode Module w 12V Adapter
Parameters
Such products are designed for high beam quality requirements, the ambient temperature of the specific workplace design. Can customers offer opto-electronic solutions that meet the requirements of the laser module?
Dimensions: 20 * 90 mm
Output wavelength: 505 nm ± 10 nm
Output power: 50mW
Easy form: point
Beam angle: <1.5m
Surface treatment: anode black
Shell material: aviation aluminum
Circuit control: constant current
Reverse polarity protection: Yes
Working voltage: DC = 12V
Working current: I <100mA
Preheating time: None
Operating temperature: 0 ~ 60 ~
Storage temperature: -40 ℃ ~ 85 ℃
Structural features: laser tube lens heat trap
Dimensions: 20 * 90 mm
Output wavelength: 505 nm ± 10 nm
Output power: 50mW
Easy form: point
Beam angle: <1.5m
Surface treatment: anode black
Shell material: aviation aluminum
Circuit control: constant current
Reverse polarity protection: Yes
Working voltage: DC = 12V
Working current: I <100mA
Preheating time: None
Operating temperature: 0 ~ 60 ~
Storage temperature: -40 ℃ ~ 85 ℃
Structural features: laser tube lens heat trap
Specifications
1. Without preheating, super power, heat can work a little bit, can work long hours, normal working can be done in the temperature range of 0-60 degrees, and the traditional dual frequency 532nm green normally only provides for normal work at 20 degrees temperature like that Volume is so small, can not work long hours;
2. Mold design using simple cylindrical design, the fixture can be used with our business collection;
3. The use of imported semiconductor laser diode Osram shape of point light, range of more than 3 km;
4. With 12V voltage input;
5 Use the focus design tree to freely adjust the spot size.
1. Without preheating, super power, heat can work a little bit, can work long hours, normal working can be done in the temperature range of 0-60 degrees, and the traditional dual frequency 532nm green normally only provides for normal work at 20 degrees temperature like that Volume is so small, can not work long hours;
2. Mold design using simple cylindrical design, the fixture can be used with our business collection;
3. The use of imported semiconductor laser diode Osram shape of point light, range of more than 3 km;
4. With 12V voltage input;
5 Use the focus design tree to freely adjust the spot size.
Package
1pc 505nm 50mw laser module
1pc 12V Adapter
