Description
- Brand Name: Jolooyo
- Certification: NONE
- Origin: Mainland China
- Item Type: Stage Lighting Effect
- Style: Mini
- Occasion: Professional Stage & DJ
- Model Number: 488MDLC-60-3350-GD
- Voltage: 12

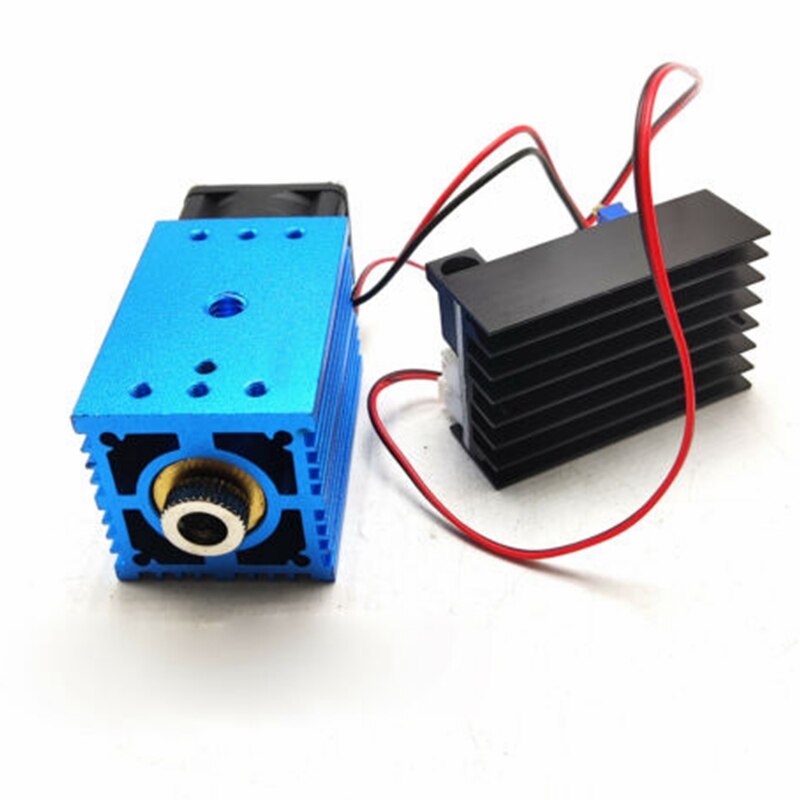

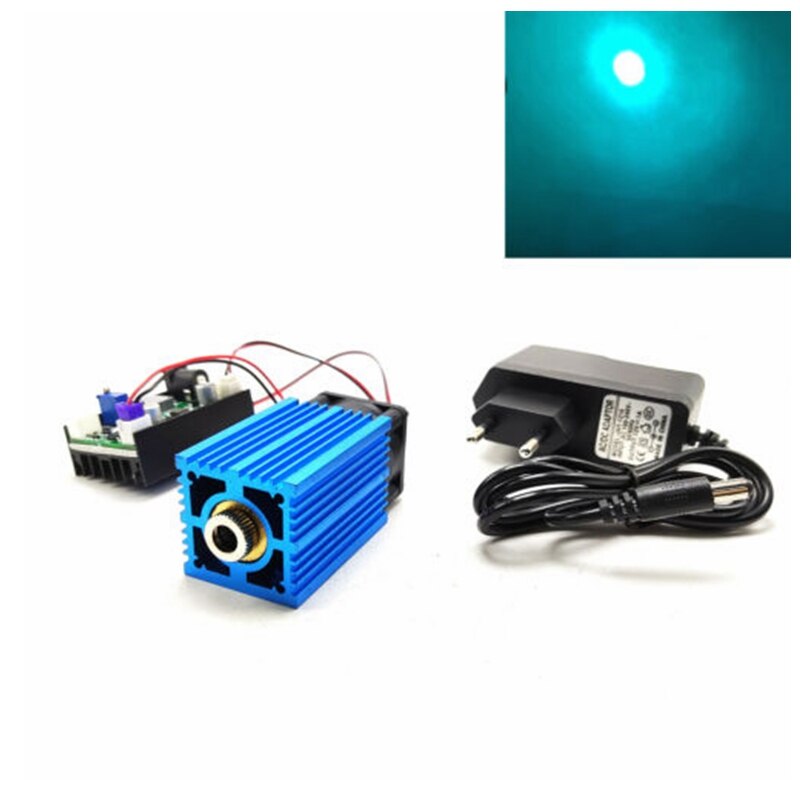

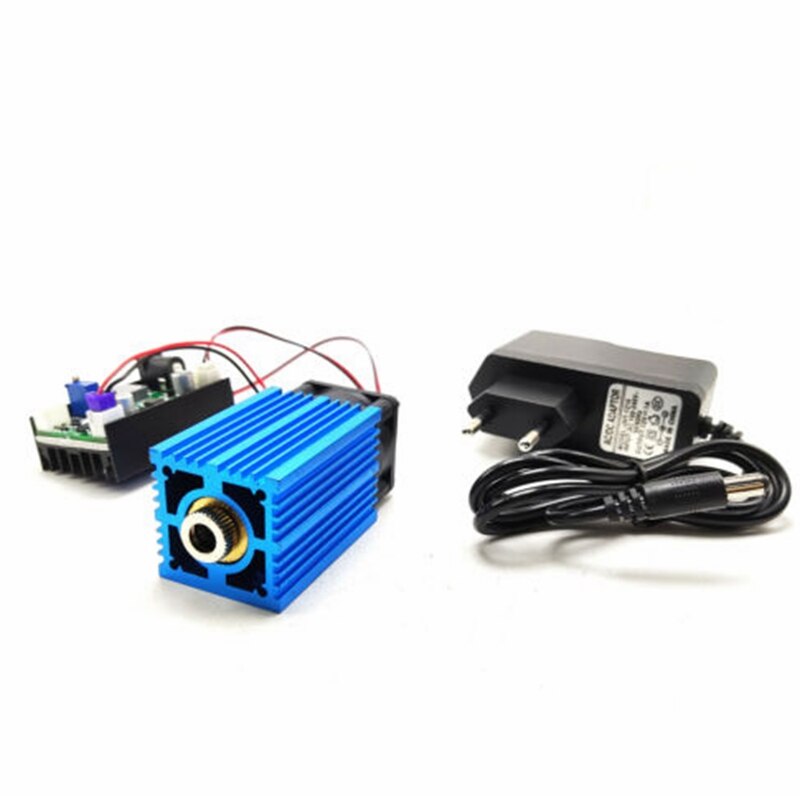

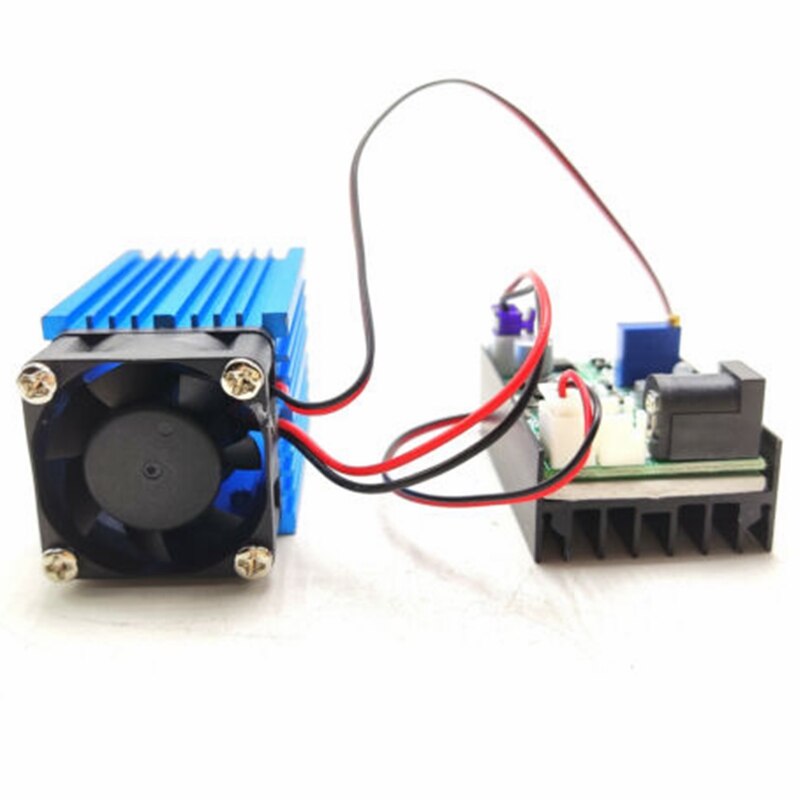

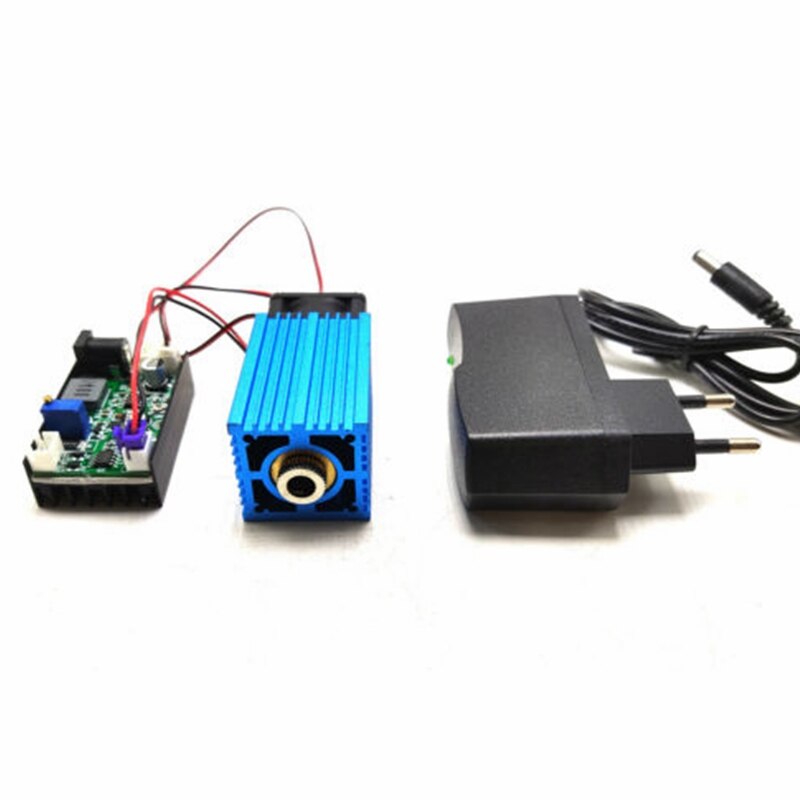

Focusable 488nm 60mw Cyan Blue Dot/Line/Cross Laser Diode Module Stage Light With 12v Fan
Parameters:
Output Wavelength: 488nm
Output Power: 60mW
Spot Mode: Dot/Line/Cross
Cooling Method:Aluminum Heat Sink + Fan
Modulation- Frequency:Modulatable
Surface Treatment:Sky Blue
Shell Material:Aluminum
Circuit Control:Constant Current
Working Voltage:DC=12V
Working Current:I<145mA
Working Characteristics:Can Work Continuously
Reverse Connection Protection: With Automatic Identification Of Positive And Negative
Structural Features:Laser Tube + Lens + Heat sink
Remarks:The Power Supply Is External.
Working -Temperature:-10 ° C ~ +40 ° C
Storage Temperature:-10 ° C ~ +40 ° C
Housing Size:65*33*33mm
Circuit Board Size:Length 45*34*16mm
These products can be widely used in a variety of stage laser lights, with TTL modulation, can work for a long time, a true industrial grade laser
Reminder:
The input voltage is 12V, and overvoltage will cause instantaneous damage to the circuit and module!
Package:
1pc 488nm 60mw Laser Diode Module
1pc 12V Adapter
