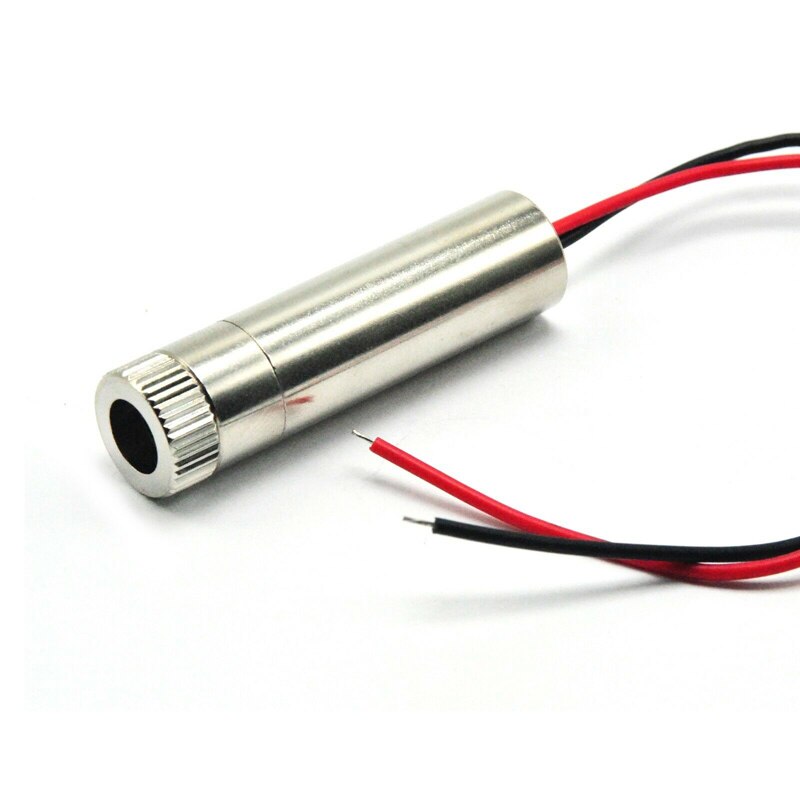

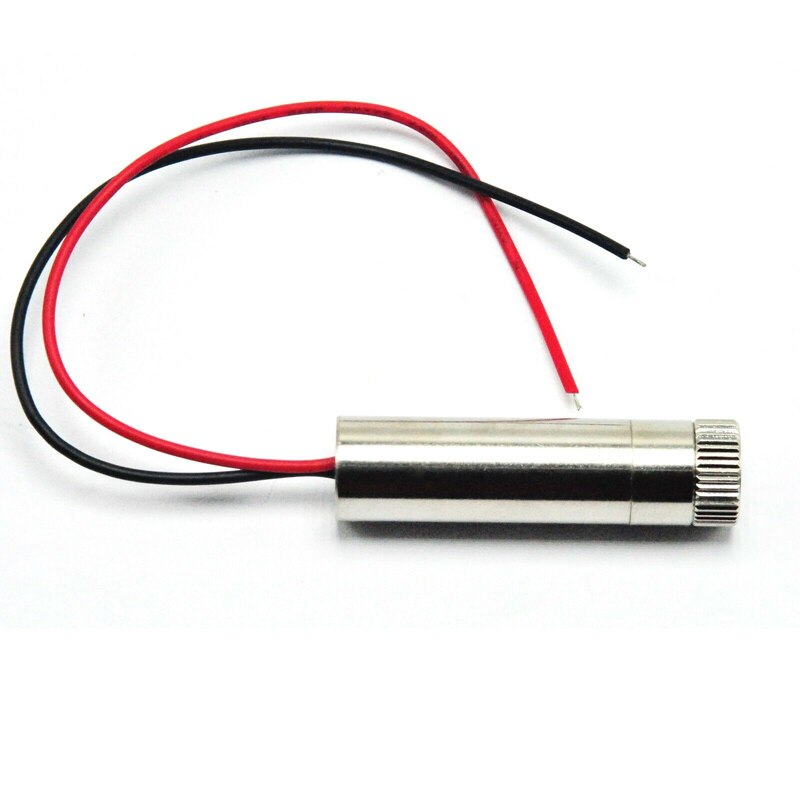

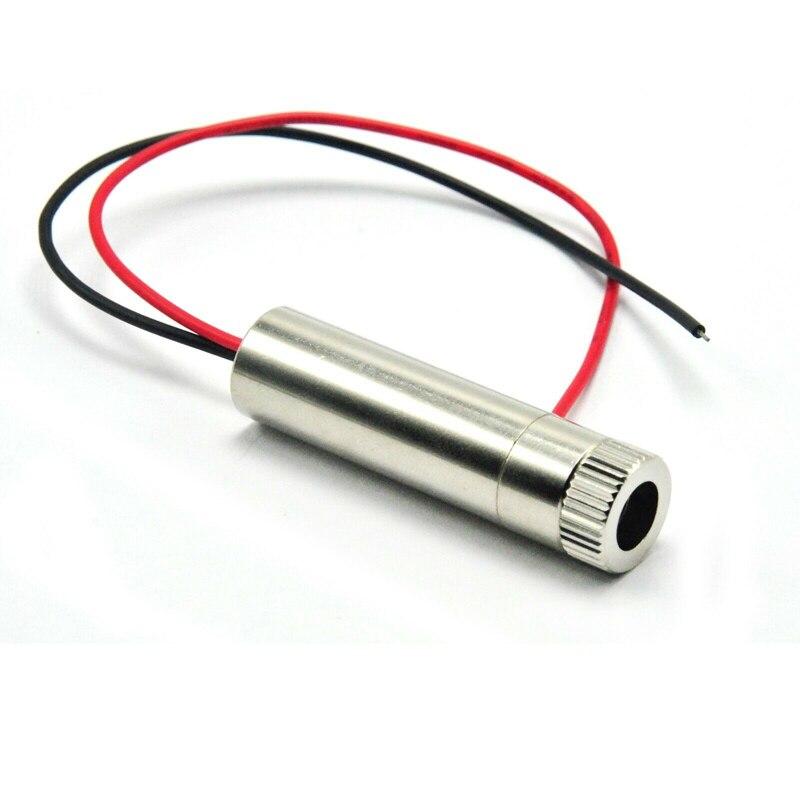

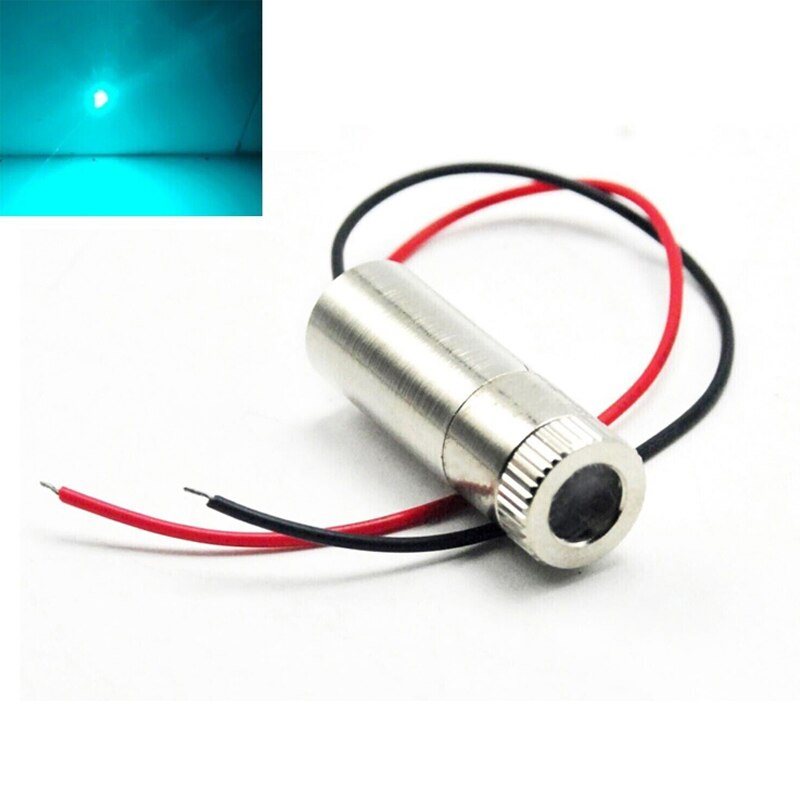

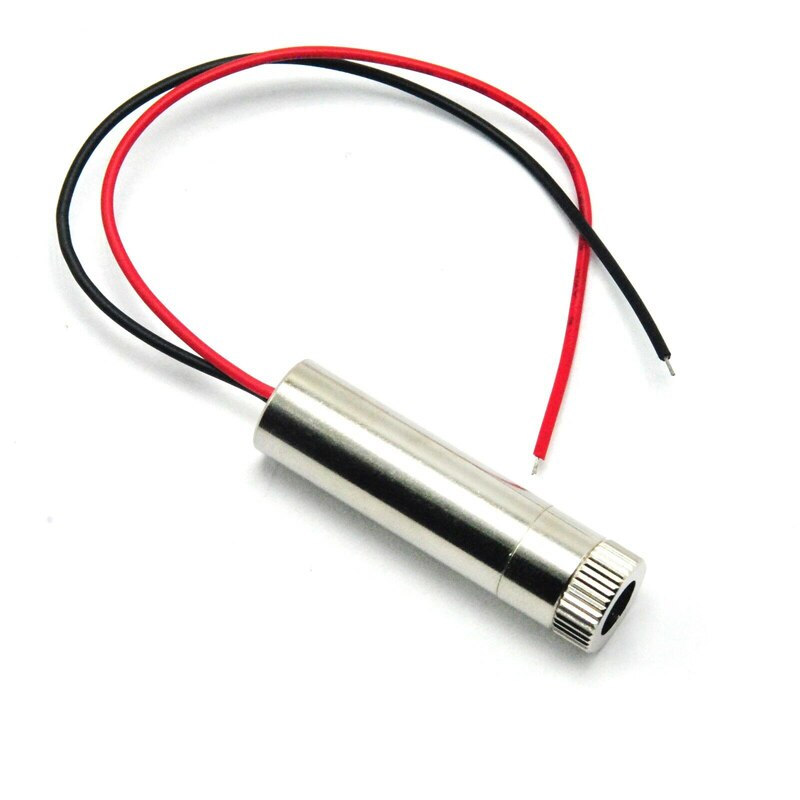

488nm Cyan-Blue 30mW Focusable Dot Line Cross Laser Diode Module

Parameters:

Output wavelength: 480-490nm
Diode Power: 50mw
Output power: >30mw
Supply voltage: 3.2V-5V (3.2V is recommended, 3.V lithium battery can also be used)
Working current: 150mA
Spot Mode: Dot Line Cross
Focusable:Yes
Working temperature: -10℃-35℃
Storage temperature: -20℃-65℃
Size: 12x35mm
Duty Cycle: 45s on, 15s off

Operation mode: continuous laser, the red wire is connected to the positive electrode, and the black wire is connected to the negative electrode

Package:

1pc 488nm 30mw laser module with 2pcs Lens Caps
