Description

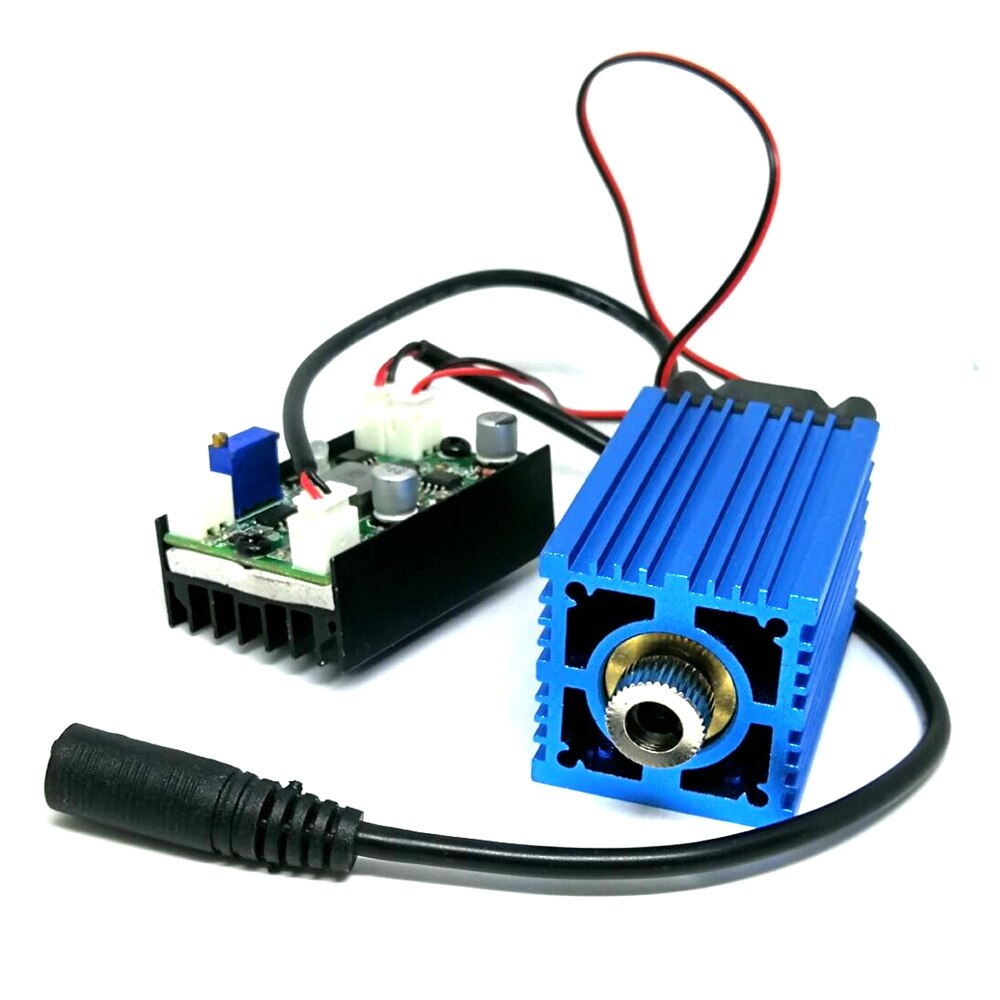

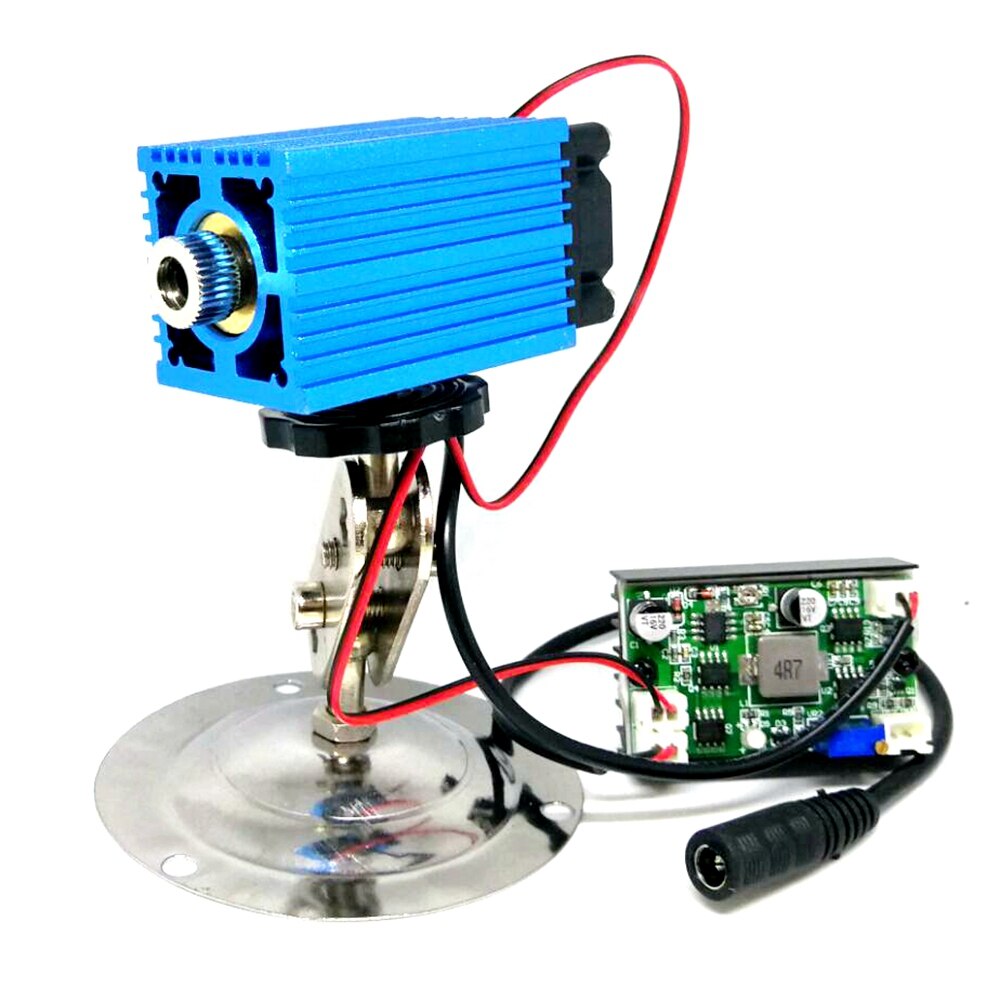

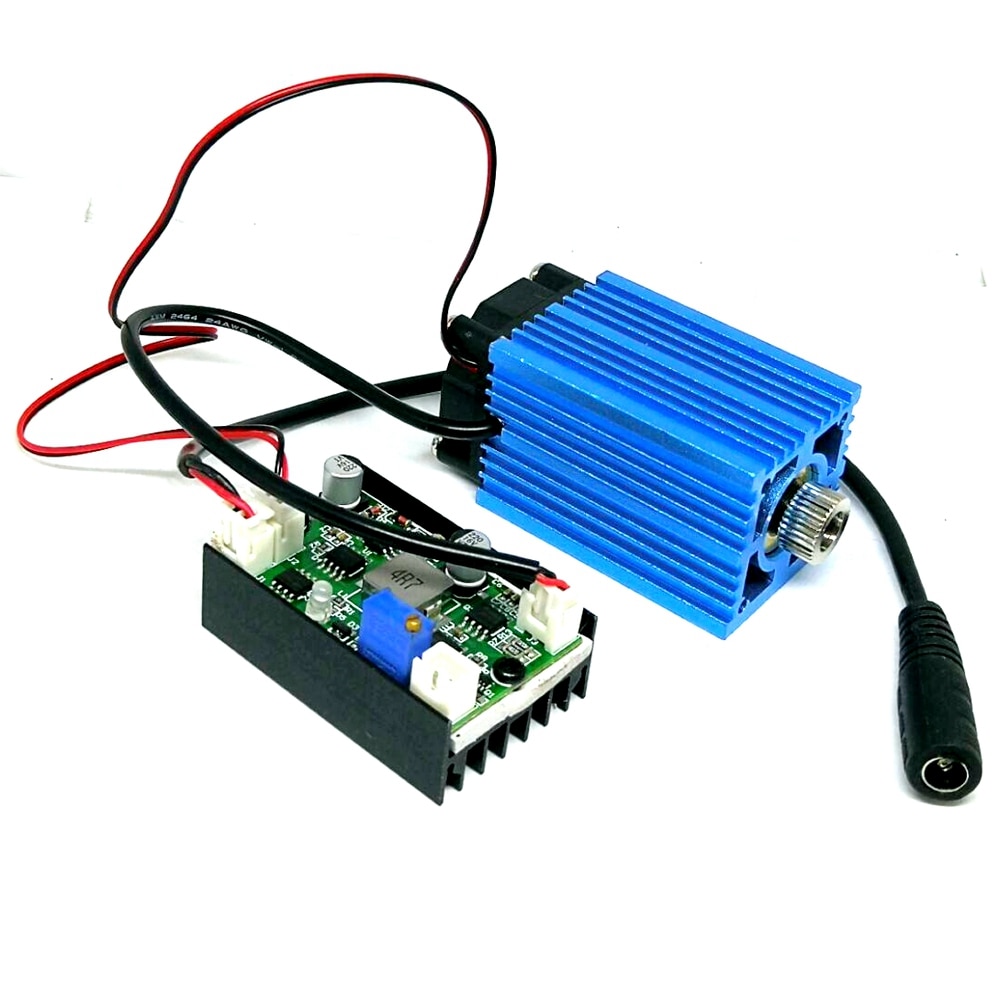

Focusable 462nm 1.4W 1400mw Blue Laser Dot Module w Nicha NDB7675 Diode Adapter Locator Clamp

Notice:The color of the housing may be blue or black according the dispatch.Please know it and understand it before ordering.Thanks!~

Parameters

Output wavelength:462nm

Output power: 1.4W 1400mw

Spot mode: Dot

Spot size: Focusable

Diode model: imported Nichia NDB7675

Cooling mode: aluminum cooling

Modulation frequency: adjustable

Job characteristics: continuous work

Surface treatment: Black

Shell material: Aluminum

Circuit control: constant current

Reverse protection: with automatic recognition of positive and negative poles

Working voltage: DC=12V

Working current: I<1.5A

Preheating time: no

Working temperature: of-10 DEG C 40 C

Storage temperature: -10 ~ 40 C

Structure features: laser tube + lens + heat sink

Note: power supply for external

Host size: long 65mm* wide 33mm* high 33mm

Circuit size: length 45mm* width 34mm

Features

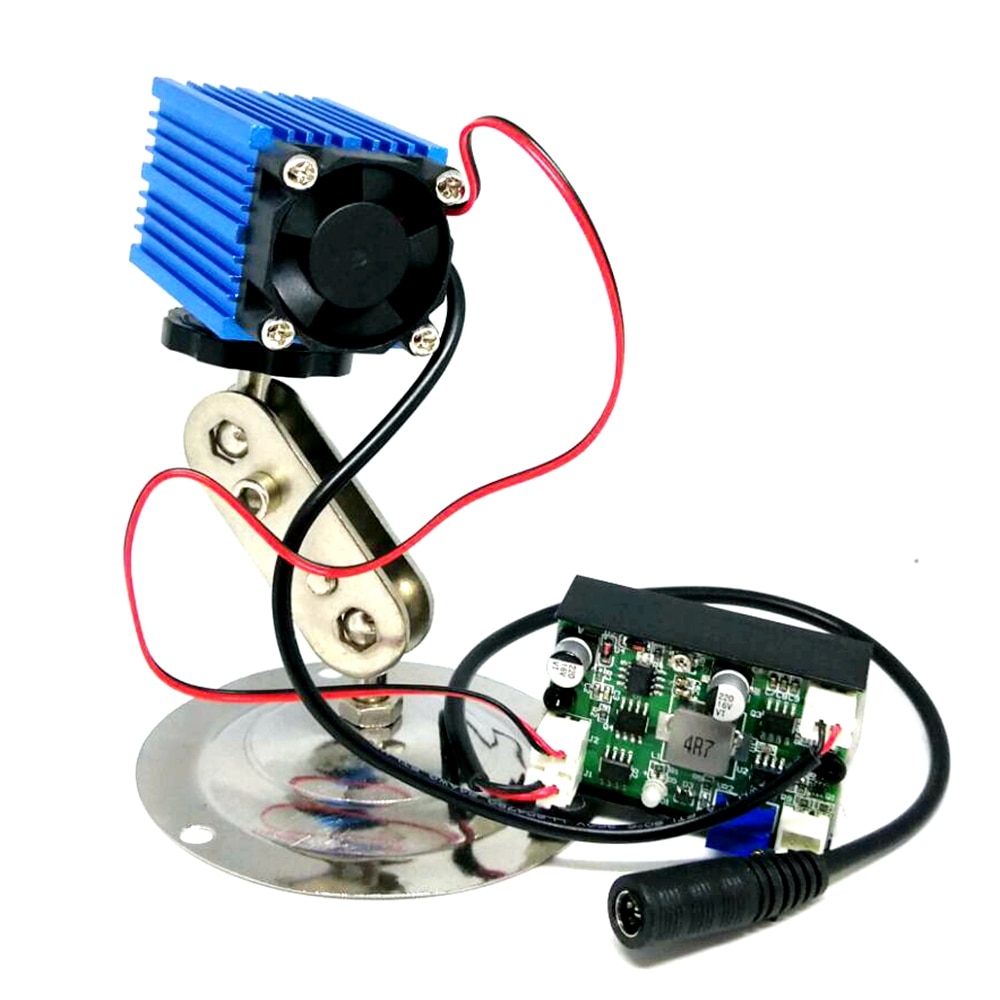

1. This laser module can work for a long time with cooling fan.But please make sure to keep the laser working under 30℃.

2. Please add a 12VDC power to this laser module. Red wire connects”+” pole; Black wire connects ”-” pole. If you don't use TTL, please just leave the blue and white wire.

3. This is a focusable laser module. Please do not take off the lens adjustable part off to avoid dust.

4.Please wear blue laser protection goggles to protect your eyes when working on this module.

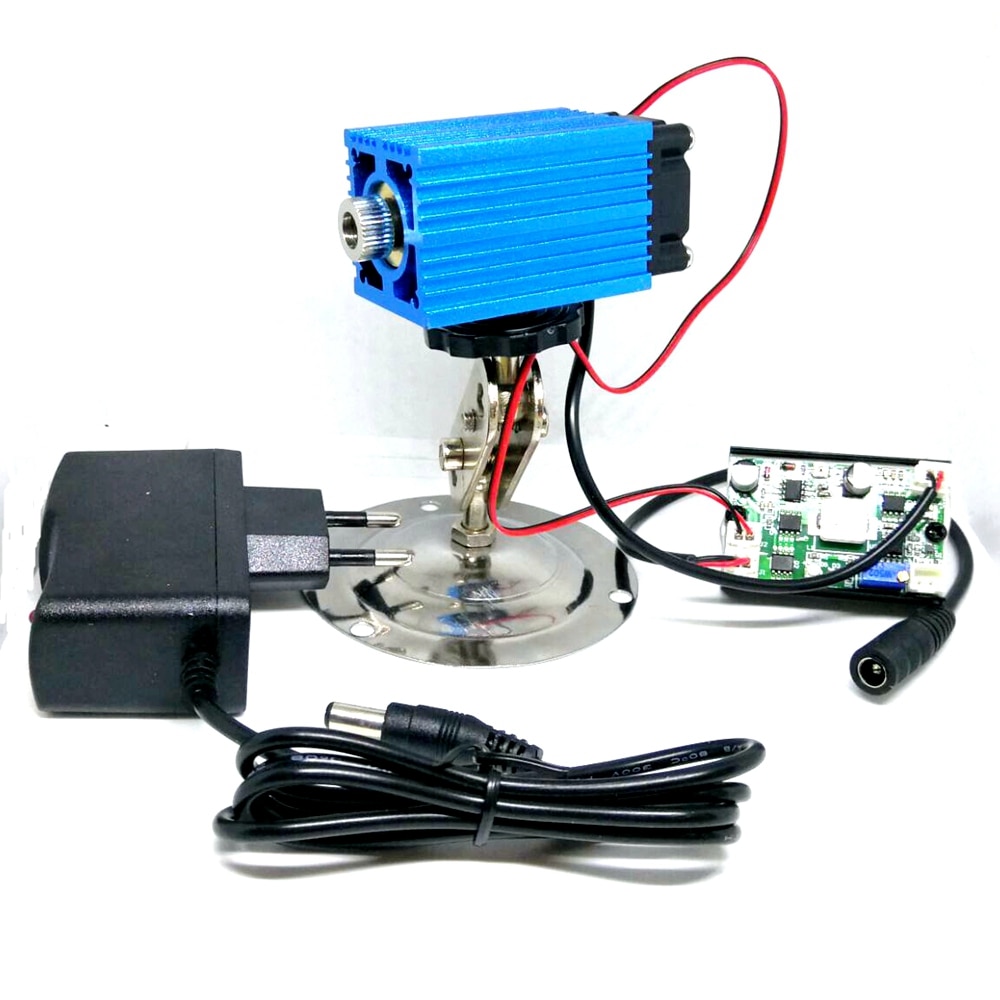

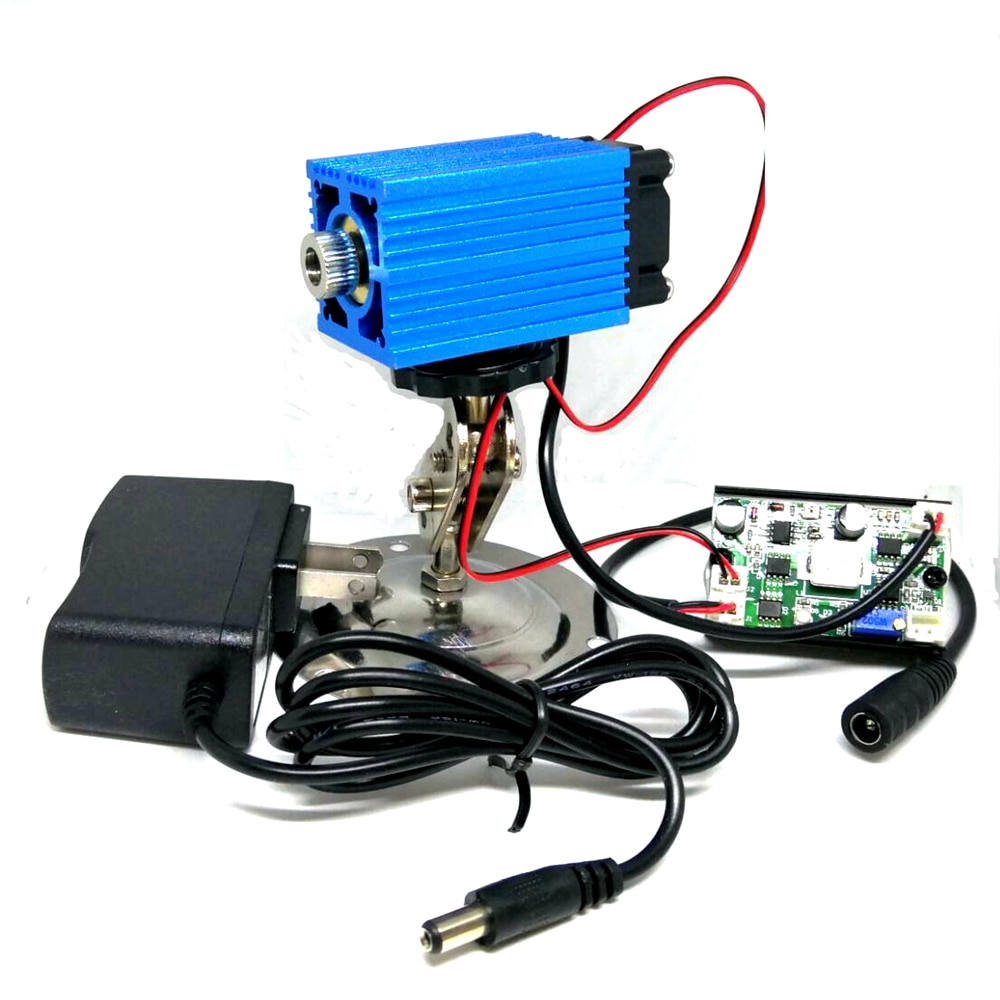

Package

1pc 12V 462nm 1.4w laser dot module

1pc 12v adapter

1pc holder
