Description

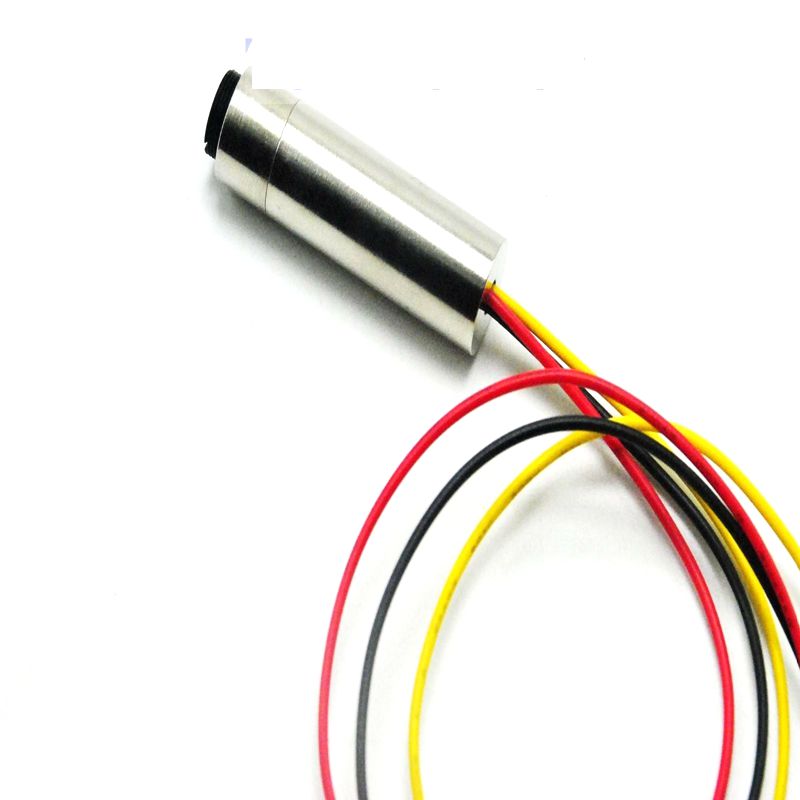

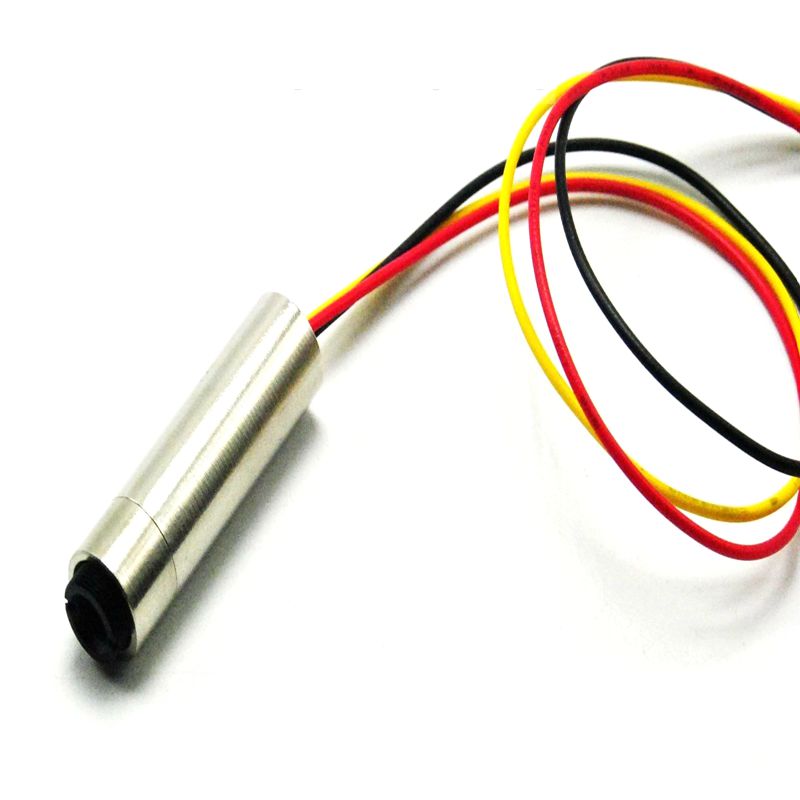

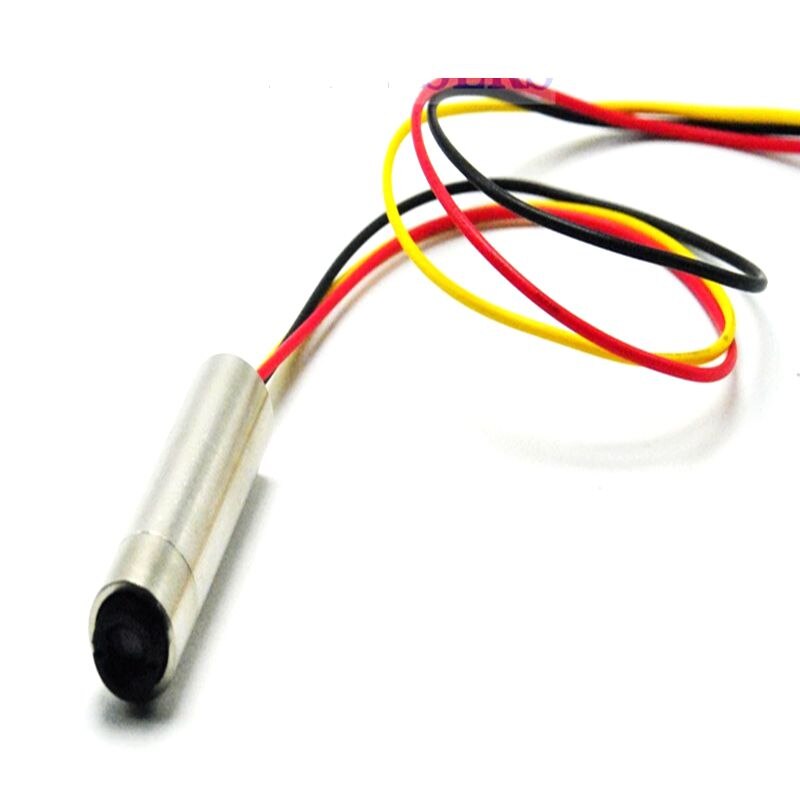

Focusable 30mW 980nm Infrared IR Laser Diode Module w/ TTL 0-15KHZ DC5V

Please note that 980nm laser is IR lasers which can not be seen by naked eyes,but only can be captured by night vision/DDC Camera.Kindly please make sure you know it before shipping.Thanks!

Parameters
Wavelength:980nm
Output Power:30mw
Working Voltage:5V
Laser Shape:Dot(rectangular to oval)
Focusable:Yes
Material:Metal
Operating Current:I <  100mA
Duty Cycle:5 minutes on, 1 minute off
TTL Frequency:0-15KHz
TTL modulation Voltage:0-5V Off low, high open, normal status open
Demension:12x30mm or 12x40mm

Features
1.Three-wire input, the red line is positive, black line is negative,  TTL signal yellow line is positive,If you only connect its black wire and red wire, the laser would not work, you also need to connect its yellow wire (TTL+) to 5v+.
2.This 980nm laser module with driver built-in is an industrial electronic component and  used for Industrial testament, Lab.Before carrying on some laser DIY activities, please read about the technical information first and protect your eyes before laser ray. Be sure the operator has experience in optics DIY or testing.
3.Please wear IR lase protection goggles when you work on it.

Package
1pc Focusable 30mW 980nm Infrared IR Laser Diode Module w/ TTL 0-15KHZ DC5V
