Parameter

Wavelength:650nm-660nm
Power:30mW
Working Voltage:3-5VDC (best 3.7V)
Working Current:<200mA
Size:12x45mm or 12x35mm
Waterproof:N/A
Laser Shape:Dot/Line/Cross
Focusable:Yes
Lens:Plastic
Line Lens: 120°as default, if you need 30°45°60°90°，please leave a message

Heatsink Parameters:
Diameter: 50x20x27mm(L*W*H)
Inner Diameter:12.3mm
Material: Aluminium

Features:

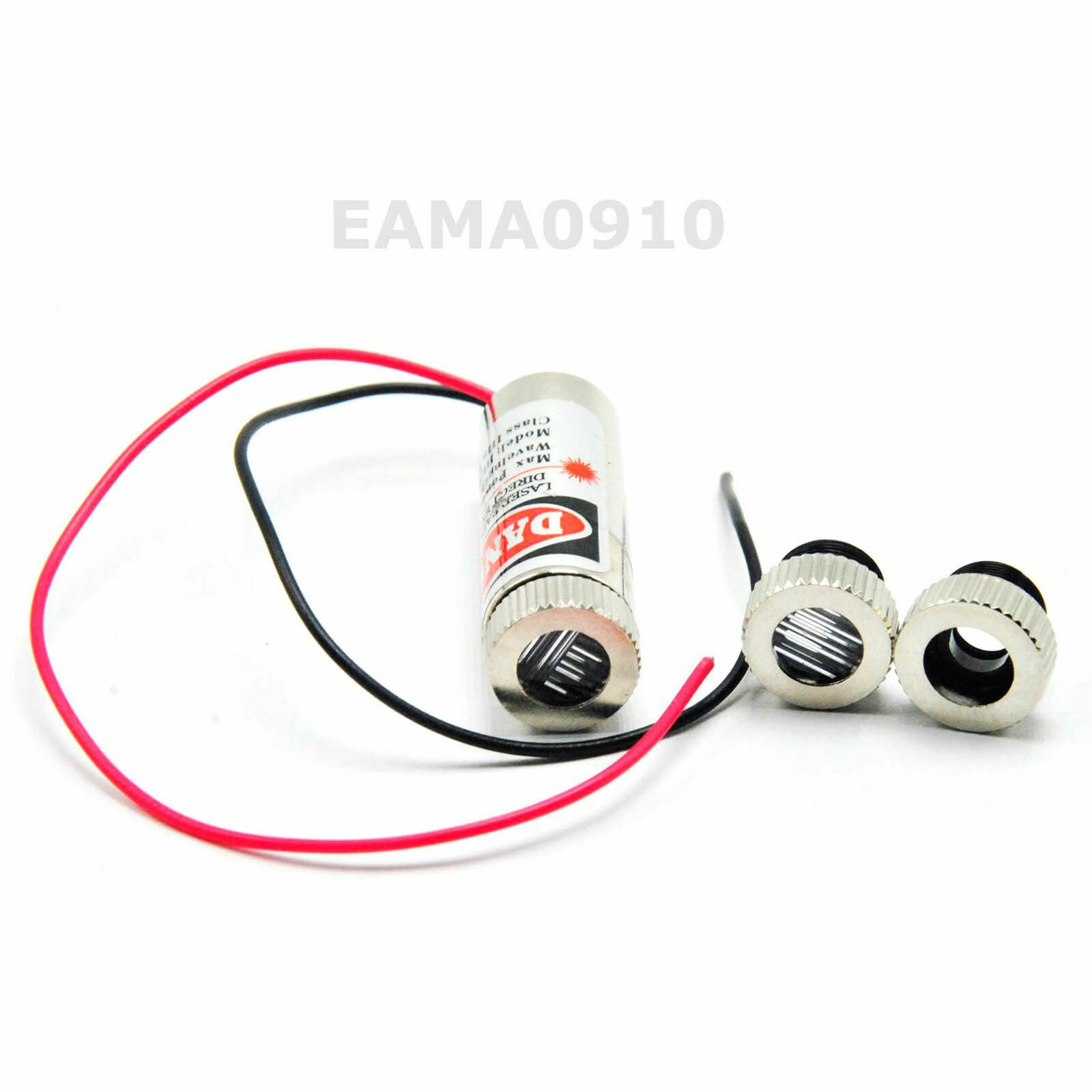

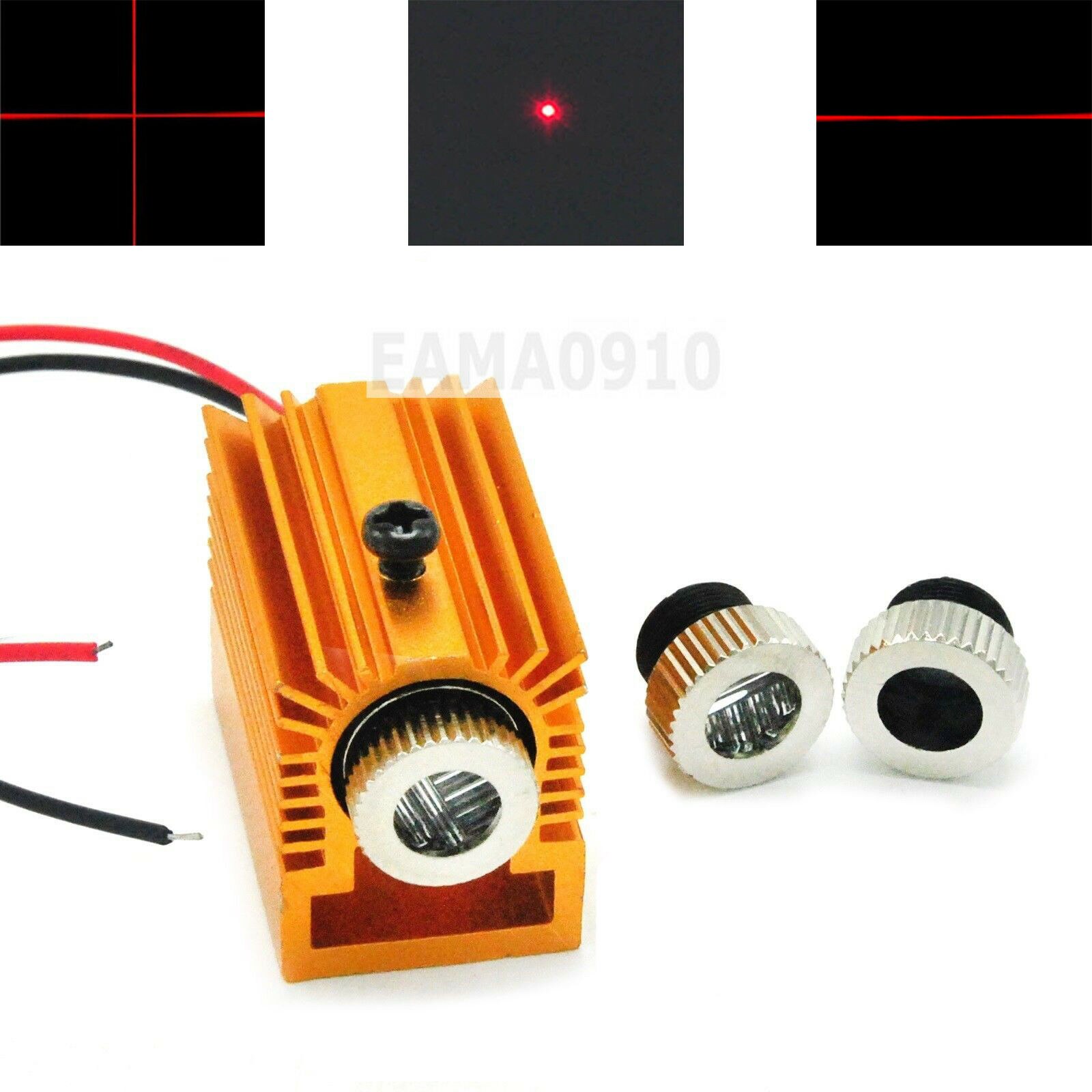

1.There are Dot line and cross caps.so you can change the caps to get different effects,which is shown in the main photo.
2.The laser module is powerful and small size, so it can’t be used for long time! Please add the heatsink!
3.Please avoid direct eyes contact and wear 650nm protective goggles when you work on it.

Package

1x 650nm 30mW Dot Laser Module
2x Lens Caps(Line&Cross)
1x Golden Heatsink
