Description

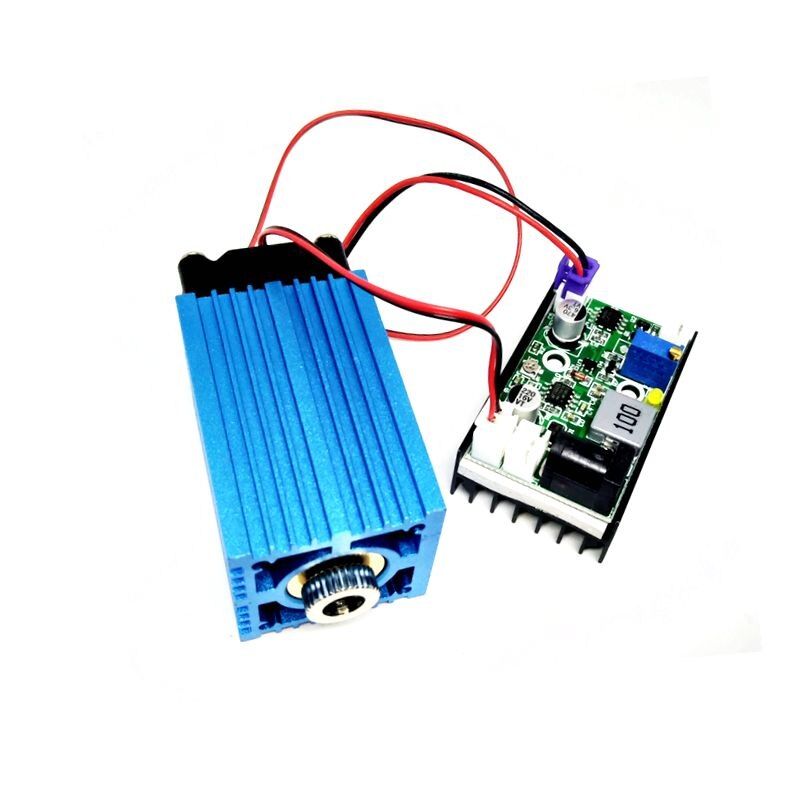

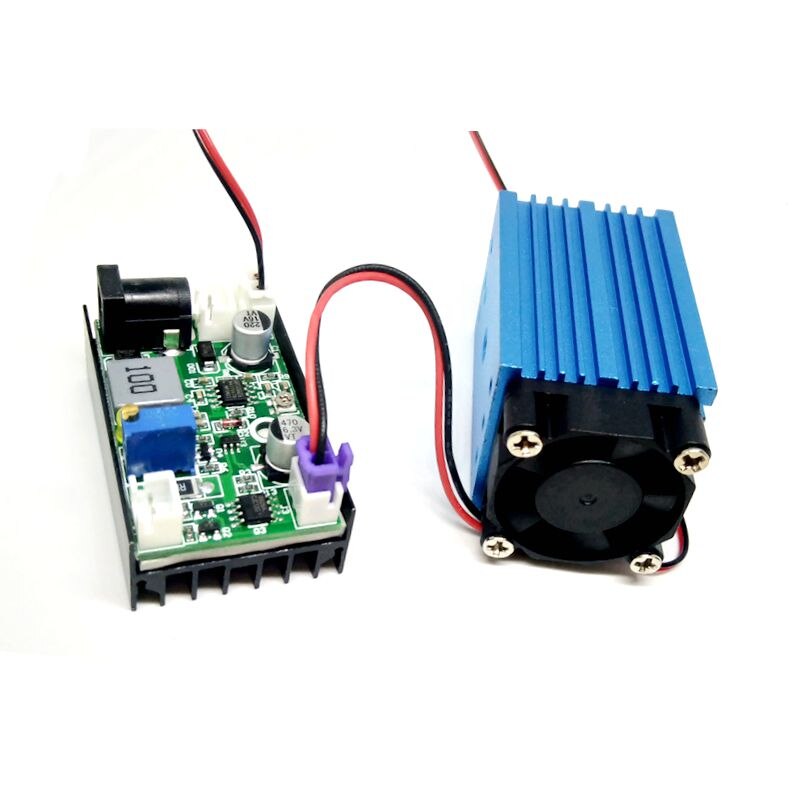

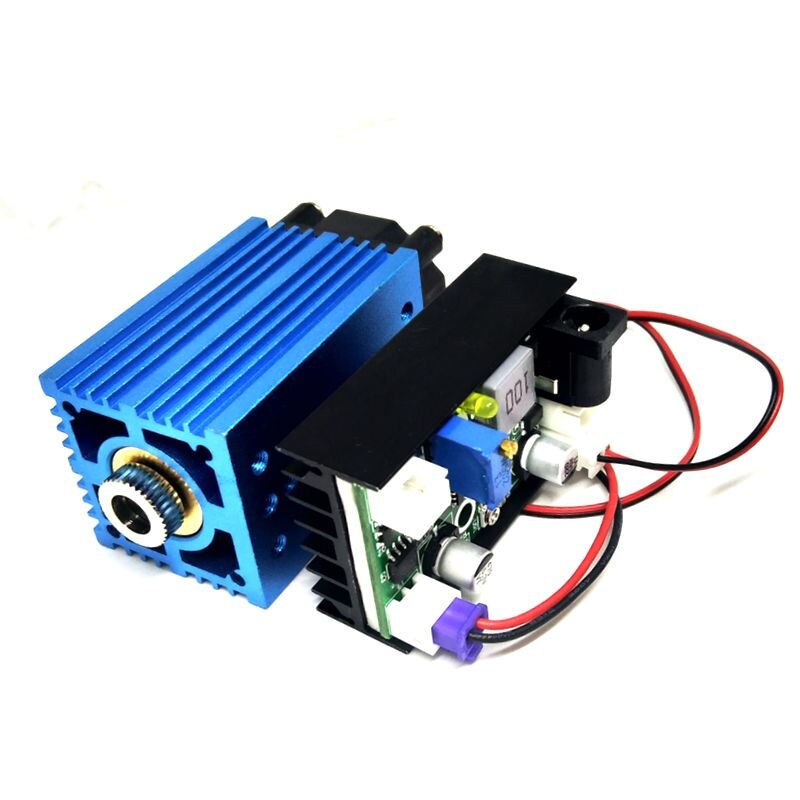

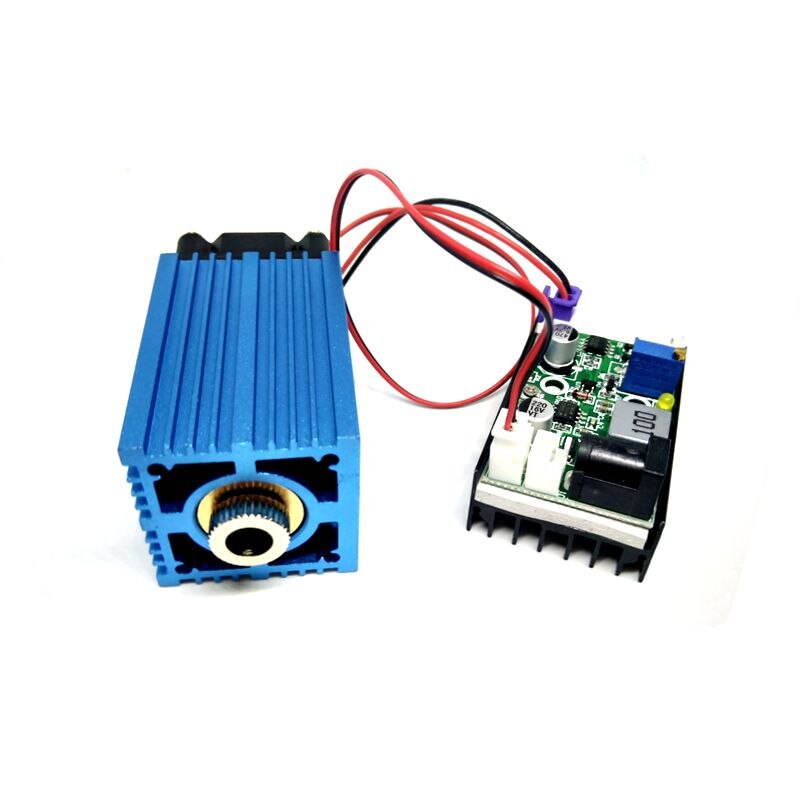

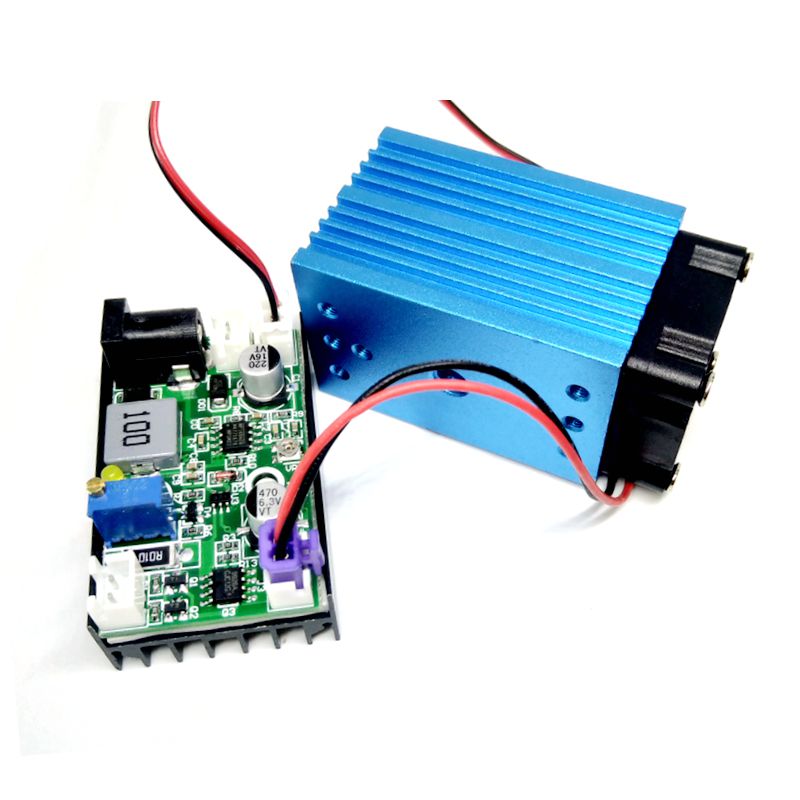

Focusable 1400mw 462nm 1.4W Blue Laser Diode Dot Module LD NDB7675 with cooling fan & 12V Adapter
- Brand Name: Jolooyo
- Certification: NONE
- Item Type: Stage Lighting Effect
- Model Number: 462MD-1.4W-3350-12V-GD
Specifications:
Output wavelength:462nm
Output power: 1400mw
Spot mode: Dot
Spot size: Focusable
Modulation frequency: adjustable
Diode model: NDB7675
Cooling mode: aluminum cooling
Job characteristics: continuous work
Shell material: Aluminum
Circuit control: constant current
Reverse protection: with automatic recognition of positive and negative poles
Working voltage: DC=12V
Working current: I<1.5A
Preheating time: no
Working temperature: -10 ~ 40 C
Storage temperature: -10 ~ 40 C
Structure features: laser tube + lens + heat sink
Note: power supply for external
Host size: long 50mm* wide 33mm* high 33mm
Circuit size: length 45mm* width 34mm
Product Usage:
These products can be widely used in a variety of stage laser lights, with TTL modulation, can work for a long time, a true industrial grade laser.
Special note:
The input voltage of 12V, overpressure will lead to instant damage to the circuit and module.
Please wear blue laser protection goggles to protect your eyes when working on this module.
190-540nm Laser Safety Glasses:
https://www.aliexpress.com/item/10000318138161.html?spm=5261.ProductManageOnline.0.0.7e6e4edf4YYxKK
Reminder:
The input voltage is 12V, and overvoltage will cause instantaneous damage to the circuit and module!
Package:

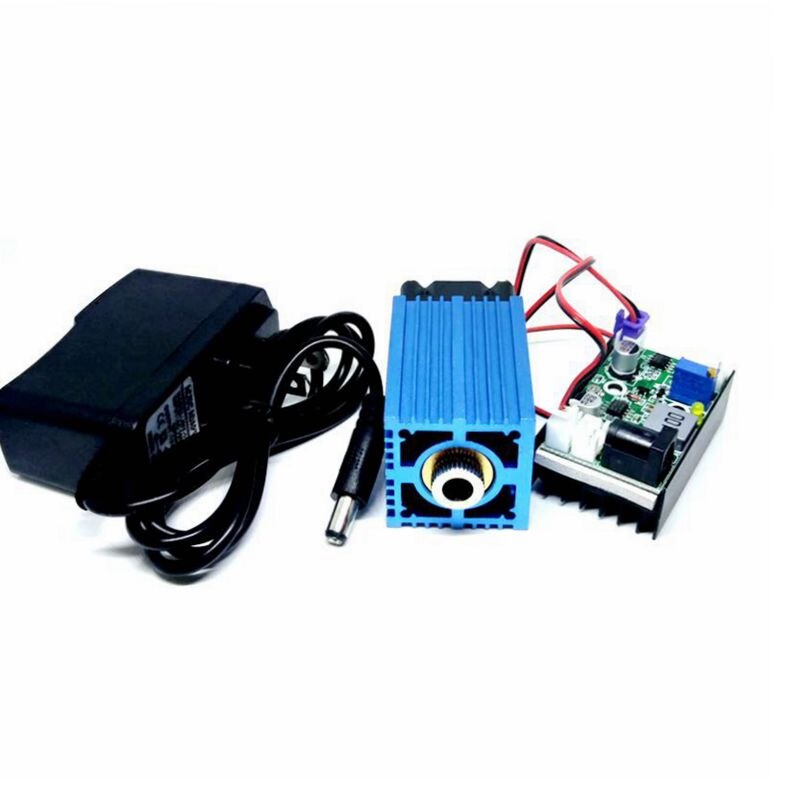

1pc Focusable 1400mw 462nm 1.4W Blue Laser Diode Dot Module LD NDB7675 with cooling fan
1pc 12V Adapter
