Parameters

Please note that this is 980nm IR Lasers which can not be seen by naked eyes and the spot is rectangular.It’s normal.

Laser head size: 50mmx33mmx33mm

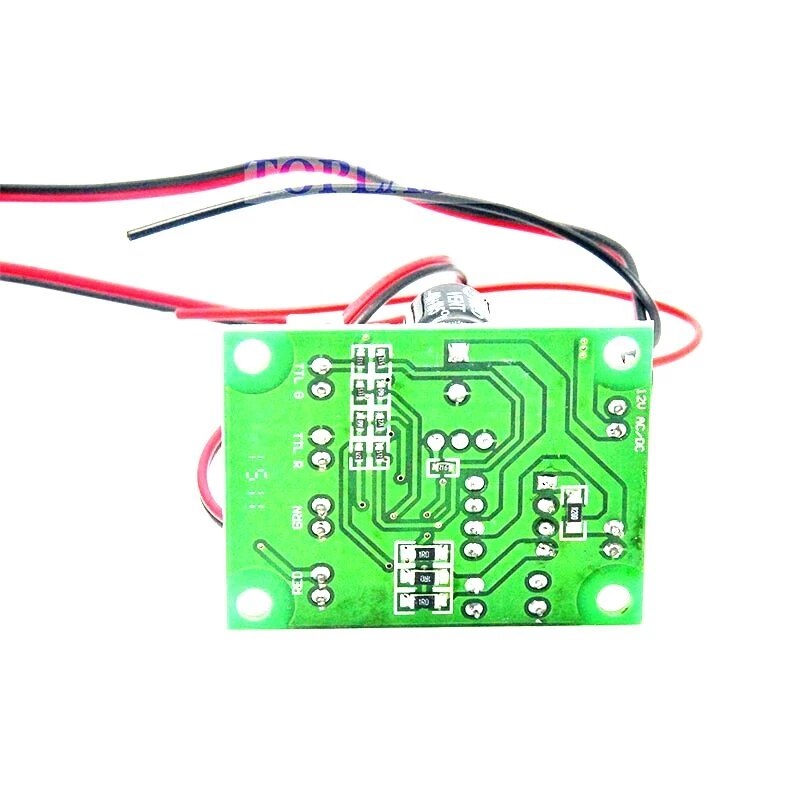

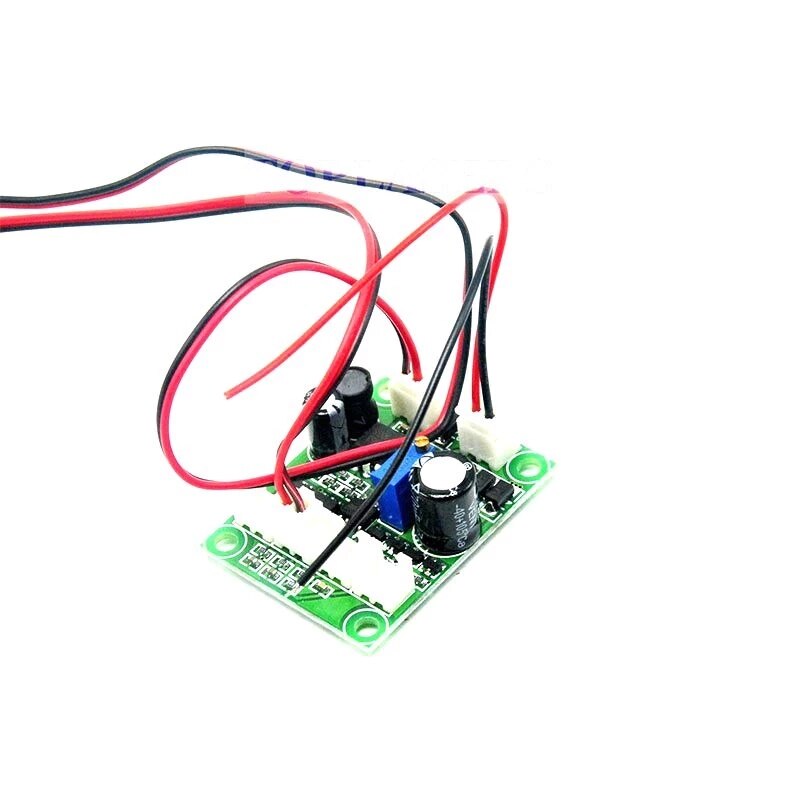

Circuit Board size: 45mm*34mm
Wavelength: 980nm
Output power: 100mW
Laser shape:Dot(rectangular to oval)
Focusable:YES
Modulation frequency: Adujstable TTL modulation
Working:Long time working
Finish Color: Black
Case Material: Aluminum
The circuits control: constant current
Reverse polarity protection: with automatically identify the positive and negative
Operating voltage: DC = 12V
Warm-up time: None
Operating Temperature: -10 ℃ ~ +40 ℃
Storage temperature: -10 ℃ ~ +40 ℃

Features
1. This laser module can work for a long time with cooling fan.But please make sure to keep the laser working under 30℃.
2. Please add a 12VDC power to this laser module. Red wire connects”+” pole; Black wire connects ”-” pole. TTL 0V on, 3-5V off. If you don’t use TTL, please just leave the blue and white wire.
3. This is a focusable laser module. Please do not take off the lens adjustable part off to avoid dust.
4. Please wear IR laser protection goggles to protect your eyes when working on this module.

Package

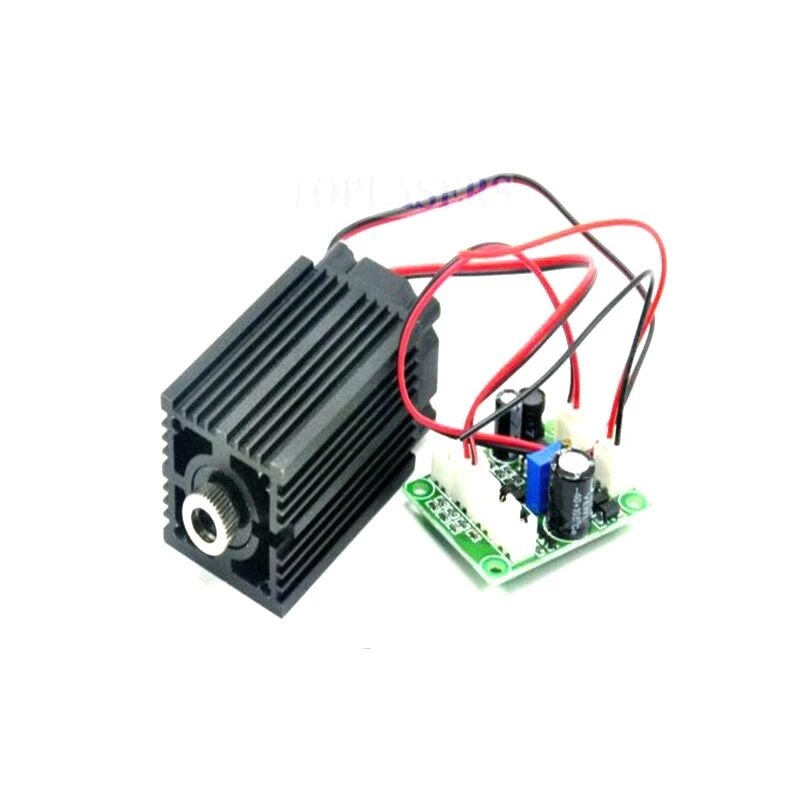

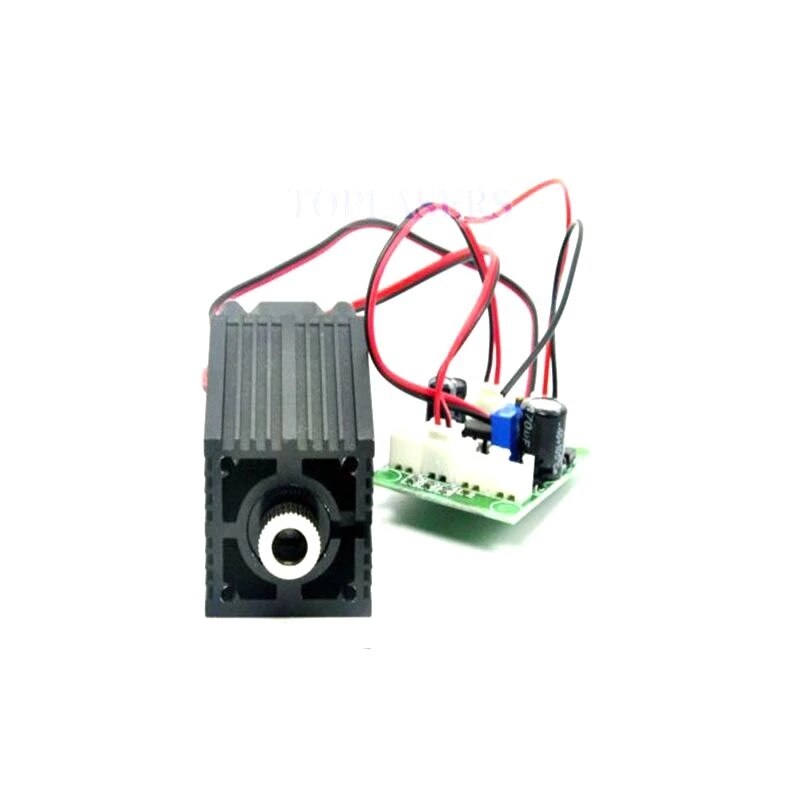

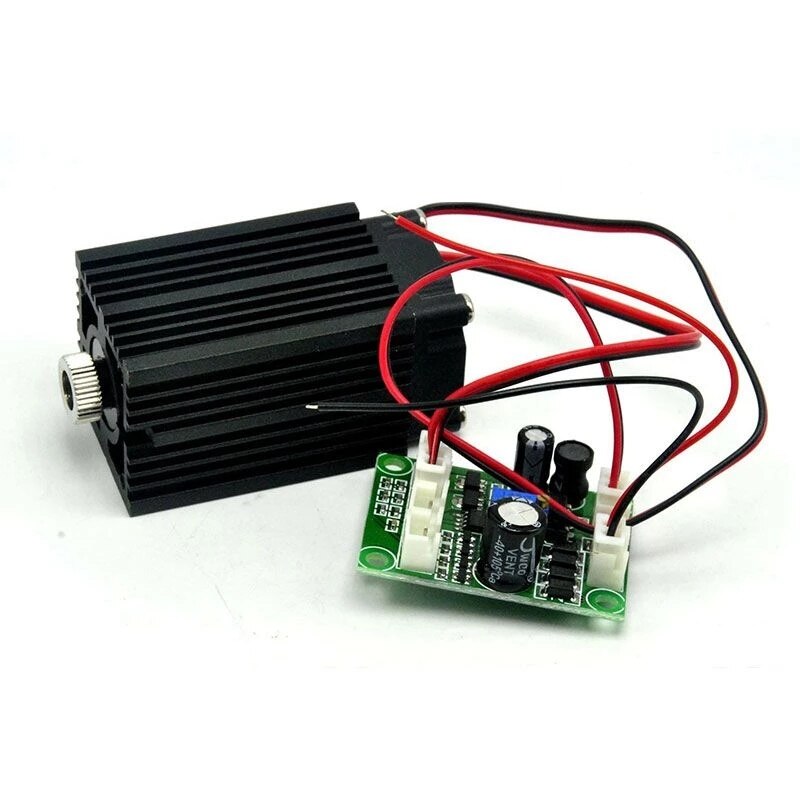

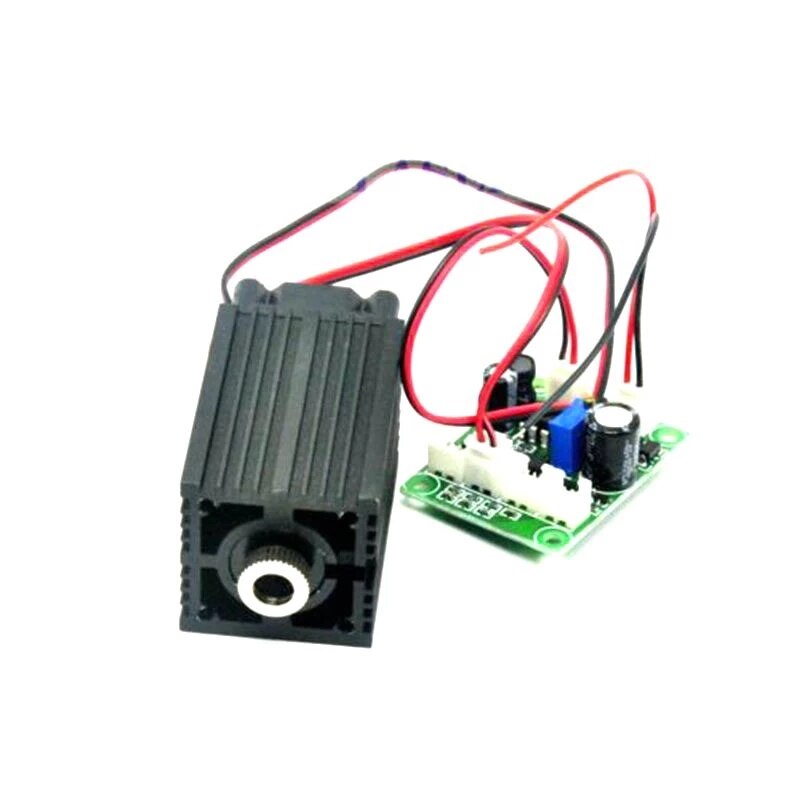

1pc DC12V Focusable 100mw 980nm Infrared IR Laser Diode Dot Module+ TTL+ Fan Cooling
