Description

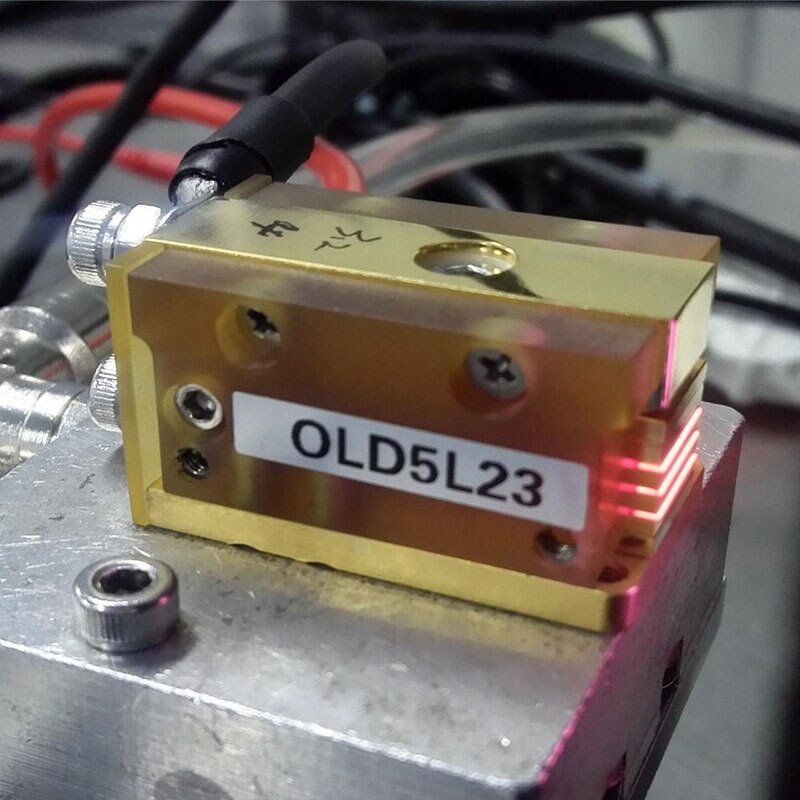

FL 500w  diode laser bar stack replacement for laser hair removal system

This Focus Light 500W diode laser module was made for repairing and replacement of hair removal device. They can be optional from 3bars,4 bars and  5bars.

If you have similar diode module need to be repaired, please kindly contact Nina.

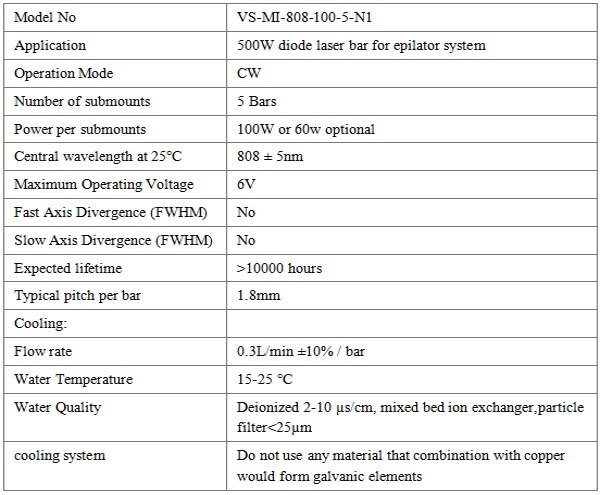

FL500W diode laser bar Specifictaions:

With this laser 500W diode laser bar 500W diode laser bar r diode stack dimension scheme, please kindly confirm with your engineer about the size, length, width and height of the diode laser stack. Also for the holes position must be accuratly the same.

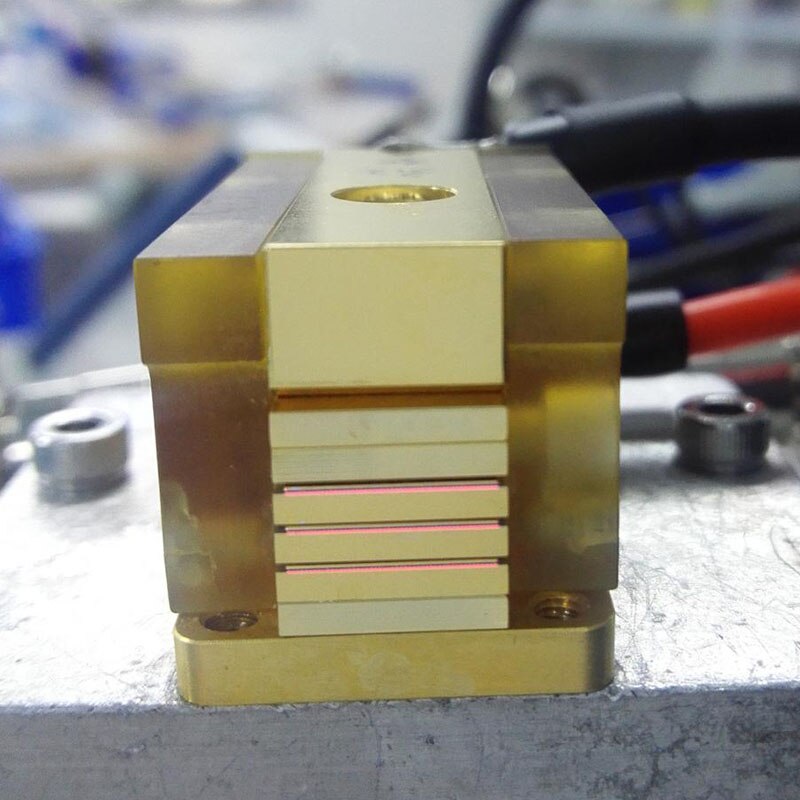

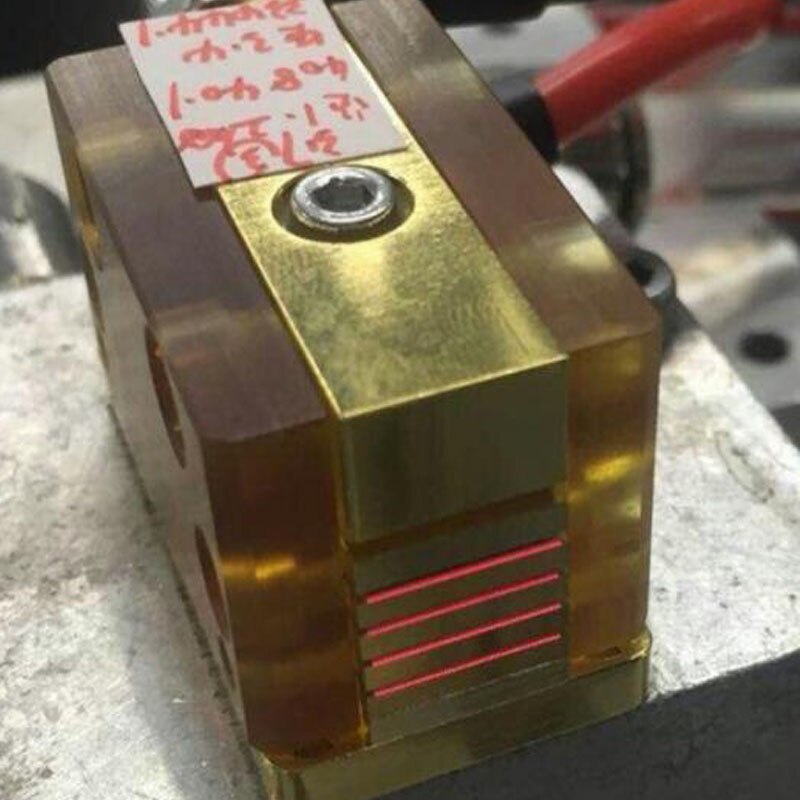

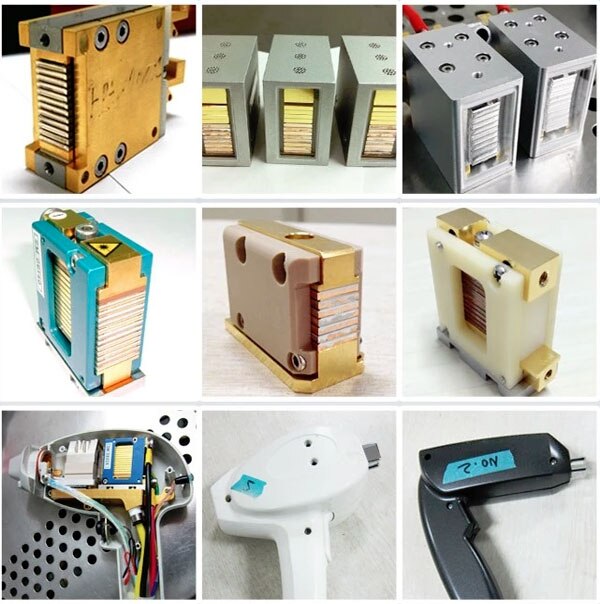

This is 5 bars* 100W diode laser stack for replacement of laser hair removal machine. If your handle have some bar not working but you do not want to pay high cost for a new handle gun. You can buy just a new stack to do replacement in your side if you have professional engineer and good working environments. Also this kind of stack have similar design for diode 300W,400W,500W,600W and 700W. Just need confirm how many bar for working 100W is ok.

Oriental-laser is adopting original Jenoptik Micro Channel chips ,the same one with German dials company. 100w one each . No fake energy with 808nm ±2.5 wavelength tolerance. The same brand with Alma diode laser .More than 200,000,00 shooting numbers.

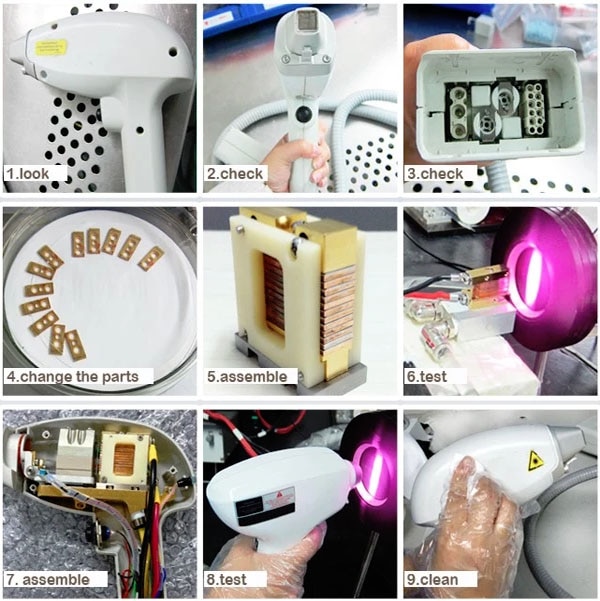

Repairing Procedures

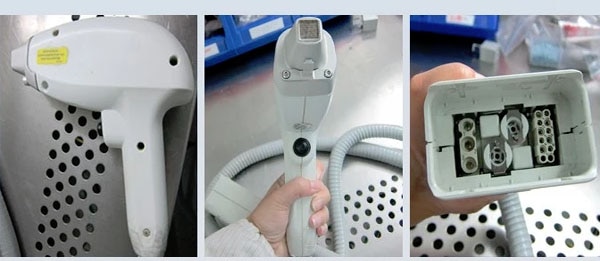

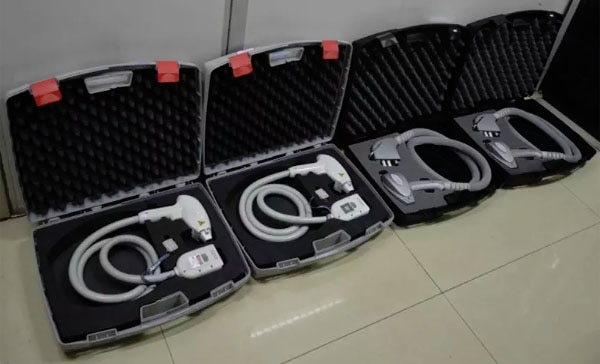

First, after we received the old broken handle piece from customer, we check the appearance of handle piece to confirm whether all the parts are complete and in good condition.

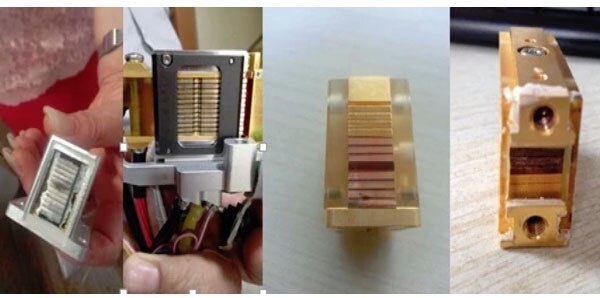

Second, we disassemble the handle piece, and test the old laser stack. For the micro channel laser stack, Such as Alma laser, Lightsheer, Syneron. We will test each laser plate one by one to confirm whether there are any one bars still can work. If there have some good bars, the repairing charge will lower. For macro laser stack like most product made in China, we will test whole laser stack together.

The third step:

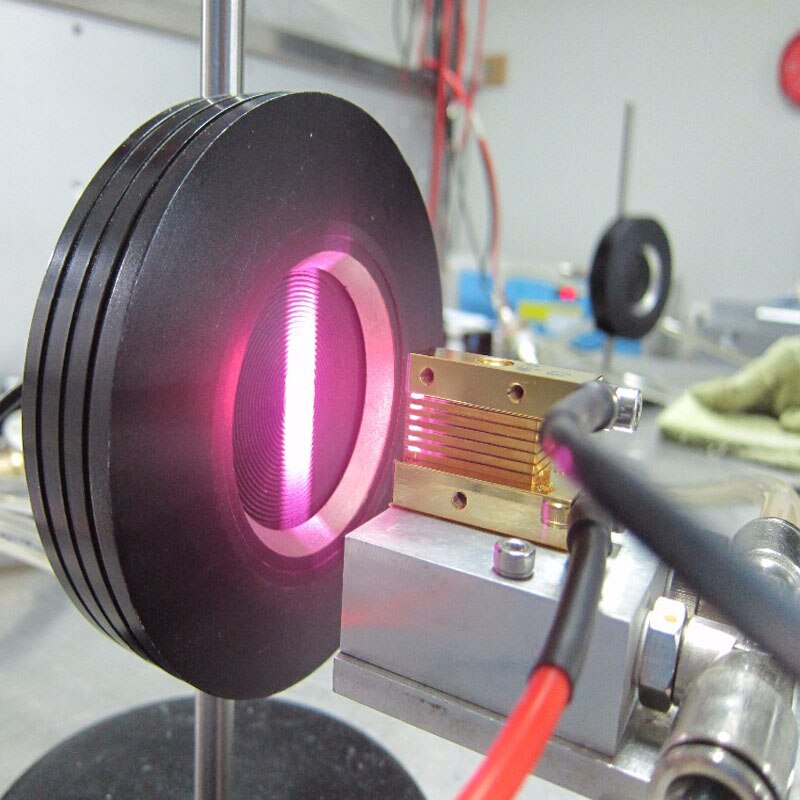

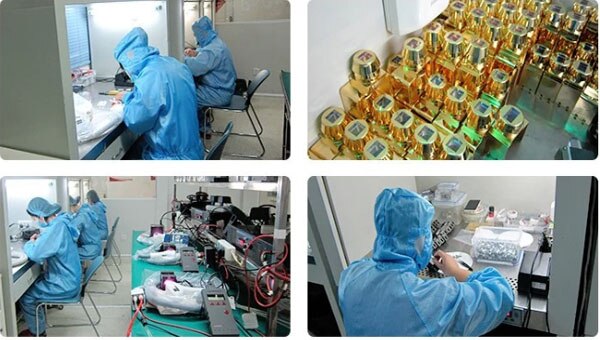

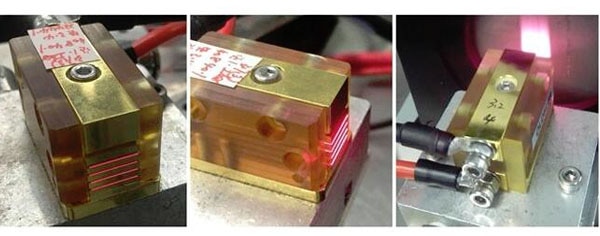

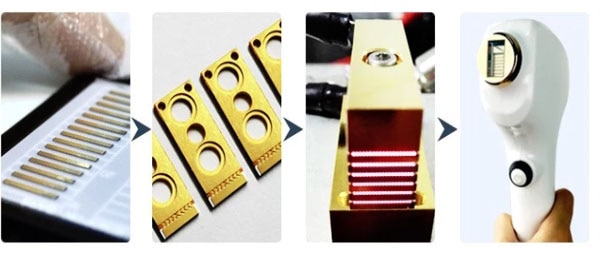

We choose best quality laser stack to replace the old broken one. Our bars are import from Germany diode bar manufacture. We mounted bars and assemble them to laser stack in our lab. We strictly manage mounting, assembling and testing step during laser stack producing. Every stack will be fully tested and had 8 hours burning test.

The Fourth step:

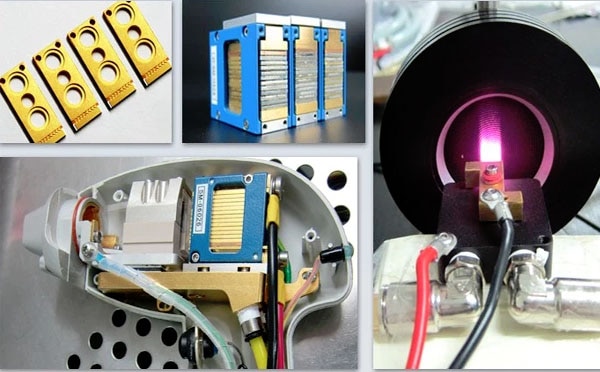

Our experienced technician will reassemble the handle piece. Which include:

a. Install the new laser stack into the handle piece.
b. Clean lens and check the TEC and other parts inside the handle piece

c. Test the power output of whole handle piece.
d. Clean the cover shell of handle piece and package it.

Other Machine Features

1.Latest technology of 808nm diode laser assembling and mounting

2.Germany Jenoptik Company imported 808nm diode laser bars

3.Best imported cooling micro channel pieces as heat sink for laser bars

4.Patented diode research and development technology by IVYLASER

5.High efficiency and good feedback for hair removal

6.Longer warranty time for 20,000,000 shots or one year optional

7.Independent modular configuration for easy after-sale service

8.Leading manufacturer of 755nm,808nm and 1064nm diode laser machine in china
