Description

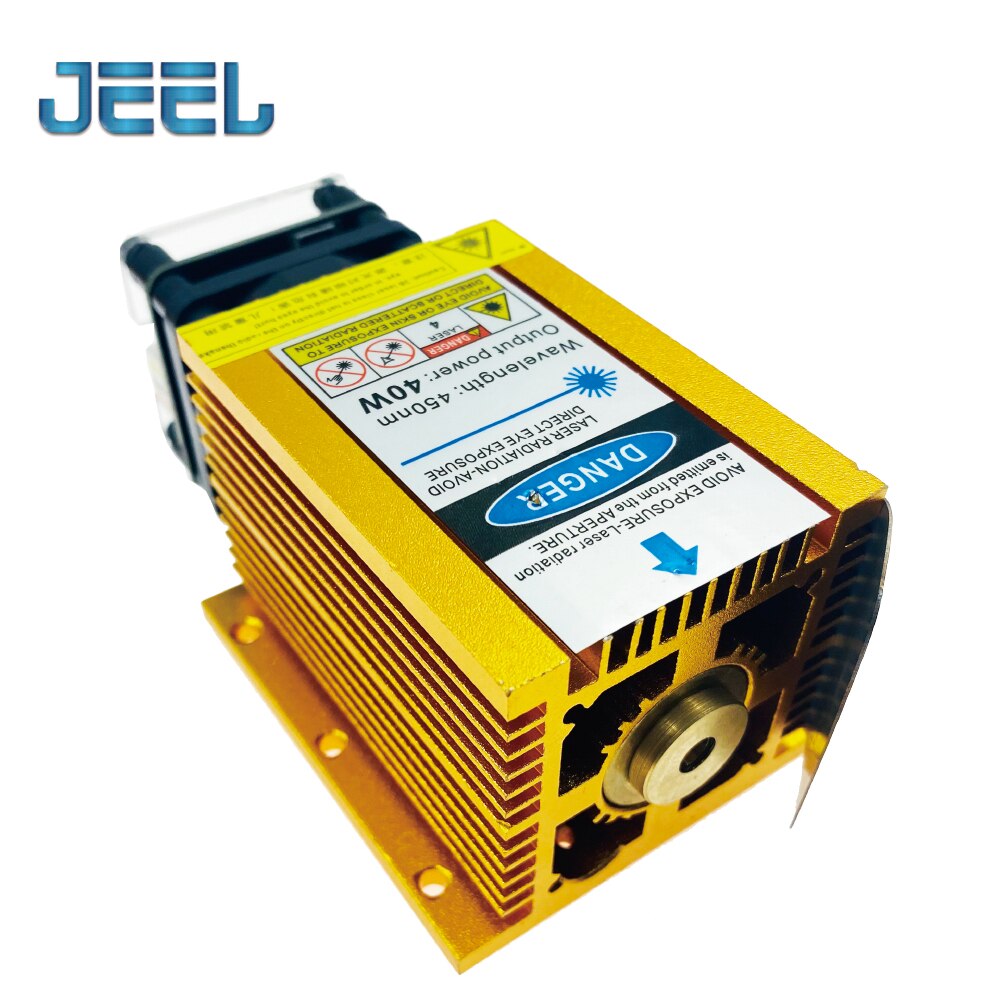

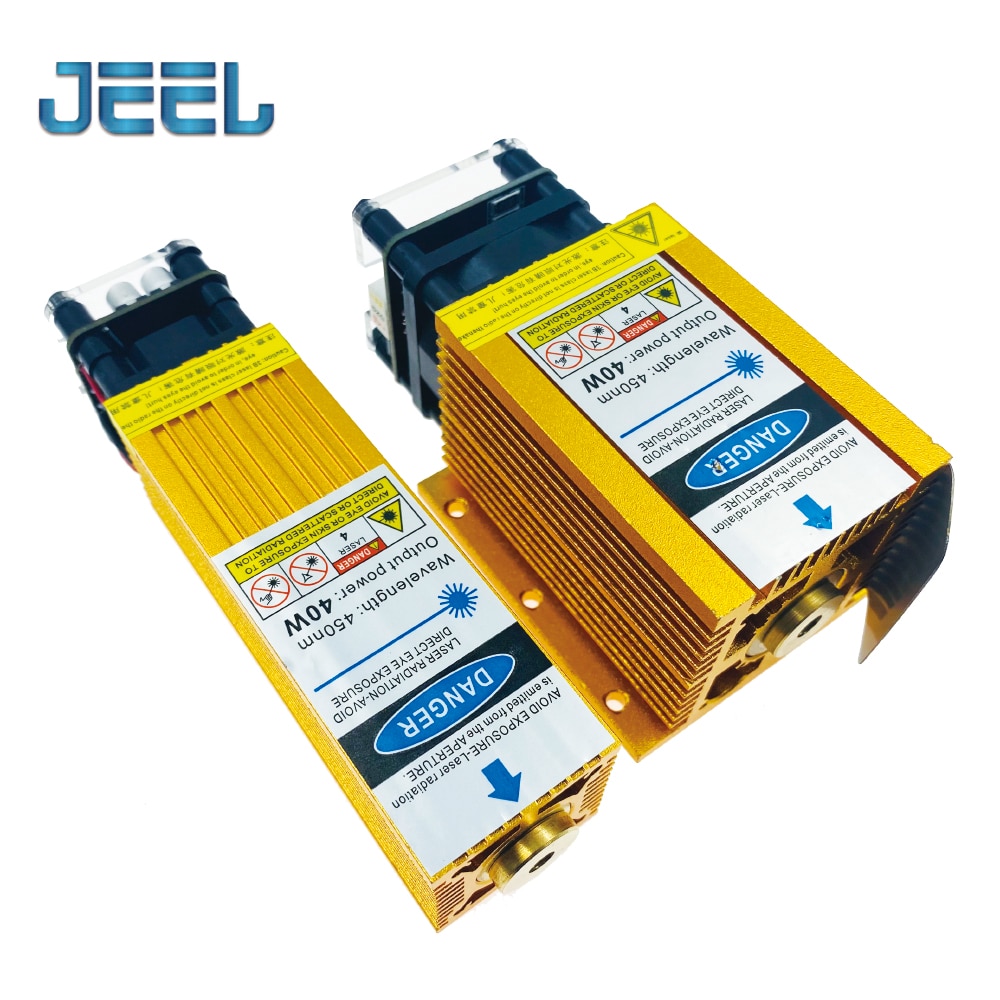

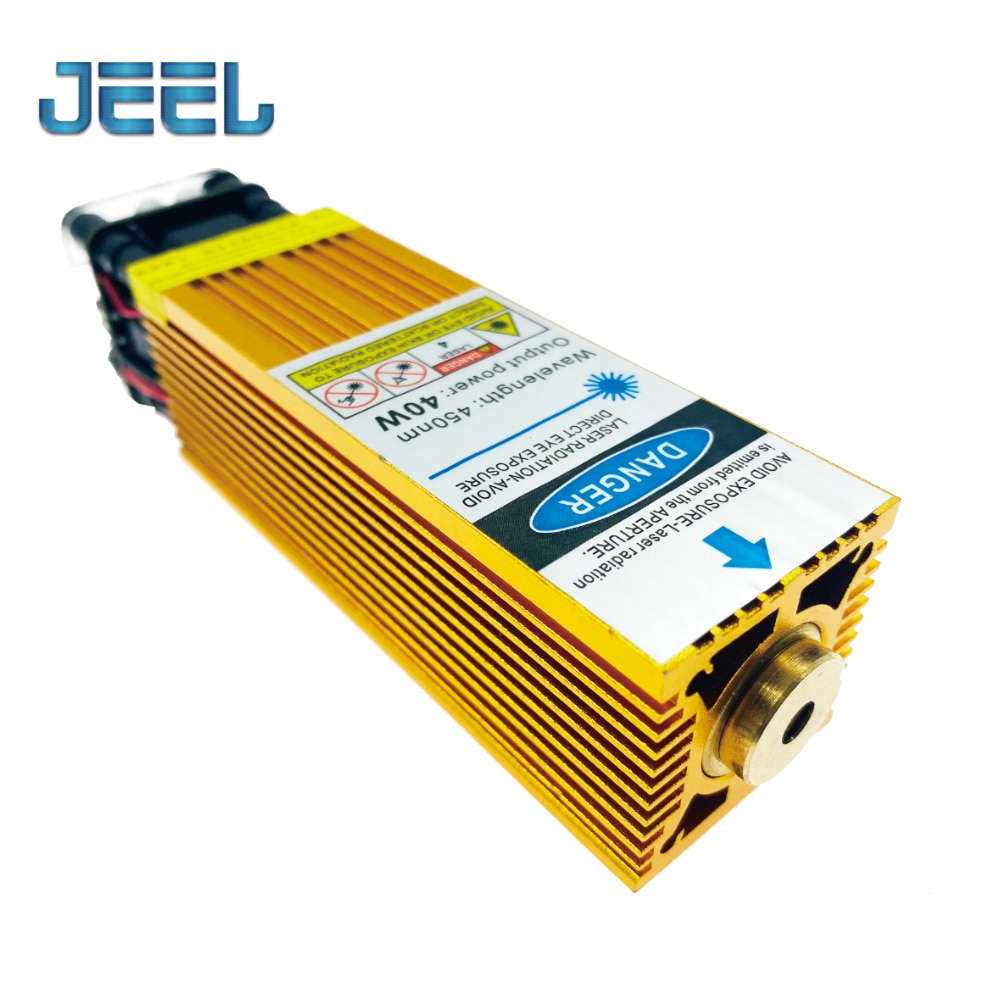

Fixed Focus 40W Laser Module 450nm Golden Laser Head TTL/PWM Module for CNC Laser Engraver Wood Cutting Tool

• Designed for Laser Engraver, 3D printer, CNC mill, Arduino project.

• 15W Optical power output, 4mm plywood from 1 pass(speed 200), 3mm black acrylic board from 1 pass, Able to engrave stainless steel, needn't focus adjustment.

• More Safety, Built-in protective glass to protect eyes! Even without wearing protective glasses, the operation is more comfortable.

• More quiet, Intelligent drive adjust the cooling fan speed according laser temperature.

• The slidable mounting fixture is provided for easy adjustment of focus.

Packing List ：

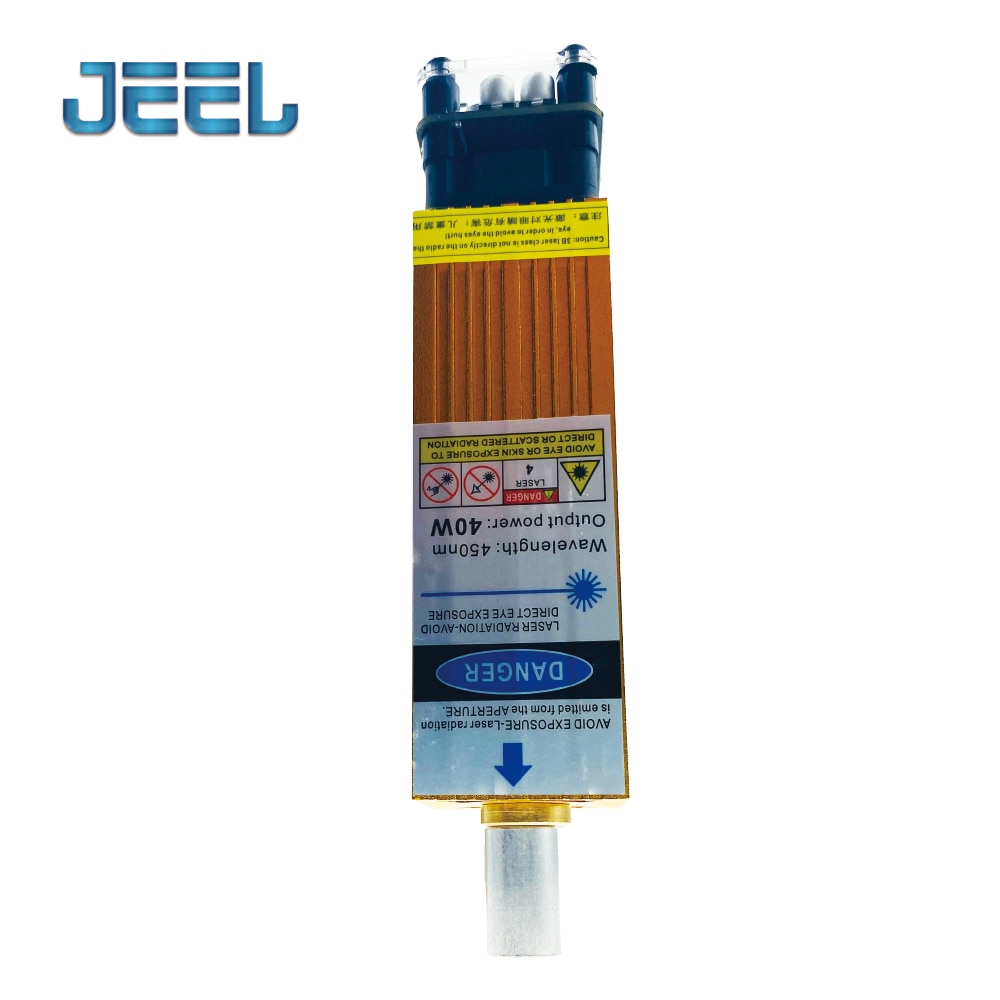

40W laser module +Goggles+2pin-2pin cable +3pin cable+ Focusing column

• 40W General Specification:

Heatsink Material：Aircraft Aluminum +Blue Shell

Luminous Color：Blue

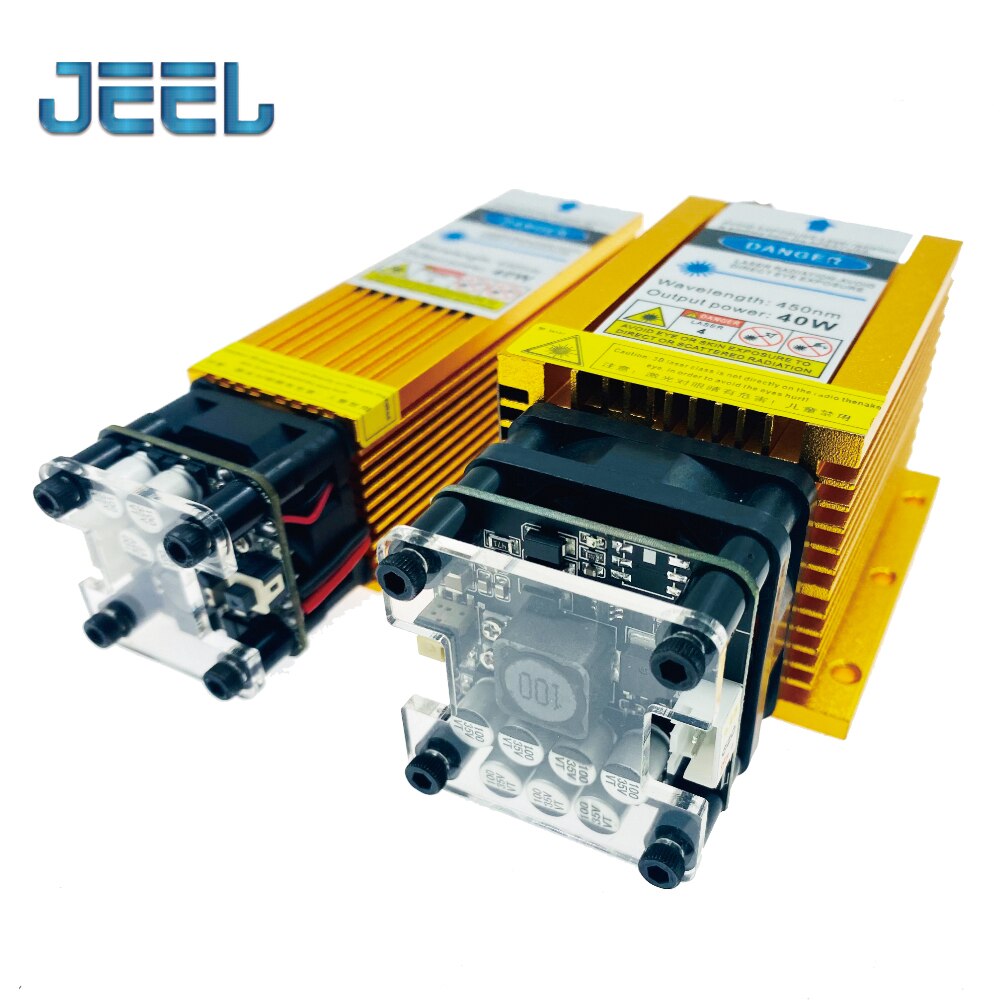

Cooling Mode：Temperature sensor intelligent control + 10000 rpm 40mm cooling fan

Can Engrave：MDF/Balsa/Paper/Wood/Fabric/Plastic/Leather/Plywood/Foam Paper/Anodized Aluminum/Stone/Ceramics/ Stainless Steel

Can Not Engrave：Metal/Glass/Stone/Ceramics/PCB/Reflective Material/ Transparent Material

• Technical Parameters：

Module Input：40W

Optical power output：15W

Wavelength：450nm

Beam Shape：Dot(fixed focues)

Working Voltage：DC 12V

TTL&PWM Modulation：YES, Compatible with Both TTL & PWM Modulation

Input Voltage：DC12V 3-4A

PWM/TTL Input：DC 5V

Input Interface：3Pin (+,-, PWM/TTL) , 2Pin+2Pin (+,-) + (PWM/TTL,-)

Safe temperature range：<60 ℃

Module weight：202g ( The lighter the weight, the smaller the move inertia, the better the performance )

Life Time：10000-20,000 hours
