Introduction:

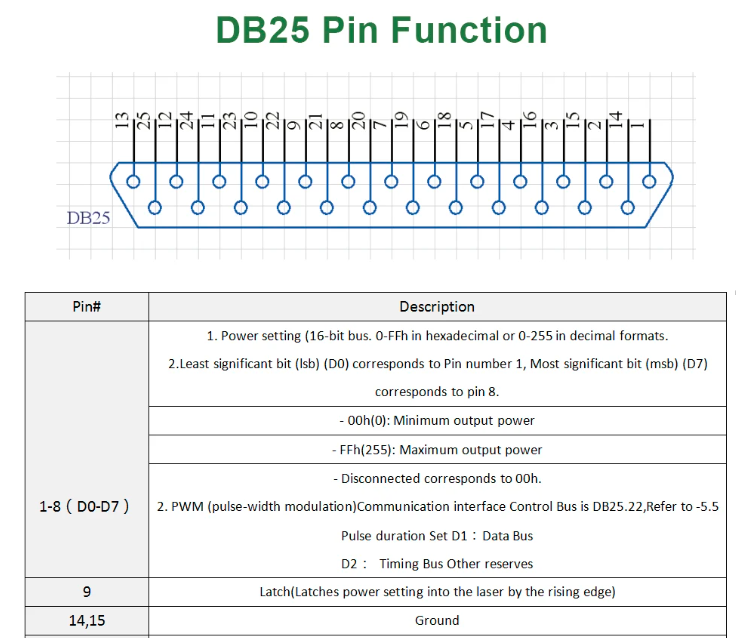

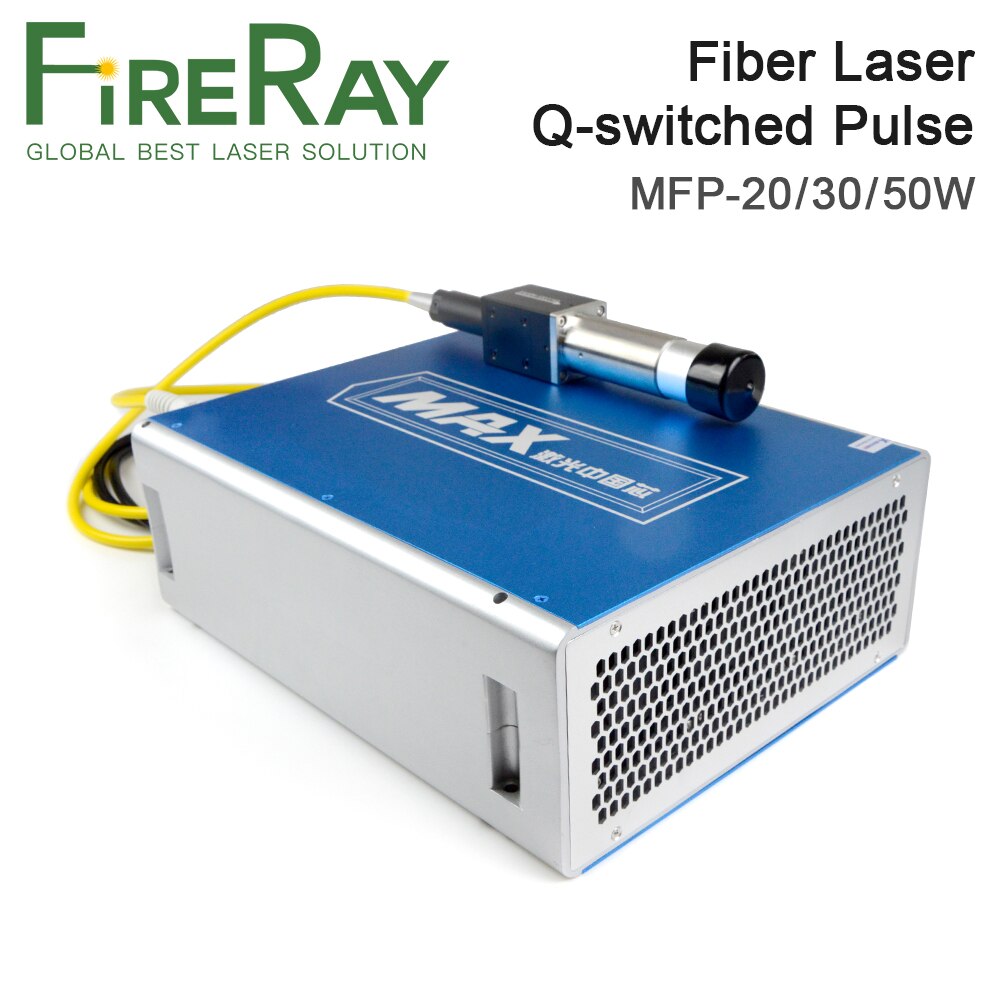

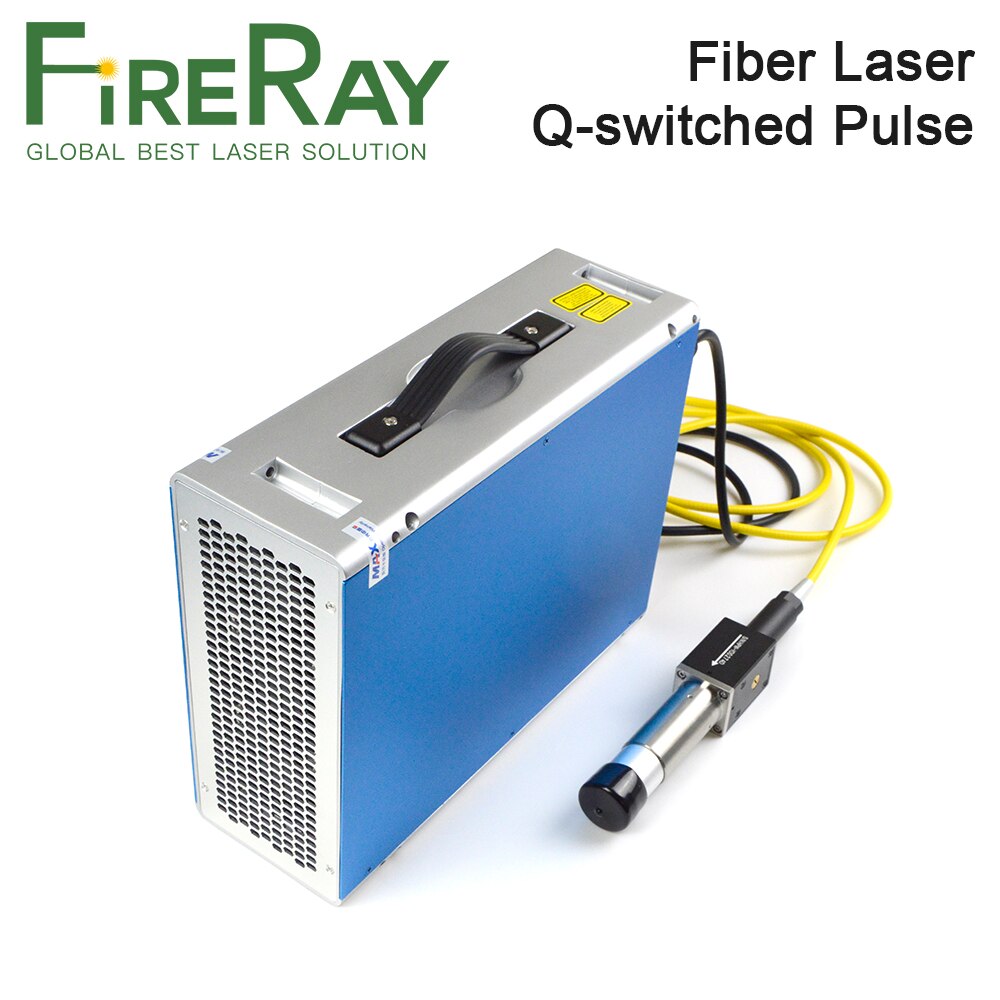

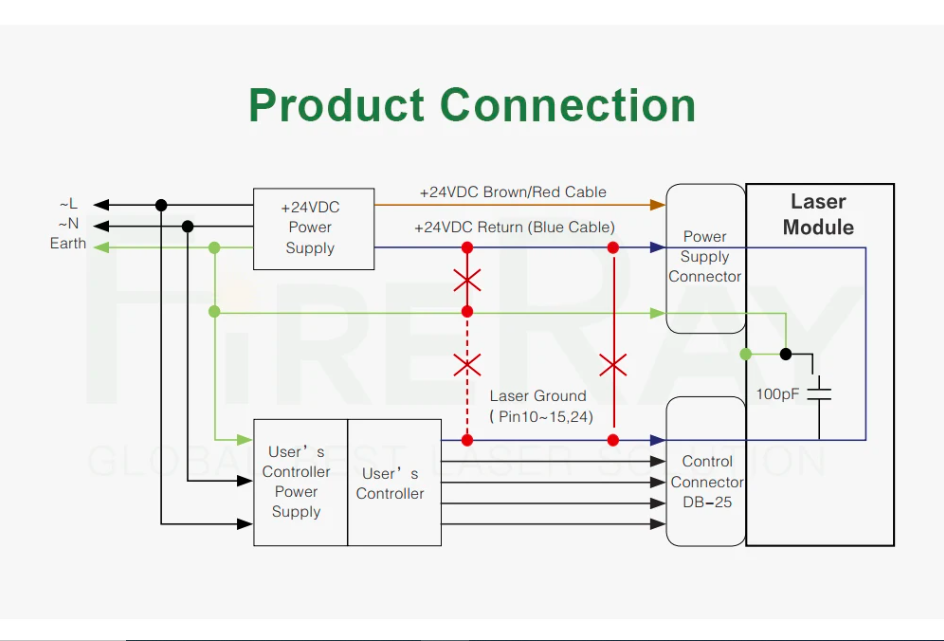

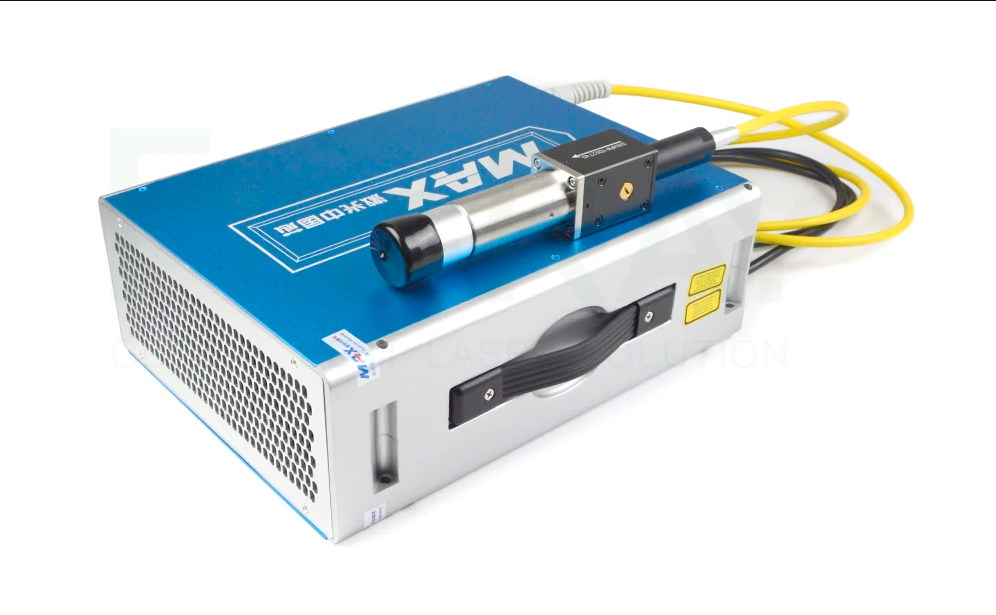

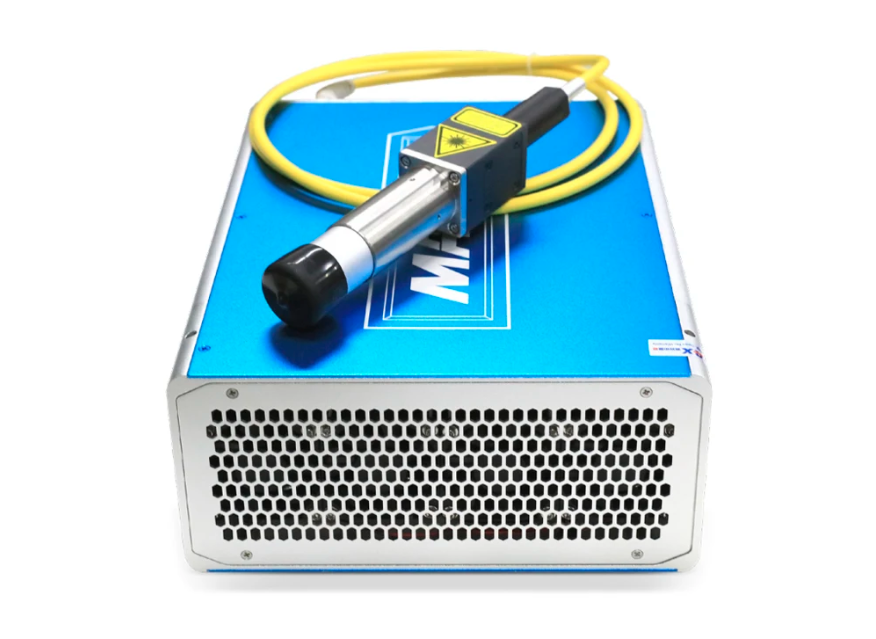

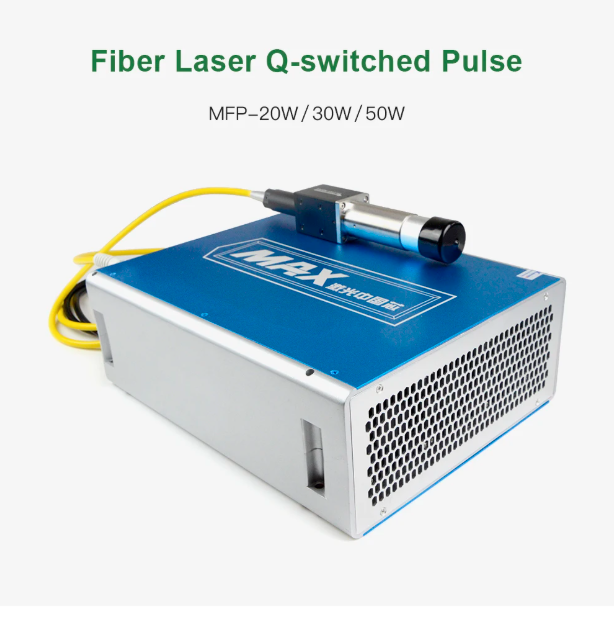

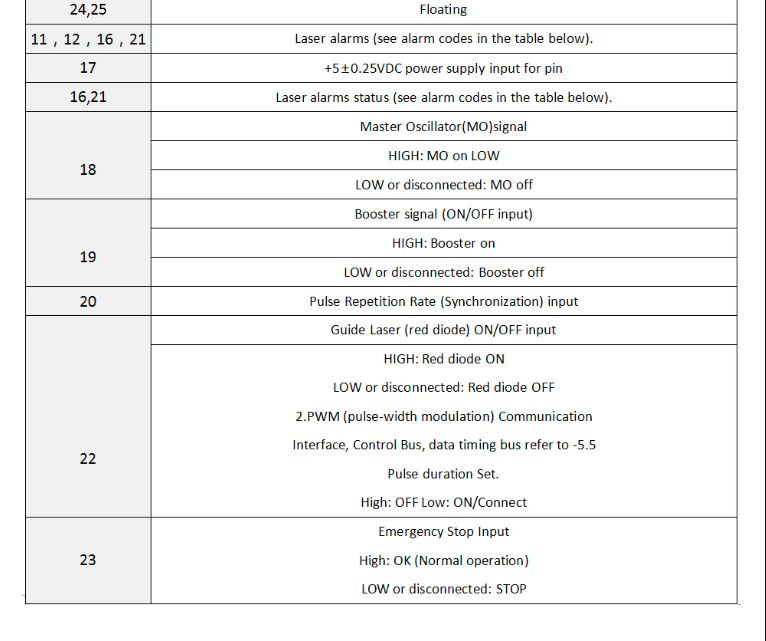

Acousto-optic Q-switched pulsed fiber laser, based on Q-switched main oscillator and high-power fiber amplifier (MOPA), provides 5W-70W power models, peak power up to 7kW, with isolator output, operating parameters through 25Pin control interface Setting, can be directly integrated into the user’s equipment, suitable for industrial and scientific research applications, can meet most plastic marking and all metal materials marking, etching, deep carving, surface cleaning, high-precision sheet cutting, drilling, etc. application.

Features:

1. High reliability
All optical fiber, no space optics, less failure
2. Fine marking
The beam quality is good, the pulse width is small, and the marking pattern is more delicate
3. Easy to integrate
The volume is reduced by 67%, the weight is reduced by 50%, and the equipment integration is easier
4. Intelligent control
The built-in cooling fan can intelligently adjust the wind speed, which is convenient for energy saving
5. Sealing structure
Fully sealed structure, dust-proof and moisture-proof, to ensure long-term operation of the machine

Application:

It can be used for fine marking, fine cutting, laser drilling, laser scribing, laser cleaning, laser deep engraving, etc. It is used in household appliances, 3C electronics, chips, packaging and other industries.
