Description

Fire Proof New Module CO2 Laser Cutting Machine High Speed Precise 150w Laser Cutter With 6445G Contorl MDF Laser Engraver

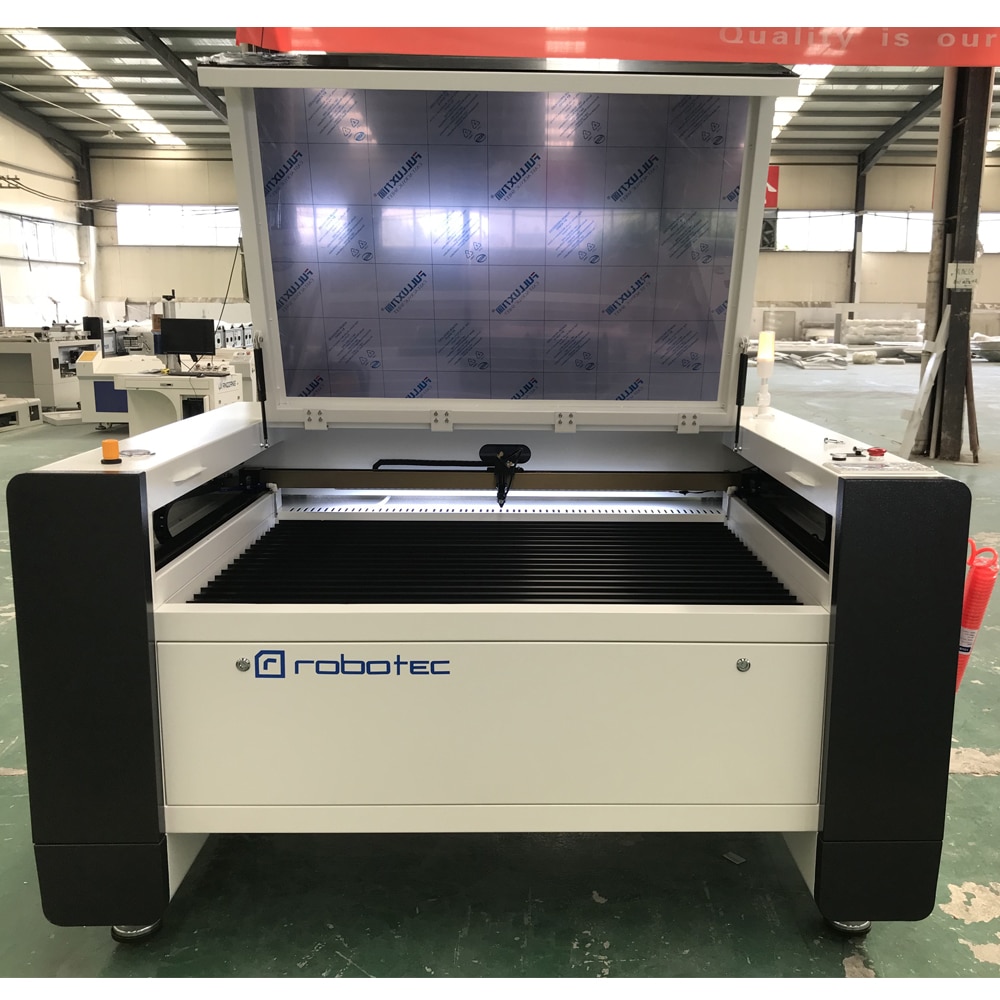

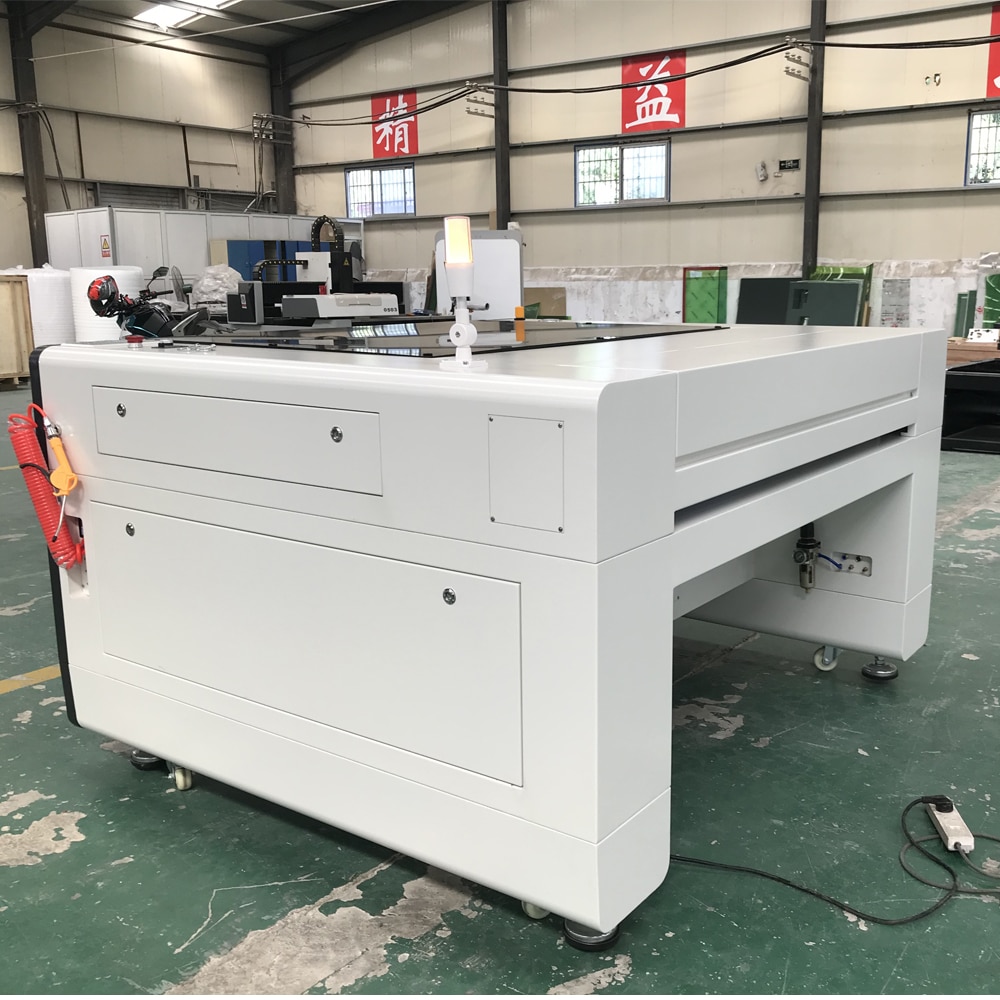

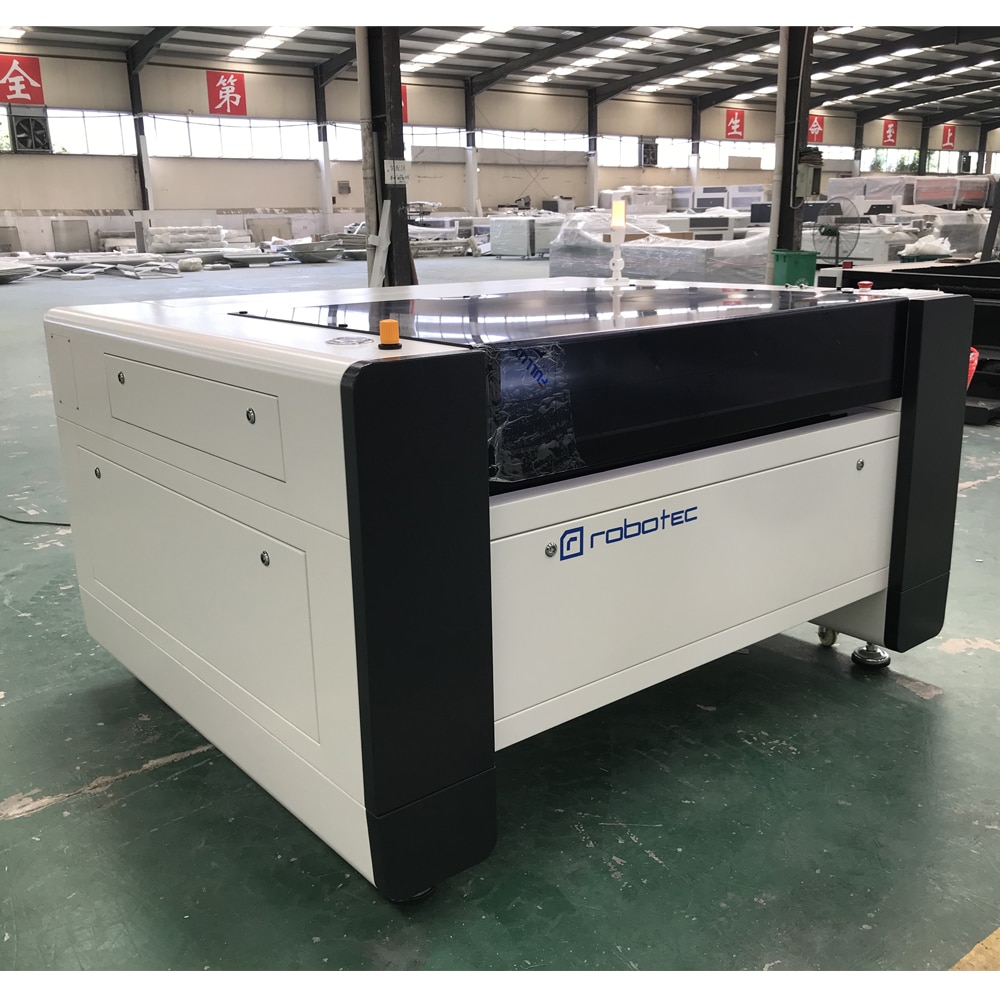

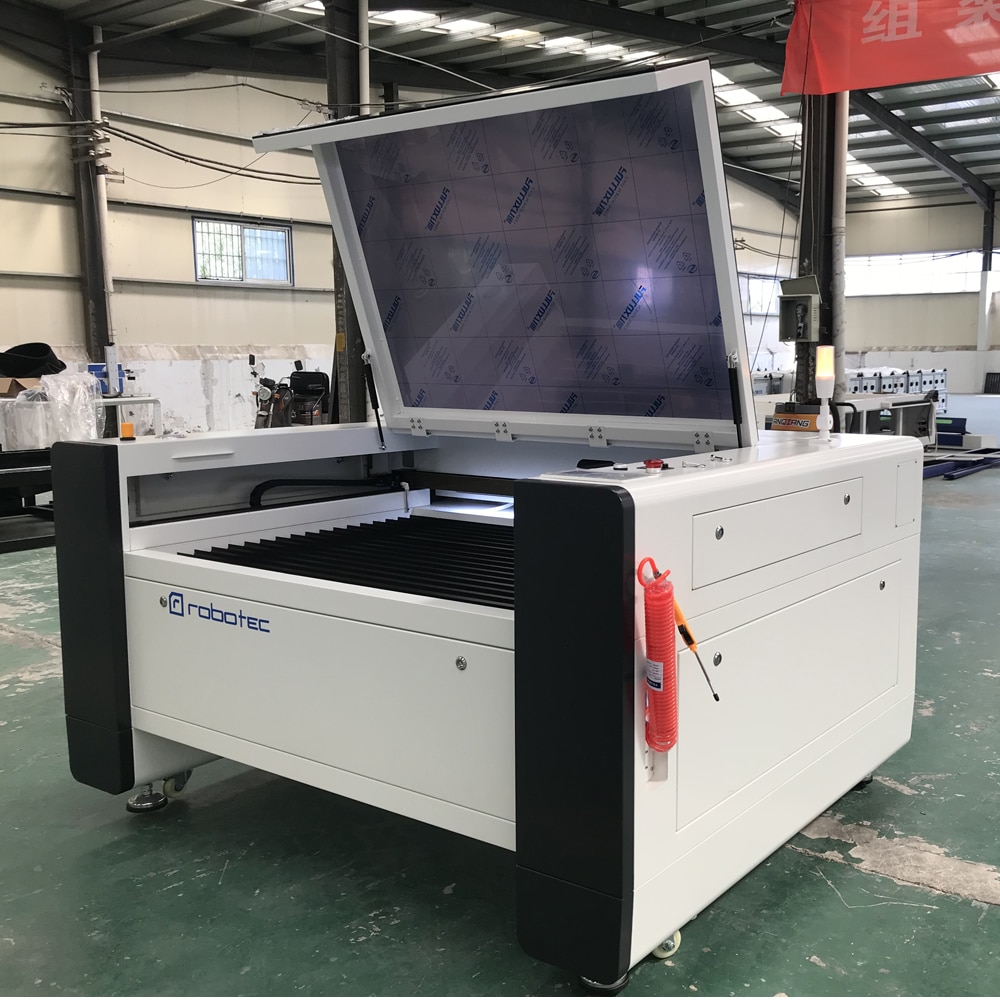

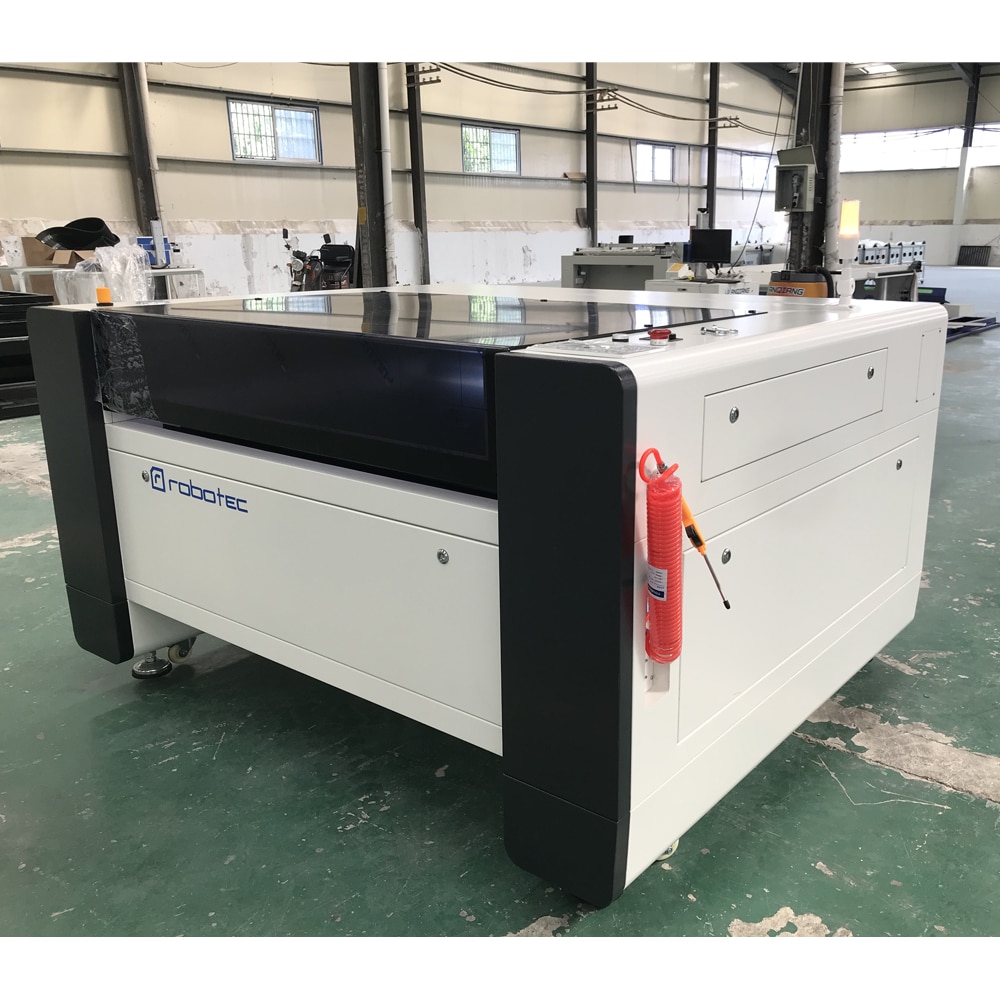

laser cutting machine pictures:

1390 laser cutting machine:

1390 laser cutting machine Item  /  Model	RTJ-1390I
Cutting area	1300mm*900mm
Laser power	80W 100W 130W 150W
Laser type	CO2 sealed laser tube,water-cooled,10.6um
Engraving speed	0-60000mm/min
Cutting speed	0-40000mm/min
Laser Output	1-100%software setting
Resetting positioning accuracy	≤±0.01mm
Power supply	220V/50HZ (Optional 110V/60HZ)
Operating temperature	0 – 45°C
Operating humidity	5 – 95%
Min. shaping character	English 1.0 x 1.0mm
Graphic format supported	BMP, PLT, DST, DXF, AI
Software supported	TAJIMA, CorelDraw, Photoshop, AutoCAD
Driving system	stepper motor
Cooling mode	Water-cooling and protection system
Equipment Dimensions	1850x1320x1110mm
Net Weight:	350kg
Shipping Dimensions	1980 x 1440 x 1220mm
Optional Spare Parts	Up-down clump, Rotary System, Honeycomb table
Recommended Spare Parts	Laser Tube and Lens

1390 laser cutting machine parts pictures:

1390 laser cutting machine machine sample pictures:>> Laser engraving machine features:

1.3mm Cold-rolled steel welded machine bed, strong and running stable.

2. Aluminium blade table: to process hard materials like acrylic, wood and so on.

3.Fireproof window,more security.

4.CO2 Glass sealed laser tube China famous brand (EFR, Reci), good beam mode stability, service timeover 8500~10000 working hours.

5. Laser Power40W~180W, good quality and stable output to prolong the laser tube service time.

6.Singapore imported lens and mirrors. High transmittance, good focusing, reflecting effect.

7.Ruida or Leetro ControllerUSB interface, support online/offline working, English language system, adjustable cutting speed and power.

8. High accuracy stepper motors and drivers. Belt transmission.

9. TiwanHiwin Linear square guide rails, higher precision.

10. Laser engraving and cutting or Lasercut 8.0 software, user’s manual.

11. Tool box: A set of wrenches, lens cleaning paper, a pack of screws, a spare limit switch, a lens removaltool, manual, CD, U disk, a focal length of stick.

12.Open style, the front and back of the machine is open which is possible for longer material, breakthroughthe limit of the workpiece length.

>>1390 Laser Cutting Machine Option Parts:

>>laser cutting machine Applicable Material:

Non-metal materials such as fabrics, label, rubber, marble, granite, tiles, paper boards, leather,

embroidery, acrylic, glass, plastic, MDF, wooden plates and paper ware etc.
>>laser cutting machine Applicable Industry:

Advertising, Embroidery, garments, shoemaking, label processing, arts and crafts, etc.

1) Machine has been adjusted before delivery.
2) English software, user manual and detailed installation & training Videos DVD
3) Warranty period: one year on parts from date of shipping date, 3 additional years on free repair. Life-time technical support.
4) Machine spare parts and repair service is offered in lifetime.
5) Free training is offered in the plant and free samples are available.
6) 24 hours technical support by e-mail, calling or door-to-door service.
7) Professional cnc router machine supplier with 10 years experiences.
8) International quality certificate: CE, ISO9001

For offer the most suitable machine with favorable price, would you like to confirm below questions:
1) What is your reuqested max working area, X:___mm, Y:___mm?
2) What mainly job you do ? Only engrave, cut or both ?
3) What kind are your materials, metal or non-metal, what are they?
After your return comments, we will send you more information about the machine along price . Thanks
