Description

FIR FIBER PIGTAILED AOM MODULATOR SHIFTER RANGE 1850-2100 nm

This fiber pigtailed device is meant to be used for a single wavelength within their range of operation (1850-2100 nm). It can be used for intensity modulation, fixed or variable frequency shifting, pulse picking or q-switching. In order to meet most requirements, user can select the fiber type, fiber jacket and fiber connectors among the proposed ones.

Features
High speed
High extinction ratio
Robust and versatile.

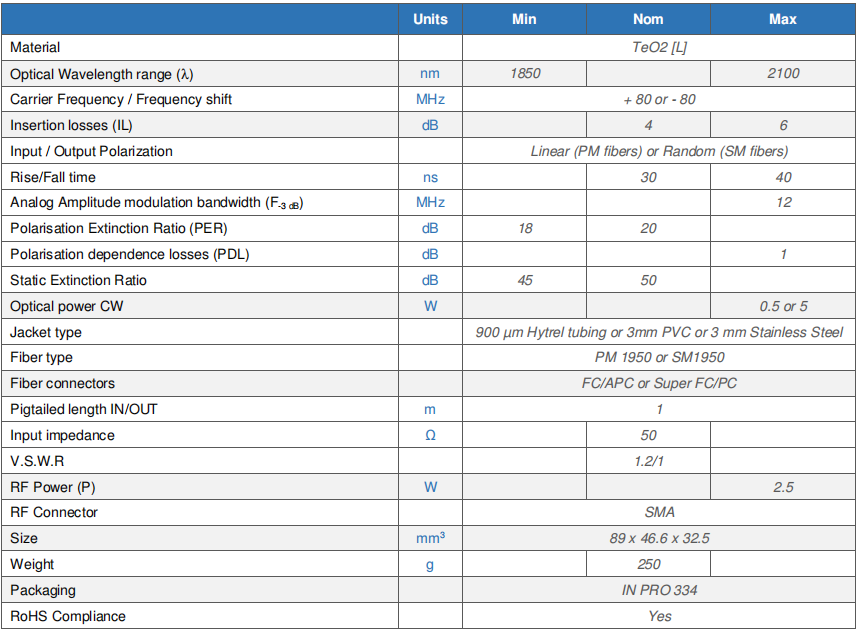

Material TeO2
Optical Wavelength rangenm 1850 2100
Carrier Frequency / Frequency shift MHz + 80 or – 80
Insertion losses dB 4 6
Input / Output Polarization Linear (PM fibers) or Random (SM fibers)
Rise/Fall time ns 30 40
Analog Amplitude modulation bandwidth (F-3 dB) MHz 12
Polarisation Extinction Ratio (PER) dB 18 20
Polarisation dependence losses (PDL) dB 1
Static Extinction Ratio dB 45 50
Optical power CW W 0.5 or 5
Jacket type 900 µm Hytrel tubing or 3mm PVC or 3 mm Stainless Steel
Fiber type PM 1950 or SM1950
Fiber connectors FC/APC or Super FC/PC
Pigtailed length IN/OUT m 1
Input impedance Ω 50
V.S.W.R 1.2/1
RF Power (P) W 2.5
RF Connector SMA

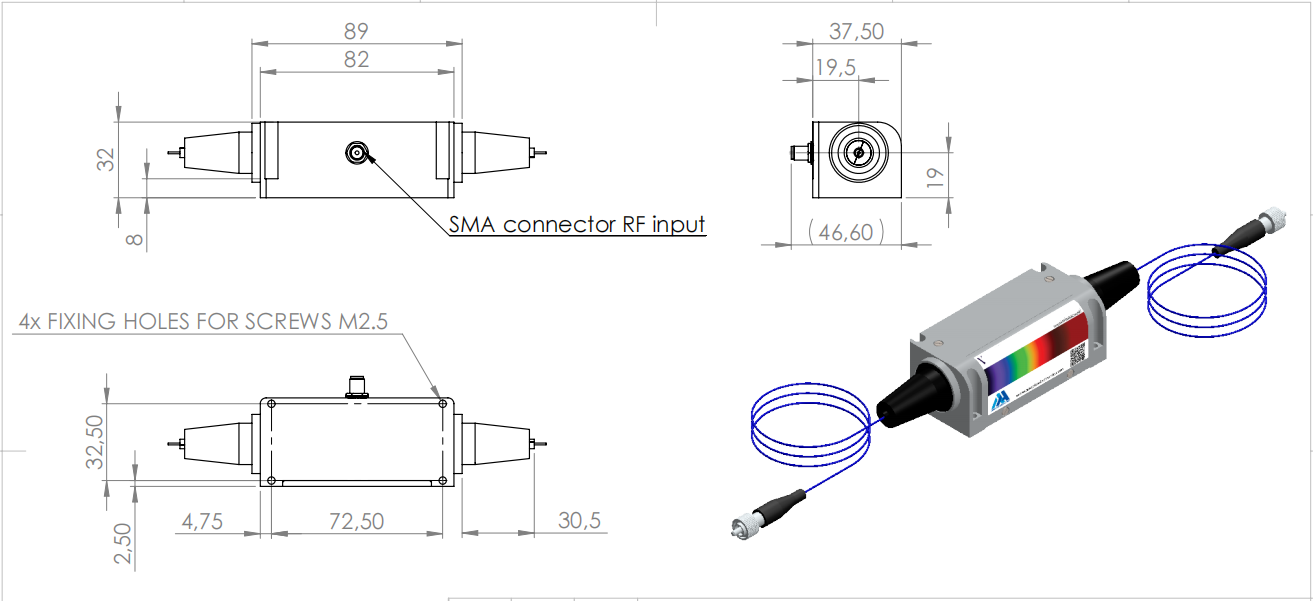

Size mm3 89 x 46.6 x 32.5
Weight g 250
Packaging IN PRO 334
RoHS Compliance Yes

Download Datasheet PDF for 1850nm Acousto optic modulators

1850nm – 2100nm acousto optic modulator
