single & dual stage fiber optical isolator WDM Hybrid Device for Fiber Amplifier

$54.32

SKU: 3578256018651 Category:

Description

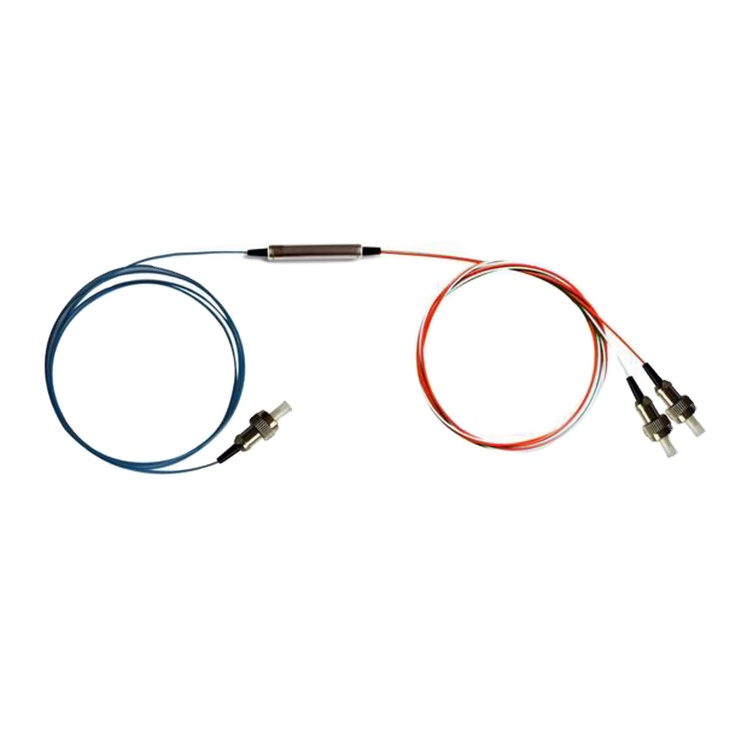

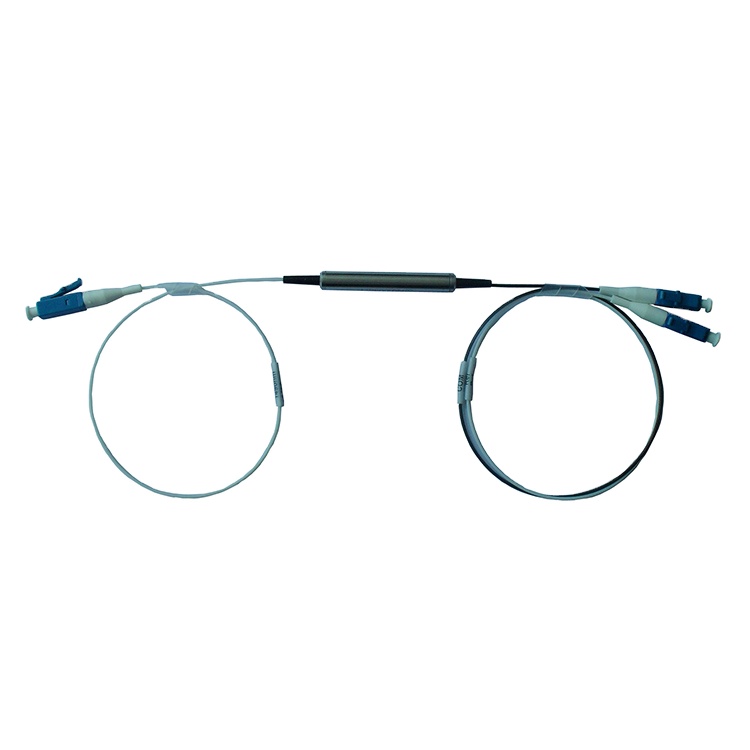

single stage/dual stage fiber optical isolator +wdm Hybrid Device for Fiber Amplifier



1. Description:

The IWDM is built based on isolator and thin film filter to fullfill hybrid isolator+WDM function in one single compact package, it includes two different confugration due to pump direction, “forward pump” and “backward pump”.



2. Features:

Wide Operating Wavelength

Low IL & PDL & High Isolation

High Stability and Reliability



3. Application:

Fiber Amplifier

Fiber optic Instrument

4. Specifications:

Parameters Unit 1480/1550 980/1550
Isolator Stage Single Stage Dual Stage Single Stage Dual Stage
Isolation dB 21 36 21 36
Insertion loss (Signal) dB 0.6 0.8 0.9 1.0
PMD ps 0.25 0.05 0.25 0.05
Signal wavelength range nm 1528~1565(C-band) 1528~1565(C-band)
Pump wavelength range nm 1450~1490 960~990
Insertion loss (Pump) dB 0.5 0.6
Transmitted Isolation (Pump) dB 30 30
Reflected Isolation (Signal) dB 15 15
PDL dB 0.10
WDL dB 0.3
Directivity dB 55
Return loss dB 50
Thermal stability dB/ 0.005
Power handling mW 500
Operating temperature 0 ~ +70
Storage Temperature -40 ~ +85
Package dimension mm 5.5 × 38
Fiber Type:( Common / Pump) SMF-28e Hi1060
Fiber Type (Signal)  SMF-28

Remark:

* Above specifications are for device without connector.

* For devices with connectors, please refer to patchcord spec., the “fiber length” is with connectors.

* Other WDM function can be customized.

5.Ordering lnformation:

PG- Stage Pump type Wavelength Pigtail type Package Connector Fiber length
S=single stage

D=dual stage

F=forward

Pump

B=backward

pump

1598=T15/R98

1514=T15/R14

etc

0=Bare fiber

1=0.9mm

Loose tube

2=2mm

3=3mm

S=specified

5.5x38mm FP=FC/PC

FA=FC/APC

SP=SC/PC

SA=SC/APC

etc

05=0.5m

08=0.8m

1=1m

10=10m









WDM (2).jpg





Additional information

Specification

dual stage fiber optical isolator +wdm Hybrid Device, single stage fiber optical isolator +wdm Hybrid Device
