Description
- Brand Name: JNLINK
- Origin: CN(Origin)
- Certification: CE
- Condition: New
- Model Number: LXW
- CNC or Not: CNC
- Application: Laser welding metal
- Name: laser welding machine
- Laser source: 1000w 1500w 2000w
- Wavelength: 1064nm
- Pulse WidtH: 0.1~20ms
- Observation system: 10 times microscope
- Cooling system: Water Cooling system
- Welding depth: 0.1mm-3mm

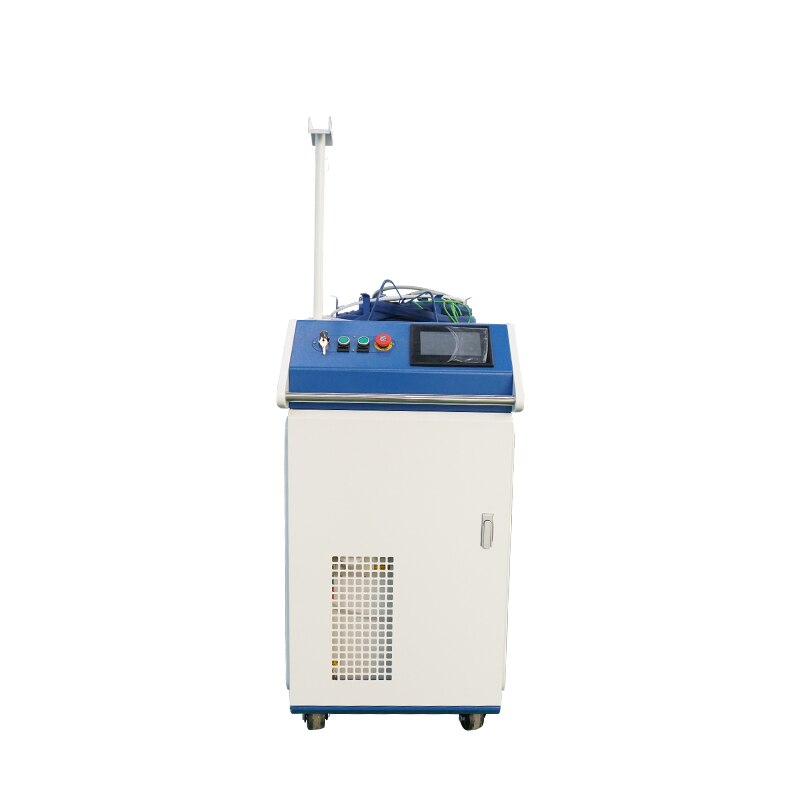

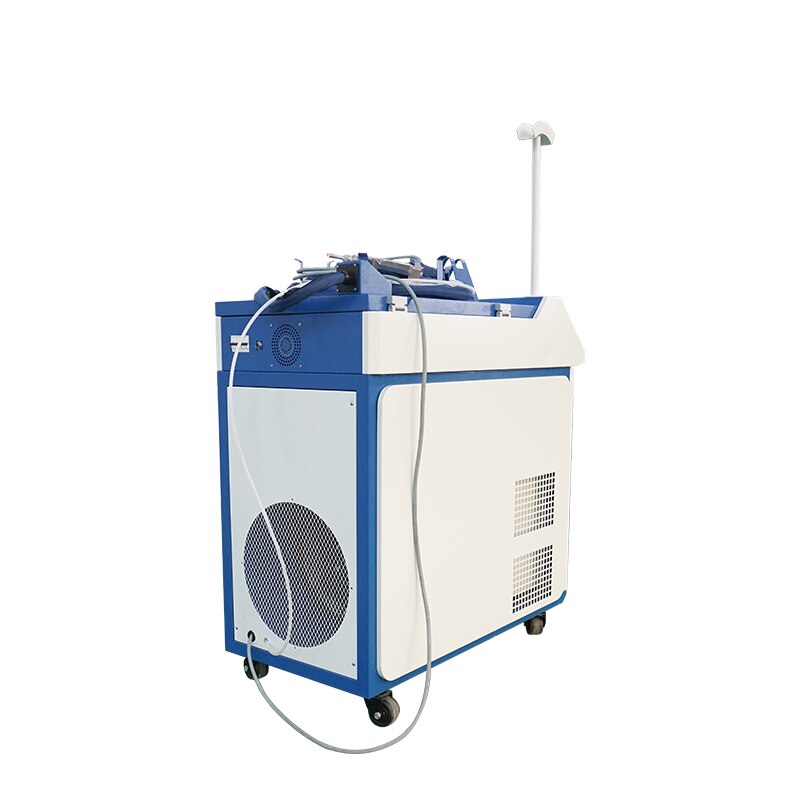

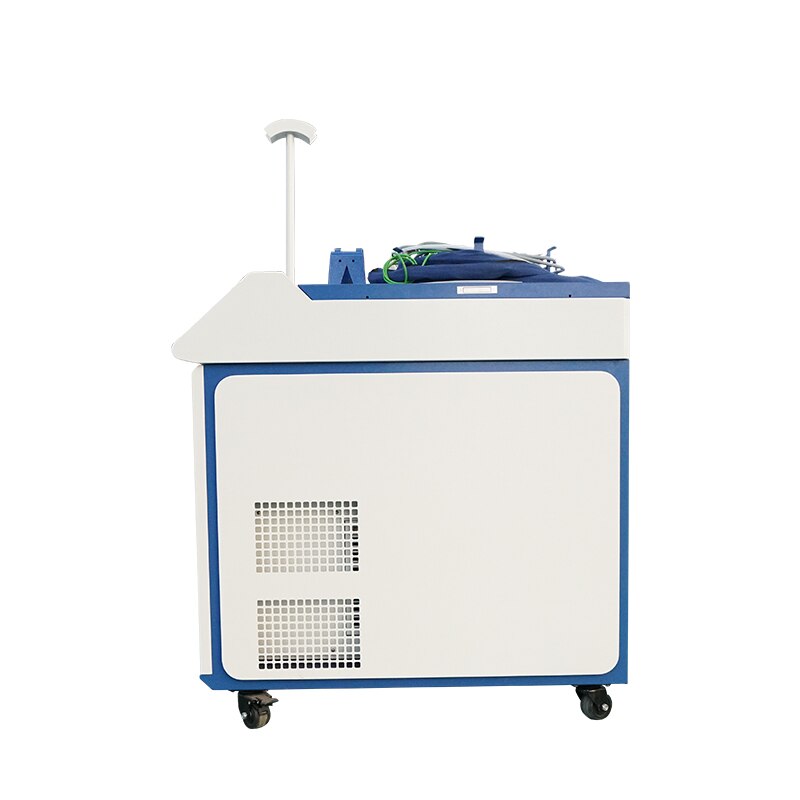

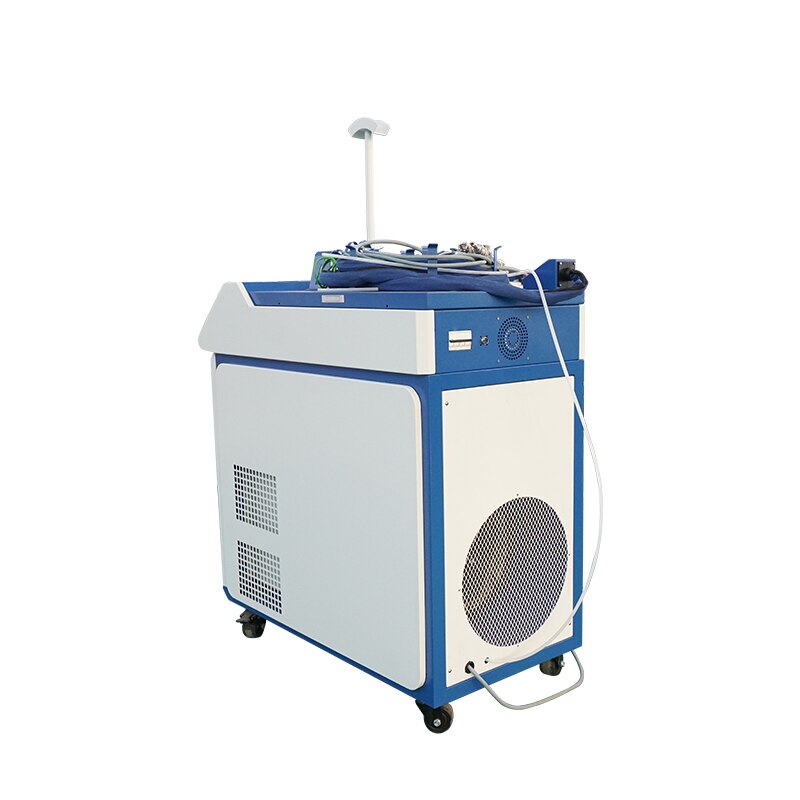

Fiber laser welder Raycus 1000w 2000w metal welding
![](https://www.laserse.com/wp-content/uploads/2021/07/H6c32573ac41a496580bfbdd83d33616d8.jpg)
![](https://www.laserse.com/wp-content/uploads/2021/07/H4706f2e09693462d8f10b4b2bcaf83d7w.jpg)
![](https://www.laserse.com/wp-content/uploads/2021/07/Ha0c0b4b9f4ff4d9dbaba691d6e67bf254.jpg)
Technologie Parameter
Laser power
|
LXW-1000 W
|
Center wavelength
|
1080±5nm
|
Ausgang power stabilität
|
<2%
|
Laser frequenz
|
50Hz-5 KHz
|
Adjustable power range
|
5-95%
|
Beam quality
|
1.3m²
|
Optimal operating environment
|
Temperature 10-35 ° C, humidity 20% -80%
|
Power supply
|
380V±10%/50Hz
|
Fiber optical length
|
10m
|
Cooling method
|
Water Cooling 1P
|
Application materials:
|
Carbon steel, stainless steel, galvanized sheet etc.
|
Working mode:Continuously
|
Continuously
|
Kühlung wasser temperatur
|
20-25° C
|
Power Consumption
|
6KW
|
Application
This machine is suitable for welding gold, silver, titanium, nickel, tin, copper, aluminum and other metal and its alloy material, can achieve the same precision welding between metal and dissimilar metals, has been widely used in aerospace equipment, shipbuilding, instrumentation , mechanical and electrical products, automotive and other industries.

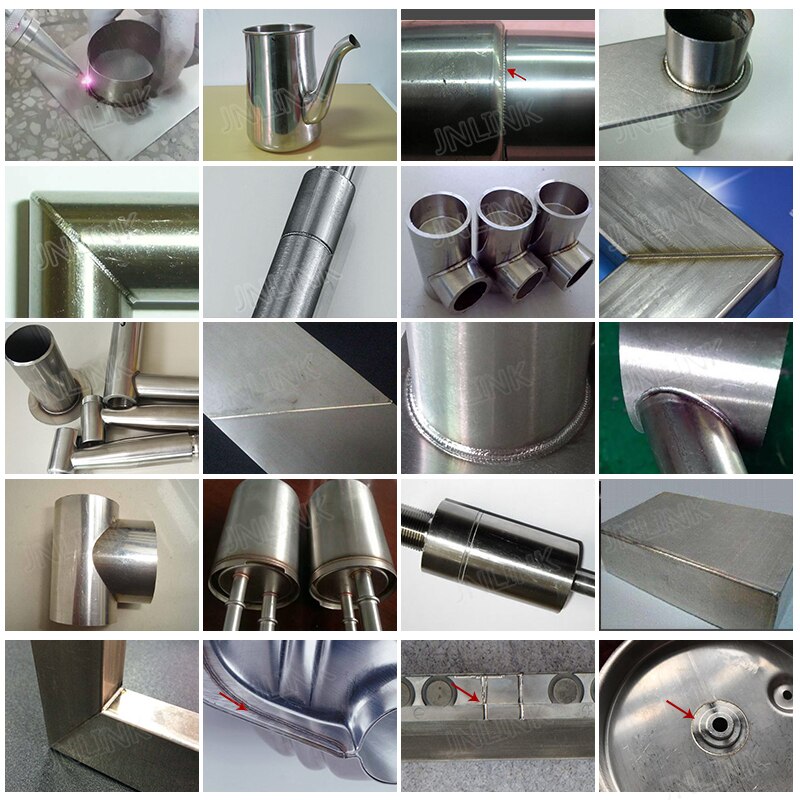

Sample
![](https://sc01.alicdn.com/kf/HTB1m88WXhD1gK0jSZFKq6AJrVXa7/234203290/HTB1m88WXhD1gK0jSZFKq6AJrVXa7.jpg_.webp)
![](https://www.laserse.com/wp-content/uploads/2021/07/H0a6395573c414d7f9923dd15d6fc5b861.jpg)
Character
1. The energy density is high, the heat input is low, the amount of thermal deformation is small, and the melting zone and the heat-affected zone are narrow and deep.
2. High cooling rate which can sweat fine sweat structure and good joint performance.
3. Compared with contact welding, laser welding eliminates the need for electrodes, reducing daily
Maintenance costs and greatly increasing work efficiency.
4. The weld seam is thin, the penetration depth is large, the cone is small, the precision is high
Appearance is smooth, flat and beautiful.
5. No consumption, small size, flexible processing, low operating and maintenance costs.
6. The laser is transmitted through fiber optics and can be used in conjunction with a pipeline or robot.
Configuration
Laser Source:
![](https://www.laserse.com/wp-content/uploads/2021/07/H88ebf5a28df64d19b73631485e581164f.jpg)
Controller Screen:
![](https://www.laserse.com/wp-content/uploads/2021/07/Hc12fdbd17c9340c0a2c94bf46e8021072.jpg)
Water Chiller:
![](https://www.laserse.com/wp-content/uploads/2021/07/H5b6df1f496274ed092f260e6657424e5F.jpg)
Laser Welding Head:
![](https://www.laserse.com/wp-content/uploads/2021/07/Hb8282522bb3647ec8414311414cf52f7S.jpg)
![](https://www.laserse.com/wp-content/uploads/2021/07/H50a2b544d67340e58b440918cd545bcem.jpg)
Company Information
![](https://sc01.alicdn.com/kf/HTB1rLRIXa61gK0jSZFlq6xDKFXaA/234203290/HTB1rLRIXa61gK0jSZFlq6xDKFXaA.jpg_.webp)
Jinan Link Manufacture and Trading CO.,LTD
Is founded in July 2004, owns more than 500 square meters of exploration and office space,
More than 32000 square meters of factory. All machines, the European Union CE authentication, American FDA certificate and are certified to ISO 9001. Products are sold to USA, Canada, Australia, Europe, Southeast Asia, Africa etc, more than 120 countries and areas, and supply OEM service for more than 30 produced.
Our products includes all kind of:
1. Laser welding machine
2.CNC knife cutting machine
3. Laser marking machine (Fiber / CO2 / UV / Green light).
4. Fiber cutting machine and so on.
We can also provide customers with non-standard support equipment as your detailed work requirements.
Package & Shipping
![](https://sc01.alicdn.com/kf/HTB1OzMfc9WD3KVjSZSgq6ACxVXav/234203290/HTB1OzMfc9WD3KVjSZSgq6ACxVXav.jpg_.webp)
FAQ:
Q1: How about warranty?
A1: 2 years quality guarantee, the machine with main parts (excluding the consumables) can be modified for free (some parts will be respected) if if any problem during the guarantee period.
Q2: 2 I don’t know which one is suitable for me?
A2: Please tell me
1) YOur materials.
2) The thickness of the materials.
3) Size of welding line.
Q3: Terms of payment?
A3: Alibaba business assurance / TT / West Union / Payple / LC / Cash and so on.
Q4: Do you have CE document and other documents for customs clearance?
A4: Yes, we have originals. At first we will show you and and after shipment we will give you CE / Packing List / Commercial Invoice / Sales contract for customs clearance.
Q5: I don’t know how to use after i receive Or i have problem while use how to do?
A5:
1) We have detailed user manual with pictures and CD, you can learn step by step. and our user manual.
Update every month for your easy learning when there is any update on machine.
2) If have any problem while using, you need our technician to judge
The problem elsewhere will be solved by us. We can provide team viewer
/ Whatsapp / E-mail / Phone / Skype with cam until all your problems are finished. we can also offer door service if you need.
![](https://www.laserse.com/wp-content/uploads/2021/07/H3e6ae88f30444946aec086c5097174db7.jpg)
